Advance Tabco SLC-83C-L Underbar Basics™ Bar Equipment
Description

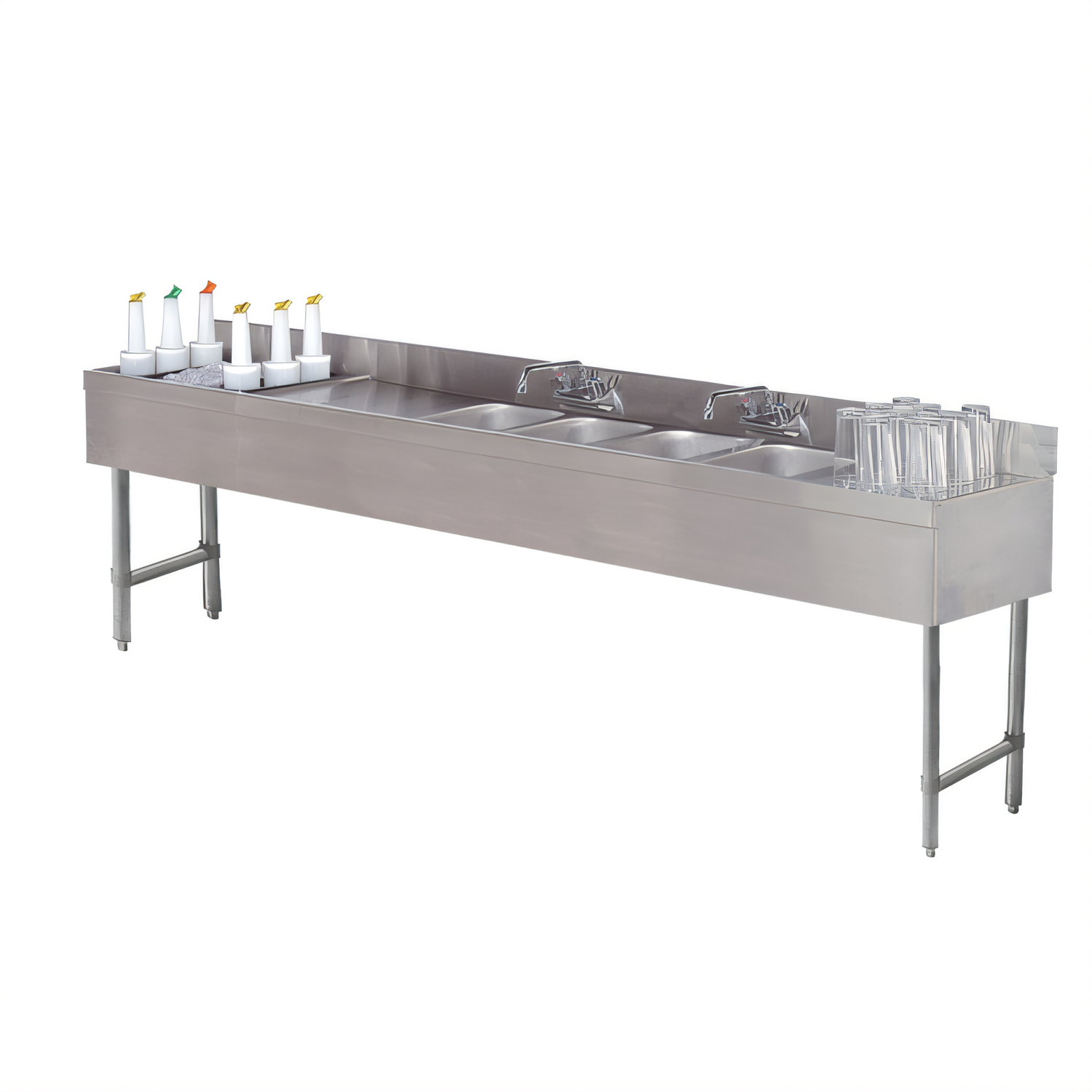

Underbar Basics™ 96" Combination Bar Sink & Ice Bin
Model SLC-83C-L – 3-Compartment, Left-Side Ice Bin, Dual 18" DrainboardsPurpose-built for busy bars, restaurants and tasting rooms, the Advance Tabco Underbar Basics™ combo unit unites three deep-drawn sink bowls, generous drainboard space and a fully insulated ice bin in one rugged, space-saving workstation.
Why You’ll Love It
- All-in-one workflow: wash, rinse, sanitize and ice service without leaving the station.

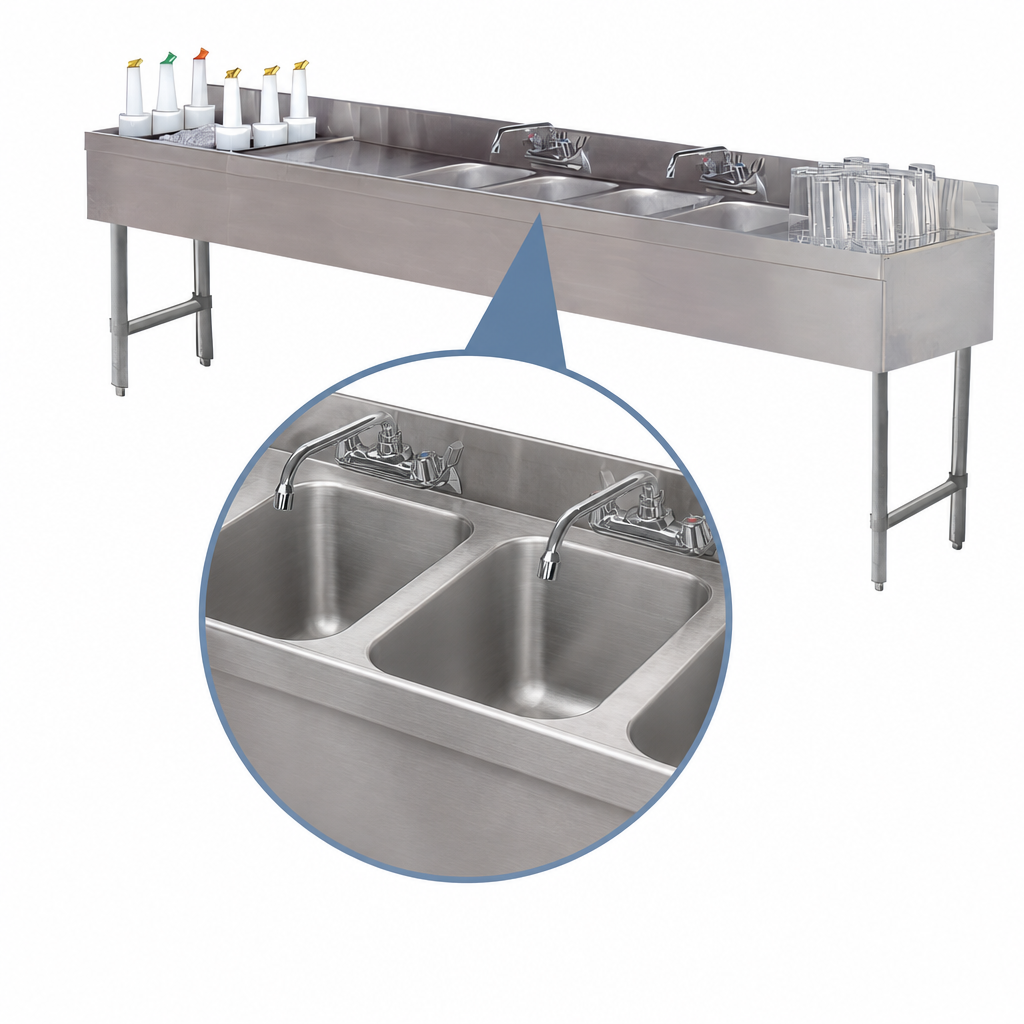

- Deep-drawn, seamless 10"-deep bowls resist splashing and speed clean-ups.

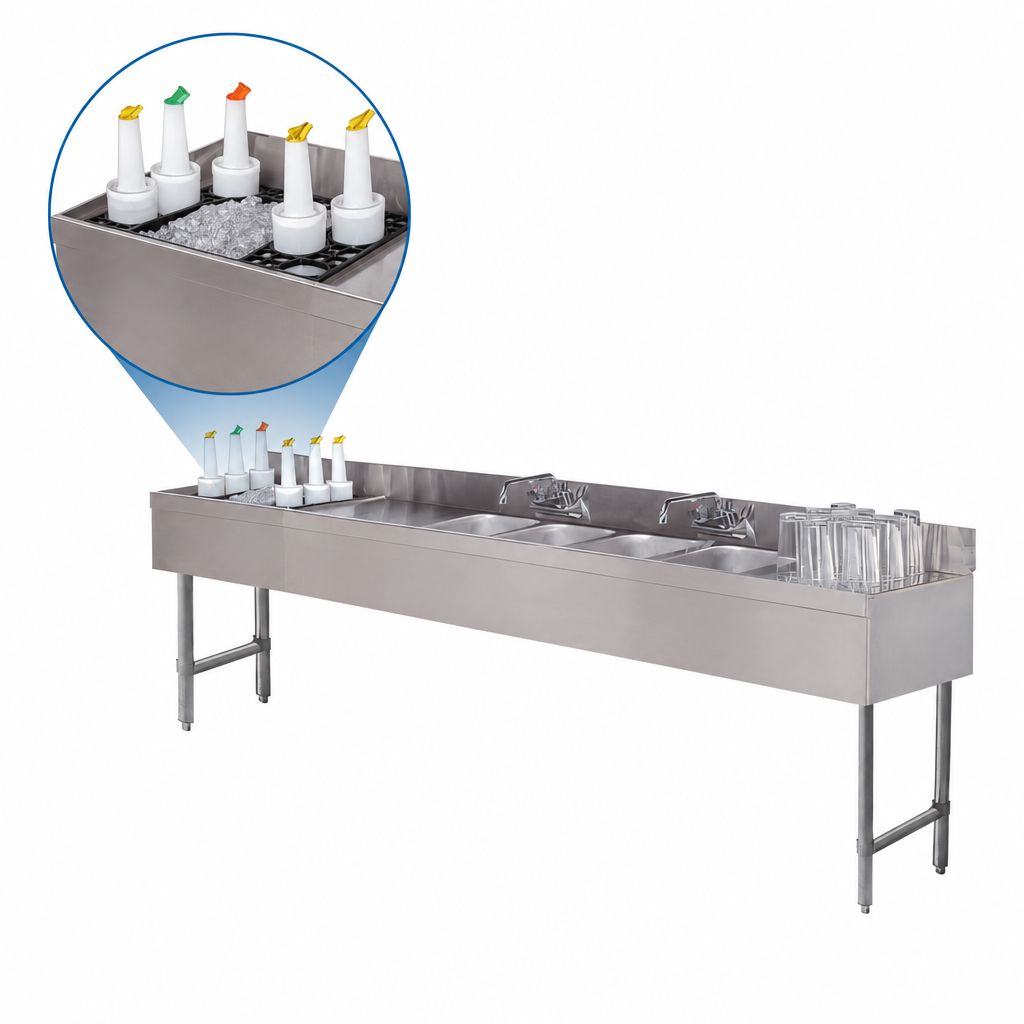

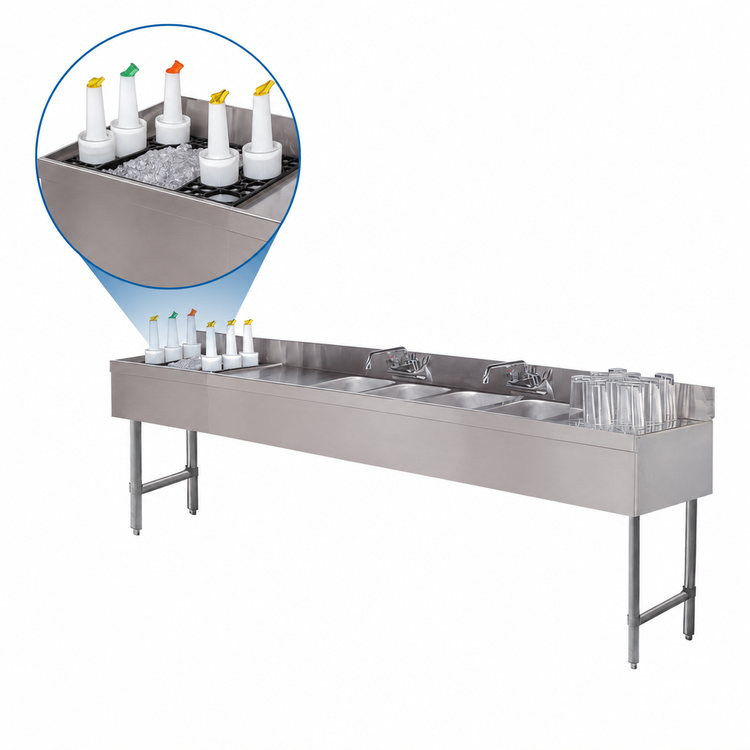

- 54 lb ice bin with two removable bottle racks keeps mixers and garnishes ice-cold.
- 18" left & right drainboards offer plenty of landing room for glassware.
- One 10" splash-mount swing spout faucet included – NSF lead-free compliant.
- Heavy-duty stainless steel top, drainboards & bowls for long-term corrosion resistance.
- Galvanized legs with front-to-back cross rails and adjustable bullet feet for rock-solid support.
- Fully factory-assembled and NSF certified – install and start pouring.
Product Specifications
| Overall dimensions | 96" W × 18" D × 33" H (to work surface) |
|---|---|
| Backsplash height | 4" |
| Sink bowls | Three – 10" W × 14" D × 10" H (deep-drawn, seamless) |
| Drainboards | Two – 18" W (embossed, seamless) |
| Ice bin | 24" W × 15" D × 8" H, 54 lb capacity, left side (2 removable plastic bottle racks) |
| Faucet | 10" swing-spout, 4" OC, splash-mount (lead-free) |
| Construction | 20 ga 300-series stainless steel top, bowls & drainboards; 22 ga 300-series stainless front apron & backsplash; 20 ga 430-series stainless sides |
| Understructure | Galvanized leg channel with front-to-back cross rails |
| Legs & feet | 1 5⁄8" OD galvanized steel legs, adjustable plastic bullet feet |
| Drain connections | Sink bowls: 1 1⁄2" IPS with 9" overflow pipes Ice bin: 1" IPS |
| Certification | NSF |
| Approx. shipping weight | 201 lb |
At-a-Glance Installation
- Ships fully welded – simply level the feet, connect water & drains, and you’re operational.
- 4" backsplash includes pre-punched holes for the included faucet.
- Compatible with optional wrist handles (Advance Tabco K-316-LU) and speed rails (SU-40).
Need a right-hand ice bin or custom accessories? Contact us for quick quotes on any Advance Tabco Smart Fabrication™ options.
