Advance Tabco  |  Underbar Basics™  |  SKU: SLC-73C-R  |  UPC: 747545191045

Advance Tabco SLC-73C-R Underbar Basics™ Bar Equipment

$1,740.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

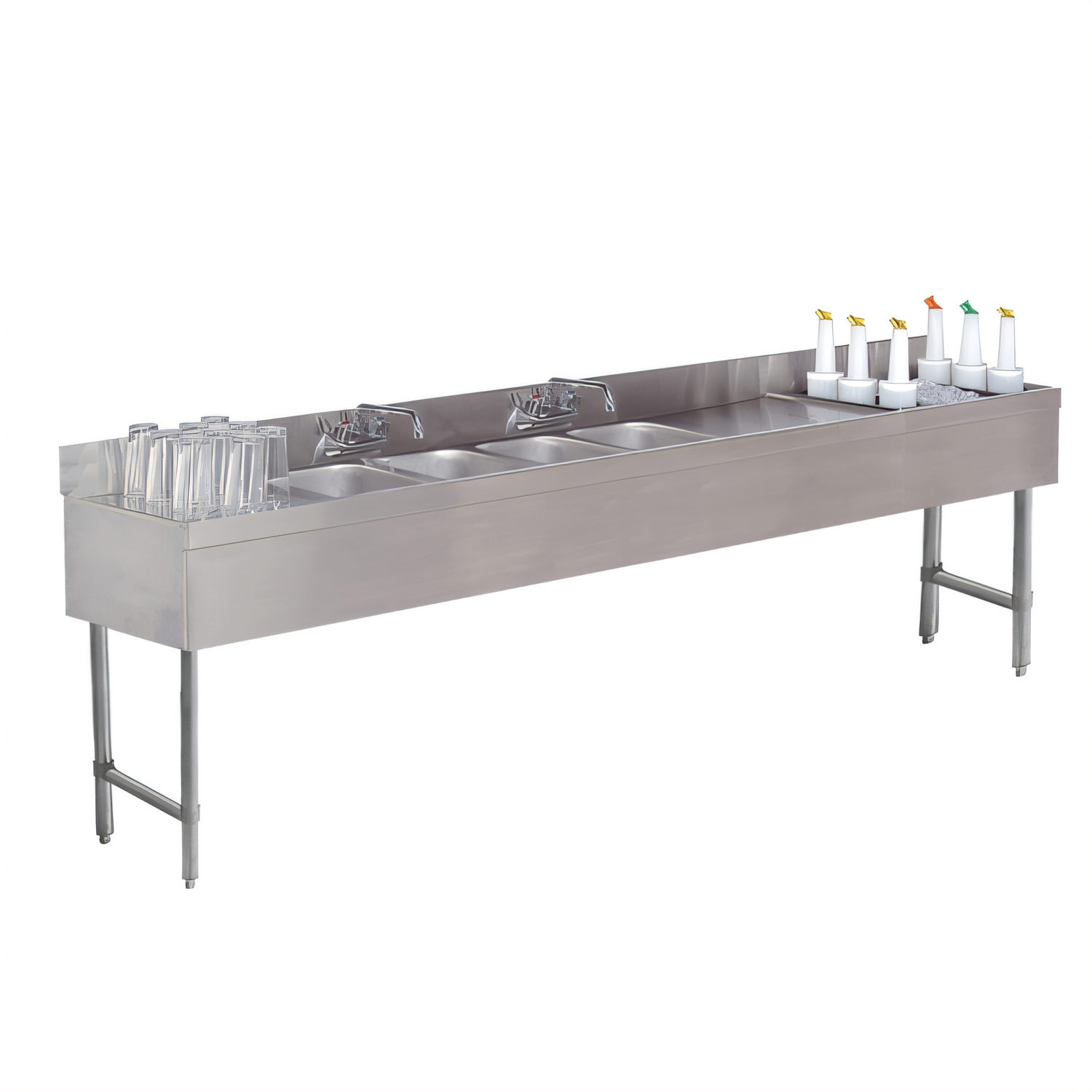

Underbar Basics™ 84" Combination Sink & Ice Bin – Right-Side Ice Bin

Advance Tabco Model SLC-73C-R • 3-Compartment Bar Sink • NSF Listed

Consolidate rinsing, washing, and drink prep into one rugged underbar workstation. The Underbar Basics™ 84" combo unit pairs deep drawn sink bowls with an insulated ice bin and twin drainboards—keeping glassware turnover fast and bartenders moving.

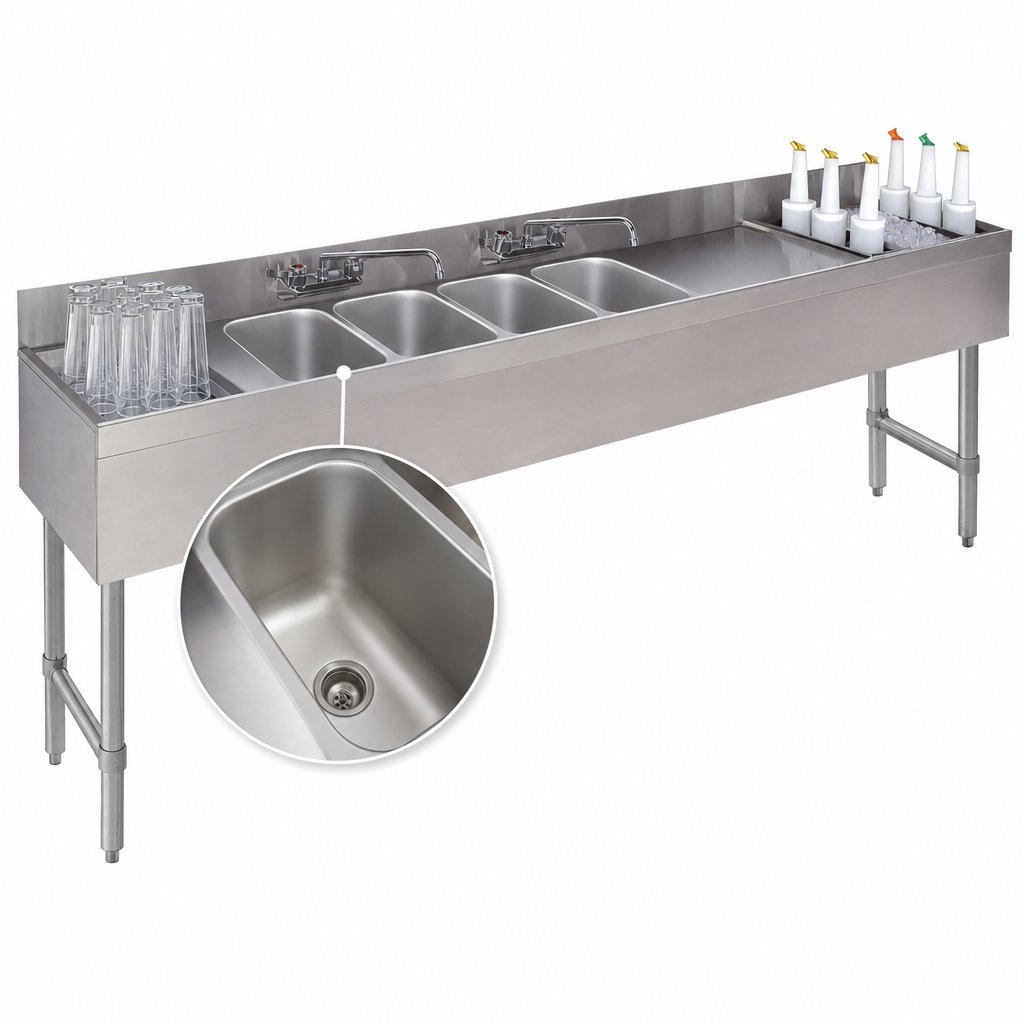

  • (3) Seamless 10" × 14" × 10" sink bowls for wash, rinse & sanitize.
  • Splash-mount faucet with a 10" swing spout (4" on-center) included.

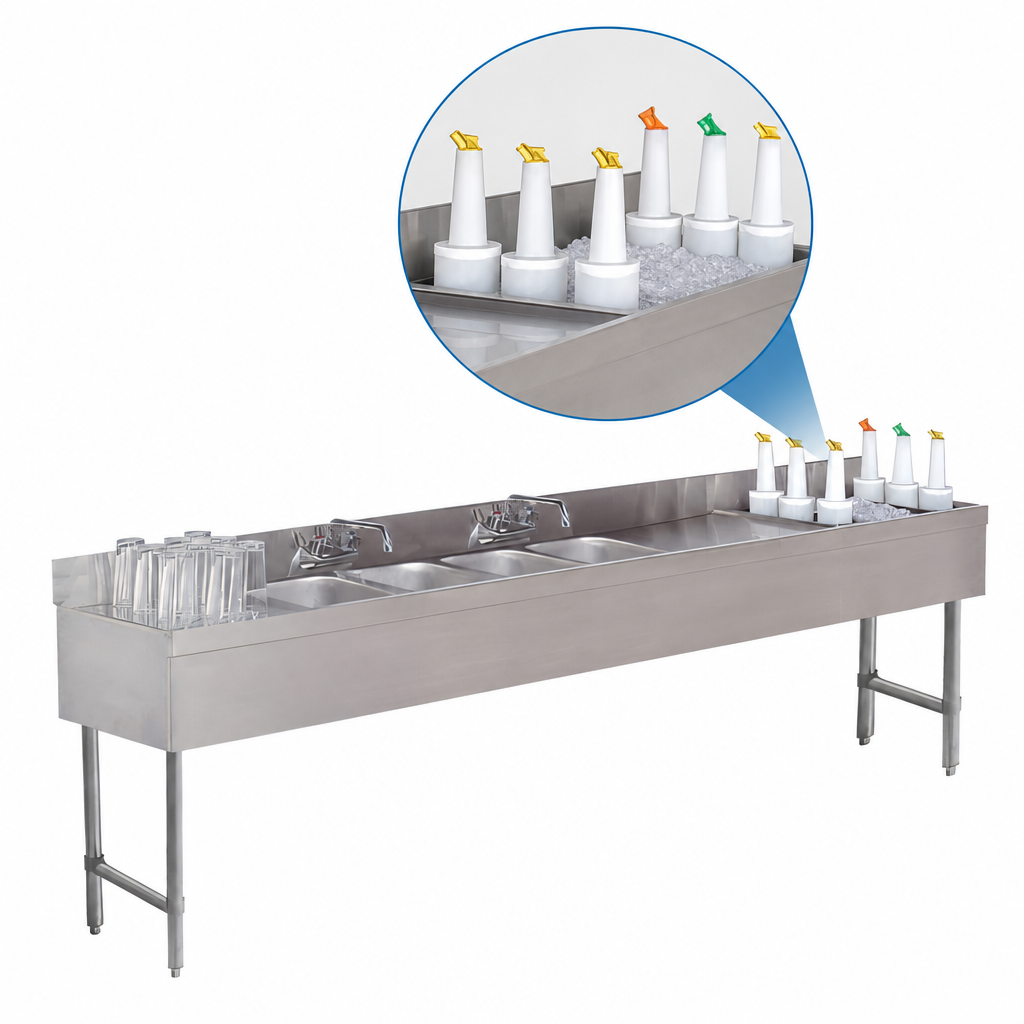

  • 24" × 15" × 8" insulated ice bin holds up to 54 lbs of ice.

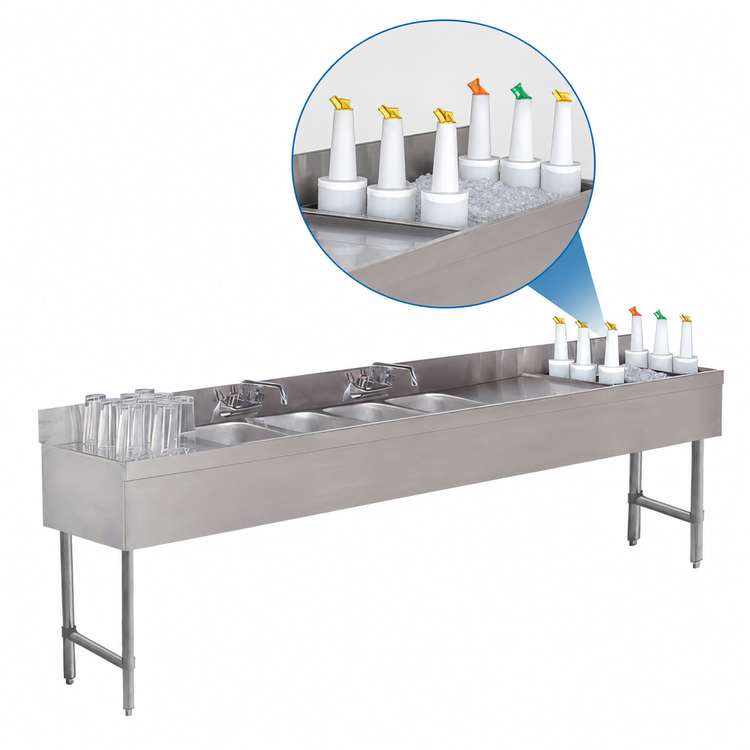

  • (2) Removable plastic bottle racks keep juices & mixers organized.
  • Embossed 12" drainboards on both left & right speed up drying.
  • 20 ga 300-series stainless steel working surfaces resist corrosion.
  • Heavy-duty 1 5⁄8" OD galvanized legs with cross rails & bullet feet.
  • 9" overflow pipes and 1 ¹⁄₂" IPS drains in every sink compartment.
  • NSF compliant & lead-free faucet for worry-free code approvals.

Engineered for High-Volume Bars

Deep drawn bowls eliminate hard-to-clean seams, while a one-piece molded apron and 4" backsplash contain splashes to keep your bar face spotless. Two-pound-density foam insulation surrounds the ice chest, holding ice longer on busy nights. Adjustable side cross-bracing lets you square the unit perfectly to uneven floors.

Specifications

Overall Width 84"
Front-to-Back Depth 18"
Working Height 33" (to work surface)
Backsplash Height 4"
Sink Compartments (3) 10" W × 14" D × 10" H
Drainboards 12" L (left) & 12" L (right)
Ice Bin 24" W × 15" D × 8" H, 54 lb capacity, 1" IPS drain
Faucet 10" swing spout, splash-mount, 4" OC, lead-free
Material – Bowls/Drainboards 20 ga 300 series stainless steel
Material – Apron/Backsplash 22 ga 300 series stainless steel
Material – Sides 20 ga 430 stainless steel
Legs 1 5⁄8" OD, 18 ga galvanized steel, adjustable bullet feet
Approx. Shipping Weight 153 lbs
Certifications NSF, Lead-Free Faucet

Ships fully assembled. Field connection to 1 ¹⁄₂" sink drains and 1" ice bin drain required.

California Proposition 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit the P65 warnings website.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

84.0in

Depth

18.0in

Shipping Weight

185.0lbs

Width (side - side) OA

79" - 84"

Components (left to right)

drainboard, (3) sinks, drainboard, ice bin

Splash

4"

Sink Compartments

(3)

Depth (front - back) OA

18" - 19"

Construction

stainless steel & galvanized

Specifications

Underbar Basics™ Combination Unit, 84"W x 18"D x 33"H (overall), with 4"H backsplash, includes: (3) 10"W x 14"D x 10" deep sink bowls with (1) 10" spout splash mounted faucet, 12"W left & right drainboards, 24"W x 15"D x 8" deep ice bin (54 lbs capacity) with (2) removable plastic bottle racks on right side, stainless steel construction, galvanized legs with front-to-back cross rails & adjustable bullet feet, NSF
