Advance Tabco SLC-73C-L Underbar Basics™ Bar Equipment
Description

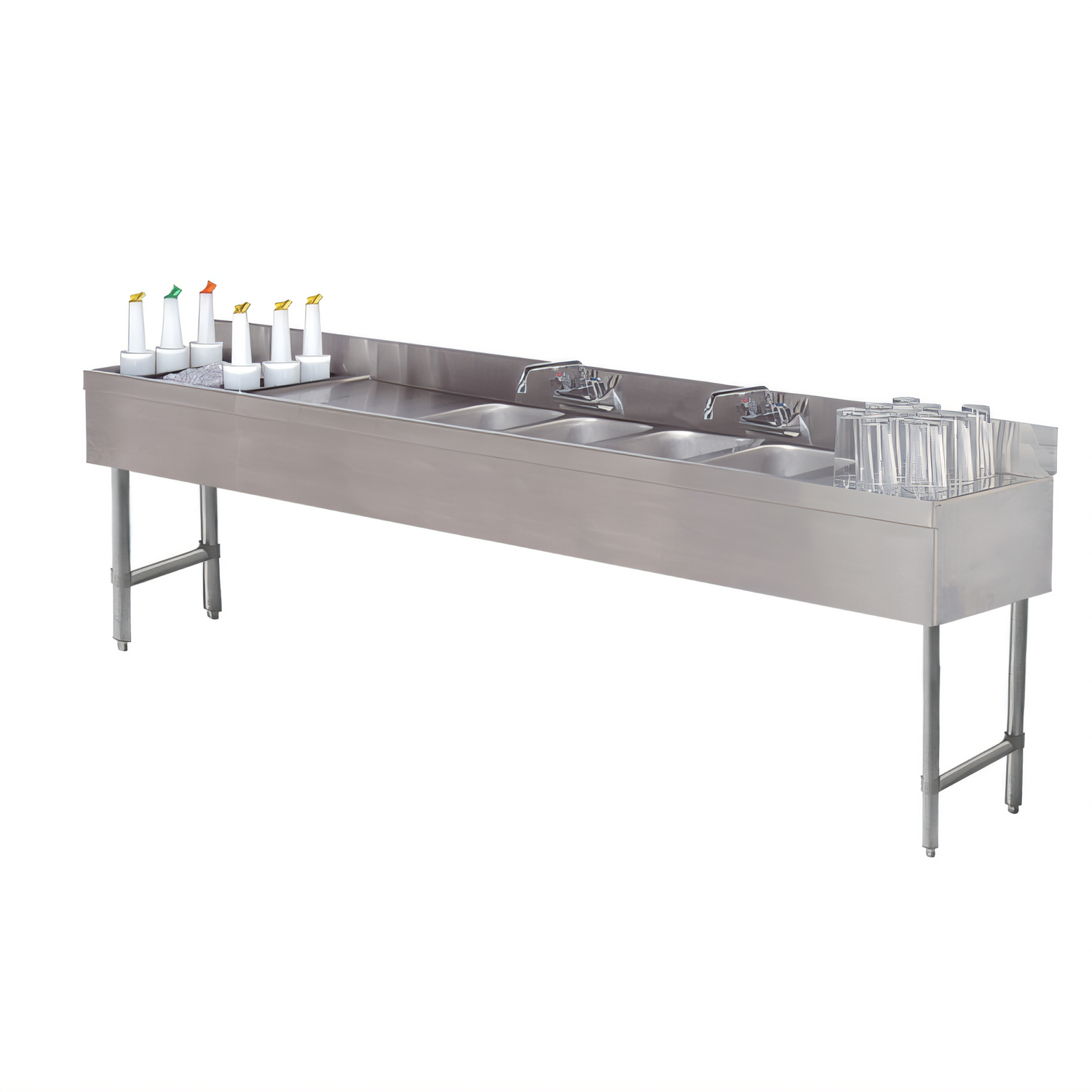

Advance Tabco Underbar Basics™ 84" Bar Sink & Ice Bin Combo
18" Deep • Left-Hand Ice Bin • 3-Compartment Sink – Model SLC-73C-LConsolidate your bar ware-washing and ice service into one rugged, space-saving station. The Underbar Basics™ combination unit pairs three deep-drawn sink bowls, dual drainboards and an insulated 54 lb ice bin—everything you need behind the bar, all in just 84 inches.
Key Features

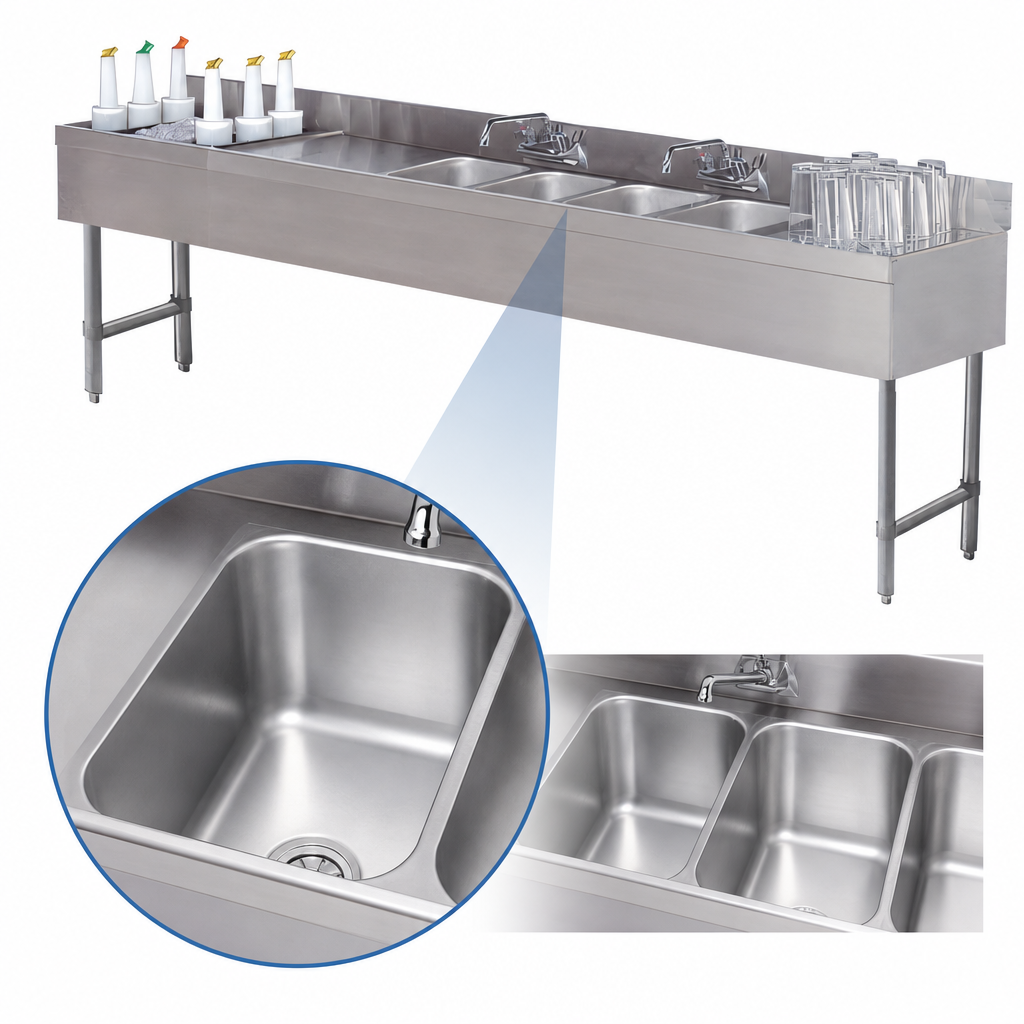

- (3) seamless 10" × 14" × 10" sink bowls for wash, rinse & sanitize cycles.

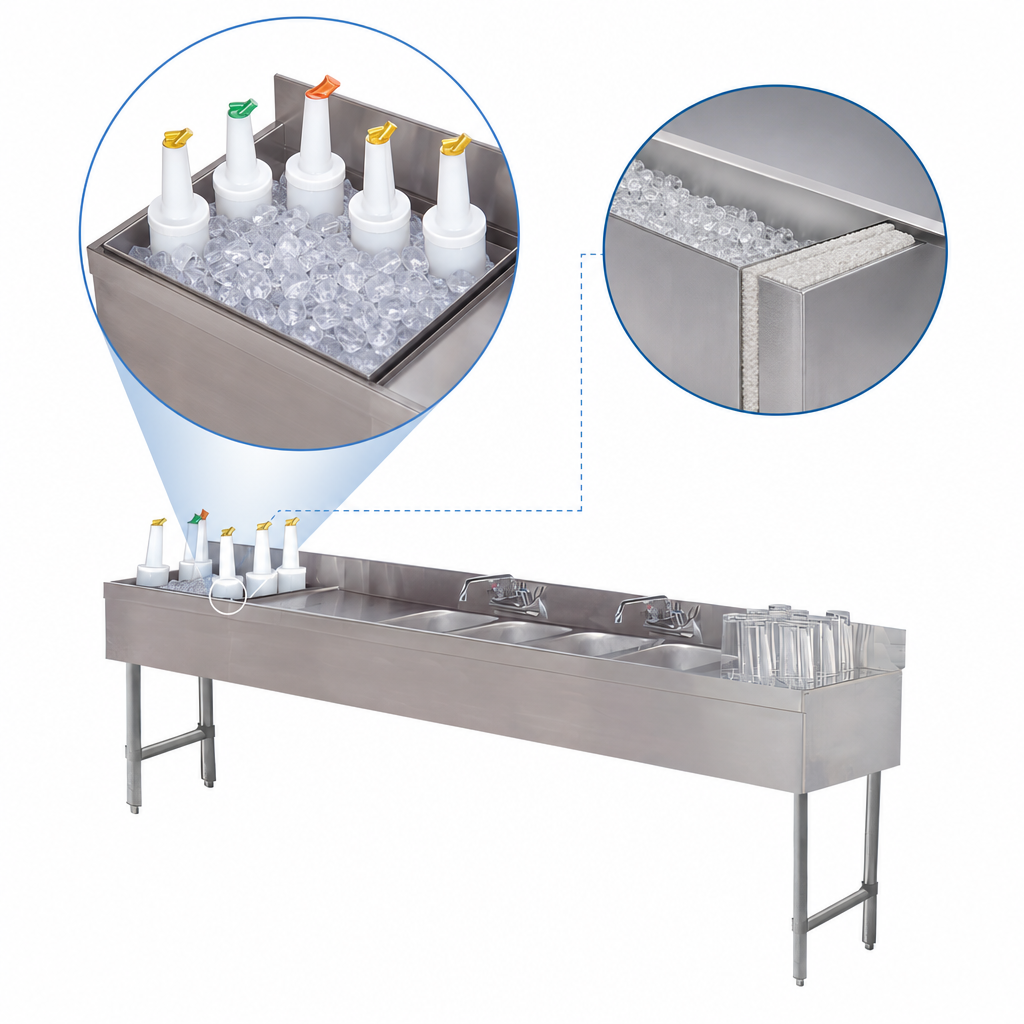

- 24" × 15" × 8" left-side ice bin holds 54 lb and includes (2) removable bottle racks.
- 12" embossed drainboards on both the left & right keep glassware organized and elevated.
- 4" integrated backsplash contains splashes and simplifies cleanup.
- Splash-mount faucet with 4" centers & 10" swing spout meets NSF/lead-free requirements.
- 20 ga 300 series stainless steel bowls & drainboards resist corrosion and stay looking new.
- Galvanized 1 5⁄8" O.D. legs with front-to-back cross rails and adjustable bullet feet for rock-solid stability.
- Factory-installed 1 ½" IPS sink drains with 9" overflow standpipes and 1" IPS ice bin drain.
Specifications
| Overall width | 84" (2134 mm) |
|---|---|
| Overall depth | 18" (457 mm) |
| Working height | 33" (838 mm) deck height / 37" (940 mm) to top of backsplash |
| Sink bowls | (3) 10" W × 14" D × 10" H |
| Drainboards | 12" left & 12" right, embossed & seamless |
| Ice bin | 24" W × 15" D × 8" H, 54 lb capacity, 2 lb density insulation |
| Faucet | Splash-mount, 4" O.C., 10" swing spout (lead-free) |
| Material – bowls & drainboards | 20 ga 300 stainless steel |
| Material – front apron & backsplash | 22 ga 300 stainless steel |
| Material – sides | 20 ga 430 stainless steel |
| Legs | 1 5⁄8" O.D. 18 ga galvanized steel, adjustable plastic bullet feet |
| Cross rails | Galvanized, front-to-back |
| Certifications | NSF Listed; faucet conforms to NSF 61/9 lead-free requirements |
Ideal For
- Full-service bars & nightclubs
- Hotel lounges, pool bars & banquet facilities
- Craft breweries, taprooms & tasting rooms
- Catering operations needing a portable underbar solution
Looking for a right-hand ice bin, speed rail or side splashes? Contact us for factory-installed options and accessories.
