Advance Tabco

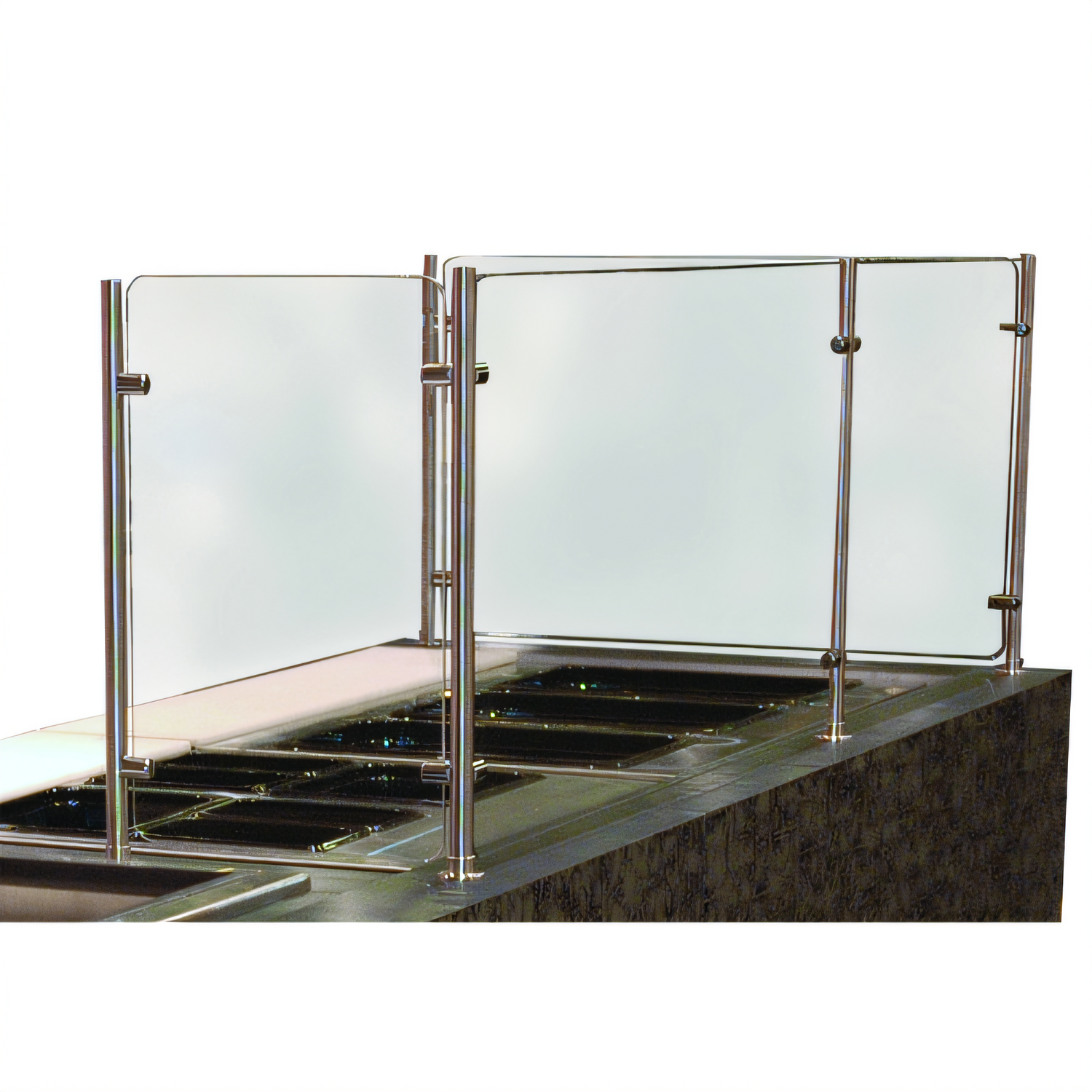

Advance Tabco 132-Inch Vertical Full-Service Stainless Steel Food Shield with Heat-Tempered Glass

SKU: SGCC-132
GTIN: 747545200884
$6,542.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Food Bar Accessories Food Bar Tray Slides & End Shelves General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts Stainless Steel Shelving Storage & Shelving

Advance Tabco 132-Inch Vertical Full-Service Stainless Steel Food Shield with Heat-Tempered Glass

Counter-Mounted Sneeze Guard, 24-Inch Standard Front Glass Height

Protect your serving line with a durable stainless steel food shield built for full-service counters and tempered-glass visibility.

  • 132-inch wide vertical food shield designed for full-service food bars and serving counters.
  • Stainless steel tubular frame with 3/8-inch heat-tempered front glass and 1/4-inch heat-tempered side panels.
  • Includes two glass side panels and standard concealed mounting hardware.
  • Brass expander table mounting hardware is included for traditional undermount installation on 1-inch tubing.
  • NSF installation guidance calls for a 60-inch minimum glass height above the floor and a 6-inch maximum clearance above the work surface.
  • Side shields are required for stability; if side shields are not used, posts must extend through the countertop.

Overall Dimensions:

132.0"W x 18.0"D x 24.0"H

Product Weight:

451.0 lb

Heat-Tempered Front Glass

Uses 3/8-inch thick heat-tempered front glass for durability and clear visibility.

Heat-Tempered Side Panels

Includes two 1/4-inch thick glass side panels to help contain the serving area.

Stainless Steel Tubing Frame

Built with 1-inch stainless steel tubing with end caps.

Concealed Mounting Hardware

Standard concealed mounting hardware is included.

Undermount Hardware Included

Brass expander table mounting hardware is included for traditional undermount installation with 1-inch tubing.

TIG-Welded Construction

All TIG welded for strength and durability.

Stability Requirements

Side shields are required for stability; if side shields are not used, posts must extend through the countertop.

NSF Clearance Guidance

Top of glass must be at least 60 inches above the finished floor and no more than 6 inches above the work surface.

Installation Notes

Requires an Allen wrench for installation; not included.

Countertop Fit

For traditional undermount installation, the countertop may be up to 1 3/4 inches thick and requires a 3/8-inch hole in the tabletop.

Center Support Note

Glass panels over 66 inches require center support posts.

Type Food Shield
Style Vertical
Service Full-Service
Installation Type Countertop
Material Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a 132-inch wide vertical food shield for full-service serving counters and food bars.
It uses 3/8-inch heat-tempered front glass and 1/4-inch heat-tempered side panels.
Standard concealed mounting hardware is included, along with brass expander table mounting hardware for traditional undermount installation.
The document states that the top of the glass must be at least 60 inches above the finished floor and no more than 6 inches above the work surface.
Yes. Side shields are required for stability, and glass panels over 66 inches require center support posts. An Allen wrench is also required and not included.
No. The document states that all food shields are non-stock special order items and may not be canceled once ordered.
