Advance Tabco PT-18R-144 Stainless Steel Shelving
Advance Tabco PT-18R-144 Stainless Steel Shelving is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Advance Tabco 144" x 18" Stainless Steel Table-Mounted Overshelf – Rear Mount
Model PT-18R-144 | Single Shelf | Adjustable HeightInstantly add a full 18 inches of depth and 12 feet of width in overhead storage without giving up valuable prep space below. Part of Advance Tabco’s Mix & Match Adjustable Solution line, the PT-18R-144 rear-mounted overshelf transforms any compatible 144" work table into a highly efficient, organized workstation.
Key Features
- 18" deep stainless steel shelf delivers generous storage for pans, ingredients and smallwares.
- Rolled front rim, square ends and a 1 1/2" rear splash keep contents secure and walls clean.
- Height-adjustable along rugged 1 5/8" Ø tubular stainless steel uprights— lock in place with gusset-type set screws.
- Rear-mount design positions uprights flush to the table’s back edge, preserving the entire work surface.
- Single-post construction requires only one penetration through the tabletop, maximizing usable space.
- TIG-welded and polished for exceptional rigidity, corrosion resistance and easy sanitation.
- Modular system—retrofit a pot or utensil rack later without replacing the shelf.
Specifications
Shelf size (W × D) | 144" × 18" (365.8 cm × 45.7 cm) |
---|---|
Mounting style | Rear table mount (TA-229 assembly, factory installed) |
Number of shelves | 1 |
Material | All stainless steel shelf, uprights, gussets & hardware |
Upright diameter | 1 5/8" (41 mm) |
Recommended shelf height | Adjustable up to 60" A.F.F. (above finished floor) |
Rear splash height | 1 1/2" (38 mm) |
Approx. weight | 43 lb (19.5 kg) |
Compatible tables | Advance Tabco 144" flat-top or splash-top work tables (open-base or undershelf models) |

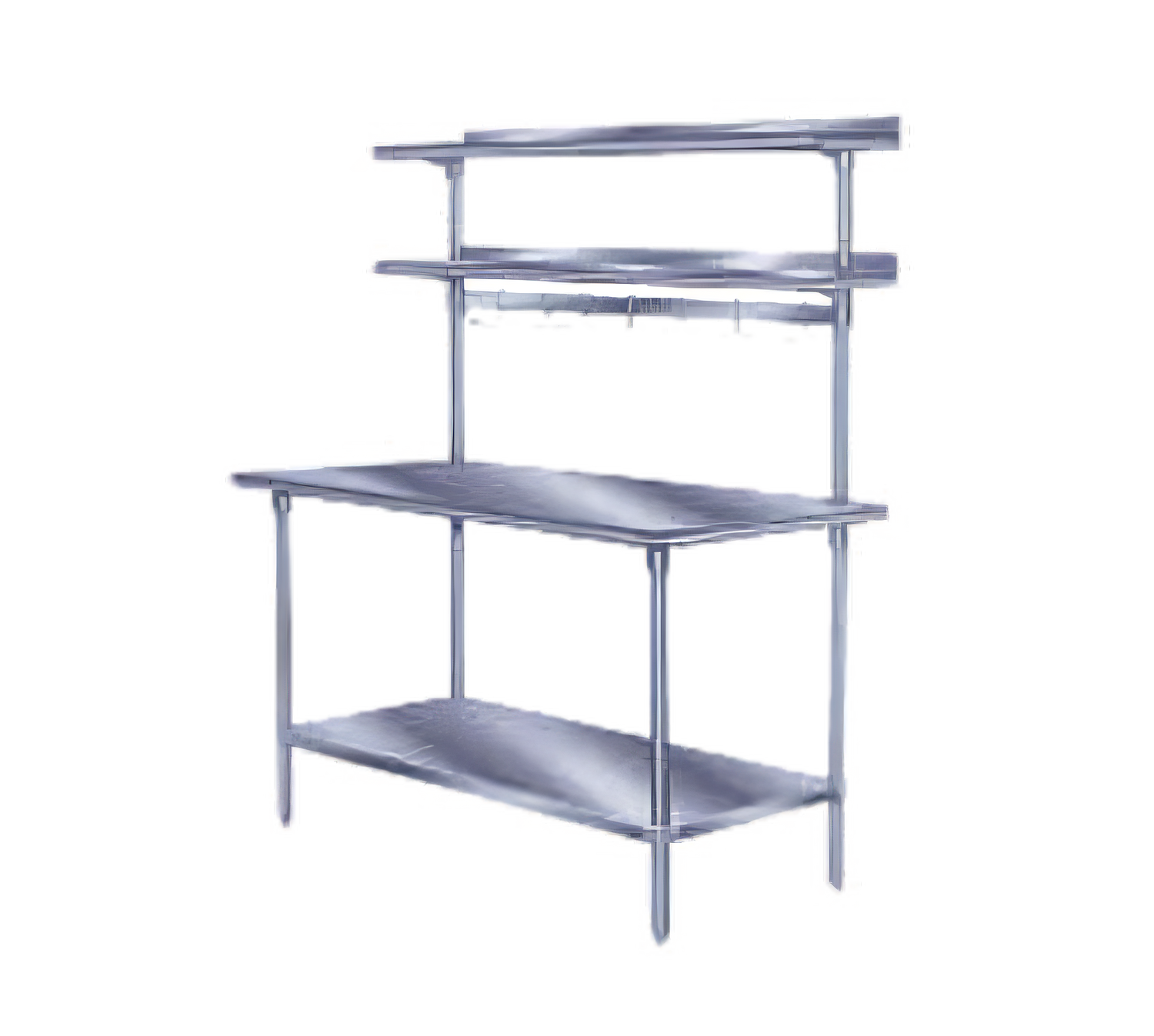

Factory installation of the TA-229 rear-mount assembly is required. Pot and utensil racks shown in some images are sold separately.
