Advance Tabco PRU-19-48R-10 Prestige (Supreme) Bar Equipment
Description

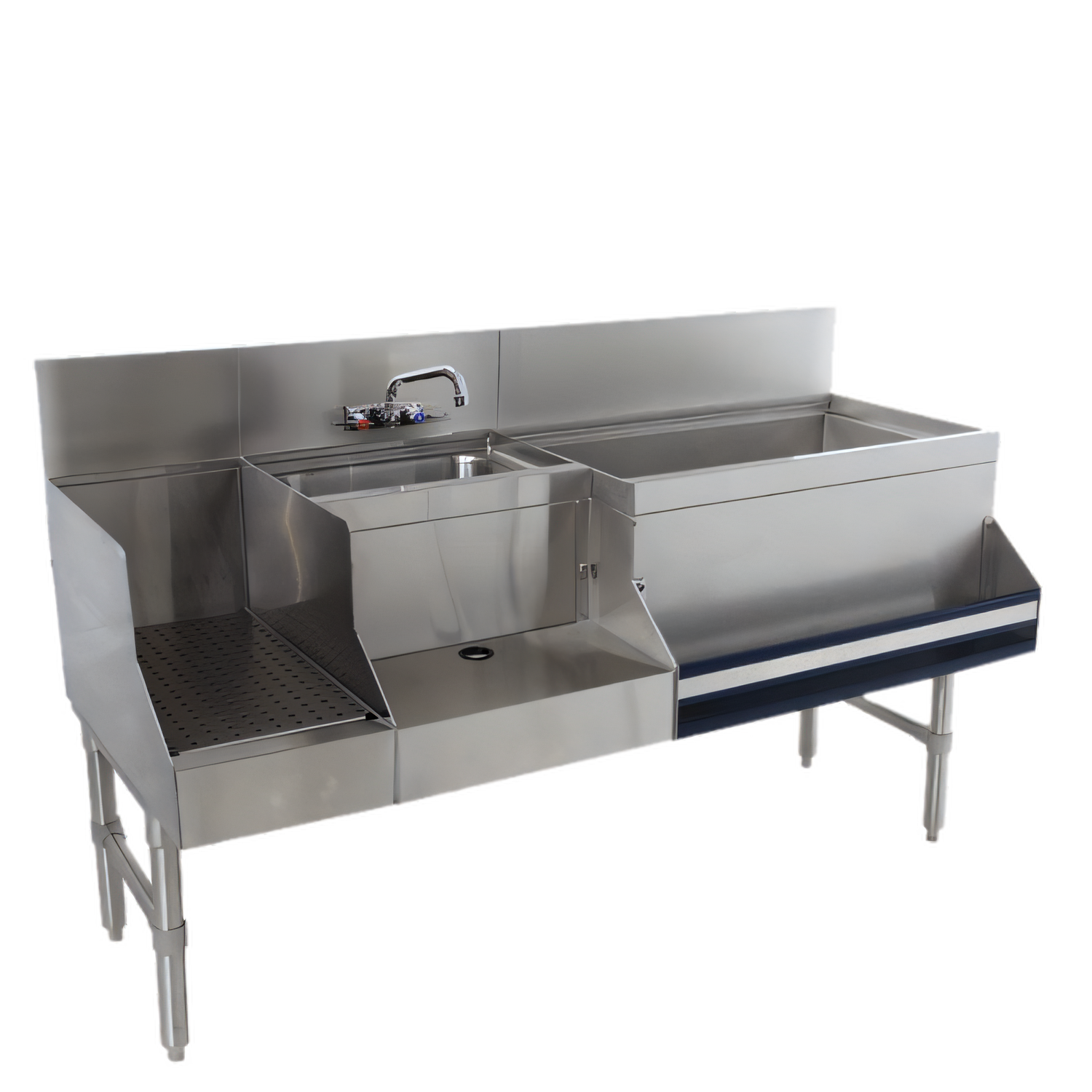

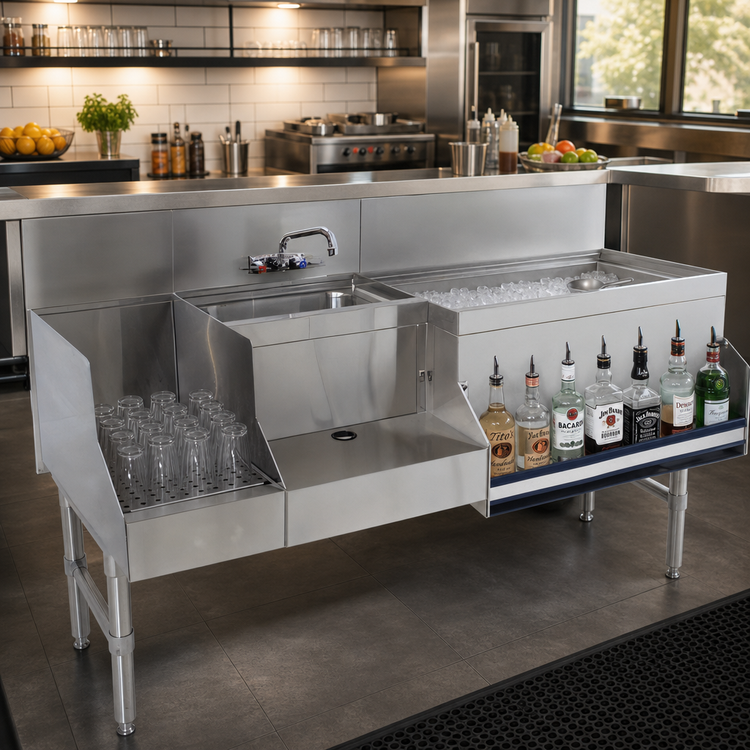

Advance Tabco Prestige Uni-Serv Speed Bar – 48" (Right Ice Bin, Cold Plate)
Model PRU-19-48R-10 | 48" W × 25" D × 36" HGive your bartenders a self-contained work center that chills, mixes, rinses and serves—without ever leaving the station. The Prestige Uni-Serv Speed Bar combines a foam-insulated ice bin, 10-circuit cold plate, dump sink, speed rail and recessed blender/glassware shelves in one rugged, 300-series stainless package that slips into tight 48" footprints.
Key Features

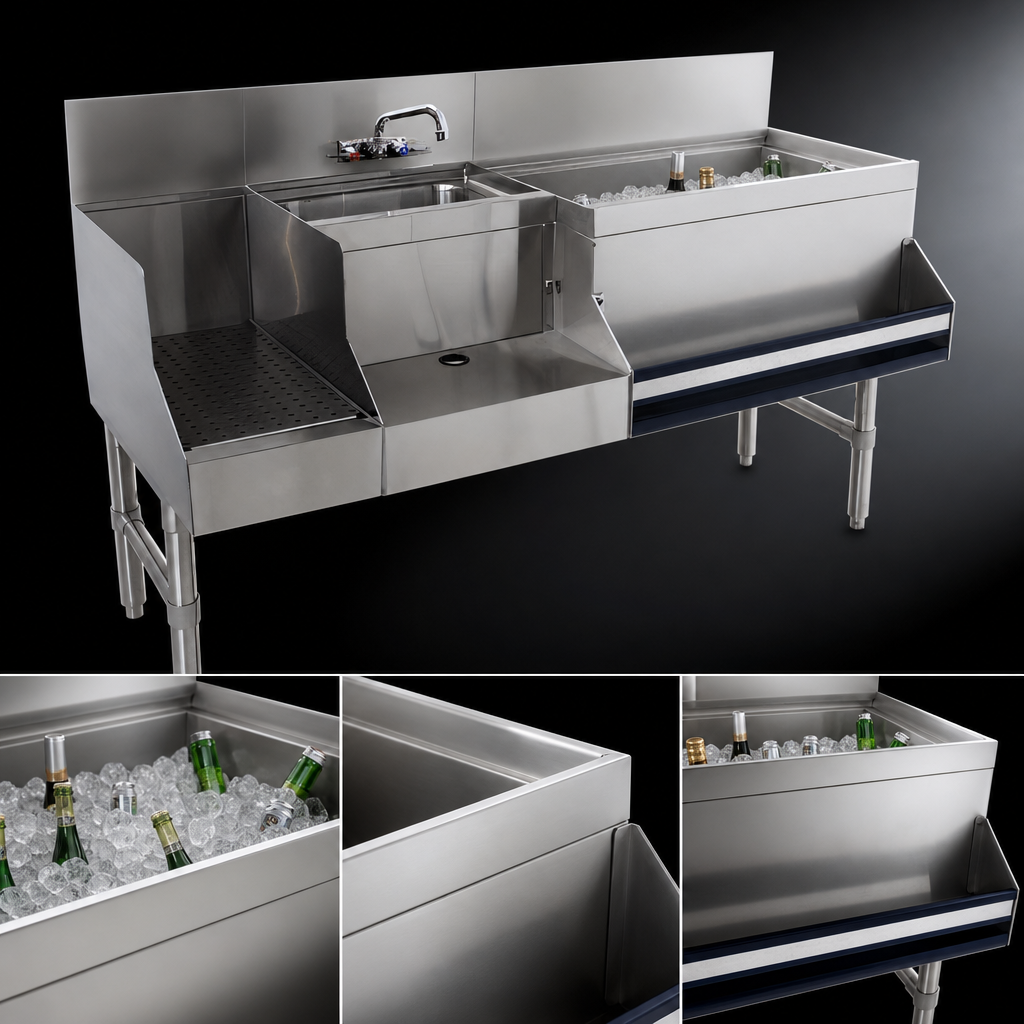

- 11"-deep insulated ice bin (24" × 11") on the right; holds up to 70 lb of ice.

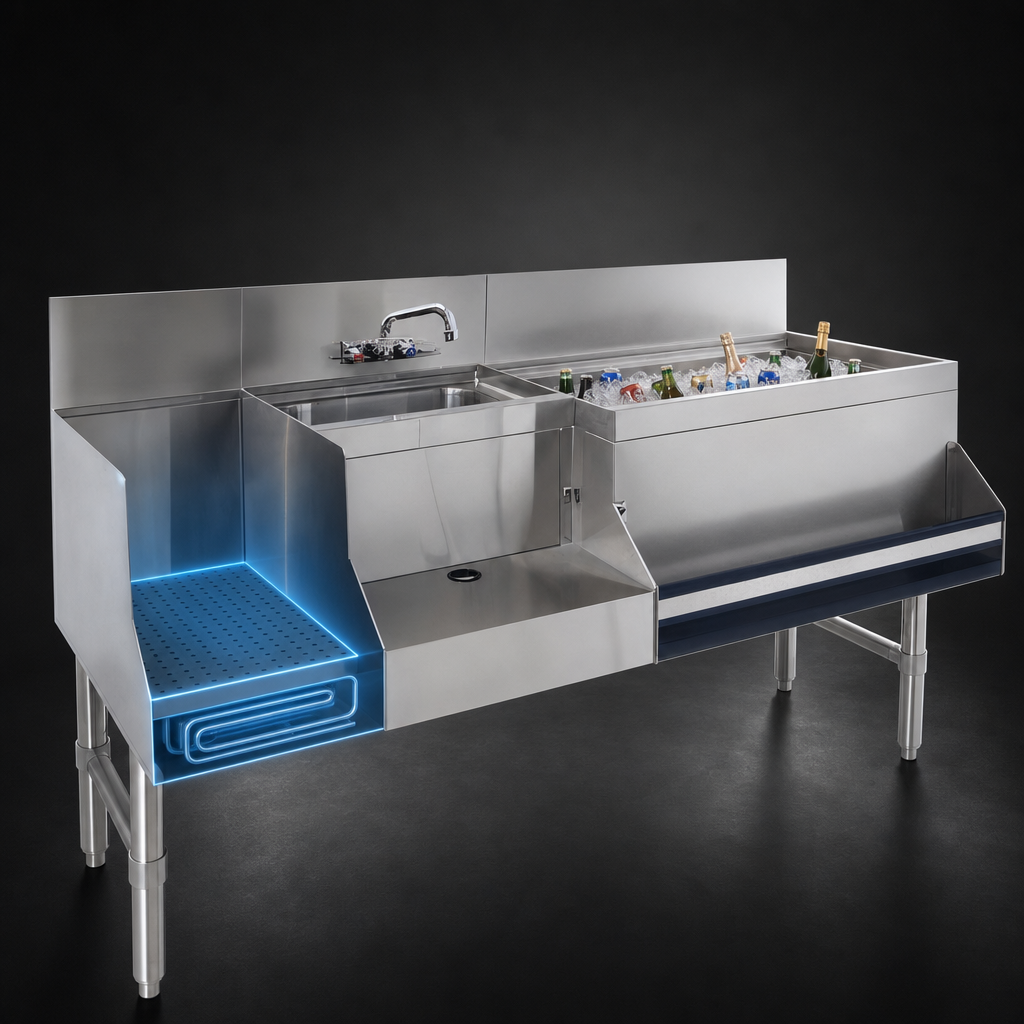

- Integrated cast-aluminum cold plate with 10 circuits (8 syrup, 2 water) – 5/16" O.D. stainless ends.
- 9" × 9" × 4" dump sink with 3 ½" basket drain and 4" rear-splash-mount K-125 faucet (6" swing spout).
- Recessed glassware drainboard with removable perforated top keeps glasses sanitary and ready.
- 18-ga recessed glass shelf features a soda-gun knock-out and includes two removable bottle racks.
- Dedicated blender recess with hidden 15 A / 120 V GFCI duplex outlet—no dangling cords on the bar top.
- 24" single-tier speed rail keeps your most-poured bottles within arm’s reach.
- 7" backsplash and 1 " return edge contain splashes for a cleaner service area.
- 20-ga 300-series stainless top, apron, sides & legs; 1 ⅝" O.D. legs with adjustable bullet feet.
- Foam-in-place, 2 lb-density ice-bin insulation for long-lasting ice and energy savings.
What’s Included
- (1) 10-circuit cold plate (factory installed).
- (1) Recessed glassware drainboard & perforated top.
- (1) Recessed blender shelf with GFCI outlet.
- (2) Removable plastic bottle racks.
- Adjustable stainless side cross-brace • 1" IPS and ½" IPS drain connections.
Technical Specifications
| Overall dimensions (W × D × H) | 48" × 25" × 36" |
|---|---|
| Work height | 36" |
| Ice bin capacity | 70 lb | 24" × 11" × 11" deep |
| Cold plate | 10 circuits (8 syrup, 2 water) | cast aluminum |
| Sink bowl | 9" × 9" × 4" with 3 ½" basket drain |
| Faucet | K-125, 4" O.C. splash mount, lead-free, 6" swing spout |
| Electrical (blender shelf) | 1 × 120 V / 15 A GFCI duplex receptacle |
| Materials | 20-ga 300 SS (top/apron/sides) | 18-ga SS (glass shelf) | 18-ga SS legs |
| Shipping weight | Approx. 140 lb |
| Certifications | NSF / ANSI Std 2 & 61/9 (lead free) |
Perfect For
- Hotel lobby or poolside bars
- Banquet halls & catering satellite stations
- Craft-cocktail lounges with compact footprints
- Concession trailers and food-truck beverage programs
Advance Tabco continuously improves its products. Specifications are subject to change without notice.
