Advance Tabco PRSCD-24-42 Prestige (Supreme) Bar Equipment
Advance Tabco PRSCD-24-42 Prestige (Supreme) Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco PRSCD-24-42 Prestige (Supreme) Bar Equipment
Description

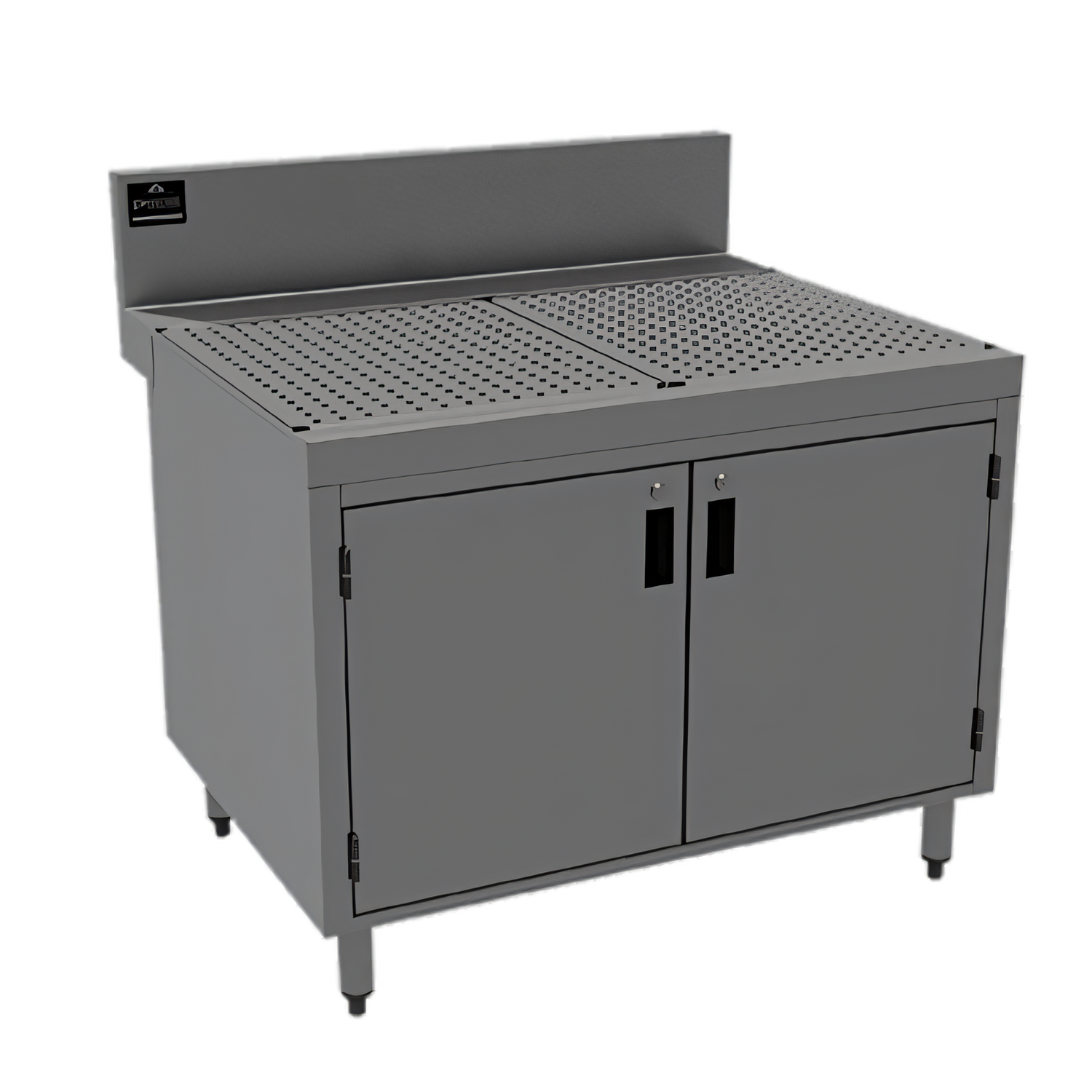

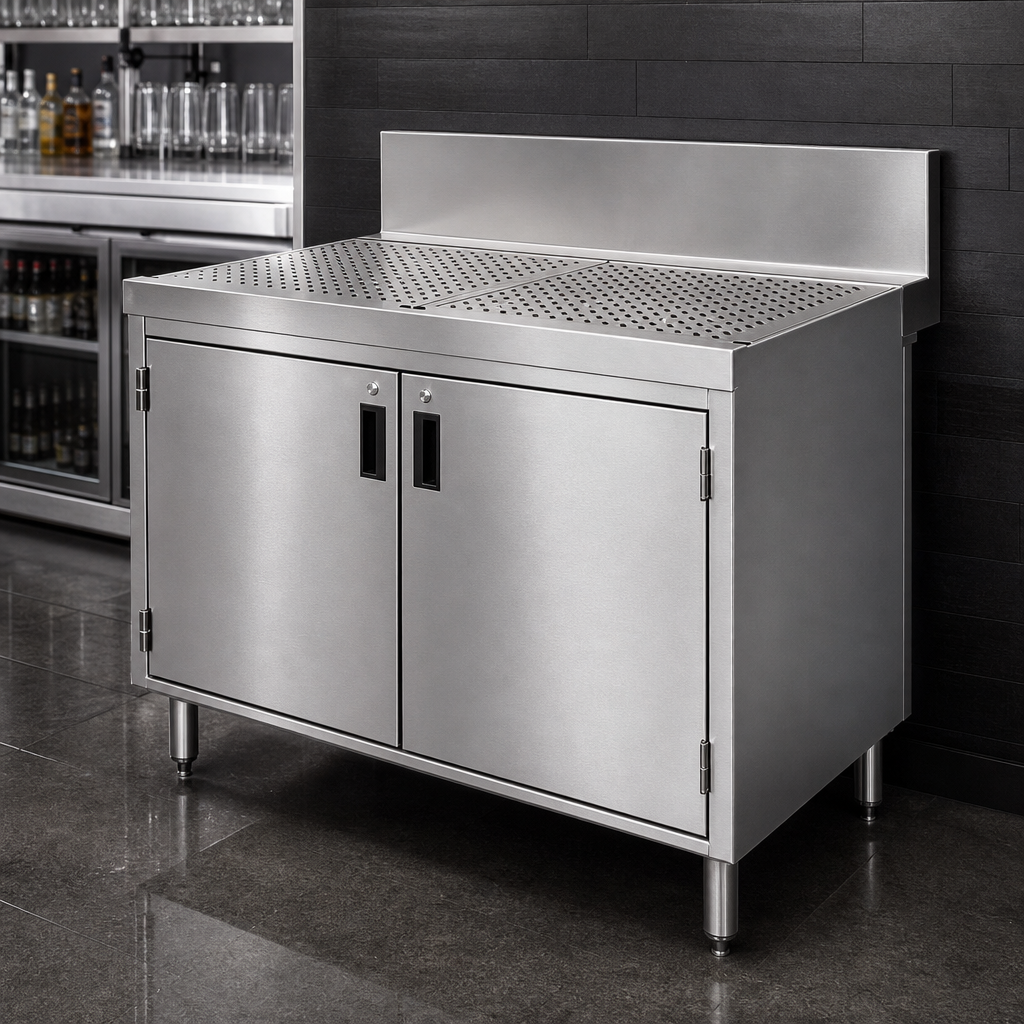

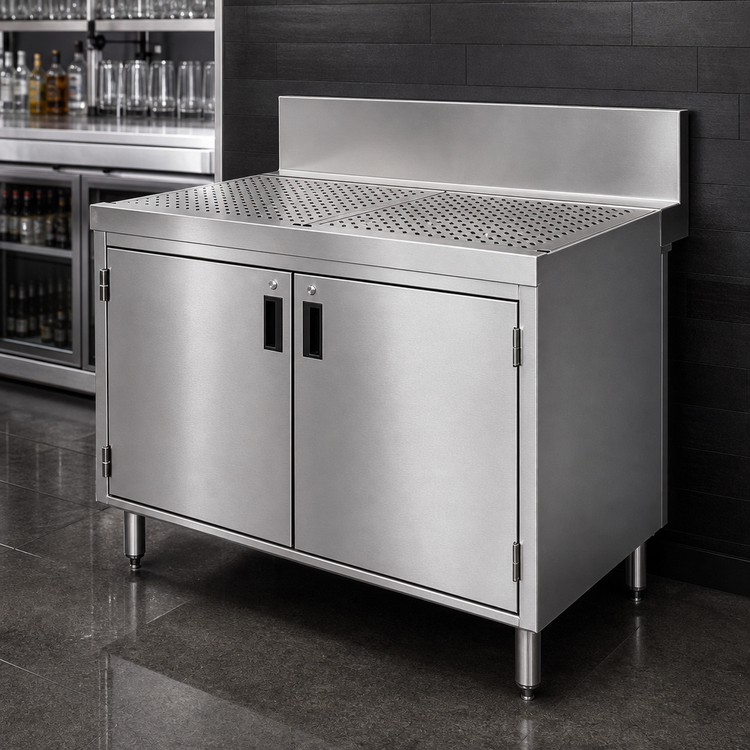

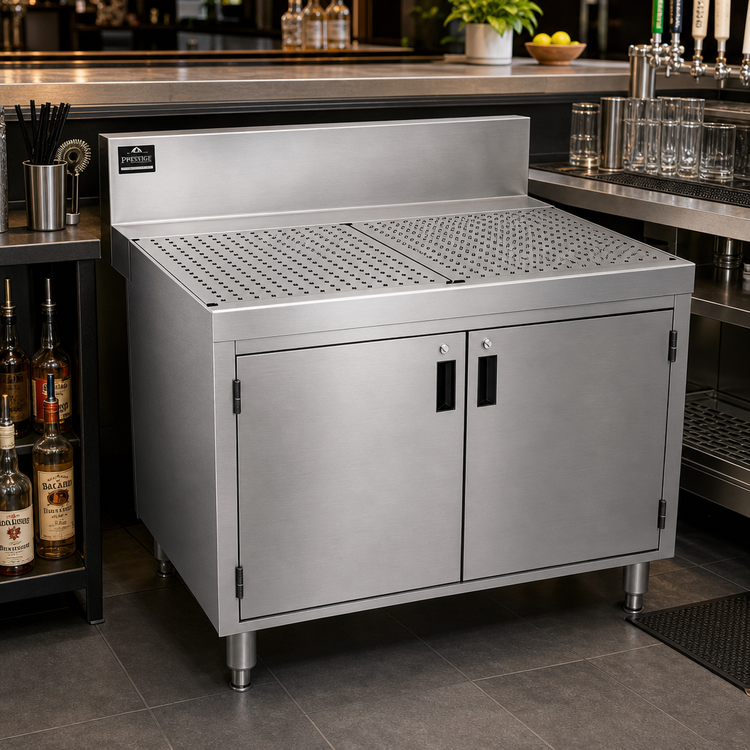

Advance Tabco Prestige Supreme 42" x 30" Underbar Drainboard Cabinet
Model PRSCD-24-42 | NSF ListedDesigned for high-volume bars, tasting rooms, and cocktail stations, the Prestige Supreme drainboard cabinet delivers rugged stainless-steel performance, fast glassware drainage, and concealed storage—all in one easy-to-clean unit that lines up perfectly with 36"-high underbar equipment.
Why you’ll love it
- 42" wide removable perforated drainboard top speeds drying and sanitation.
- 7" integral backsplash protects walls and keeps liquid in its place.
- Sound-deadened, 18-gauge 300 series stainless top resists corrosion and daily abuse.
- 20-gauge 300 series stainless base cabinet with hinged, removable doors for quick interior access and effortless clean-ups.
- 1" IPS drain pan efficiently channels runoff to floor plumbing.
- 18-gauge, 1 5⁄8"-O.D. stainless legs with adjustable stainless bullet feet level the cabinet on uneven floors.
- NSF certification ensures compliance with the most demanding health codes.
Technical specifications
| Series / Line | Prestige Signature Series – Supreme |
|---|---|
| Model # | PRSCD-24-42 |
| Overall width | 42 in (1067 mm) |
| Overall depth | 30 in (762 mm) |
| Working height | 36 in (914 mm) to top of drainboard |
| Backsplash height | 7 in (178 mm) |
| Drain connection | 1" IPS (internal pipe size) |
| Construction | 18-ga perforated top, 20-ga cabinet, 300 series stainless steel |
| Legs / feet | 18-ga 1 5⁄8"-O.D. stainless legs with height-adjustable stainless bullet feet |
| Doors | (2) Removable, hinged stainless doors |
| Approx. shipping weight | 98 lb (44.5 kg) |
| Certification(s) | NSF |
Factory options (sold separately)
- Door lock (SU-27)
- Mid-shelf in base cabinet (add “-M” suffix to model number)
- Integrated sink bowls: 10" × 14" × 10" (SU-22A) or 9½" × 11½" × 6" (SU-22B)
- Custom Smart Fabrication™ modifications on request
Images may show optional accessories. Advance Tabco reserves the right to change specifications without notice. Need help configuring your station? Call us at 1-800-645-3166.
