Advance Tabco PRSCD-24-24 Prestige (Supreme) Bar Equipment
Description

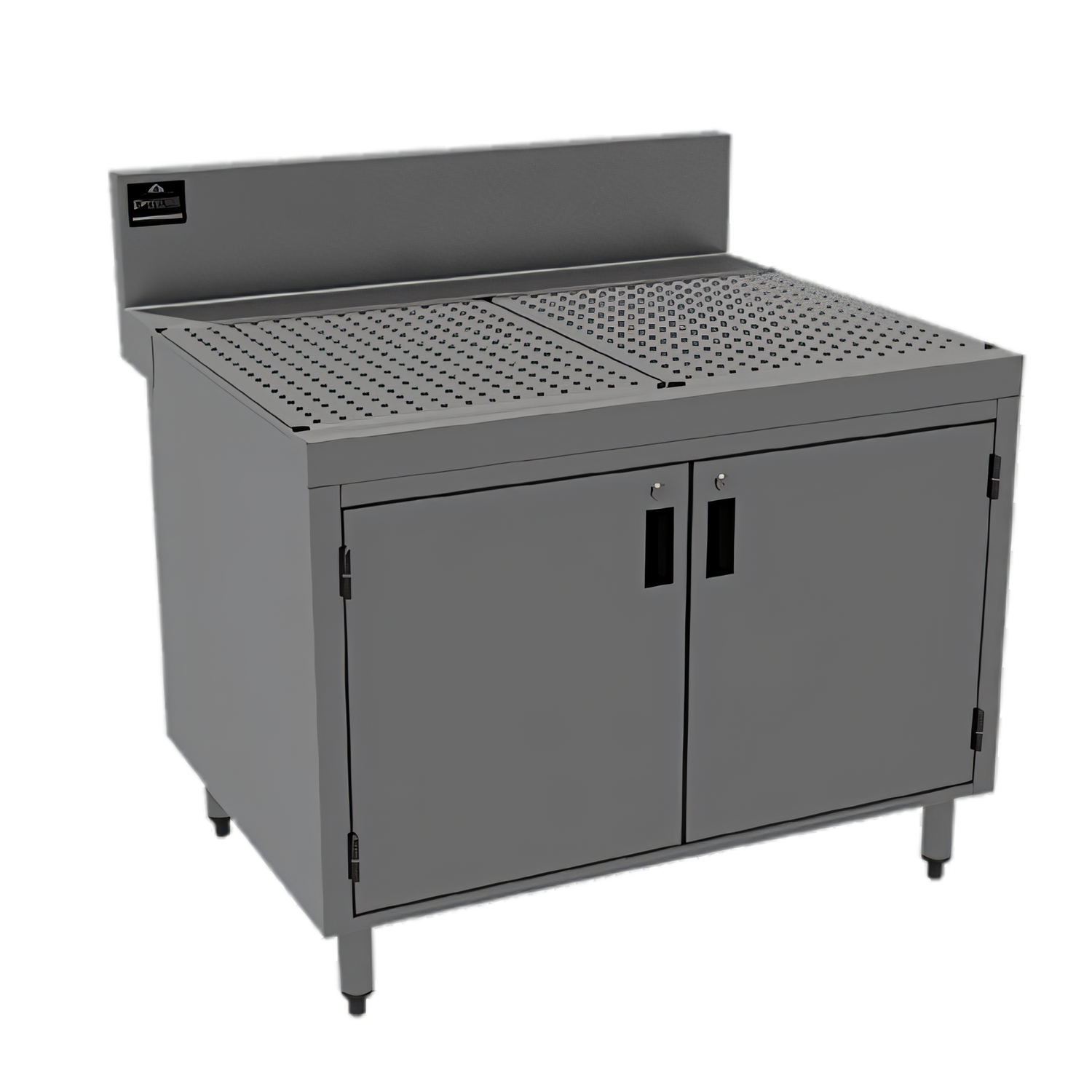

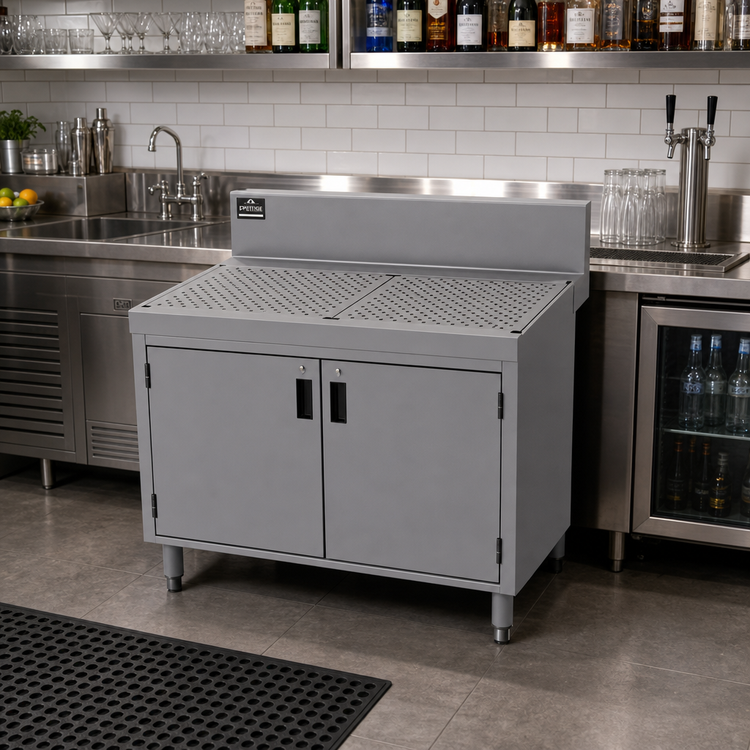

Prestige Signature Series Underbar Drainboard Cabinet – 24" W x 30" D
Model PRSCD-24-30 | Advance Tabco | NSF CertifiedGive your bar the rock-solid workhorse it deserves. Crafted entirely from food-service grade stainless steel, the Prestige underbar drainboard cabinet combines a perforated glass-drain top, generous 7 inch backsplash and removable hinged doors into one sleek, easy-to-clean footprint.
Why It Stands Out

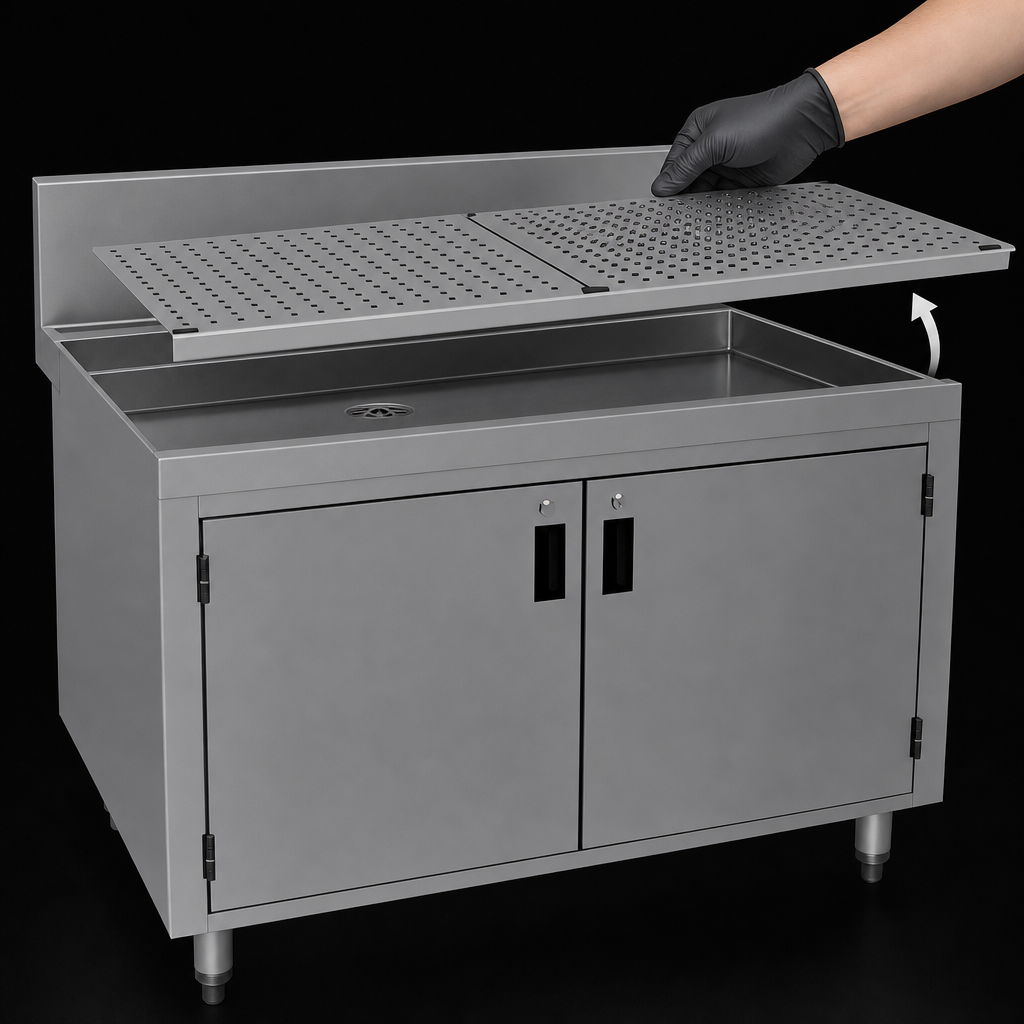

- Removable 18-ga perforated drainboard top with sound-deadening underlay.
- Integrated drain pan & 1" IPS rear drain for rapid water removal.
- 7" backsplash protects walls and keeps liquids contained.
- 20-ga type 300 stainless steel base cabinet resists corrosion & dents.
- Fully removable hinged stainless steel doors for fast inside access.
- 18-ga, 1 ⅝" Ø tubular legs with adjustable stainless steel bullet feet.
- NSF listed for compliance with health department codes.
At-a-Glance Specs
| Overall Dimensions | 24" W × 30" D × 36" H (work height) |
|---|---|
| Backsplash Height | 7" |
| Material / Gauge | Base: 20-ga 300 SS | Drainboard & Legs: 18-ga 300 SS |
| Drain Connection | 1" IPS (female) |
| Approx. Shipping Weight | ≈ 85 lb |
| Shipping Volume | 18 cu. ft. |
| Certifications | NSF |
Factory Options & Accessories
- SU-27 – Door lock kit.
- -M – Add adjustable mid-shelf in cabinet.
- SU-22A / SU-22B – Integral hand-sink bowls.
- SU-77 – Modify cabinet to 20" overall width.
Need something custom? Advance Tabco’s Smart Fabrication™ team can modify size, configuration or add sinks to match your exact bar layout.
Advance Tabco continuously improves products; specifications are subject to change without notice.
