Advance Tabco PRSCD-24-12 Prestige (Supreme) Bar Equipment
Description

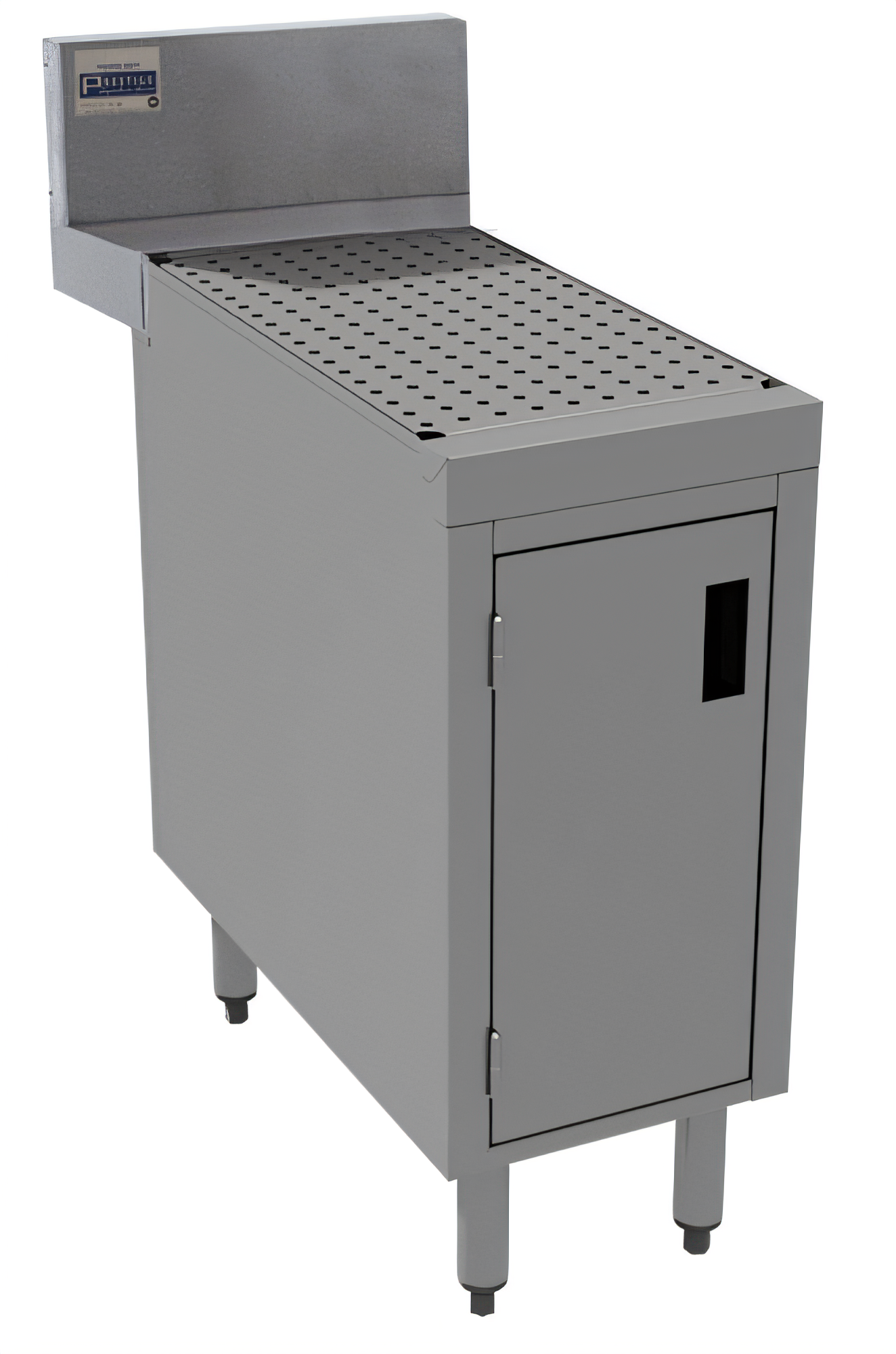

Advance Tabco Prestige (Supreme) Underbar Drainboard Cabinet – 12" W × 30" D
Model PRSCD-24-12 • NSF CertifiedBuilt for bars that run like clockwork, the Prestige Signature Series underbar drainboard cabinet delivers rock-solid stainless-steel construction, fast drainage and clutter-free storage—all in a compact 12" section that slides neatly into your line-up.
Why You’ll Love It
- Removable perforated drainboard top speeds glass drying and lifts off for deep cleaning.
- Integrated drain pan with 1" IPS outlet keeps work surfaces dry and sanitary.
- 7" high backsplash protects walls and adjacent equipment from splashes.

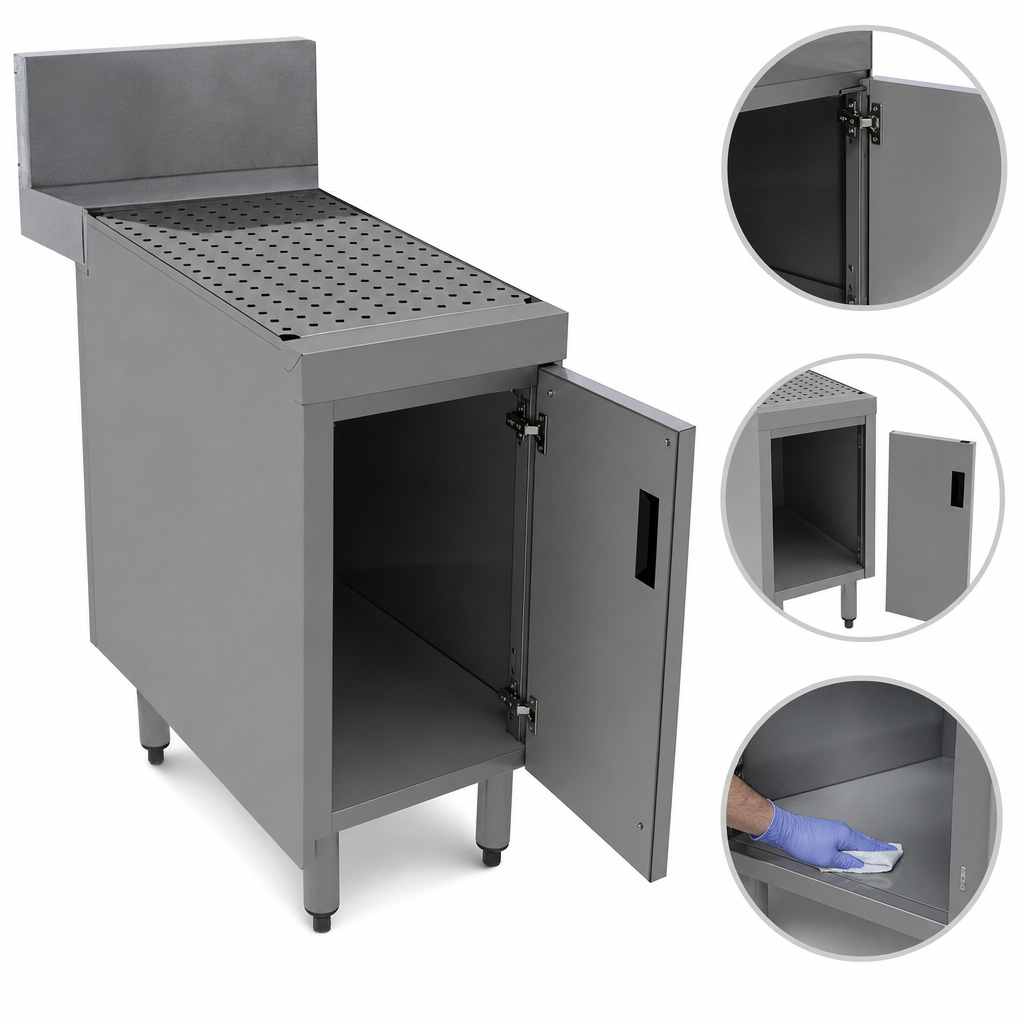

- Hinged stainless-steel doors (also removable) conceal supplies and simplify wipe-downs.
- 20-ga. 300 series stainless base with sound-deadening for a quieter bar environment.
- 18-ga. drainboard & legs for extra rigidity where it counts.
- Adjustable stainless bullet feet (1") level the unit on uneven floors.
- Fully NSF listed for front-of-house or back-bar installation.
At-A-Glance Specs
| Overall width (left ↔ right) | 12" (305 mm) |
|---|---|
| Overall depth (front ↔ back) | 30" (762 mm) |
| Working height | 36" (914 mm) to counter |
| Backsplash height | 7" (178 mm) |
| Drain outlet | 1" IPS (rear right) |
| Distance to drain (B) | 9 ¾" |
| Interior opening (C) | 11 ¾" |
| Shipping weight | Approx. 65 lb / 29.5 kg |
| Material & finish | 300-series stainless steel; satin polish |
Popular Factory Options (sold separately)
- SU-27: Door lock for secure storage.
- SU-77: Modify cabinet to 20" depth.
- “-M” mid-shelf for extra interior storage.
- Drop-in sinks: SU-22A (10" × 14" × 10") or SU-22B (9 ½" × 11 ½" × 6").
NSF certification applies to the complete unit when installed in accordance with manufacturer instructions.
