Advance Tabco PRSCD-19-30-M Prestige (Supreme) Bar Equipment
Description

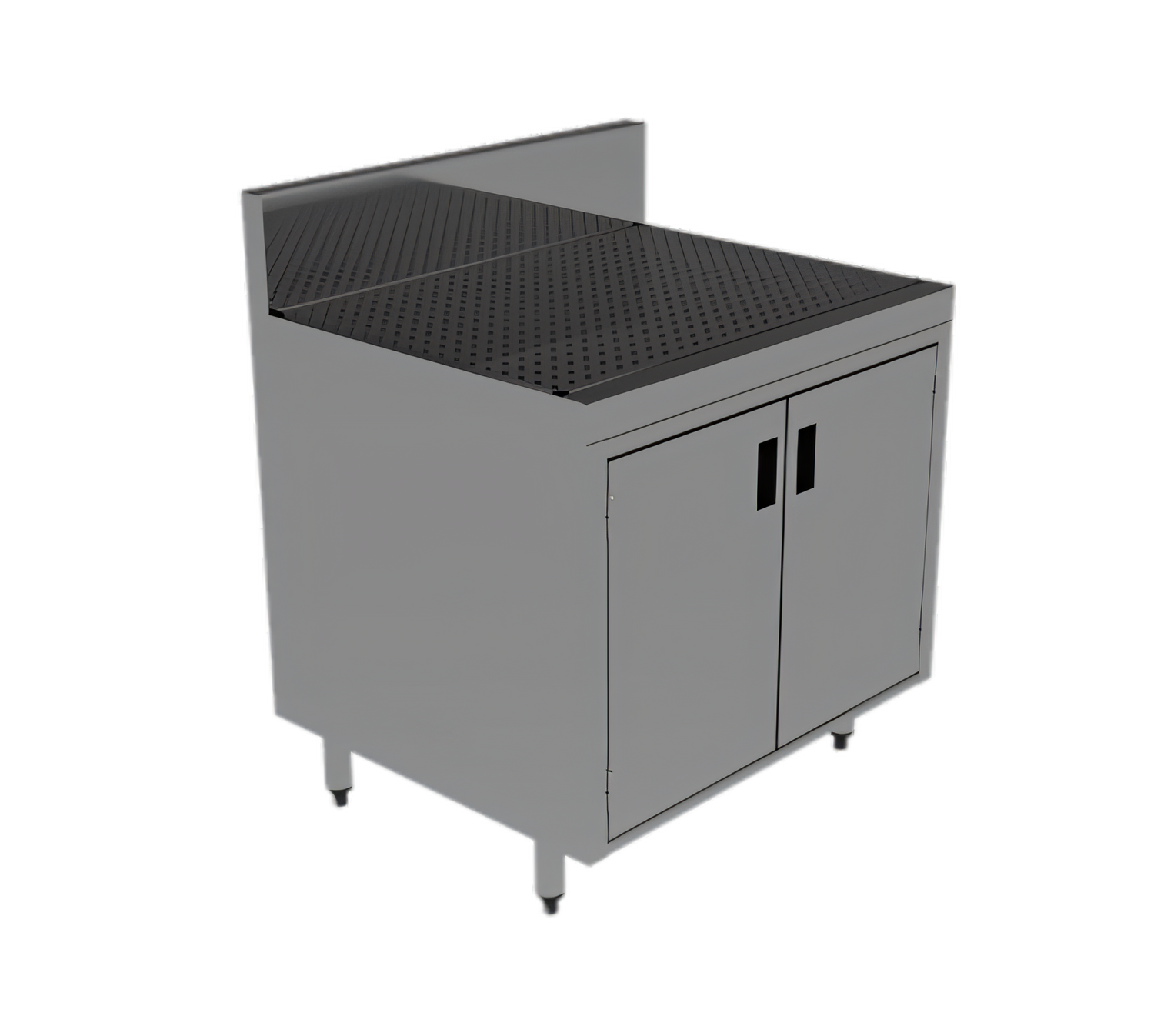

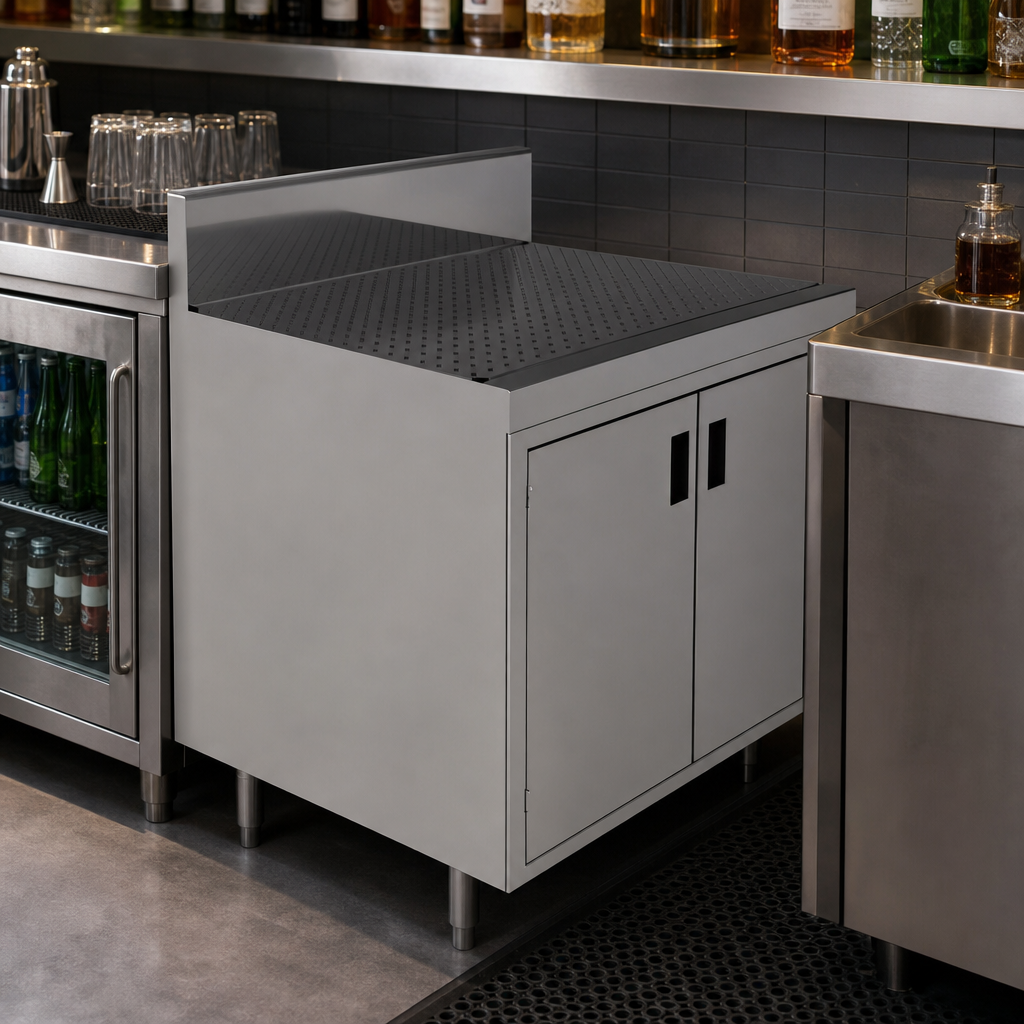

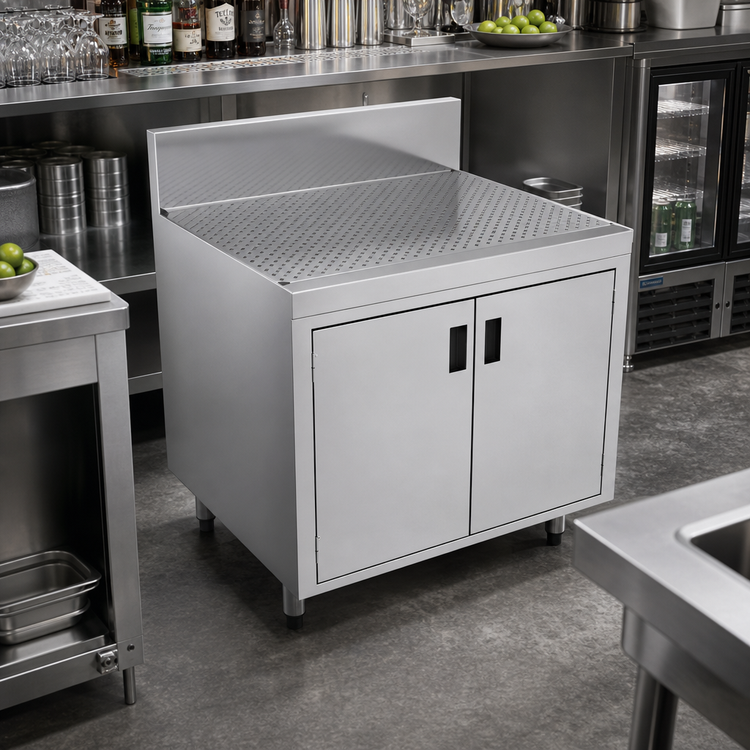

Prestige (Supreme) Underbar Drainboard Cabinet – 30" W × 25" D
Advance Tabco Model PRSCD-19-30-M | NSF CertifiedEngineered for high–volume bars and beverage stations, the Advance Tabco Prestige (Supreme) underbar drainboard cabinet pairs rugged 300-series stainless-steel construction with a removable perforated drainboard top. An integrated 7" backsplash keeps surrounding areas dry, while a built-in drain pan and 1" IPS drain speed clean-ups between rounds. Hinged doors and an adjustable mid-shelf turn the base into secure, organized storage for backup glassware, garnishes, tools and more.
Top Reasons You’ll Love It
- 20-gauge 300 SS cabinet with sound-deadened, 18-gauge perforated drainboard top
- 30" working width handles an entire mixing station or glass rack
- 7" rear backsplash contains splashes and meets most health-code requirements
- Removable stainless doors and mid-shelf for easy cleaning & flexible storage
- 1" IPS drain pan – ready to plumb straight to your floor drain
- 18-gauge, 1 5⁄8"-Ø legs with adjustable stainless bullet feet level the unit on uneven floors
- Fully TIG-welded & polished seams for long-term durability
- NSF listed for open food-service installation
Technical Specifications
| Model | PRSCD-19-30-M |
|---|---|
| Overall Dimensions | 30" W × 25" D × 36" H (43" H including backsplash) |
| Backsplash Height | 7" |
| Cabinet Construction | 20-ga. 300-series stainless steel |
| Drainboard Top | 18-ga. perforated 300-series stainless steel, removable |
| Doors / Base | Removable hinged stainless doors, adjustable mid-shelf |
| Drain Connection | 1" IPS (internal pipe size) |
| Legs & Feet | 18-ga. 1 5⁄8"-Ø stainless legs, adjustable stainless bullet feet |
| Approx. Shipping Weight | 85 lb / 38.6 kg |
| Certifications | NSF |
Popular Add-Ons (Factory-Installed)
- SU-27 – Door lock kit for secure liquor or POS storage
- SU-22A – 10" × 14" × 10" Stainless drop-in hand sink
- SU-22B – 9 ½" × 11 ½" × 6" Glass-rinse sink
Need a different length, extra sink bowls or locking doors? Ask our team about made-to-order Smart Fabrication™ upgrades from Advance Tabco.
