Advance Tabco  |  Prestige (Supreme)  |  SKU: PRSCD-19-18  |  UPC: 747545188977

Advance Tabco PRSCD-19-18 Prestige (Supreme) Bar Equipment

$1,098.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

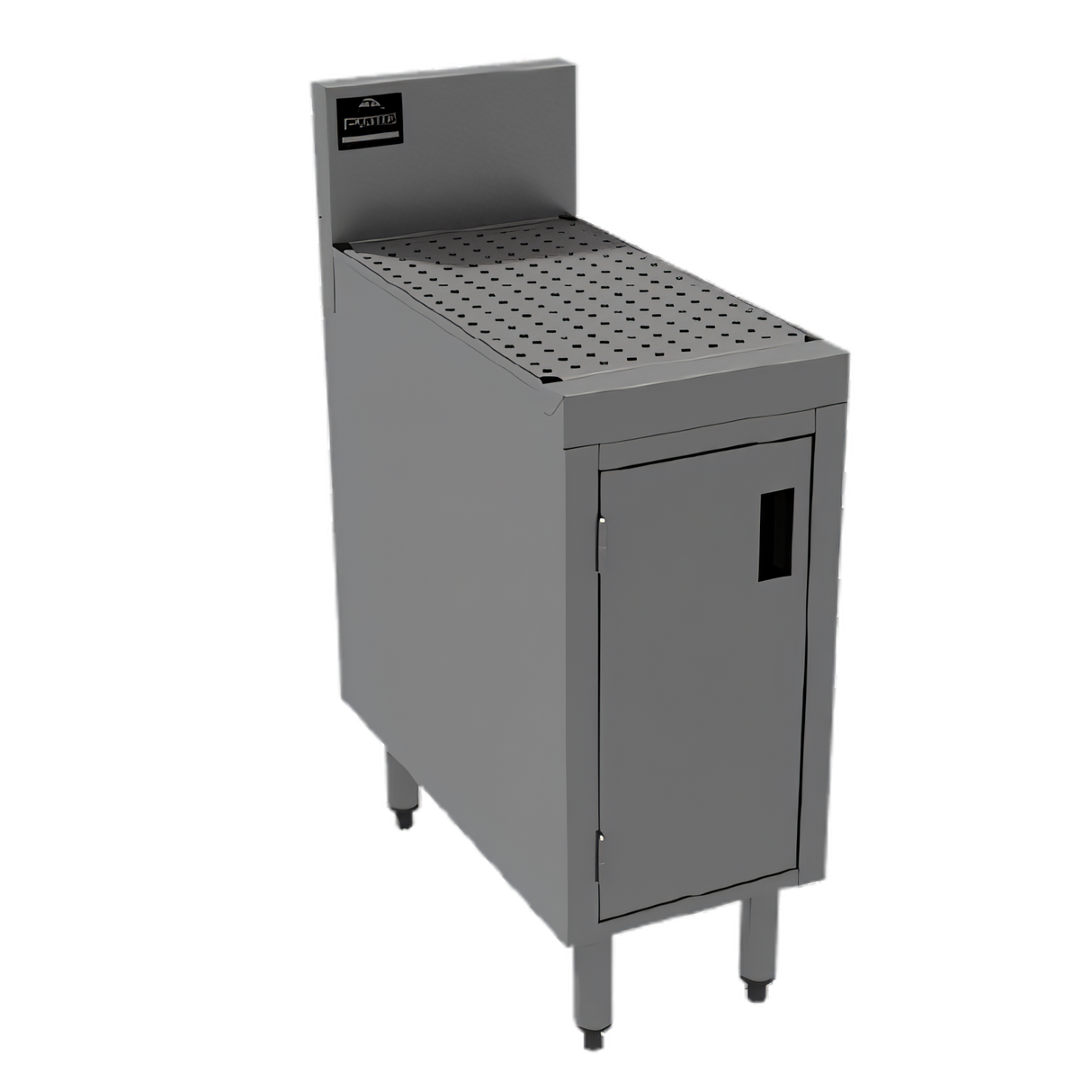

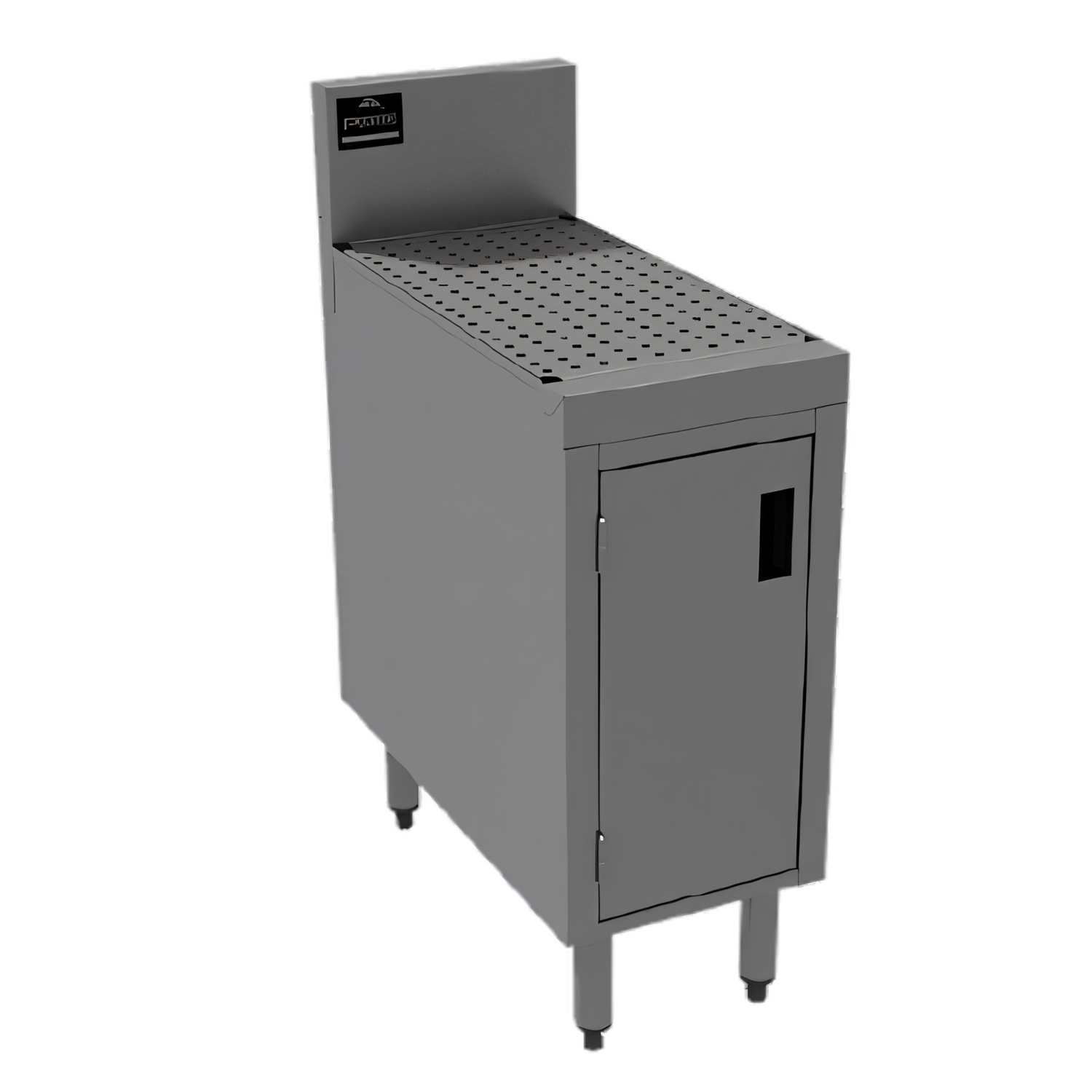

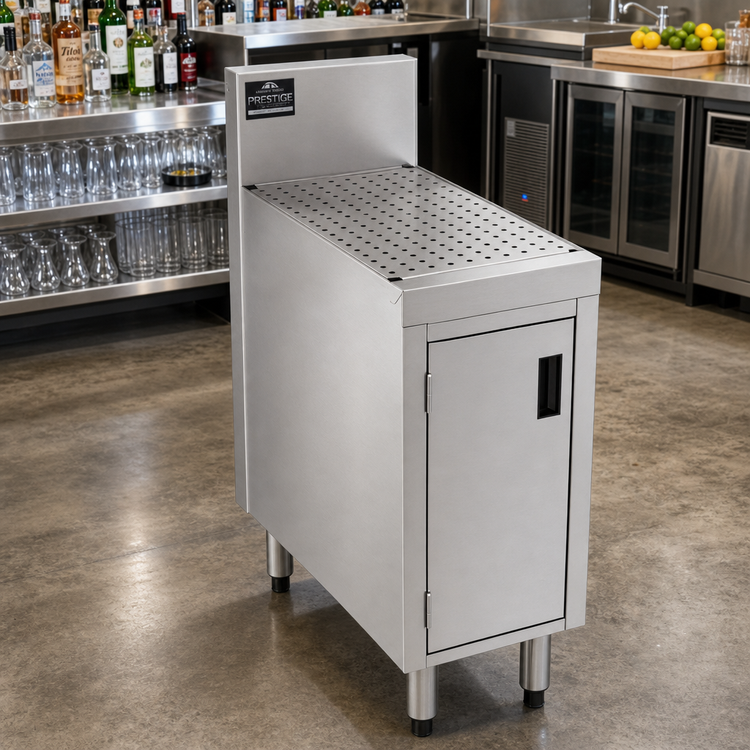

Advance Tabco Prestige Signature Series Underbar Drainboard Cabinet

Model PRSCD-19-18 • 18" W x 25" D x 36" H

Built for busy bars that demand rugged reliability, the Prestige (Supreme) drainboard cabinet combines a reinforced stainless-steel base with a removable perforated top that keeps glassware, pitchers and barware draining quickly and hygienically. NSF listed and ready to drop into any underbar line-up.

Key Features

  • 18 gauge 300 Series stainless-steel drainboard top with removable perforated insert for fast, thorough drainage
  • 20 gauge 300 Series stainless-steel base cabinet—sound-deadened for a quieter bar environment
  • 7" backsplash helps contain splashes and protects walls
  • 1" IPS drain pan located 15" from the front for easy plumbing hook-up

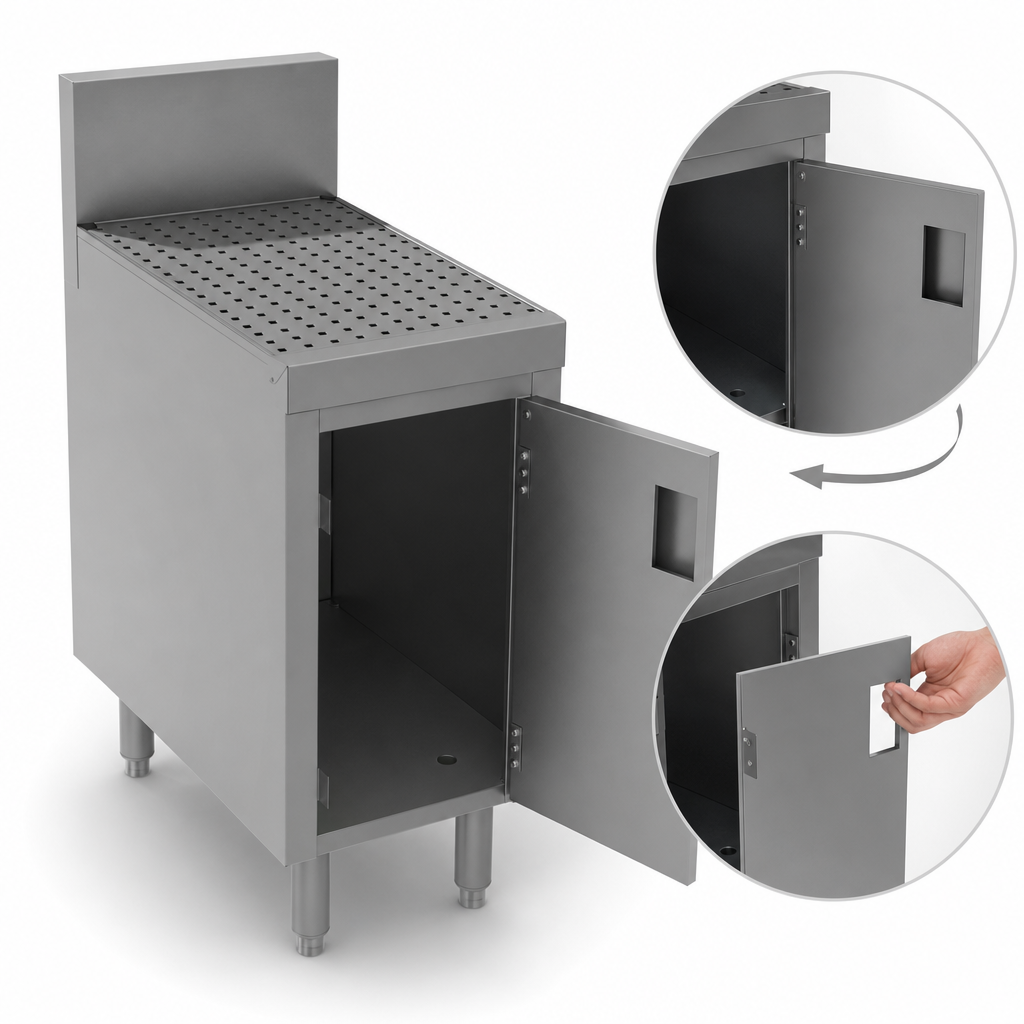

  • Removable hinged stainless-steel doors for secure, enclosed storage
  • (4) 18 gauge, 1-5/8" O.D. stainless-steel legs with adjustable stainless bullet feet for perfect leveling
  • NSF certified for open foodservice use

Specifications

Overall width (A) 18" / 457 mm
Overall depth 25" / 635 mm
Overall height 36" / 914 mm (to work surface)  |  43" / 1 092 mm to top of backsplash
Backsplash height 7" / 178 mm
Distance to drain (B) 15" / 381 mm from front edge
Front opening (C) 14" / 356 mm
Material 304 Series stainless steel (20 ga. body • 18 ga. drainboard & legs)
Drain connection 1" IPS
Weight 65 lb / 29.5 kg (shipping)
Certifications NSF

Popular Options & Accessories

  • SU-27 – Factory-installed door lock
  • -M Suffix – Mid-shelf added inside cabinet for extra storage
  • SU-22A / SU-22B – Drop-in hand sinks (10" x 14" x 10" or 9-1/2" x 11-1/2" x 6")

Dimensions are typical and subject to manufacturing tolerance of ± 0.5" overall (± 0.25" interior).
Advance Tabco reserves the right to modify design or specifications without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

18.0in

Depth

25.0in

Shipping Weight

65.0lbs

Depth (front - back) OA

24" - 27"

Width (side - side) OA

13" - 18"

Type

free standing

Splash

7"

Base Type

enclosed cabinet base

Specifications

Prestige Underbar Drainboard Cabinet, with removable hinged doors, 18"W x 25"D x 36"H, 7" backsplash, removable perforated drainboard top, drain pan with 1” drain, stainless steel construction, adjustable stainless steel bullet feet, NSF
