Description

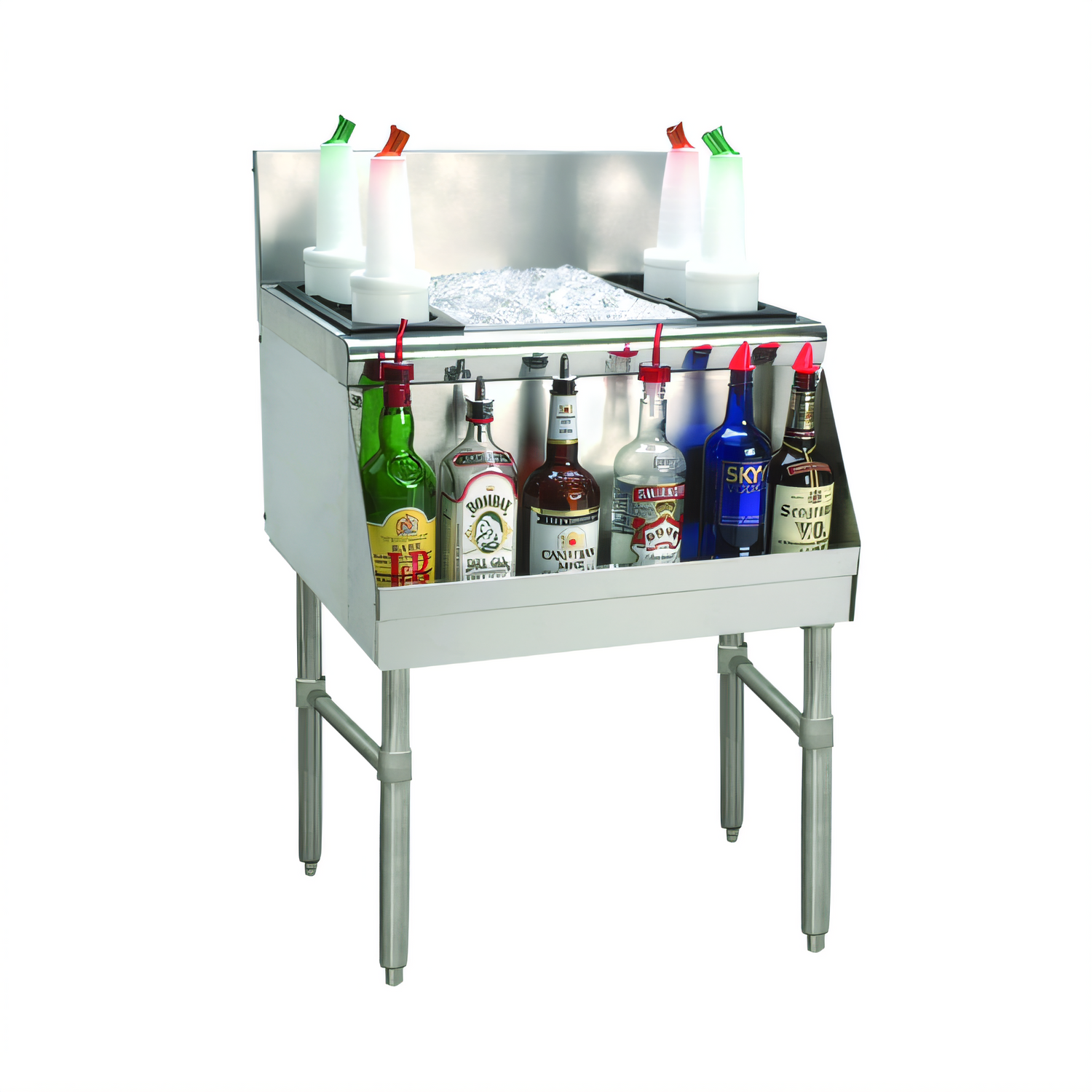

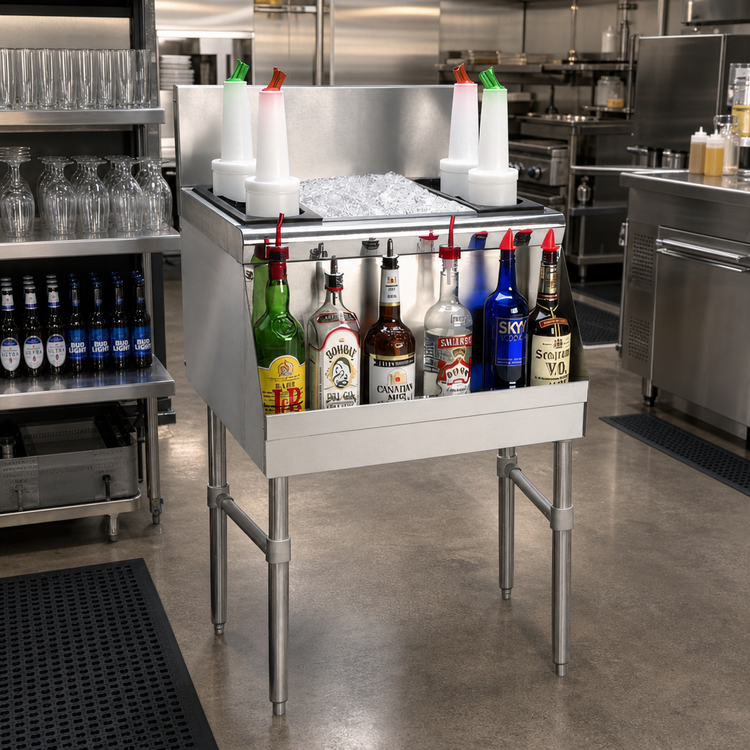

Advance Tabco Prestige “Supreme” Ice Chest w/ 10-Circuit Cold Plate – 36"

Model PRI-24-36-10-XD

Engineered for demanding bar programs, this 36" Prestige Supreme ice chest pairs a factory-sealed 10-circuit cold plate with a spacious, foam-insulated bin that keeps up to 147 lbs of ice at the perfect serving temperature shift after shift.

Key Features
  • 36" wide x 25" front-to-back footprint – ideal for standard back-bar layouts.

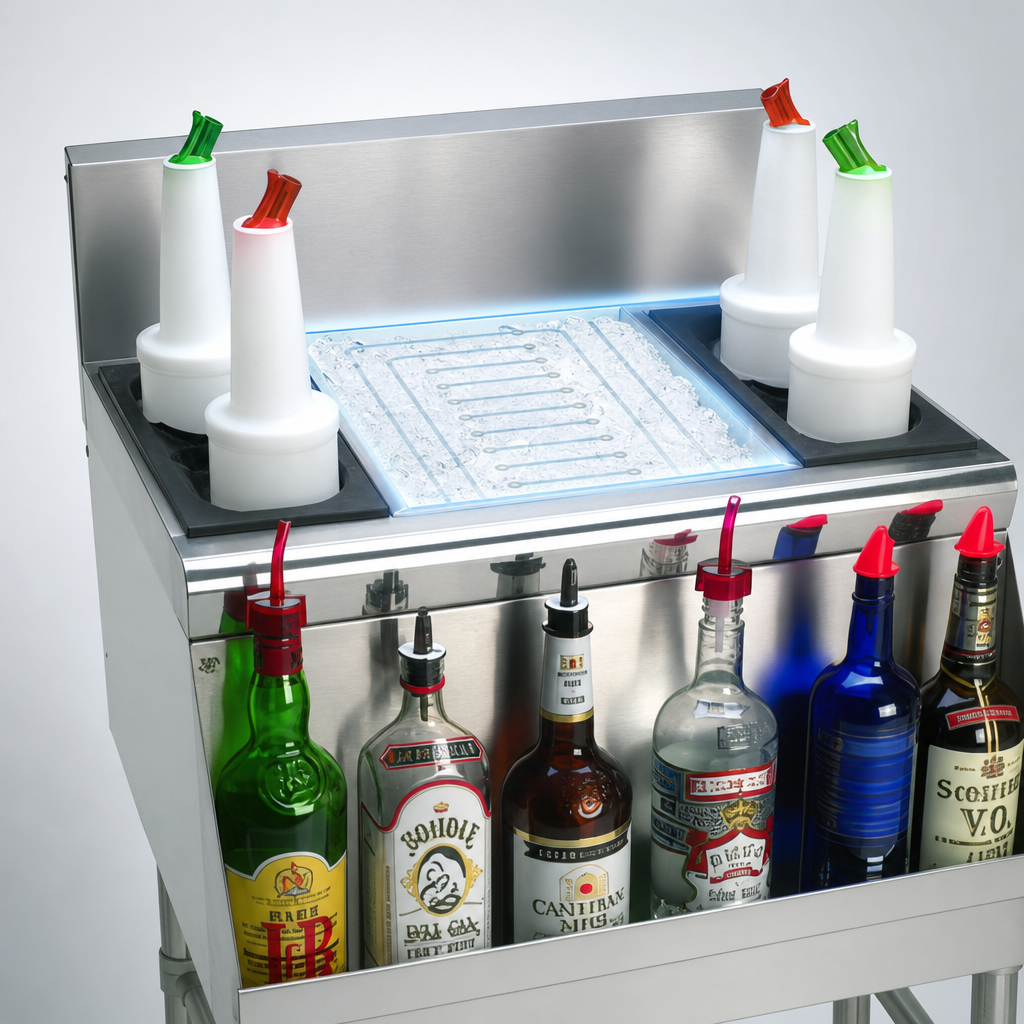

  • Integrated cast-aluminum 10-circuit cold plate (8 syrup / 2 water lines) for rapid drink chilling.
  • 15" deep, fully foamed bin delivers superior insulation and ice longevity.

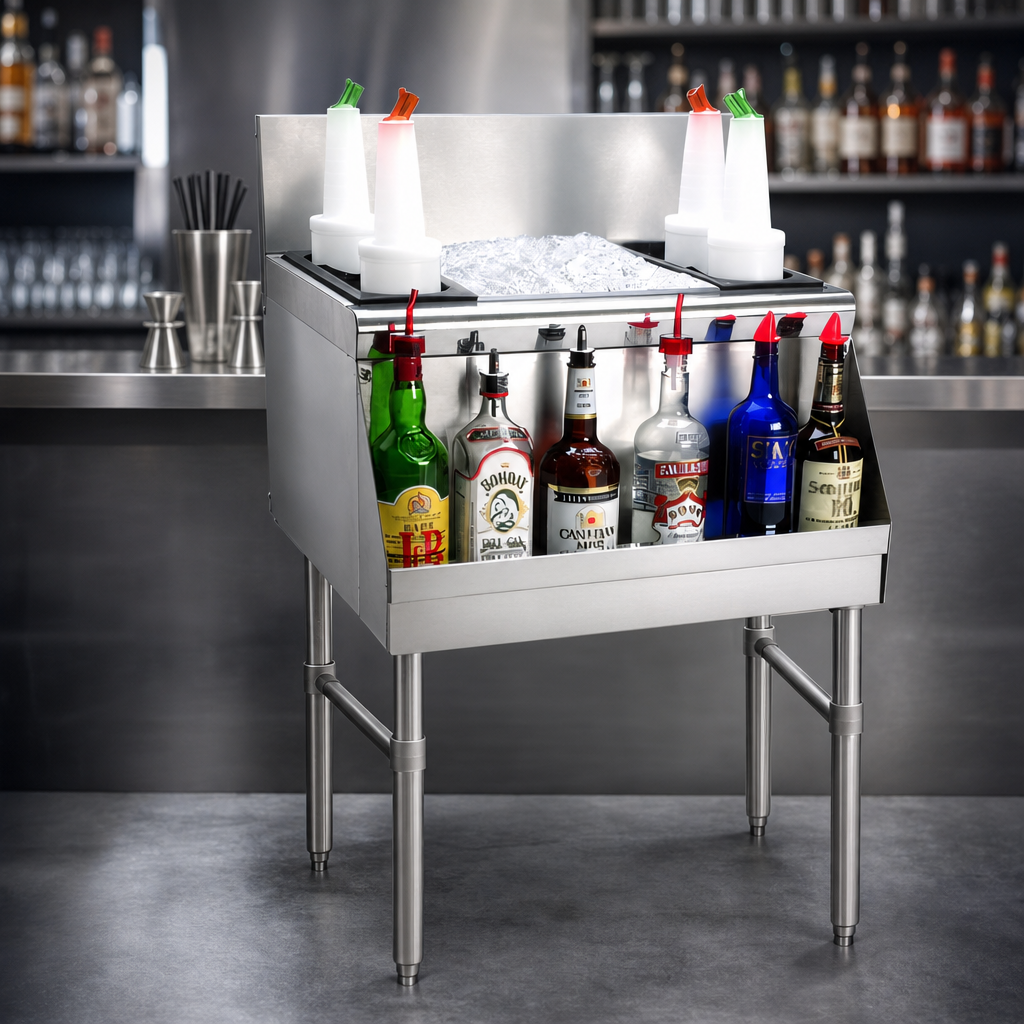

  • 20 ga 300 series stainless steel top, apron & sides with attractive 7" backsplash.
  • Soda-line chase openings at both ends of the backsplash for quick beverage system hook-up.
  • 1/2" IPS drain centered in bin expedites melt-water removal.
  • (2) removable 3-pack plastic bottle racks keep mixers & garnishes organized.
  • 1 ¾" front return panel with pre-punched soda gun knock-out.
  • 1 ⅝" O.D. 18 ga stainless steel legs with adjustable bullet feet and side cross-bracing.
  • NSF compliant (remove bottle racks during inspection).
Technical Specifications
Model PRI-24-36-10-XD
Overall Width 36" (914 mm)
Front-to-Back 25" (635 mm)
Bin Depth 15" (381 mm)
Ice Capacity 147 lbs (66.7 kg)
Cold Plate Cast aluminum, 10 circuits – 8 syrup / 2 water
Drain Connection ½" IPS
Backsplash Height 7"
Construction 20 ga 300 SS body with high-density foam insulation
Legs / Feet 1 ⅝" O.D. 18 ga stainless legs, adjustable bullet feet
Shipping Weight ≈ 175 lbs (79.4 kg)
Popular Accessories (sold separately)
  • PRA-SSC-36 sliding stainless-steel cover
  • Single & double speed rails
  • Drain plumbing kits

Looking for a different size or custom modifications? Ask us about Advance Tabco Smart Fabrication™ for fast, factory-direct quotes.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Height

36.0in

Width

36.0in

Depth

25.0in

Shipping Weight

175.0lbs

Bin Depth

15" deep ice bin

Width (side - side) OA

31" - 36"

Cold Plate

(10) circuit

Construction

stainless steel construction

Splash

7"

Depth (front - back) OA

24" - 27"

Ice Capacity

100 - 149 lbs.

Specifications

Prestige Ice Chest, 36" wide, with 10-circuit cold plate, stainless steel construction with foam insulation, 7" backsplash, 1/2" drain, 25" front-to-back, 15" deep bin, 147 lbs ice capacity, soda chase provision in top of backsplash (Special Value NET Pricing)
