Advance Tabco  |  Prestige (Supreme)  |  SKU: PRHSC-19-12  |  UPC: 747545188014

Advance Tabco PRHSC-19-12 Prestige (Supreme) Bar Equipment

$1,344.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

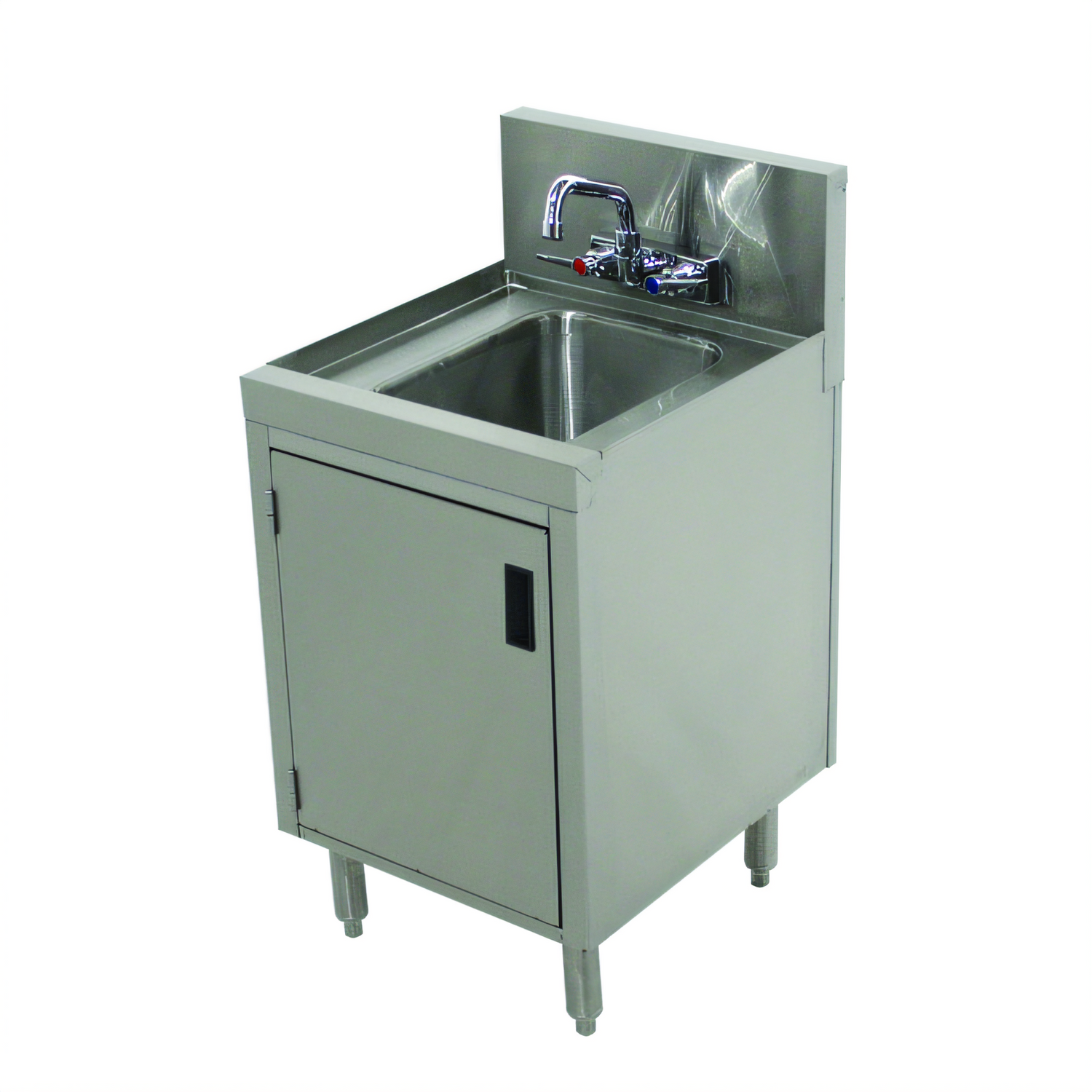

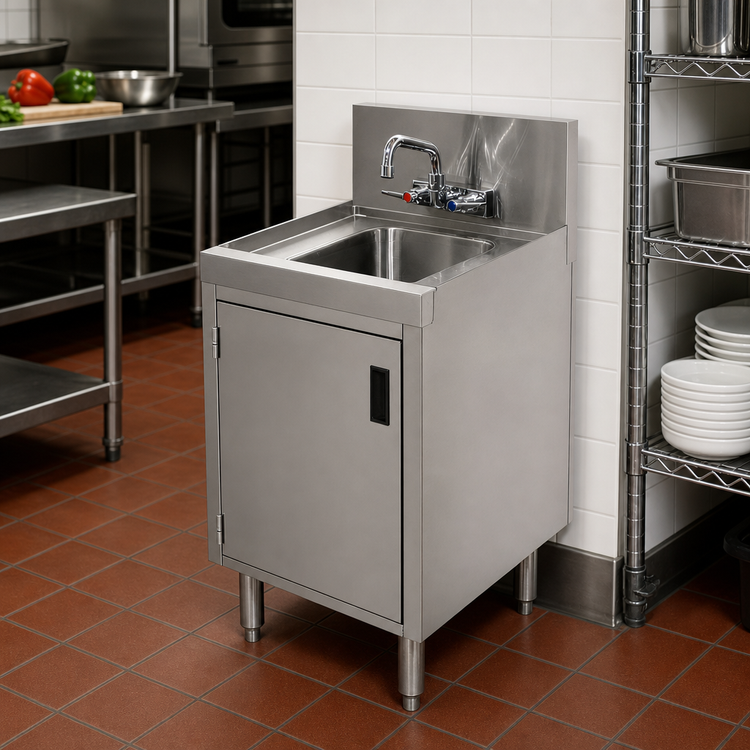

Advance Tabco Prestige Series Underbar Hand Sink with Cabinet – 12" W x 20" D

Model PRHSC-19-12 • NSF & Lead-Free Compliant

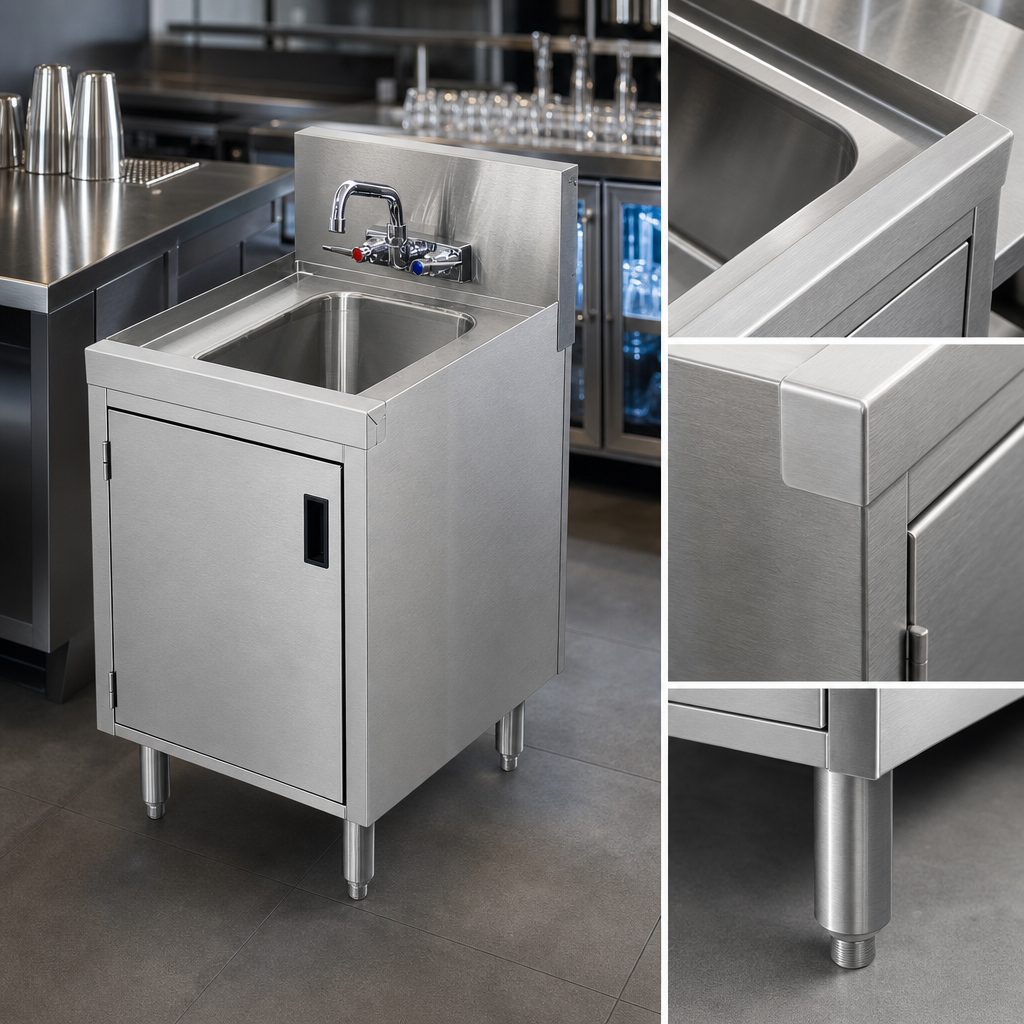

Built for tight beverage stations, pop-up bars, and food-service prep areas, this Prestige Series hand sink combines a deep-drawn seamless bowl with a fully enclosed cabinet base. Rugged 300-series stainless steel construction stands up to daily commercial abuse while the 6" splash-mount swing spout keeps hand-washing fast and sanitary.

Key Benefits

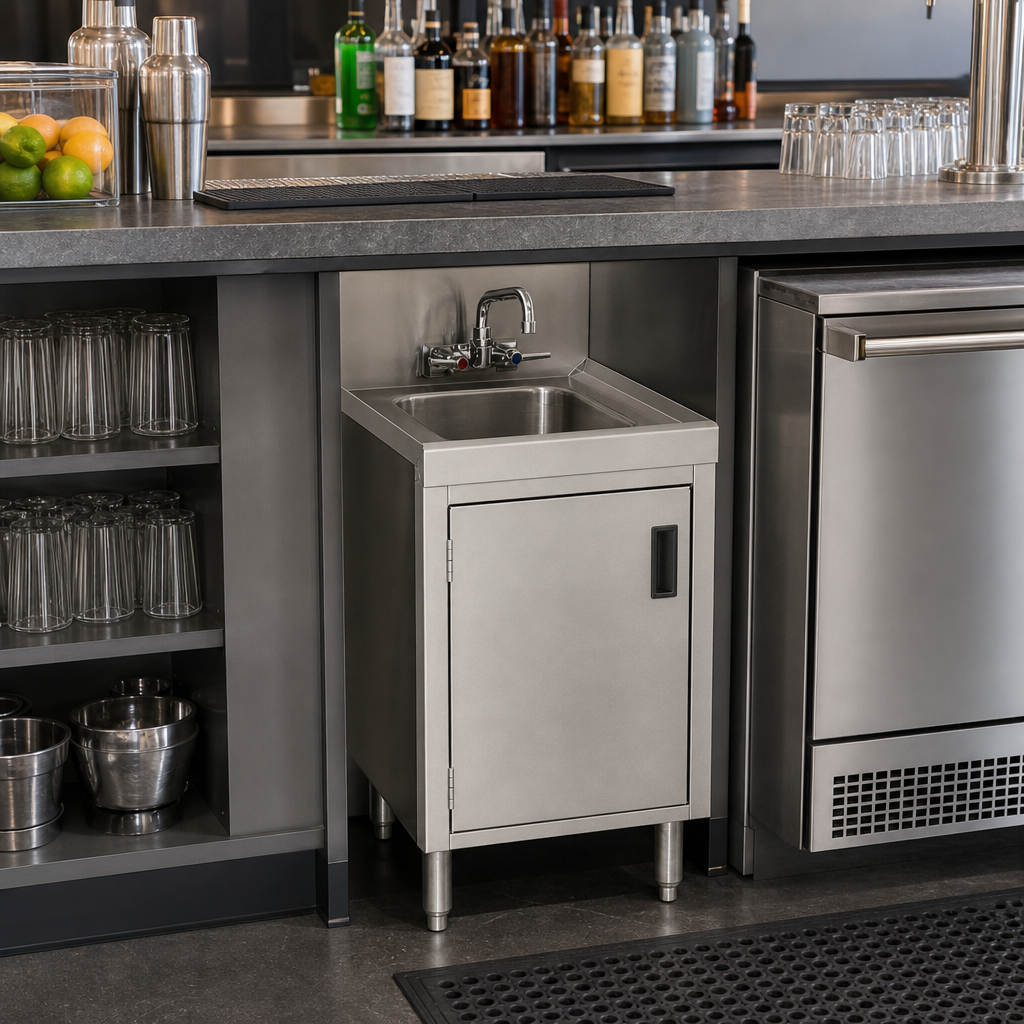

  • Space-saving 12" wide footprint fits underbar and back-bar layouts.
  • One-piece 10" x 14" x 7" deep sink bowl—no welded seams to trap bacteria.
  • 7" backsplash shields surrounding surfaces from water and chemical splashes.
  • All-stainless enclosed cabinet with hinged door for hidden storage of towels, gloves, or chemicals.
  • Factory-supplied 4" O.C. K-125 splash-mount faucet with 6" lead-free swing spout & 1.0 GPM aerator.
  • 1-5/8" O.D. legs with 1" adjustable stainless bullet feet level the unit on uneven floors.
  • 1 ½" IPS drain connection for quick, reliable installation.
  • NSF listed and conforms to NSF 61/9 lead-free requirements.

Technical Specifications

Overall dimensions (W x D x H) 12" × 20" × 36"
Bowl dimensions (W x D x H) 10" × 14" × 7"
Backsplash height 7"
Faucet K-125 splash-mount, 4" centers, 6" swing spout, 1.0 GPM aerator
Material thickness / type 20 ga, 300-series stainless steel
Legs & feet 1 5/8" O.D. 18 ga stainless legs with 1" adjustable bullet feet
Drain size 1 ½" IPS
Cabinet door Hinged, stainless steel
Approx. shipping weight 78 lb
Certifications NSF, NSF/ANSI 61/9 (lead-free)
⚠ WARNING: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Need a larger bowl or deck-mount faucet? Contact us for additional Advance Tabco Prestige configurations.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

12.0in

Depth

20.0in

Shipping Weight

78.0lbs

Bowl Height

7" deep

Overall Depth (front - back)

20" - 23"

Overall Width (side - side)

12" - 14"

Type

free standing

Bowl Size

10" x 14" front-to-back

Specifications

Prestige Hand Sink, underbar, 12"W x 20"D x 36"H (overall), 10"W x 14"D x 7" deep (sink bowl), 7" backsplash, cabinet base with hinged door, stainless steel construction, splash mount faucet with 6" spout, adjustable stainless steel bullet feet, NSF
