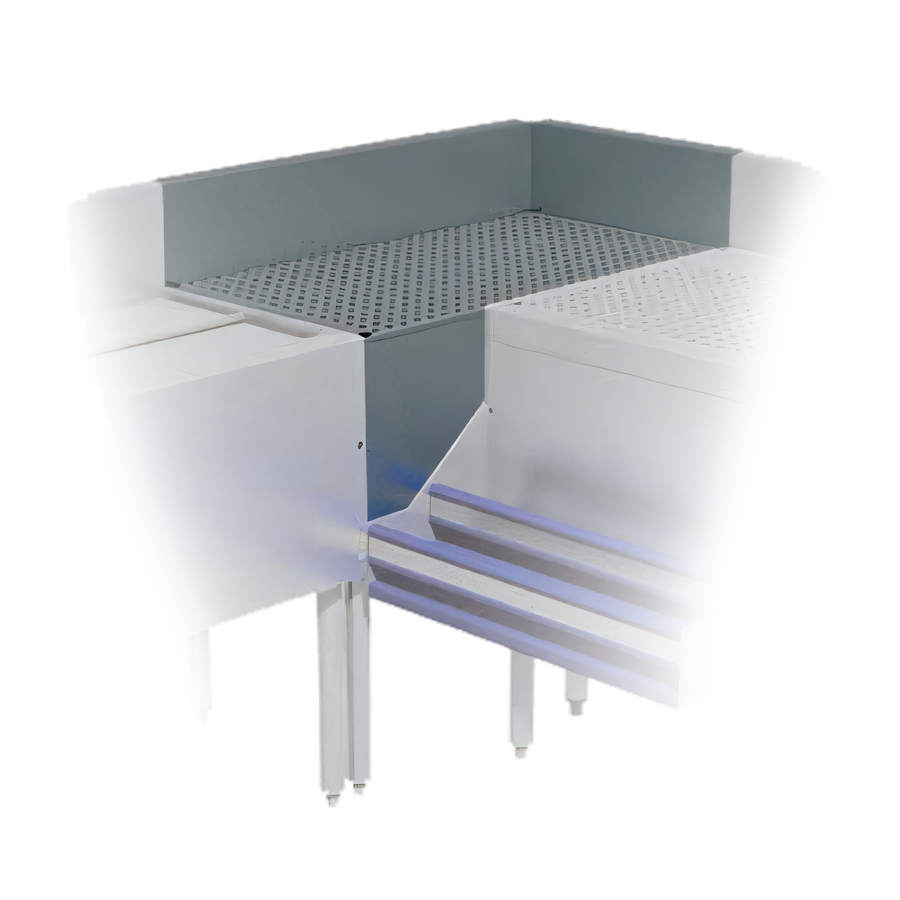

Advance Tabco Prestige 90° Free-Standing Corner Drainboard Filler, 20" Left x 30" Right, 7" Backsplash

SKU: PRFD-2030
GTIN: 747545202710
$764.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment Underbar Storage & Fillers

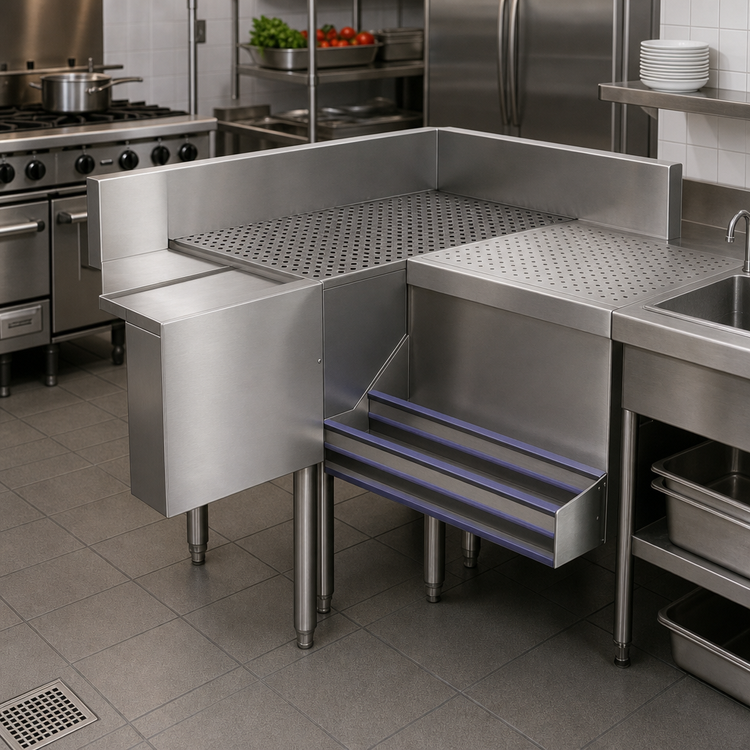

Advance Tabco Prestige 90° Free-Standing Corner Drainboard Filler, 20" Left x 30" Right, 7" Backsplash

Removable perforated stainless top with 1" IPS drain and adjustable bullet feet

This NSF-listed corner drainboard filler turns unused corner space into a durable, easy-draining stainless steel work area with a removable top and leveling feet.

  • Free-standing corner drainboard filler built for underbar layouts.
  • 90° design fits 20" deep left units and 30" deep right units.
  • 7" high backsplash helps contain spills and splashes.
  • Removable perforated drainboard top promotes drainage and easy cleaning.
  • 1" IPS drain provides a straightforward drain connection.
  • Stainless steel legs with adjustable bullet feet help level the unit.
  • 20-gauge stainless steel body with 18-gauge drainboard construction.

Overall Dimensions:

20.0"W x 30.0"D x 36.0"H

Product Weight:

78.0 lb

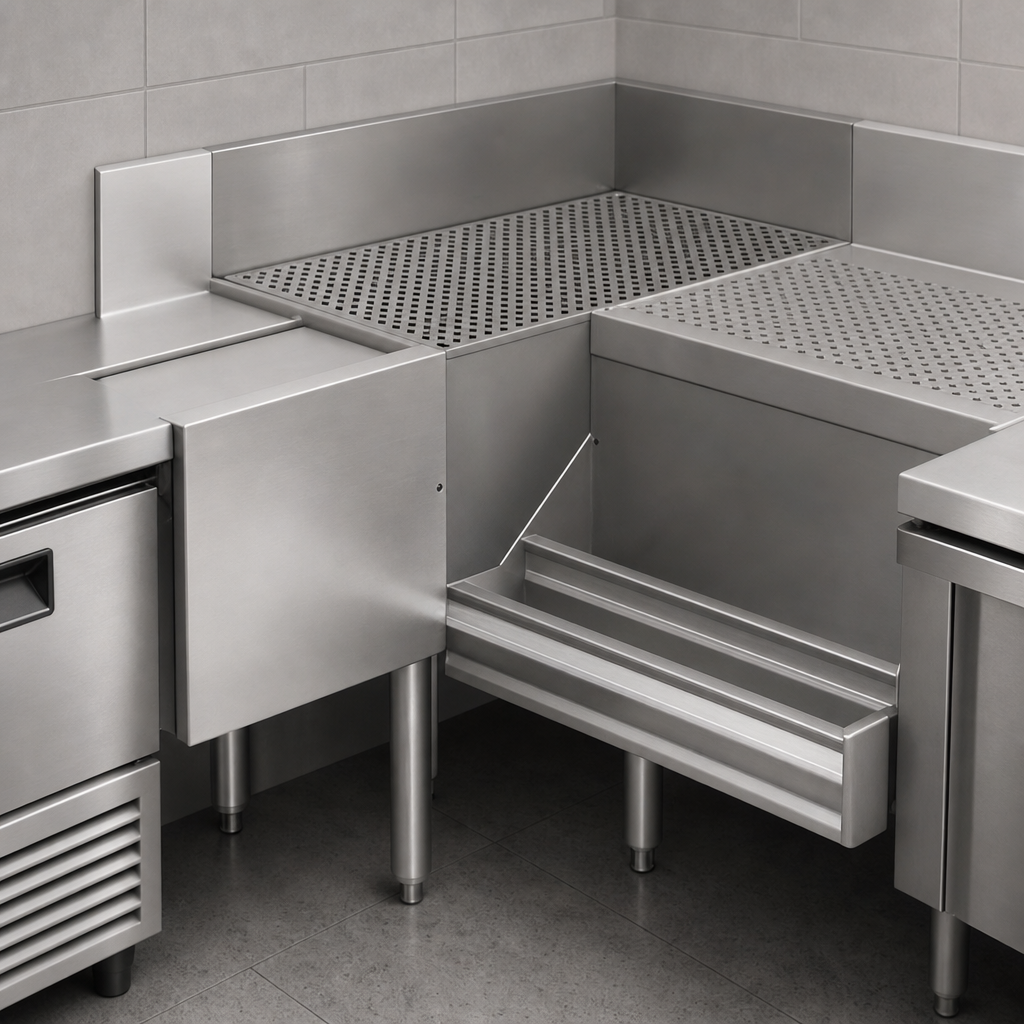

Free-Standing Corner Drainboard

Standalone filler designed to bridge a corner in underbar installations.

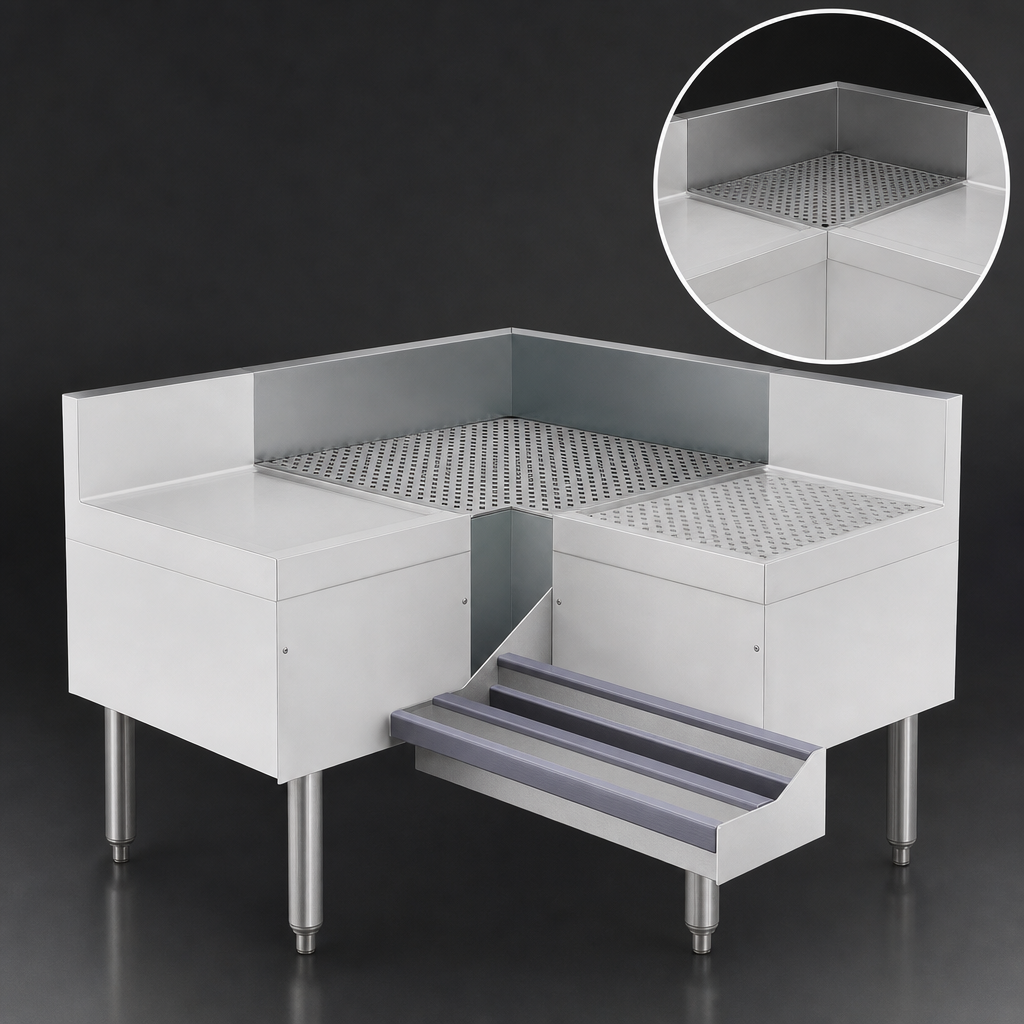

90° Corner Design

Sized to fit 20" deep left units and 30" deep right units.

Removable Perforated Drainboard Top

Lift-out perforated top supports drainage and simplifies cleaning.

7" High Backsplash

Helps contain water and reduce mess along the wall or adjoining equipment.

1" IPS Drain

Built with a 1-inch drain for basic drainage connections.

Stainless Steel Legs with Bullet Feet

Includes stainless steel legs with adjustable stainless steel bullet feet for leveling.

20-Gauge Body / 18-Gauge Drainboard

Durable stainless steel construction with a heavier drainboard top for service use.

NSF Listed

Meets NSF sanitation requirements for commercial foodservice use.

Type Corner Drainboard Filler
Style Inside/Rear Full Corner
Installation Type Freestanding
Material Stainless Steel
Corner Fill Angle 90 Degrees
Backsplash Height 7 Inches
Backsplash Thickness 1-3/4 Inches
Drain Connection Size 1 Inch IPS
Body Gauge 20 Gauge
Drainboard Gauge 18 Gauge
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It fits 20" deep left units and 30" deep right units.
Yes. It includes a removable perforated drainboard top.
It uses a 1" IPS drain.
The backsplash is 7" high.
The body is 20-gauge 300 stainless steel and the drainboard top is 18-gauge 300 stainless steel.
No. Fillers are built to order and cannot be returned.
