Advance Tabco PRCS-25-12 Prestige (Supreme) Bar Equipment
Description

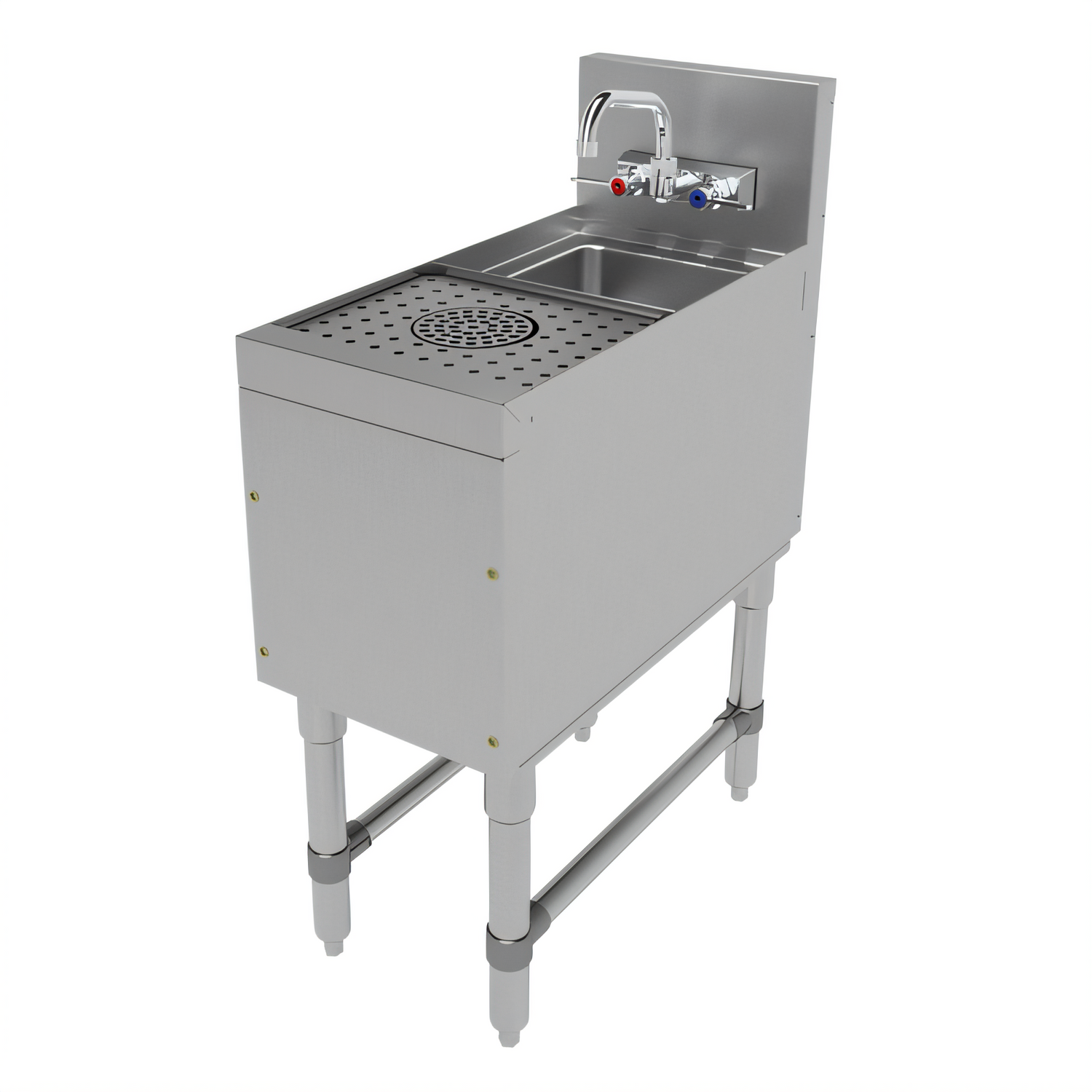

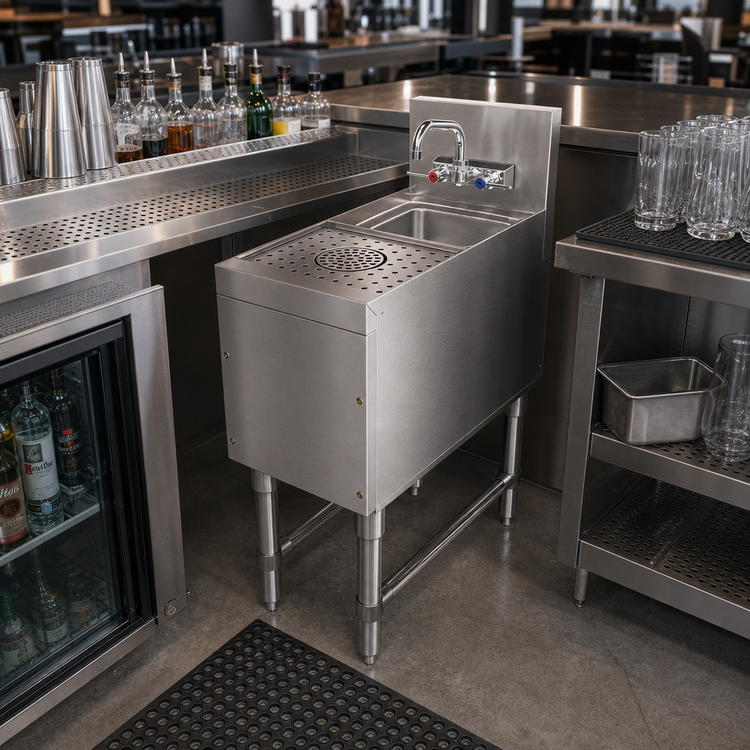

Advance Tabco Prestige PRCS-25-12 Cocktail Station
12" W x 25" D x 36" H Underbar Hand Sink with Glass Rinser & 7" BacksplashEngineered for high-volume bar programs that run on speed and precision, the Prestige PRCS-25-12 combines a deep-drawn hand sink, stainless-steel glass rinser and swing-spout faucet in a space-saving 12-inch footprint. Built entirely from food-grade stainless steel and certified NSF, it delivers the durability, hygiene and workflow efficiency today’s craft cocktail stations demand.
Why You’ll Love It
- Compact 12 inch width fits tight underbar lines without sacrificing functionality.
- Integrated SU-16 glass rinser with removable drainboard chills and cleans glassware in seconds.

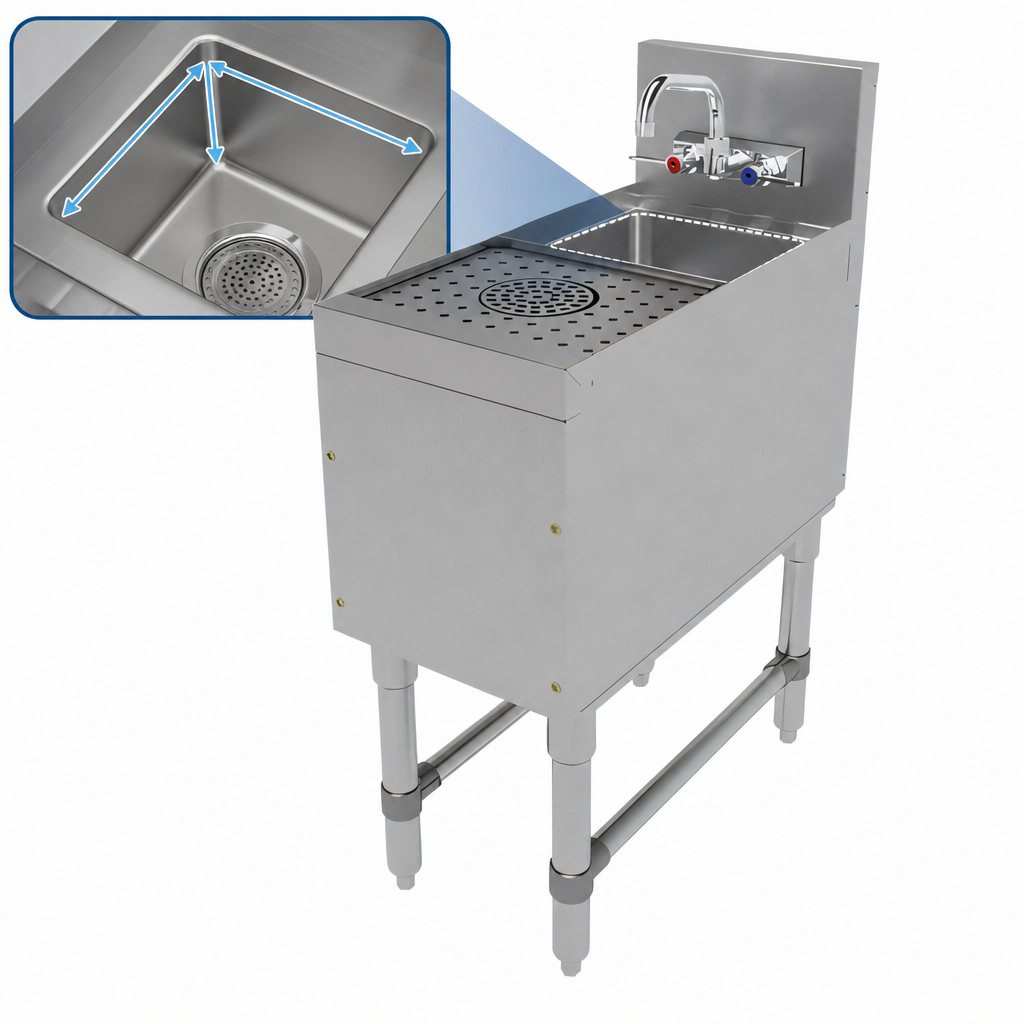

- One-piece 9" × 9" × 4" deep-drawn sink bowl eliminates seams that can harbor bacteria.
- 7" rear backsplash and 29" working height keep splashes contained and staff comfortable.
- 6" swing-spout, splash-mounted K-125 faucet provides generous clearance for pitchers and bar tools.

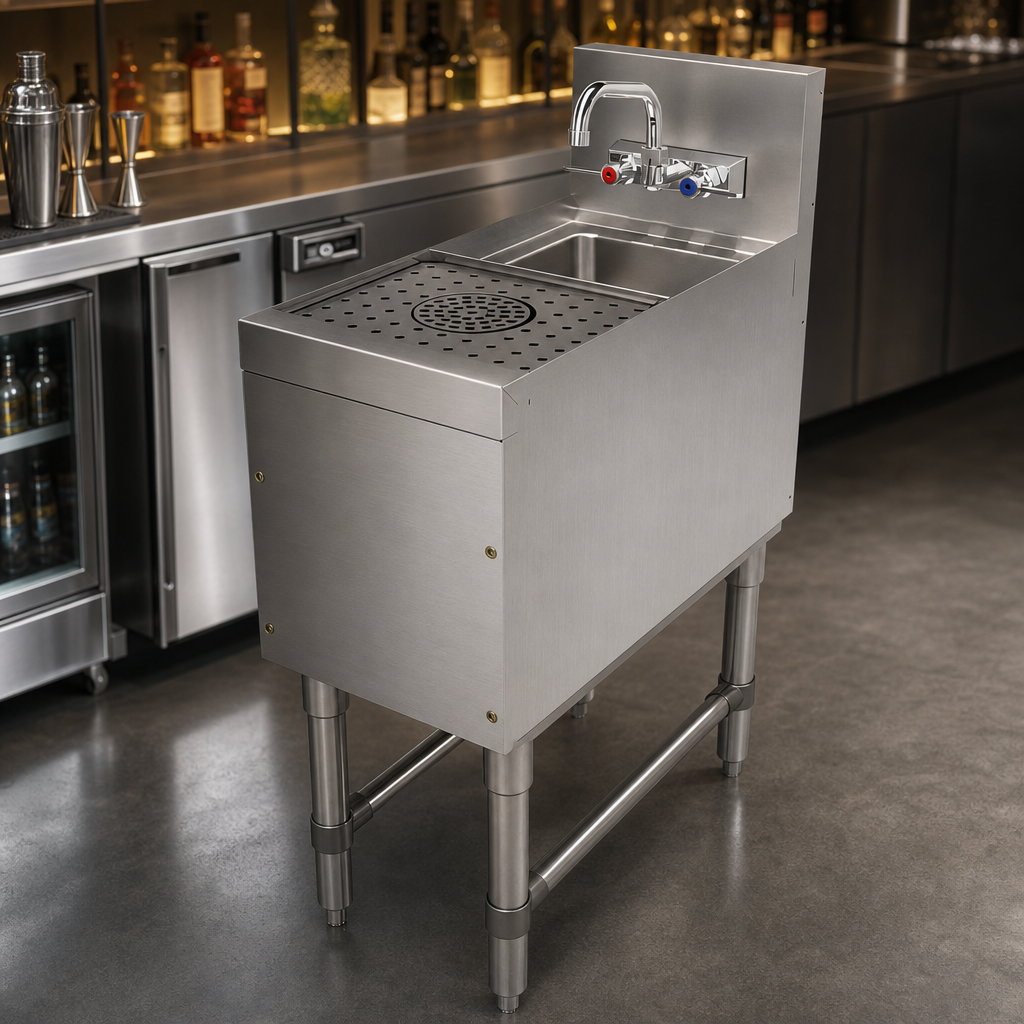

- All-stainless construction—including legs, apron and adjustable bullet feet—stands up to everyday bar abuse.
- Adjustable stainless cross-bracing adds rigidity and simplifies leveling on uneven floors.
- NSF listed for open-kitchen and health-dept. compliance.
At-a-Glance Specs
| Model | PRCS-25-12 |
|---|---|
| Series | Prestige Signature (Supreme) |
| Overall Dimensions | 12" W × 25" D × 36" H |
| Working Height | 29" |
| Backsplash Height | 7" |
| Sink Bowl Size | 9" L × 9" W × 4" D (one-piece, 20-ga. 300 series S/S) |
| Glass Rinser Area | 4-1/2" diameter, 18-ga. S/S with removable drainboard |
| Faucet | K-125 splash-mount swing spout, 6" reach, chrome-plated brass |
| Drain Size | 1-1/2" IPS outlet (2" drain w/ strainer plate included) |
| Water Connection | 1/2" BSP (standard plumbing) |
| Legs & Feet | 1-5/8" O.D., 18-ga. S/S legs with adjustable S/S bullet feet |
| Shipping Weight | 65 lb. |
| Certifications | NSF Listed |
Plumbing & Installation
- Hot and cold water supplied via 1/2" BSP connections.
- Sink outlet requires 1-1/2" drain line.
- Unit ships fully assembled—simply level the bullet feet, connect utilities and you’re ready to pour.
Optional Accessories (Sold Separately)
- A-17A perforated basket—keeps small wares out of the drain while rinsing.
- K-63 replacement 1-1/2" drain kit.
Looking for a larger sink bowl? Check out model PRCS-25-18 for an 18" wide version with a deeper, 10" × 14" × 7" bowl.
