Advance Tabco PRC-24-42R-10 Prestige (Supreme) Bar Equipment
Description

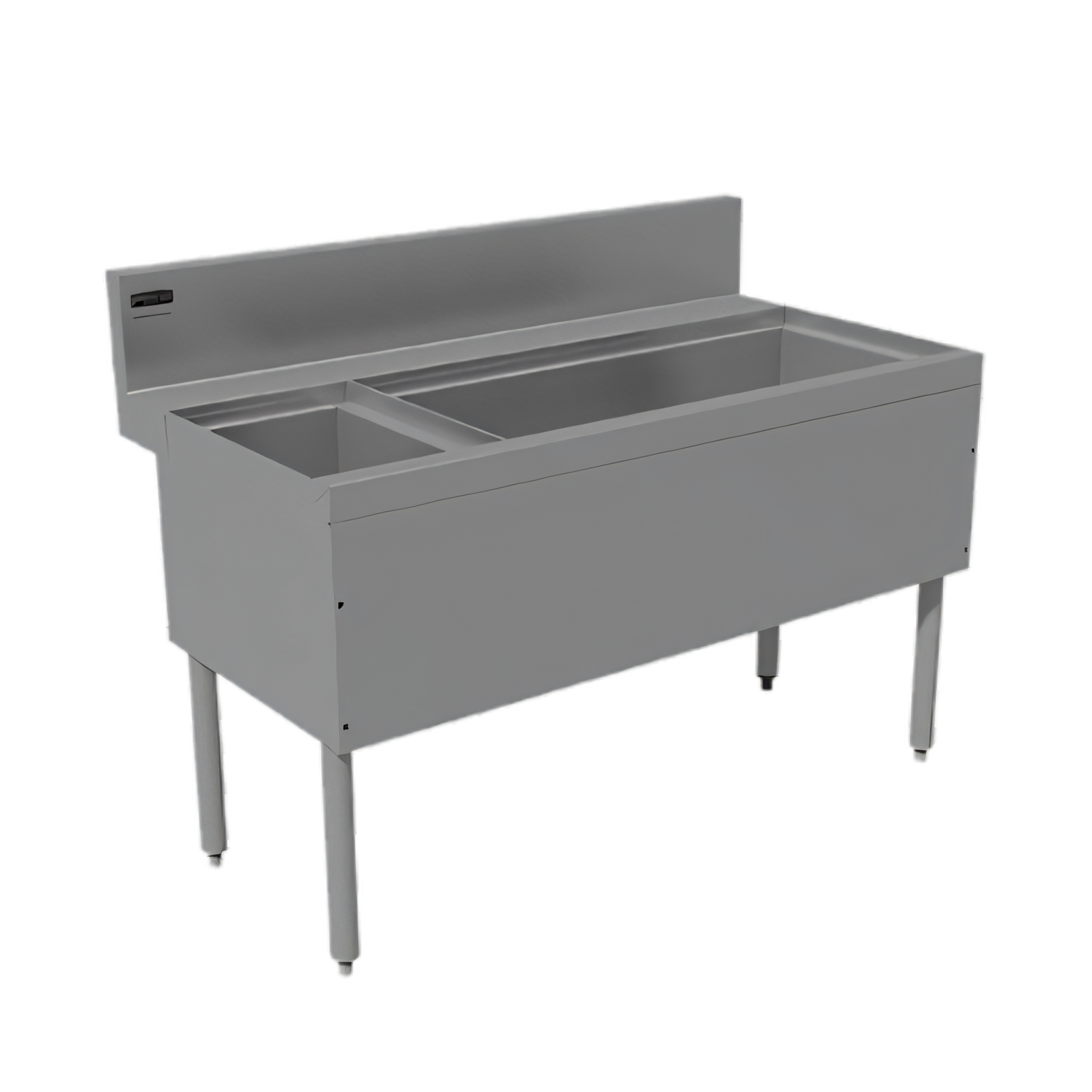

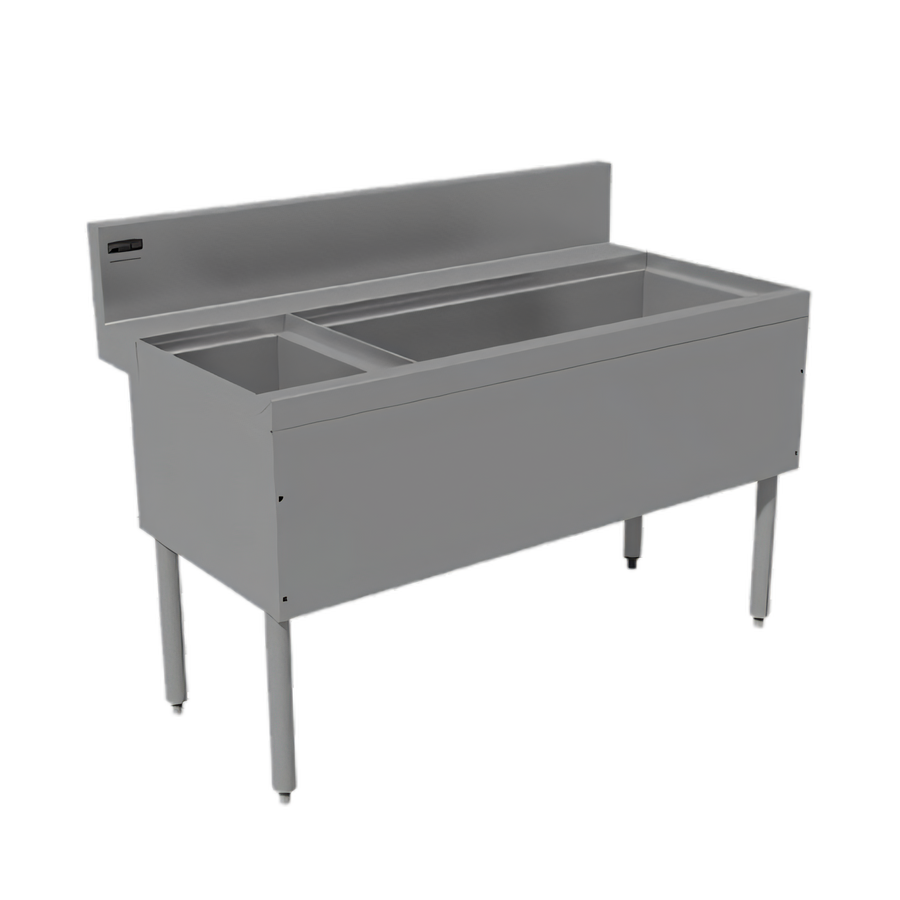

Advance Tabco Prestige (Supreme) 42" Ice Chest & Bottle Storage Combo w/ 10-Circuit Cold Plate
Model PRC-24-42-10 • Left-side bottle storage • NSF ListedBuilt for high-volume bars that refuse to compromise on speed or sanitation, the Prestige Supreme brings Advance Tabco’s commercial craftsmanship to an all-in-one ice & beverage center. A cast-aluminum 10-circuit cold plate chills eight syrups and two water lines while a massive 89 lb ice bin keeps cocktails flowing.
Why You’ll Love It

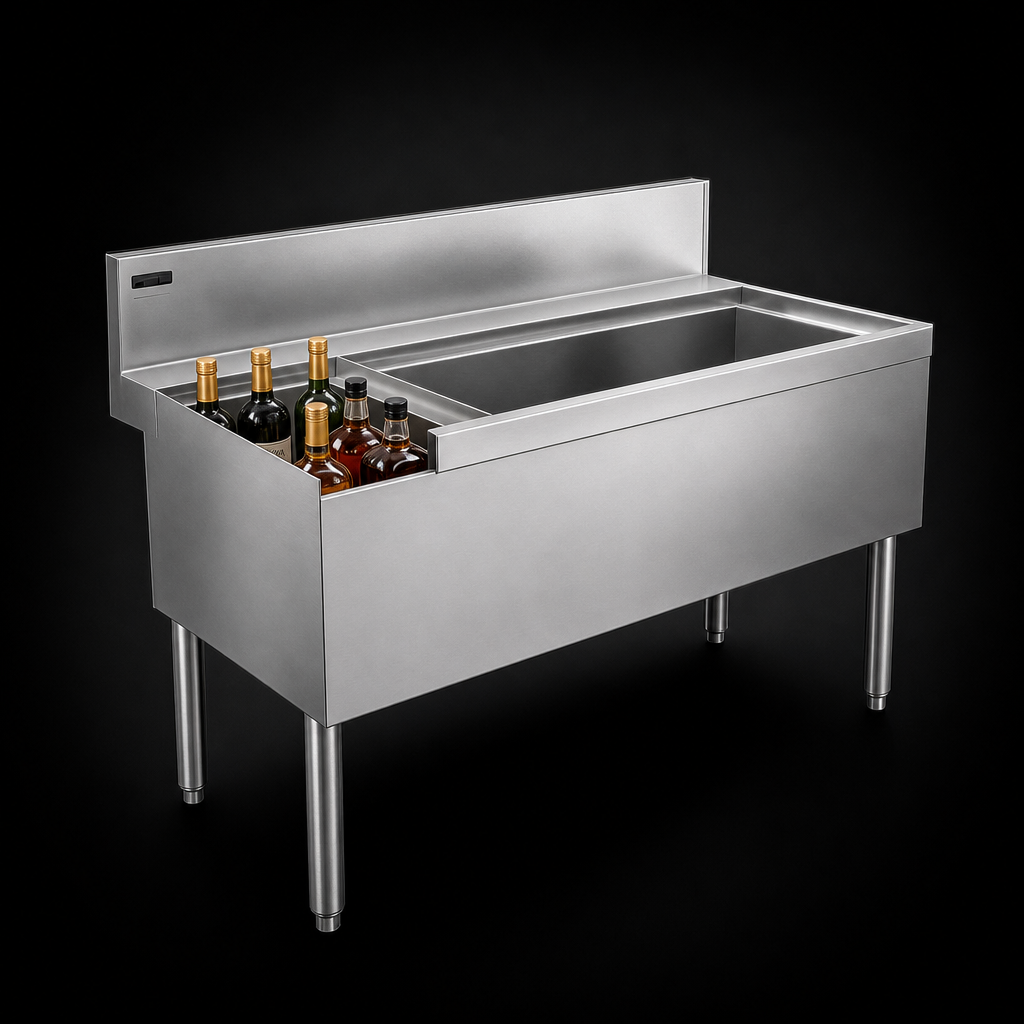

- Dual-purpose design: 89 lb insulated ice chest + left-mounted bottle storage rack (32 lb)

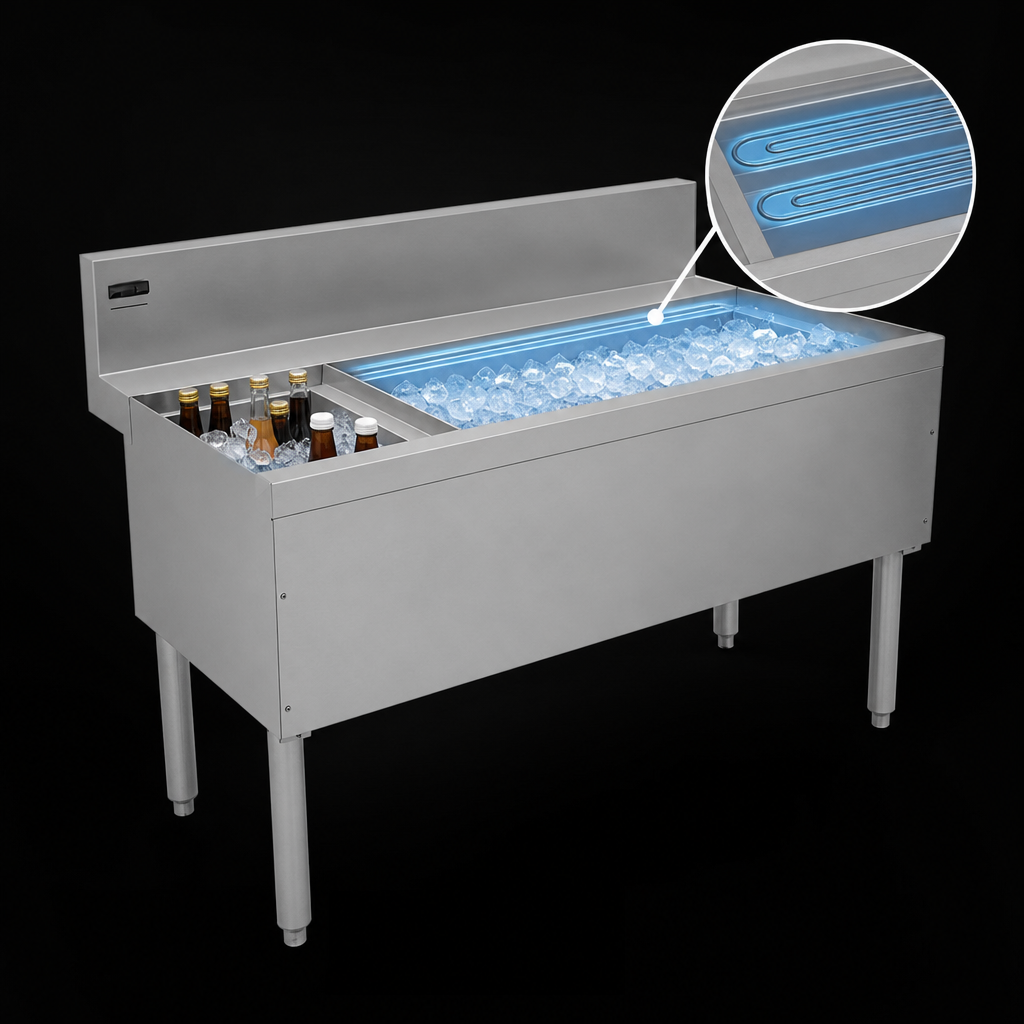

- Integrated 10-circuit cold plate (8 syrup / 2 water) with 5/16" stainless swedge ends
- Premium 300 series stainless steel top, apron & sides – built to survive the busiest shifts
- Full 1-piece 7" backsplash with factory soda-gun chase to hide beverage lines
- 11" deep, foam-insulated bin maintains ice integrity and minimizes melt-off
- 1 ⅝" O.D. 18-ga legs with adjustable bullet feet level the unit in seconds
- Removable injection-molded 3-pack bottle racks for fast change-outs & easy cleaning
- NSF certified for food-zone peace of mind
Technical Specifications
| Overall length (left ↔ right) | 42 in / 1067 mm |
|---|---|
| Front-to-back depth | 25 in / 635 mm |
| Backsplash height | 7 in / 178 mm |
| Bin depth | 11 in / 279 mm |
| Ice capacity | 89 lb (main bin) / 32 lb (bottle zone) |
| Cold plate | Cast aluminum, 10 circuits • 8 syrup + 2 water |
| Drain connection | ½" IPS (cold-plate models) |
| Construction | 20-ga 300 SS top/apron/sides • 18-ga 300 SS legs |
| Insulation | High-density polyurethane foam |
| Certifications | NSF |
Need a different length or opposite orientation? Advance Tabco’s Smart Fabrication™ can custom-build to your exact bar layout.
