Advance Tabco PRC-24-42L-10 Prestige (Supreme) Bar Equipment
Description

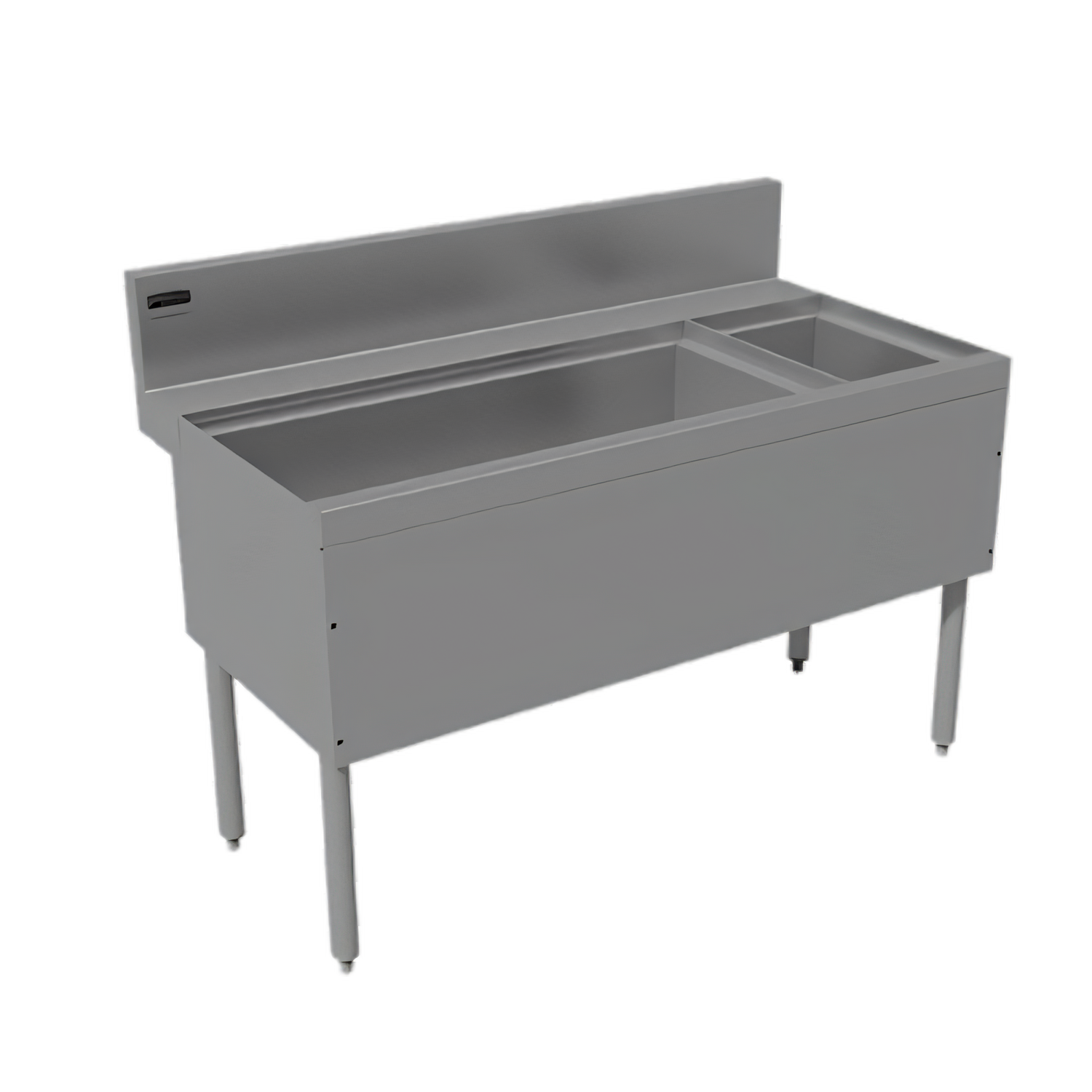

Prestige (Supreme) 42" Ice Chest & Bottle Storage Combo w/ 10-Circuit Cold Plate
Advance Tabco – Model PRC-24-42R-10Engineered for high-volume bars, restaurants, and stadium concessions, this 42-inch Prestige Supreme unit combines a foam-insulated ice chest with dedicated bottle storage and a built-in 10-circuit cold plate. Enjoy faster pours, better product rotation, and NSF-compliant sanitation in one rugged, all-stainless solution.
Key Features

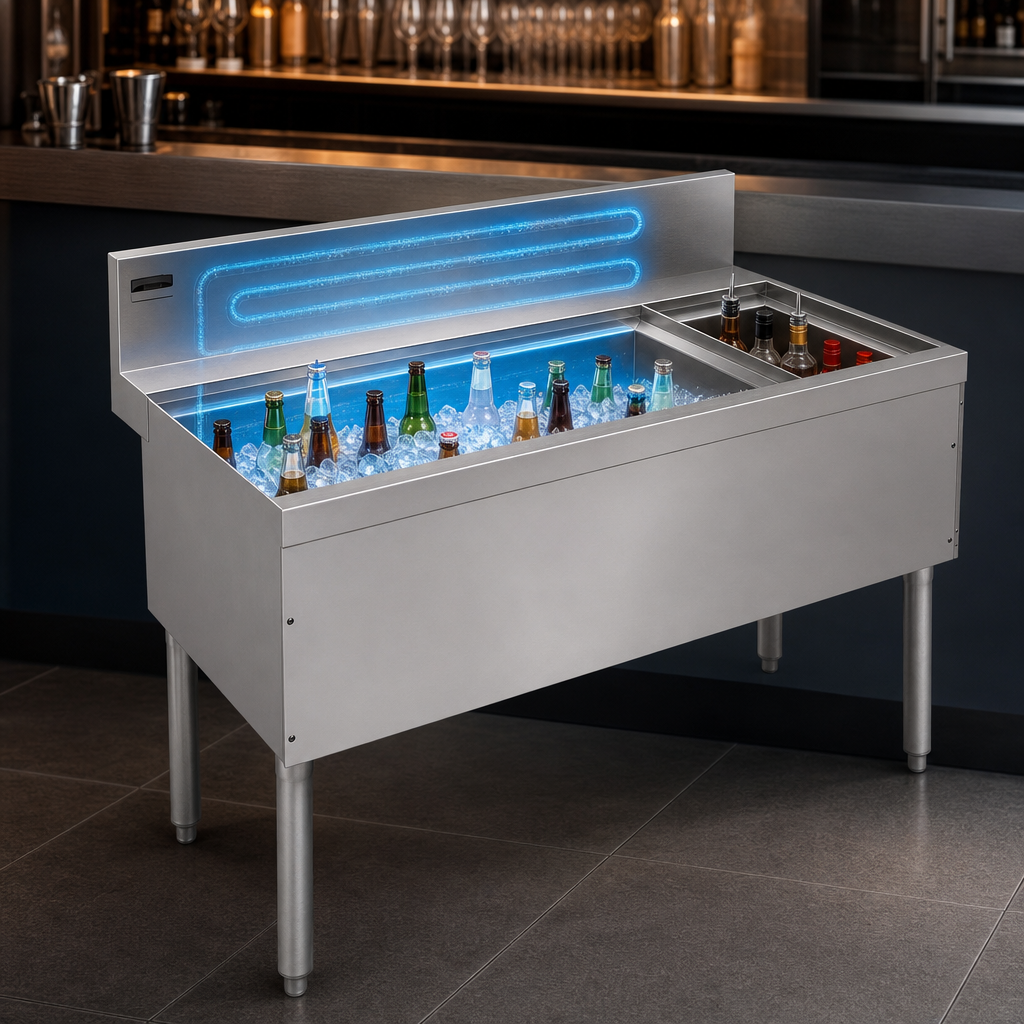

- Integrated 10-circuit cast-aluminum cold plate (8 syrup & 2 water lines) for ice-cold fountain service.
- 89 lb primary ice capacity plus 32 lb bottle-well capacity — perfect for chilled mixers or beer bottles.

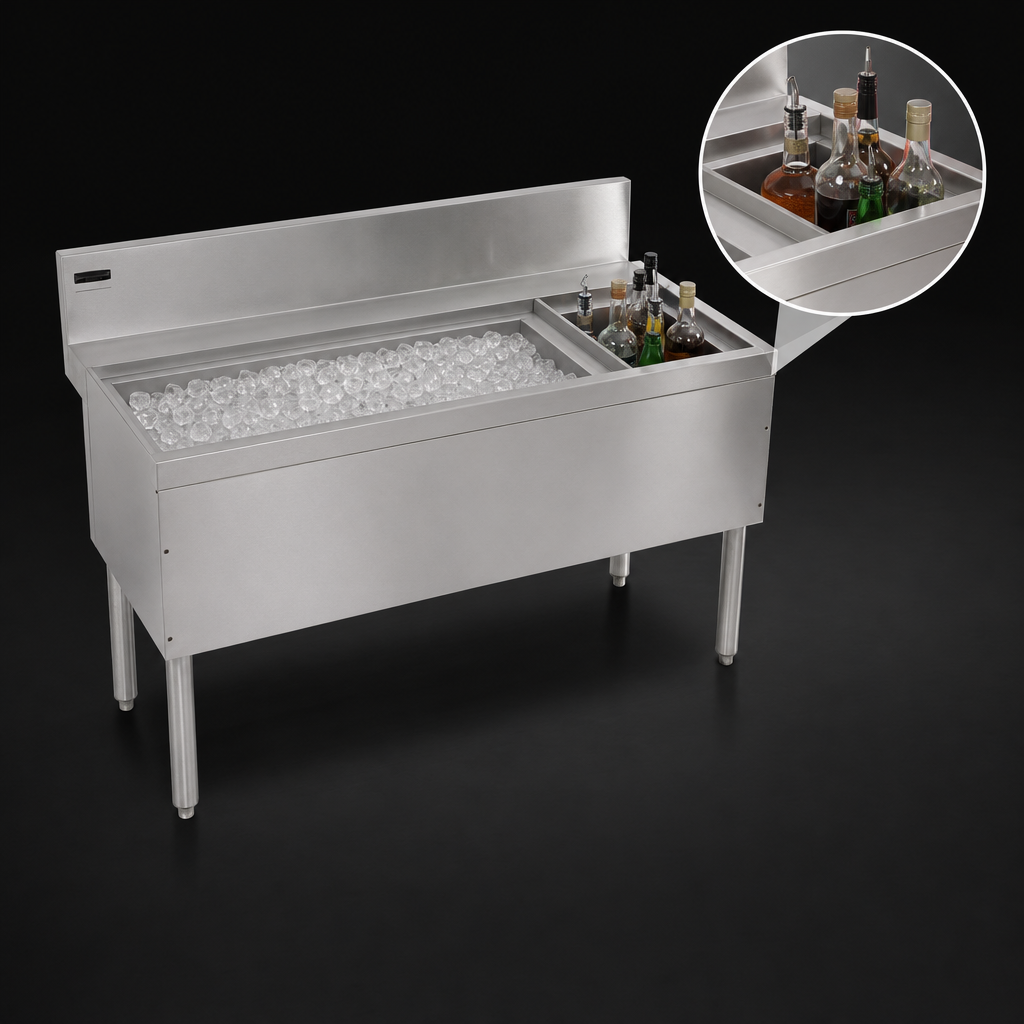

- Right-side removable 3-pack plastic bottle racks keep product organized and within arm’s reach.
- 25" front-to-back stainless steel top with 1 ¾" return and pre-punched soda-gun knock-out.
- 7" rear backsplash with built-in chase for easy routing of beverage lines.
- 11" deep, one-piece ice bin lined with high-density foam insulation for superior ice retention.
- 300 series stainless steel top, apron, sides, legs, and adjustable 1" bullet feet — built for commercial abuse.
- 1 ⁄ 2" IPS drain on cold-plate bin for quick, clog-free melt-water removal.
- NSF listed for peace of mind behind the bar.
At-a-Glance Specifications
| Overall width | 42 in (1067 mm) |
|---|---|
| Front-to-back depth | 25 in (635 mm) |
| Working height | 36 in (914 mm) + 7 in backsplash |
| Ice bin depth | 11 in (279 mm) |
| Ice capacity | 89 lb primary / 32 lb bottle well |
| Cold plate | Cast aluminum, 10 circuits (8 syrup, 2 water) |
| Drain connection | ½" IPS (cold-plate bin) |
| Legs | 1 5⁄8" O.D. stainless, adjustable bullet feet |
| Construction | 20-ga 300 series stainless steel; foam-insulated bin |
| Certifications | NSF |
Ideal Applications
- Full-service cocktail bars & nightclubs
- High-volume stadium or arena concession stands
- Hotel banquet & catering beverage stations
- Brewpub or taproom service wells
Bottle racks must be removed for NSF compliance or when using an optional sliding stainless-steel cover (models PRA-SSC-12 through PRA-SSC-36, sold separately).
