Advance Tabco PRC-24-36L-10 Prestige (Supreme) Bar Equipment
Description

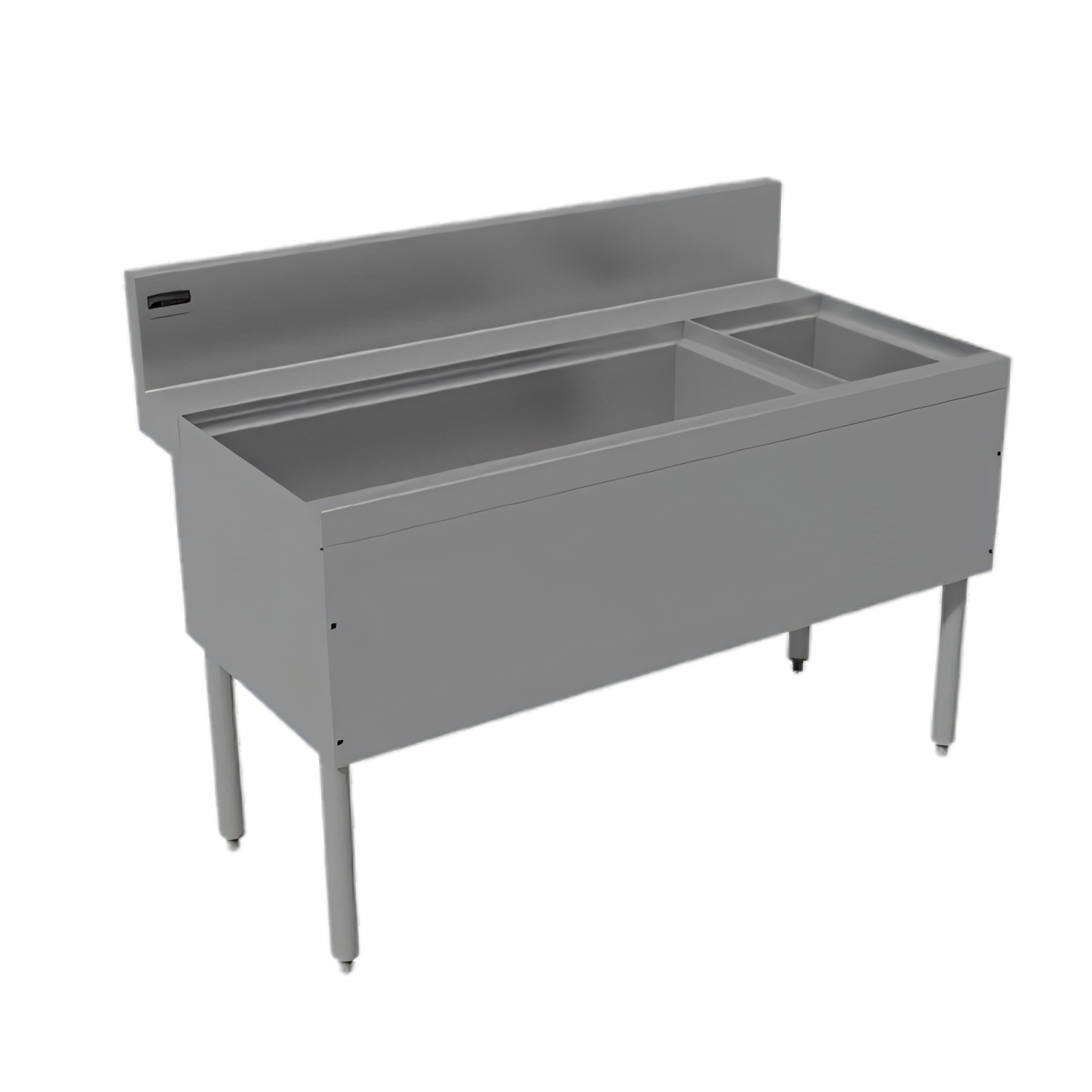

Advance Tabco Prestige “Supreme” Ice Bin & Bottle Storage – 36" W w/ 10-Circuit Cold Plate
Model PRC-24-36R-10 • NSF ListedDesigned for high-volume bar and beverage programs, the Prestige Supreme combines a generous ice chest with dedicated bottle storage and an industry-leading 10-circuit cold plate, all in a compact 36 inch footprint. Built from heavy-duty 300-series stainless steel and fully foam-insulated, it keeps ice solid, syrups cold, and service flowing.
Key Features

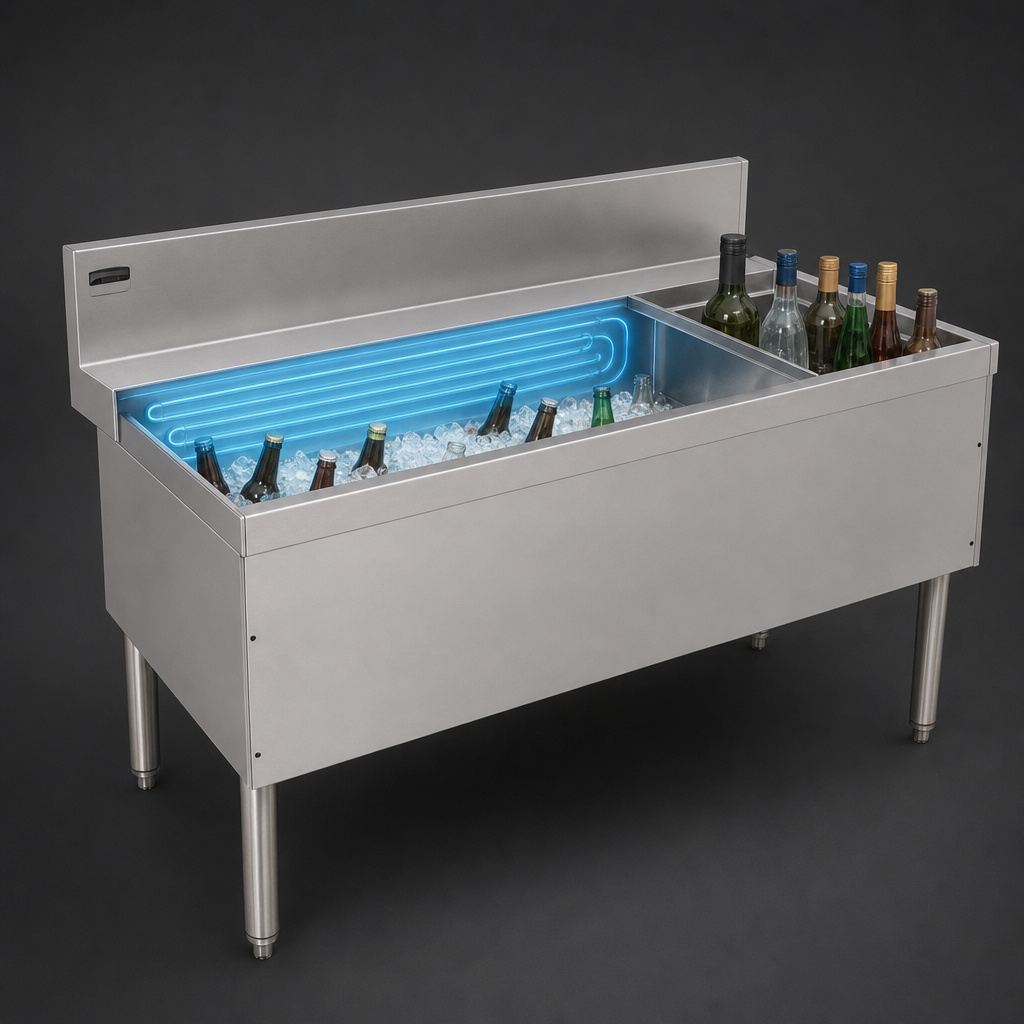

- Integrated 10-circuit cast-aluminum cold plate (8 syrup / 2 water lines) for frosty fountain drinks.

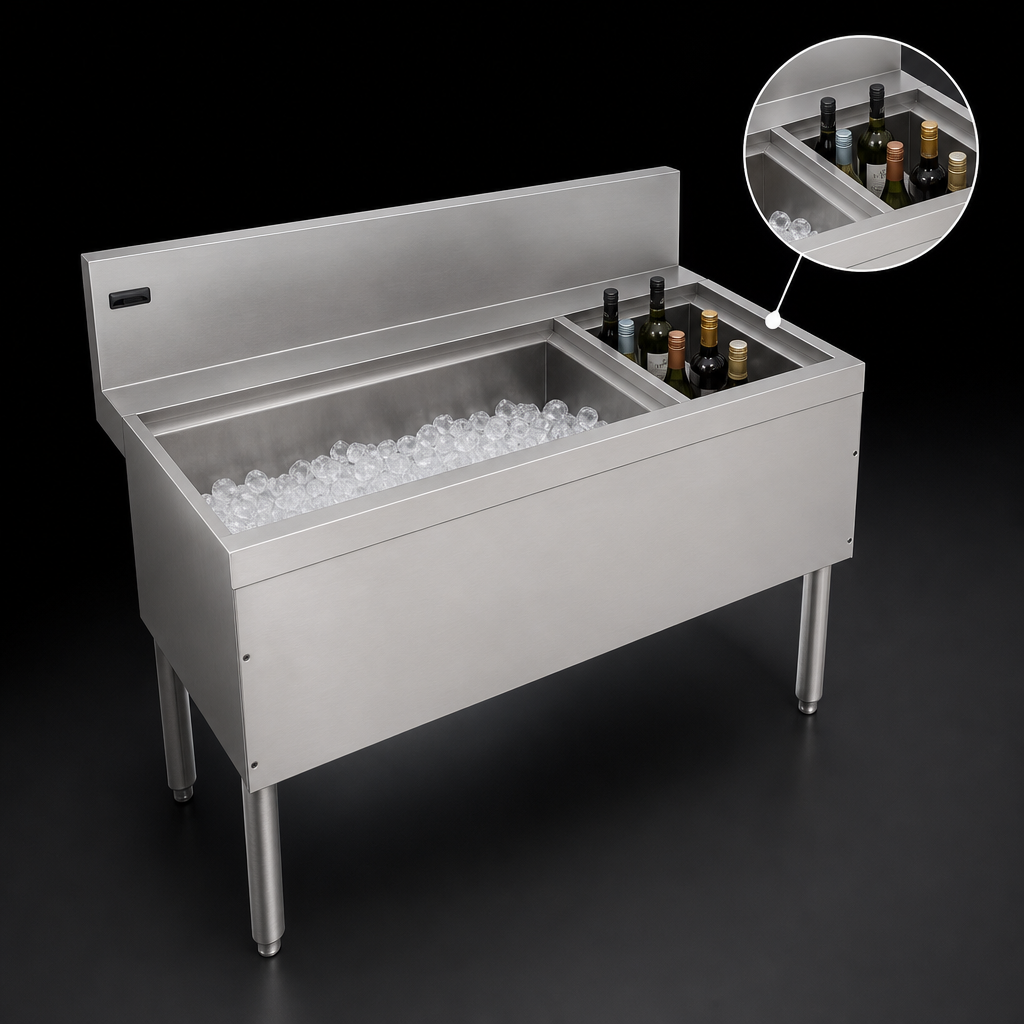

- 70 lb ice bin on the left with 11" bin depth; 32 lb bottle storage rack on the right.
- 25" front-to-back depth fits standard 24–25" bar layouts.
- 7" backsplash with 1 3/4" return and factory knock-out for soda gun mounting.
- Soda-line chase built into the top corners of the splash for quick, concealed line routing.
- 20-gauge 300 SS top, apron & sides; 18-gauge 1 5/8" Ø legs with adjustable stainless bullet feet.
- Fully welded stainless partition keeps bottle storage and ice sanitary & separated.
- Two removable, injection-molded 3-pack bottle racks included.
- ½" IPS stainless drain for cold-plate bin; all plumbing ready to hook up.
Specifications at a Glance
| Overall length (left ➜ right) | 36" / 914 mm |
|---|---|
| Front-to-back depth | 25" / 635 mm |
| Working height | 36" to deck | 43" to top of backsplash |
| Ice bin capacity | 70 lbs (31.8 kg) |
| Bottle storage capacity | 32 lbs (14.5 kg) |
| Cold plate circuits | 10 (8 syrup, 2 water) |
| Drain size | ½" IPS (cold-plate bin) |
| Material & finish | 20-ga 300 SS top/apron/sides; brushed finish |
| Insulation | High-density foamed-in-place polyurethane |
| Approx. shipping weight | ≈ 165 lbs (75 kg) |
| Certifications | NSF, Lead-Free (cold plate tubing) |
Why You’ll Love It
- Serve both mixed drinks and fountain beverages from a single station.
- Foam insulation locks in cold for longer ice life—less melt, less mess.
- Right-side bottle bay keeps top movers right where bartenders reach first.
- All-stainless body resists corrosion and wipes clean fast at shift-end.
- Factory knock-outs and line chase slash install time on beverage systems.
Bottle racks must be removed for NSF compliance and when adding an optional sliding stainless cover (sold separately).
