Advance Tabco  |  Prestige (Supreme)  |  SKU: PRC-19-54LR-10  |  UPC: 747545186669

Advance Tabco PRC-19-54LR-10 Prestige (Supreme) Bar Equipment

$3,341.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

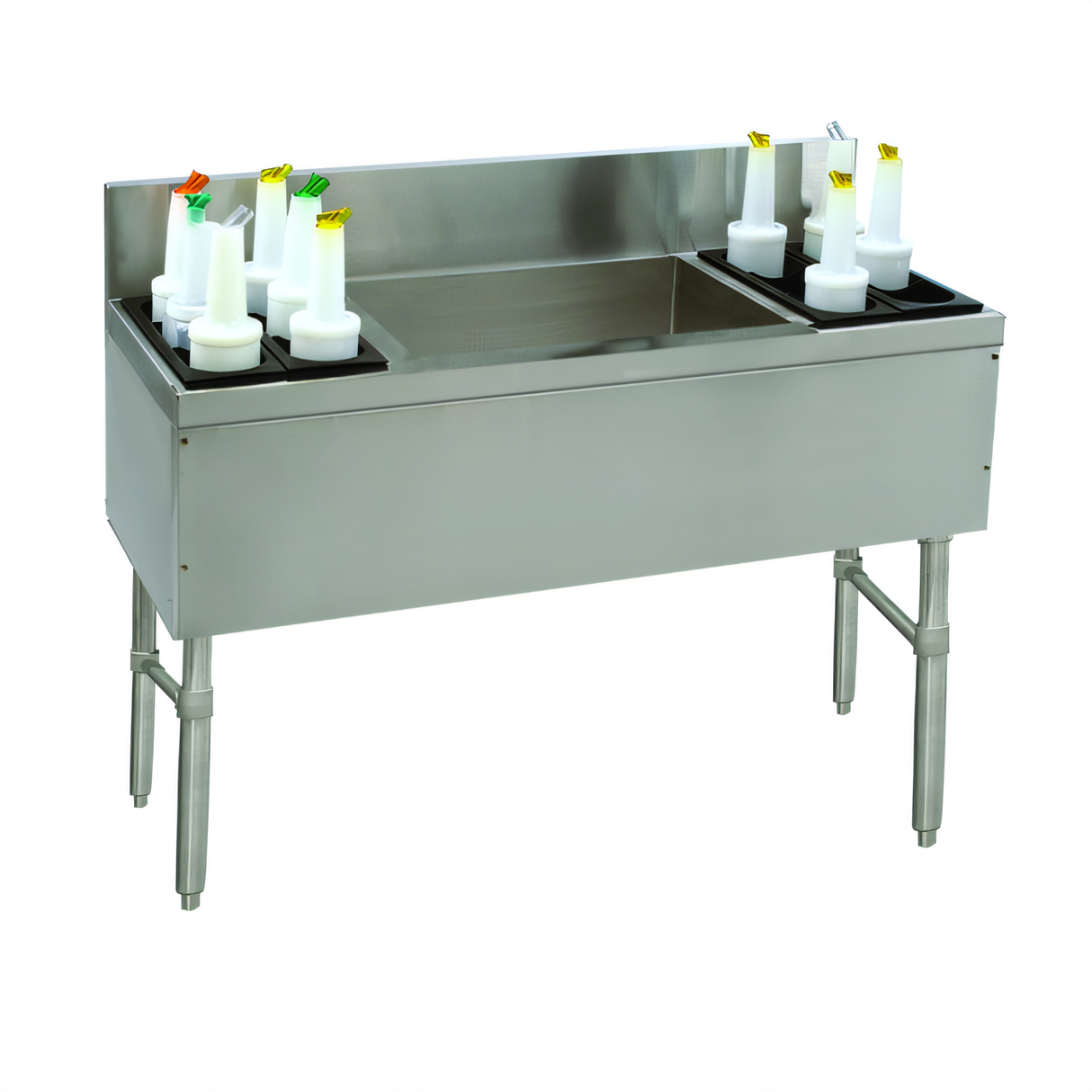

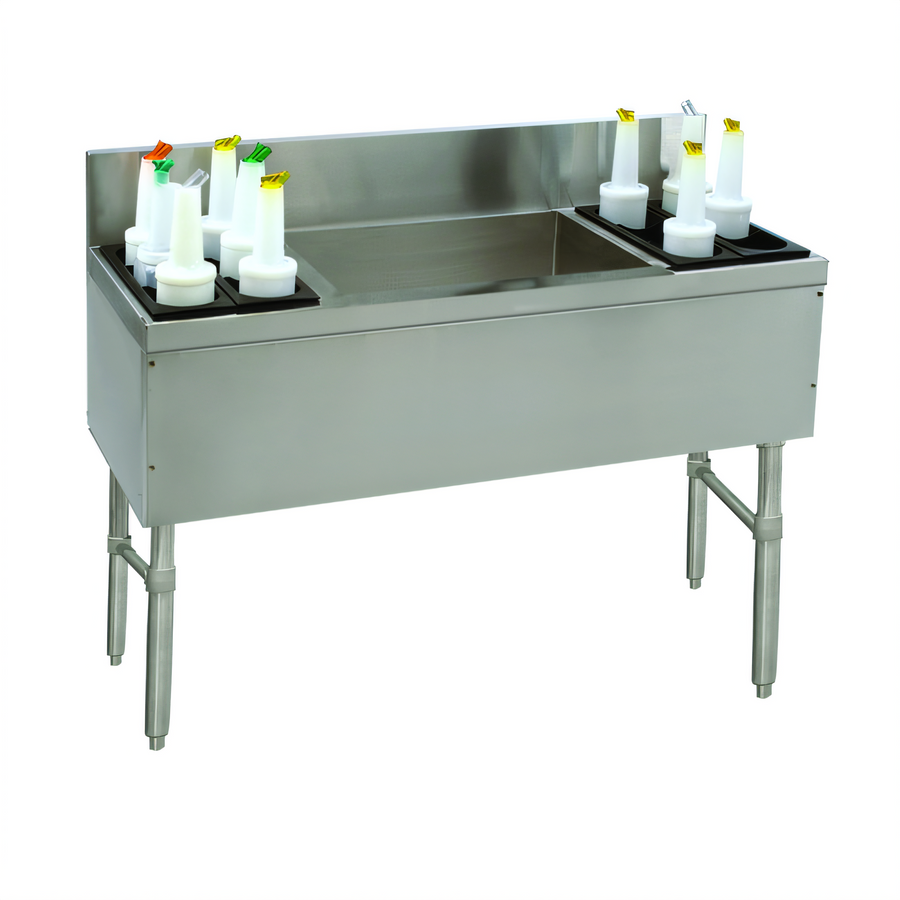

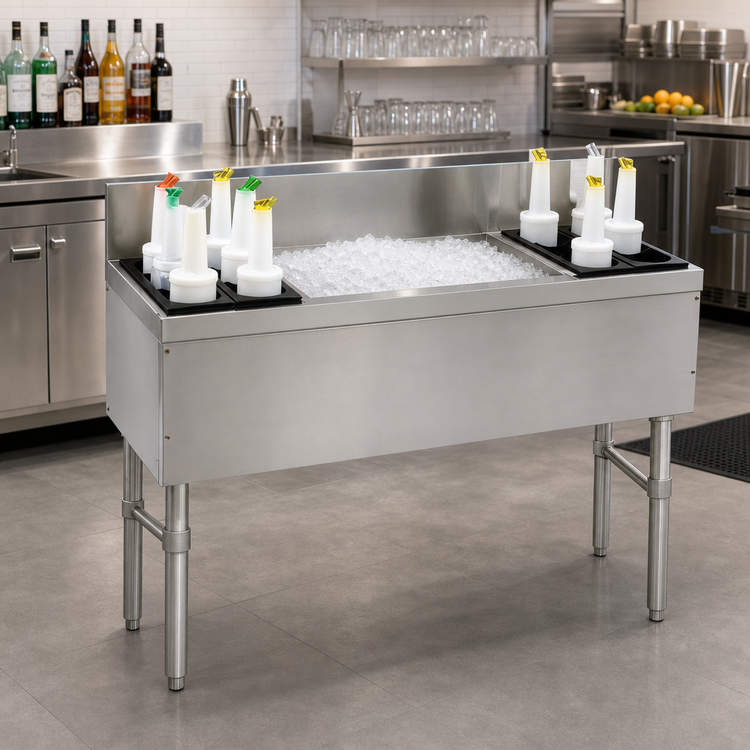

Advance Tabco Prestige (Supreme) Ice Chest & Bottle Storage Unit – 54"W with 10-Circuit Cold Plate

Model PRC-19-54LR-10 • NSF Certified

Designed for high-volume bars that refuse to compromise, the Advance Tabco Prestige (Supreme) combines a deep, foam-insulated ice chest, generous bottle storage, and a cast-aluminum cold plate into one sleek 54" wide workstation. Keep cocktails flowing and syrups ice-cold while your team enjoys the rock-solid reliability of 300-series stainless steel construction.

Why You’ll Love It

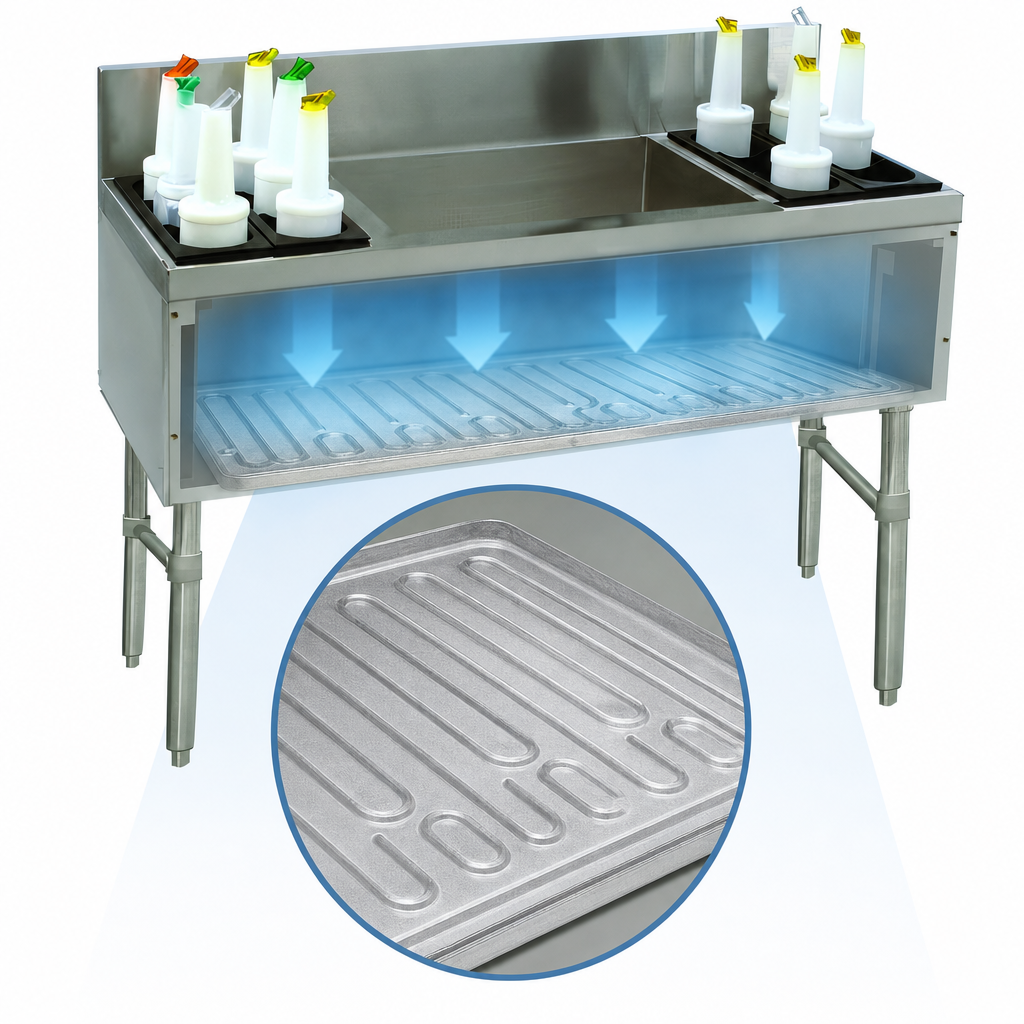

  • 10-circuit cast-aluminum cold plate (8 syrup & 2 water lines) factory-sealed to the bin floor for rapid, consistent cooling.
  • Triple ice bins with welded partitions — capacities of 32 / 89 / 32 lbs let you separate cubed ice, crushed ice, and specialty garnishes.
  • Two removable 3-pack bottle racks (left & right) keep your most-used mixers at arm’s reach.
  • 20 ga 300-series stainless steel top, apron, and sides with foamed-in-place insulation for maximum ice retention.
  • 1 ⅝" O.D. 18 ga stainless legs with 1" adjustable bullet feet to level on uneven floors.
  • 7" backsplash with soda line chase on both ends for clutter-free carbonation hook-ups.
  • 1∕2" IPS bin drain engineered specifically for cold-plate models.
Built For
  • Cocktail bars & nightclubs needing lightning-fast service.
  • Hotel banquet operations where chilled beverage lines are critical.
  • Craft soda or cold-brew programs that require syrup/water chilling at the point of dispense.
Technical Specifications
Overall width 54" (1372 mm)
Overall depth 20" (508 mm)
Working height 36" (914 mm)
Backsplash height 7" (178 mm)
Ice bin depth 10 1∕6" (≈258 mm)
Ice capacities 32 lbs (L) • 89 lbs (Center) • 32 lbs (R)
Cold plate Cast aluminum, 10 circuits (8 syrup / 2 water), 5∕16" S/S tubing
Drain size 1∕2" IPS (cold-plate bin)
Construction 20 ga 300-series S/S top, apron & sides; foamed-in-place insulation
Legs / feet 18 ga 1 ⅝" O.D. S/S legs with 1" S/S adjustable bullet feet
Shipping weight ≈185 lbs
Certifications NSF
Popular Accessories (Sold Separately)
  • PRA-SSC sliding stainless-steel covers for secure overnight storage.
  • Adjustable side cross-bracing for extra stability on mobile bars.
  • Additional bottle racks or replacement cold-plate tubing sets.
NSF Note: Bottle racks must be removed during inspection and when using an optional sliding cover to maintain compliance.

Advance Tabco is continuously improving its products. Specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

54.0in

Depth

20.0in

Shipping Weight

185.0lbs

Cold Plate

(10) circuit

Components (left to right)

bottle well, ice bin, bottle well

Bottle Capacity

(12)

Depth (front - back) OA

20" - 21"

Bin Depth

10" deep

Ice Capacity (approximate)

85 lbs.

Width (side - side) OA

49" - 54"

Construction

stainless steel

Splash

7"

Specifications

Prestige Ice Chest, with 10-circuit cast aluminum cold plate, 54"W x 20"D x 36"H, 7"H backsplash, 10-1/6" deep bins, 32/89/32 lbs bin capacities, bottle storage rack on left & right, 20 gauge 300 series stainless steel construction with foam insulation, stainless steel legs & adjustable bullet feet, soda chase provision in top of backsplash, NSF
