Description

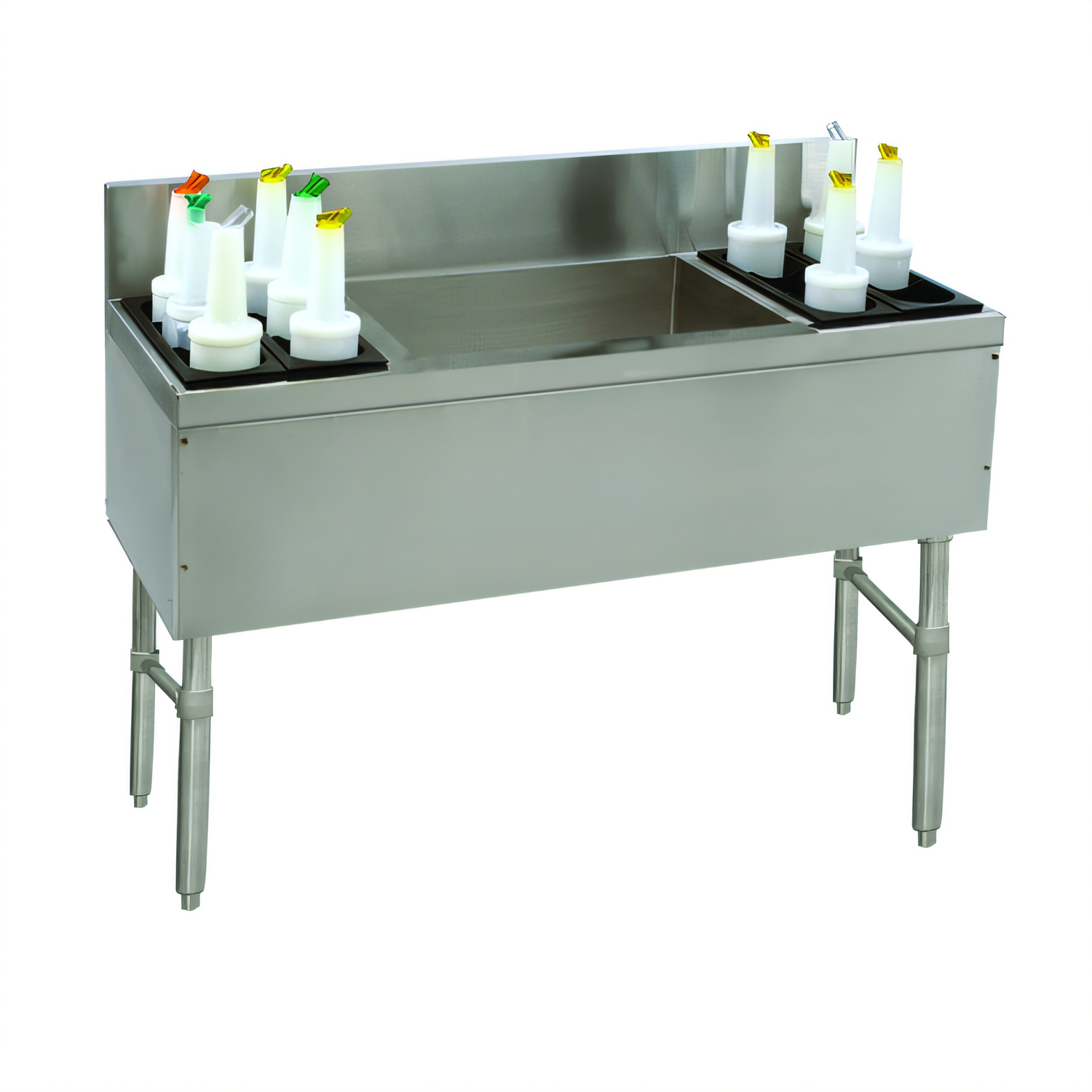

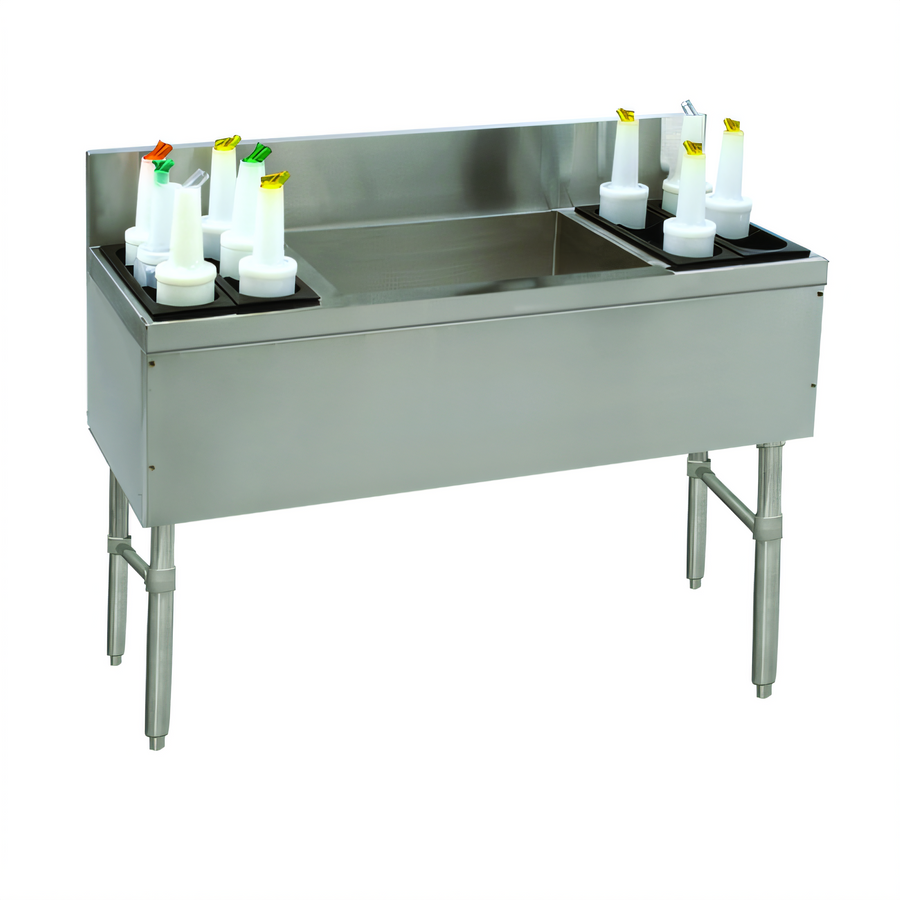

Prestige Signature Ice Bin & Bottle Storage Combo – 48" W, 10-Circuit Cold Plate

Advance Tabco Model PRC-19-48LR-10

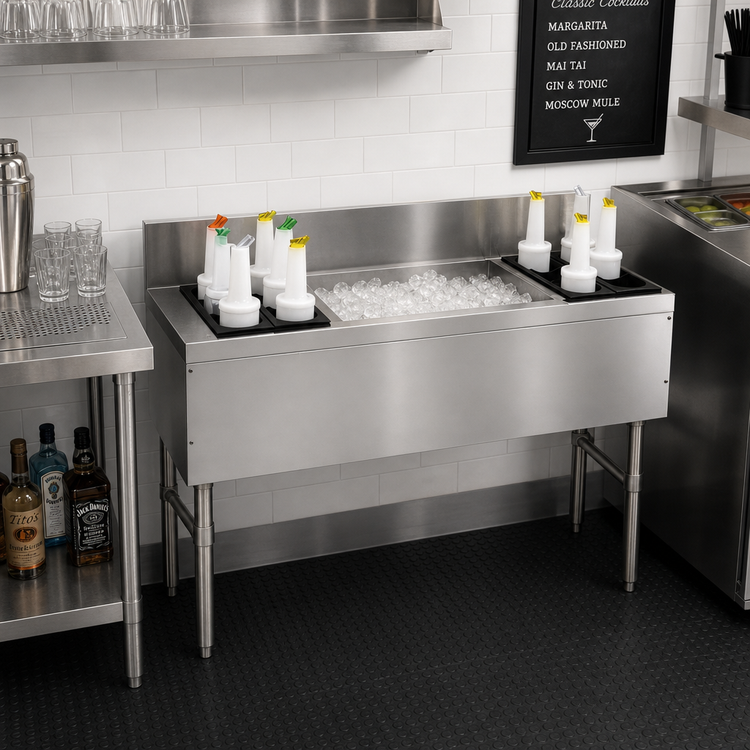

Built for high-volume bars, restaurants and hotel beverage stations, the Prestige Signature 48" Ice Chest keeps ice, mixers and soda lines perfectly organized and ice-cold. A factory-sealed, cast-aluminum cold plate chills every drink before it reaches the glass, while three individually insulated bins deliver a generous 134 lb total ice capacity.

Key Features

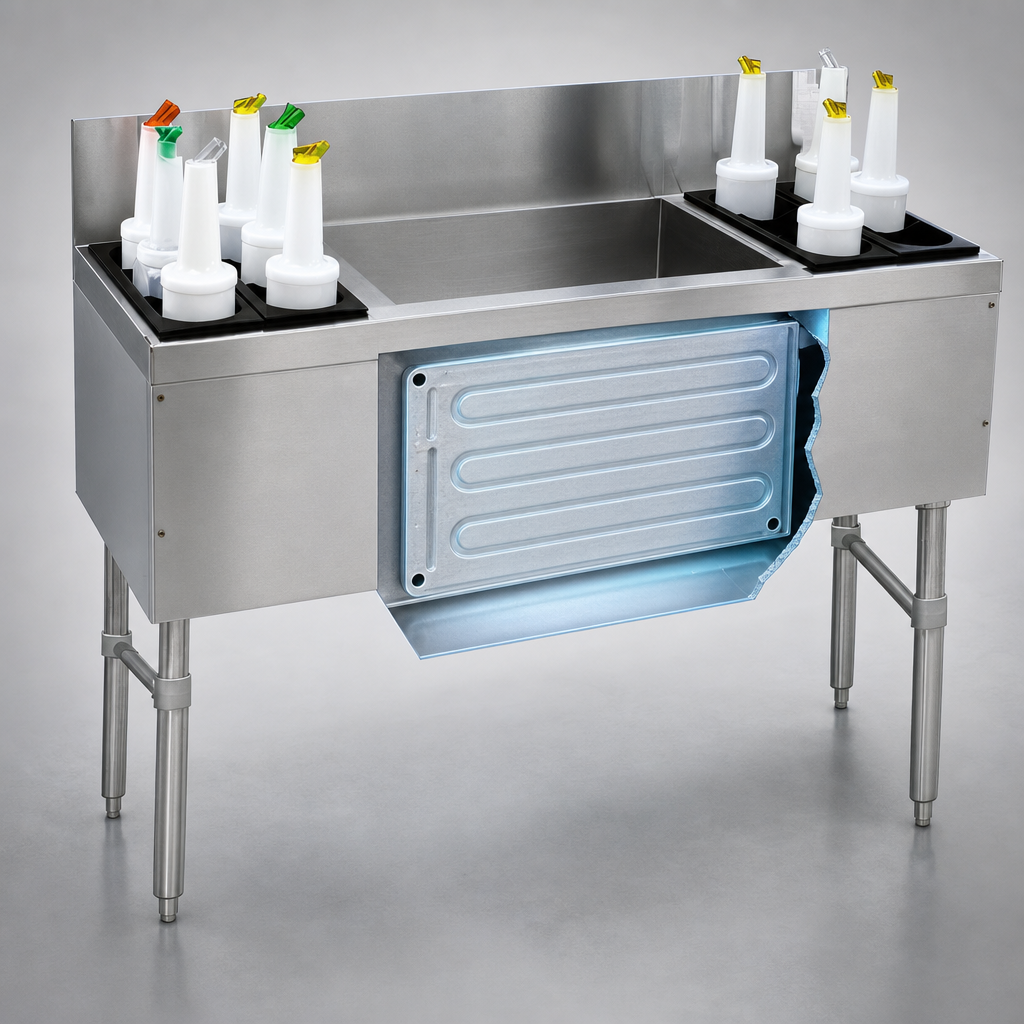

  • 10-circuit cold plate (8 syrup, 2 water) permanently sealed into the bin floor for maximum heat exchange.
  • Three foam-insulated ice bins: 32 lb (left), 70 lb (center), 32 lb (right).
  • Two removable 3-pack bottle racks keep flavor syrups or mixers within easy reach.
  • 7" backsplash with built-in soda gun knock-out and dual line chases to route beverage tubing out of sight.
  • 20 ga, 300-series stainless steel top, sides & apron for long-lasting corrosion resistance.
  • 1 ⅝" O.D. 18-ga stainless steel legs with 1" adjustable bullet feet for a rock-solid, level installation.
  • 10.178" deep bins allow fast, ergonomic scooping while reducing melt-off.
  • Welded partitions prevent cross-contamination between ice and bottle compartments.
  • ½" IPS drain connection on cold-plate bin for quick, reliable plumbing hook-up.
  • NSF listed for peace-of-mind code compliance.
Specifications
Overall width 48" (1219 mm)
Overall depth 20" (508 mm)
Working height 36" (914 mm)
Backsplash height 7" (178 mm)
Ice bin depth 10-1/6" (10.178")
Ice capacity 32 / 70 / 32 lb (left / center / right)
Cold plate Cast aluminum, 10 circuits – 8 syrup, 2 water
Construction 20 ga 300 series stainless steel with foam insulation
Legs / feet 1 ⅝" O.D. 18 ga stainless legs, 1" adjustable bullet feet
Drain size ½" IPS
Compliance NSF
Important: Bottle racks must be removed for NSF compliance or when using an optional sliding stainless steel cover (sold separately).

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

48.0in

Depth

20.0in

Shipping Weight

180.0lbs

Ice Capacity (approximate)

70 lbs.

Construction

stainless steel

Bottle Capacity

(12)

Components (left to right)

bottle well, ice bin, bottle well

Splash

7"

Width (side - side) OA

43" - 48"

Cold Plate

(10) circuit

Depth (front - back) OA

20" - 21"

Bin Depth

10" deep

Specifications

Prestige Ice Chest, with 10-circuit cast aluminum cold plate, 48"W x 20"D x 36"H, 7"H backsplash, 10-1/6" deep bins, 32/70/32 lbs bin capacities, bottle storage rack on left & right, 20 gauge 300 series stainless steel construction with foam insulation, stainless steel legs & adjustable bullet feet, soda chase provision in top of backsplash, NSF
