Advance Tabco PRC-19-48L-10 Prestige (Supreme) Bar Equipment
Description

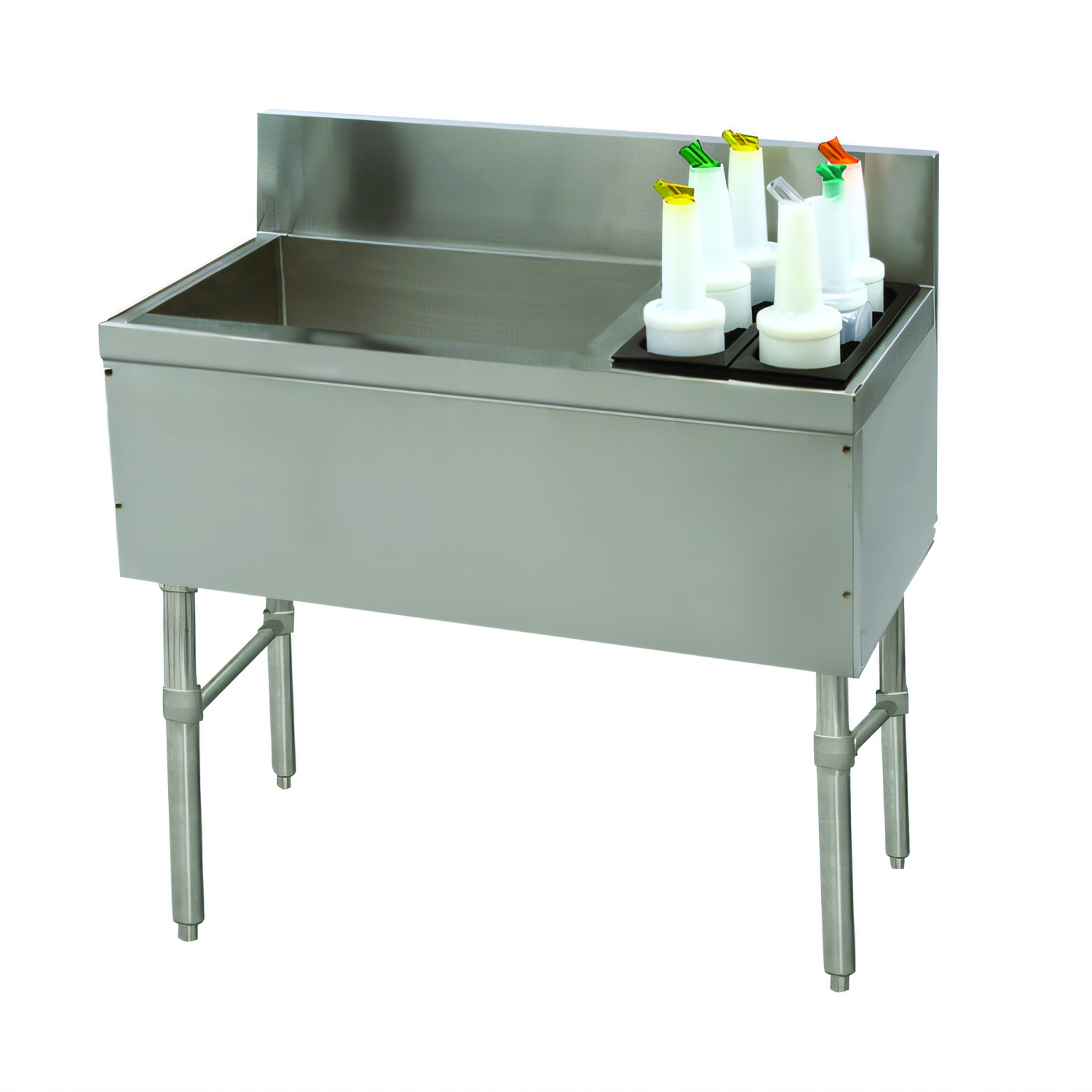

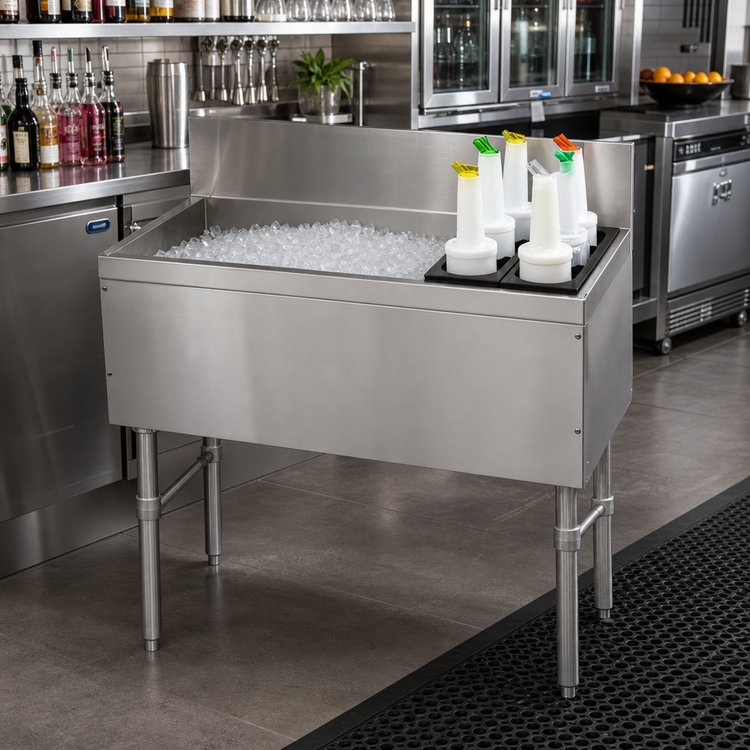

Prestige Signature Series Ice Bin & Bottle Storage Combo – 48" x 20" w/ 10-Circuit Cold Plate
Model PRC-19-48R-10 | Advance TabcoBuilt for busy bars, restaurants, and concession stands, this 48" Prestige ice chest keeps ice rock-solid and beverages frost-cold thanks to an integrated 10-circuit cold plate—all wrapped in rugged 300-series stainless steel that’s ready for years of service.
Key Features

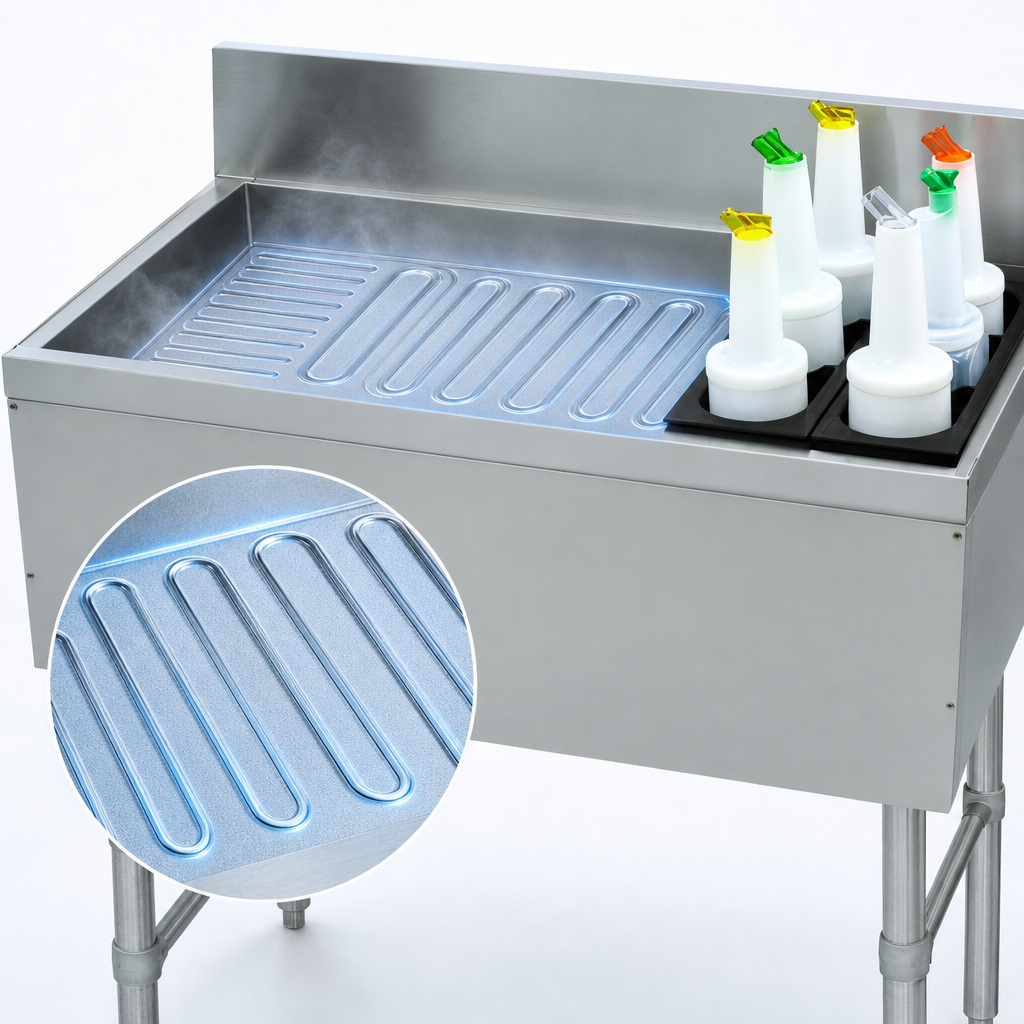

- 10-circuit cast-aluminum cold plate (8 syrup + 2 water lines) factory-sealed into bin floor.
- Dual-bin capacity: 108 lb primary ice bin (right) + 32 lb secondary bin, separated by welded partition.
- Compact footprint: 48" W × 20" D × 36" H with 7" backsplash.
- Food-grade 20-ga. 300 series stainless steel top, apron, and sides with closed-cell foam insulation.
- 1-5/8" Ø 18-ga. stainless legs with adjustable bullet feet for fast, secure leveling.
- Soda-line chase built into top of backsplash for clutter-free installation.

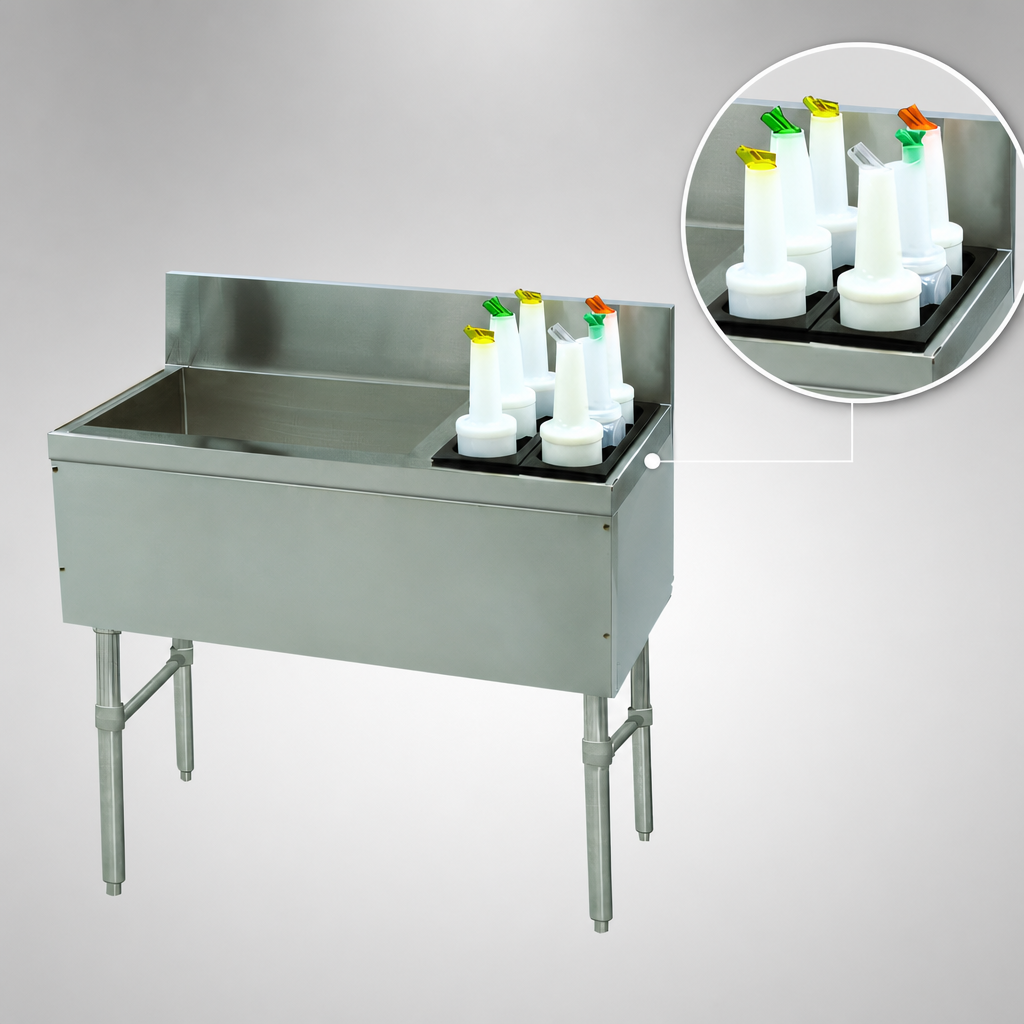

- Removable 3-pack plastic bottle rack on right for syrups or mixers.
- 1/2" IPS drain on cold-plate bin for quick melt-water removal.
- NSF listed for sanitation and public-health safety.
At-a-Glance Specs
| Overall width | 48 in / 1219 mm |
|---|---|
| Overall depth | 20 in / 508 mm |
| Working height | 36 in / 914 mm |
| Backsplash height | 7 in / 178 mm |
| Ice-bin depth | 10.178 in |
| Ice capacity | 108 lb (primary) + 32 lb (secondary) |
| Cold-plate circuits | 10 (8 syrup / 2 water) |
| Construction | 20-ga. 300 series stainless; 18-ga. legs |
| Drain connection | 1/2" IPS (cold-plate bin) |
| Certifications | NSF |
Why It Excels
- Fully encapsulated cold plate—no exposed tubing—for superior sanitation and durability.
- High-density foam insulation dramatically slows ice melt, reducing refills and labor.
- Adjustable bullet feet protect flooring and simplify set-up on uneven surfaces.
- All-welded stainless backsplash and partitions wipe clean in seconds.
Looking for a sliding stainless cover, extra bottle racks, or a left-hand ice bin configuration? Ask our team about factory options and lead times.
