Advance Tabco PRC-19-36L-10 Prestige (Supreme) Bar Equipment
Advance Tabco PRC-19-36L-10 Prestige (Supreme) Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

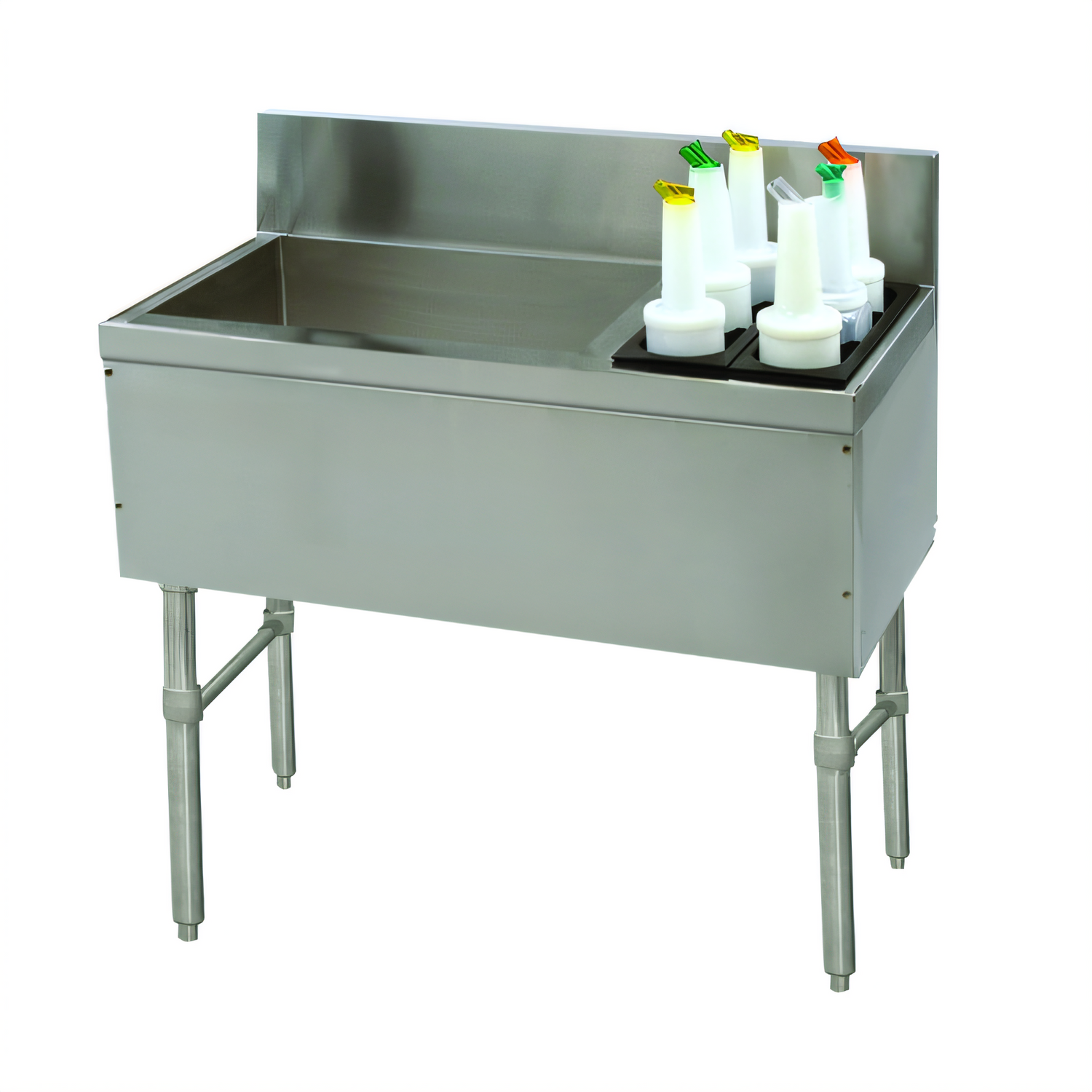

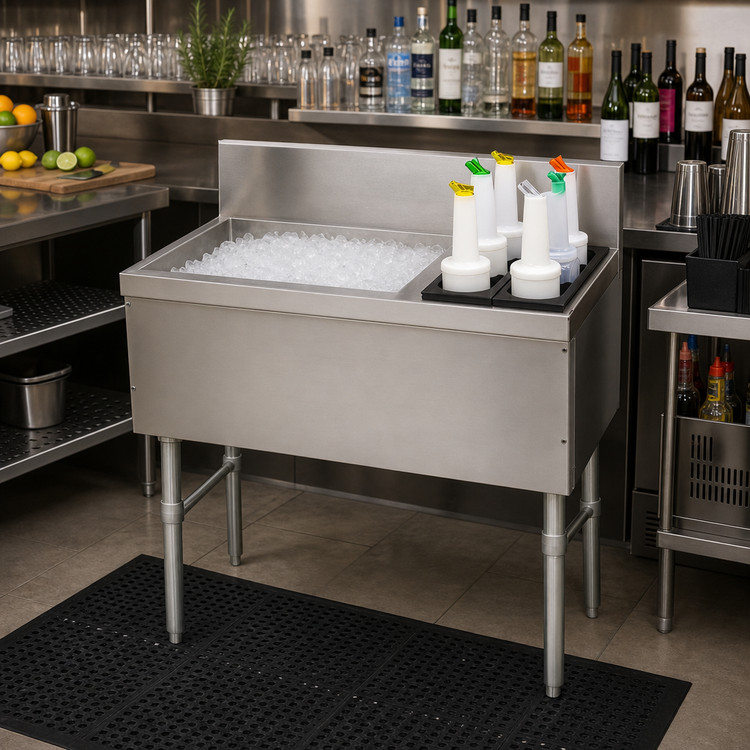

Advance Tabco Prestige “Supreme” Ice Chest & Bottle Storage – 36" W, 10-Circuit Cold Plate
Model PRC-19-36L-10 • NSF ListedConsolidate ice, chilled soda lines and back-bar bottle storage in one sleek, stainless-steel workstation. Engineered for demanding bar, restaurant and concession environments, the Prestige “Supreme” keeps beverages icy-cold and service moving fast while fitting neatly into a 36-inch footprint.
Why You’ll Love It

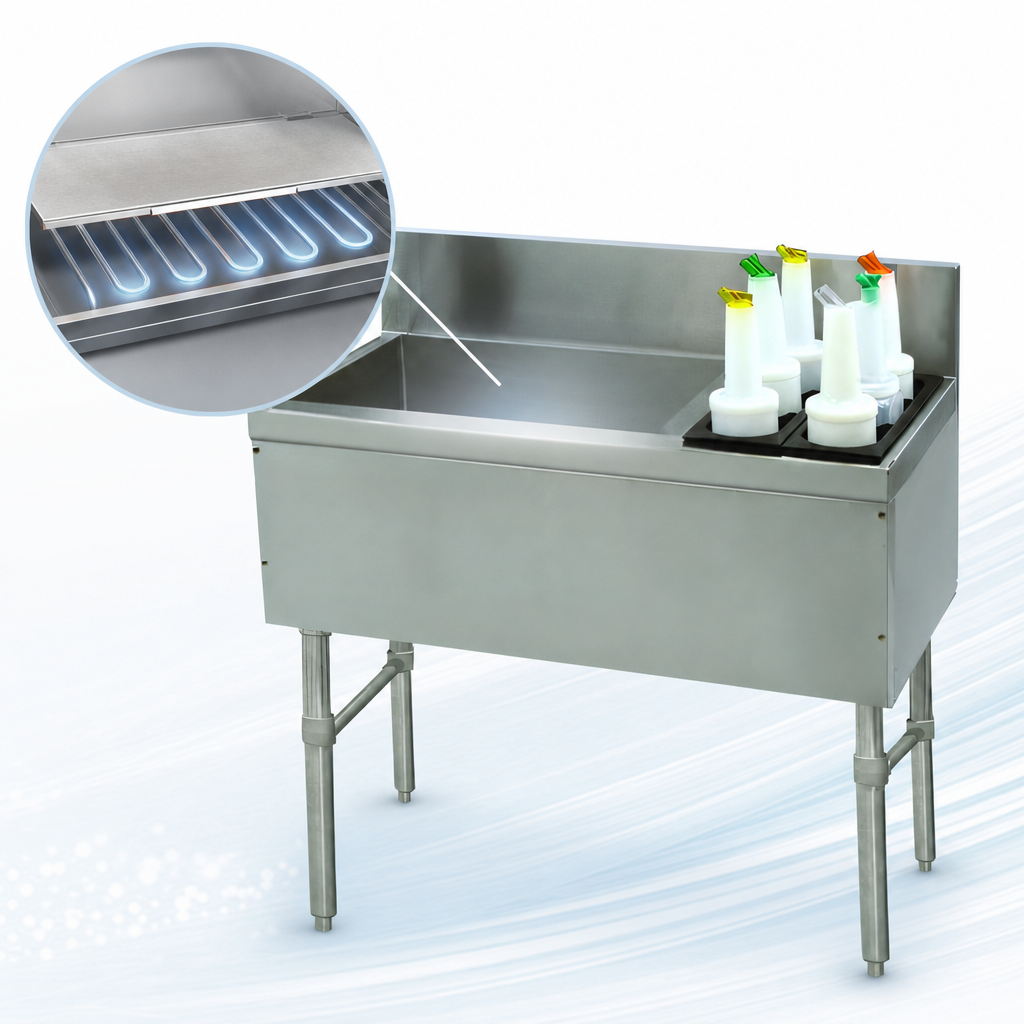

- Integrated 10-circuit cast-aluminum cold plate (8 syrup, 2 water lines) chills drinks at the point of dispense.
- Roomy 10-1/6" deep ice bin with welded partition holds up to 70 lb of serving ice plus a secondary 32 lb compartment for backup or specialty ice.
- Bottle storage rack on the right side keeps mixers or flavor shots organized and within arm’s reach.

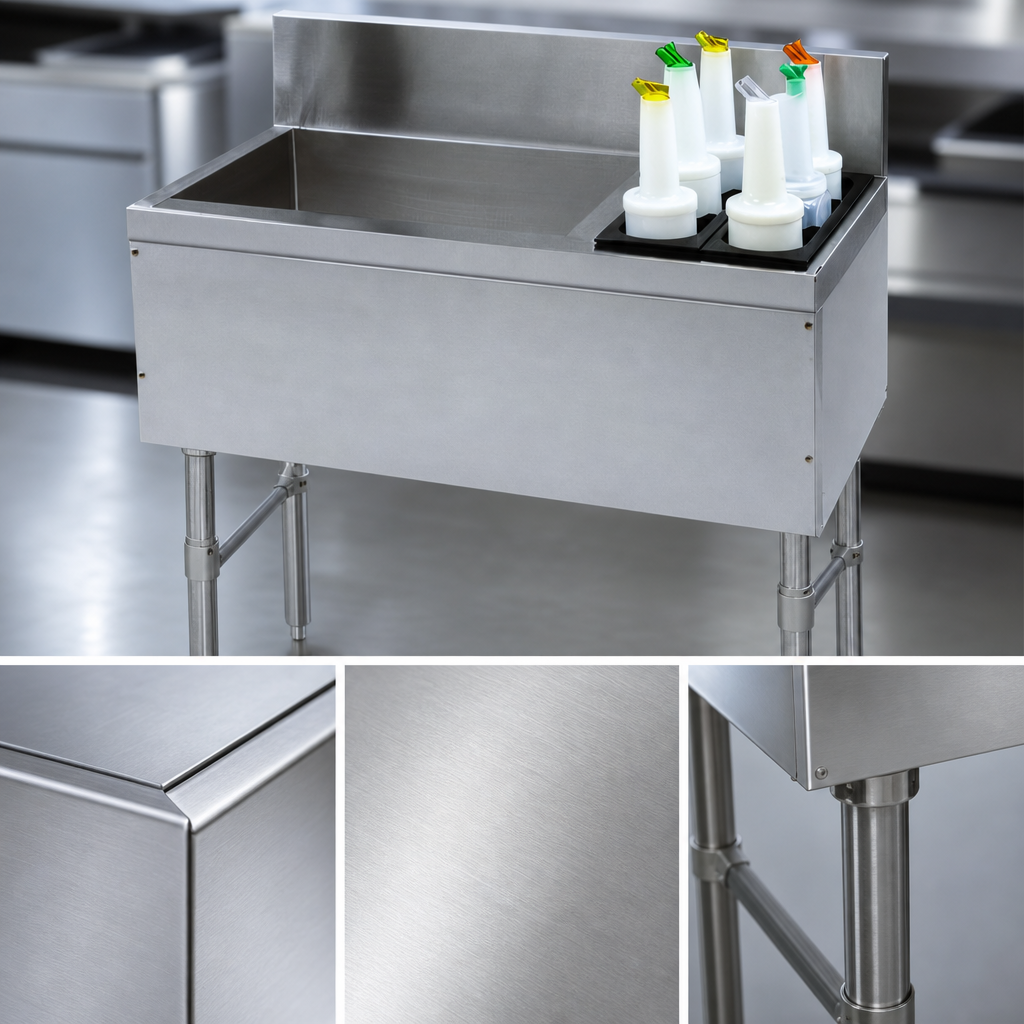

- 20 gauge, 300-series stainless steel top, apron and sides stand up to daily punishment and harsh cleaning chemicals.
- Fully foamed-in-place insulation maintains ice integrity and maximizes cold-plate efficiency.
- 7" backsplash with 1 ¾" return and factory knock-out for a soda gun, plus a built-in chase for quick soda-line routing.
- Stainless steel legs (1 ⅝" O.D., 18 gauge) with adjustable bullet feet for rock-solid stability on uneven floors.
- ½" IPS rear drain connection for the cold-plate bin speeds installation and clean-out.
- Ships completely NSF compliant; ideal for front- or back-of-house beverage programs.
Technical Specifications
Overall dimensions (W × D × H) | 36" × 20" × 36" |
---|---|
Backsplash height | 7" |
Ice bin depth | 10-1/6" |
Ice capacities (main / secondary) | 70 lb / 32 lb |
Cold plate | Cast aluminum, 10 circuits (8 syrup, 2 water) |
Drain size | ½" IPS (cold-plate bin) |
Construction | 20 ga. 300-series stainless steel with foamed-in insulation |
Legs / feet | 1 ⅝" O.D. SS legs with adjustable SS bullet feet |
Certifications | NSF |
Popular Add-Ons (Sold Separately)
- PRA-SSC-36 sliding stainless-steel cover (locks in cold and protects ice during off-hours)
- SU-30 splash-top soda line chase kit for non-cold-plate versions
