Description

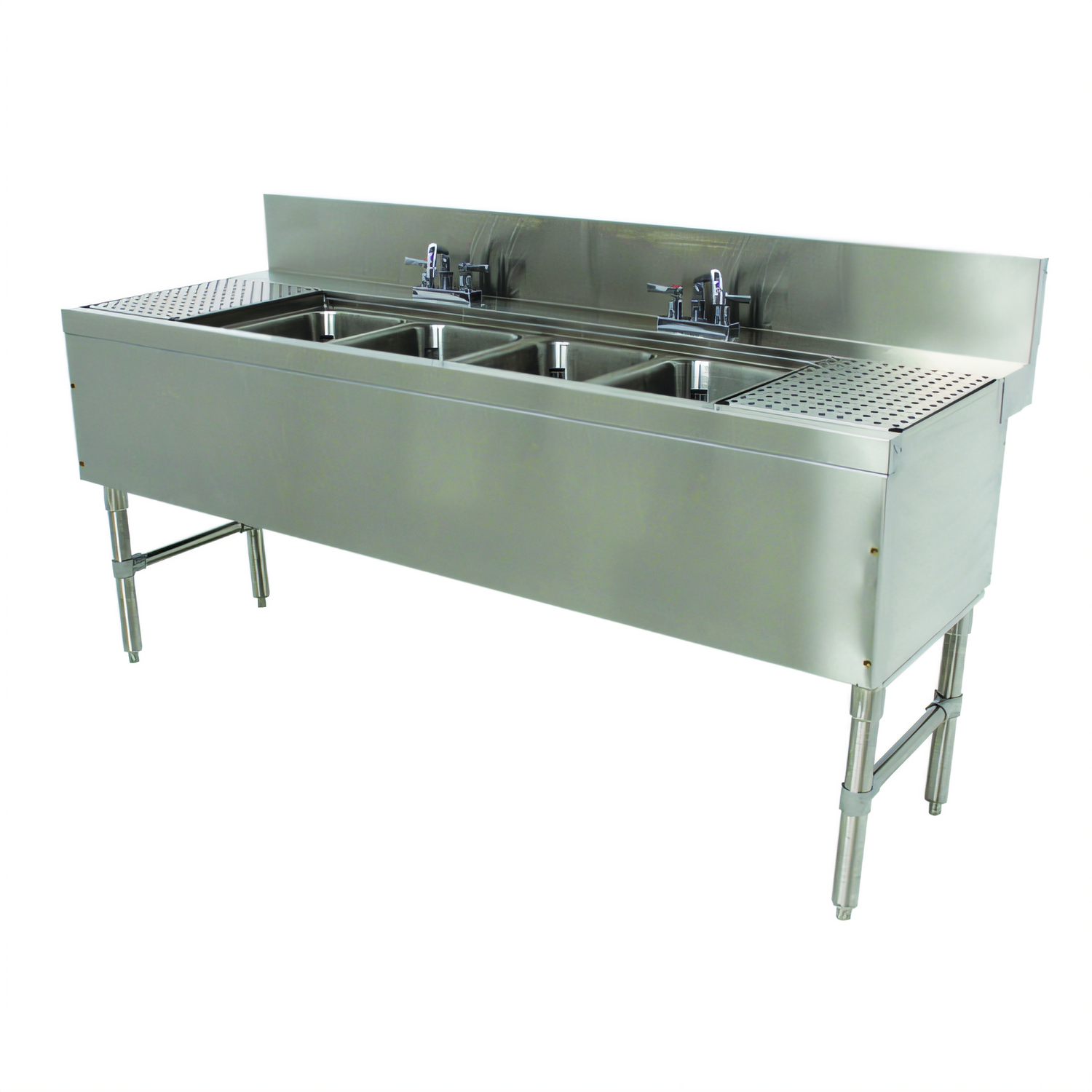

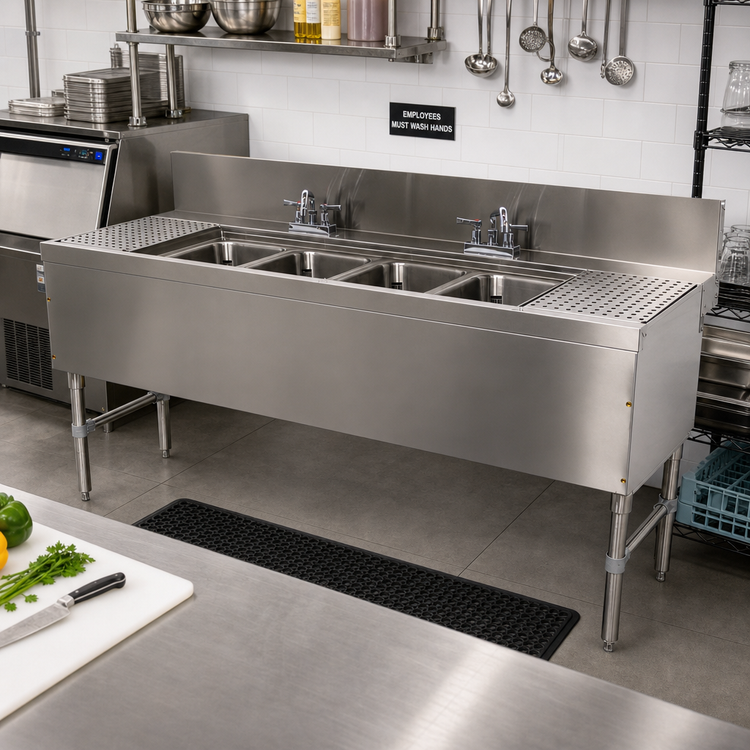

Advance Tabco Prestige Supreme 84" 4-Compartment Underbar Sink with Dual Drainboards

Model PRB-24-74C | Prestige Signature Series

Engineered for the busiest bars, this all-stainless underbar sink packs four deep wash wells, two full-size drainboards, and NSF-listed lead-free faucets into one rugged, 84-inch workstation—so your team can wash, rinse, sanitize, and serve faster than ever.

Key features

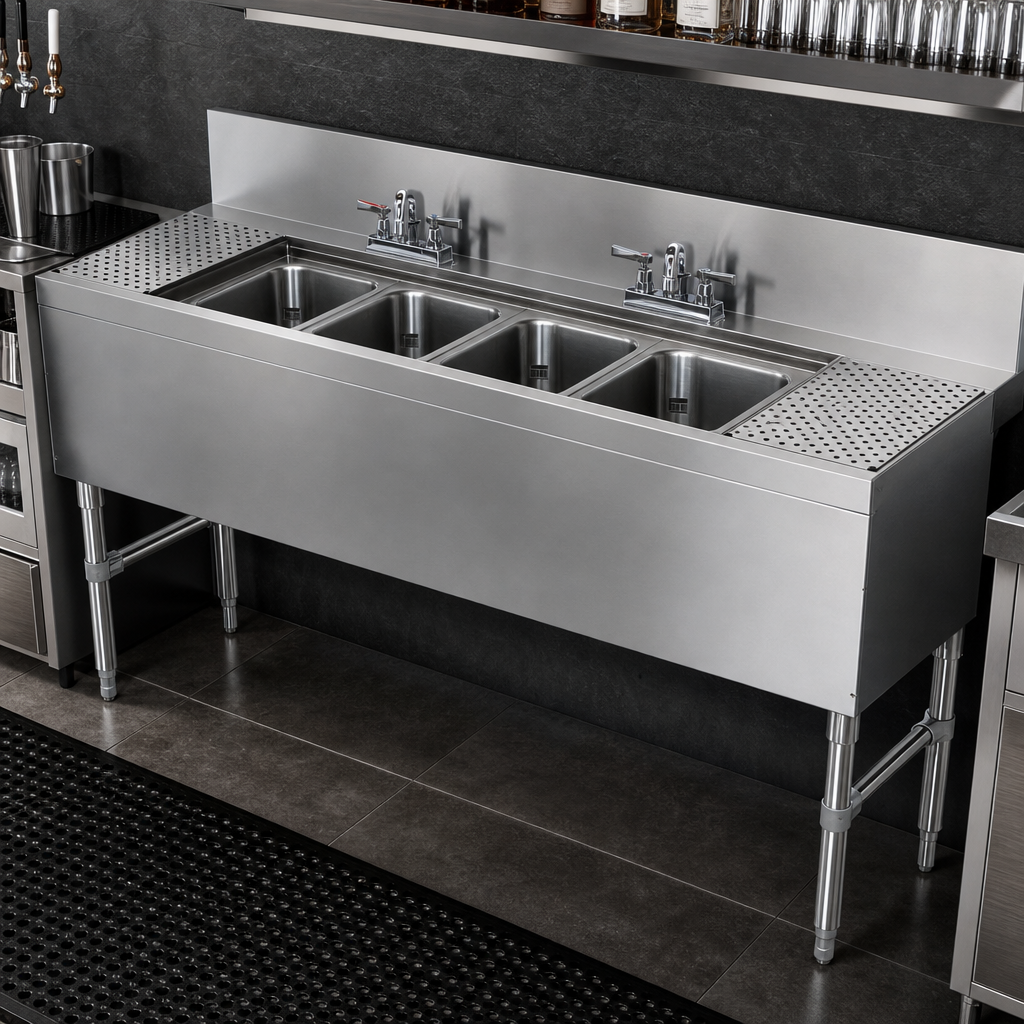

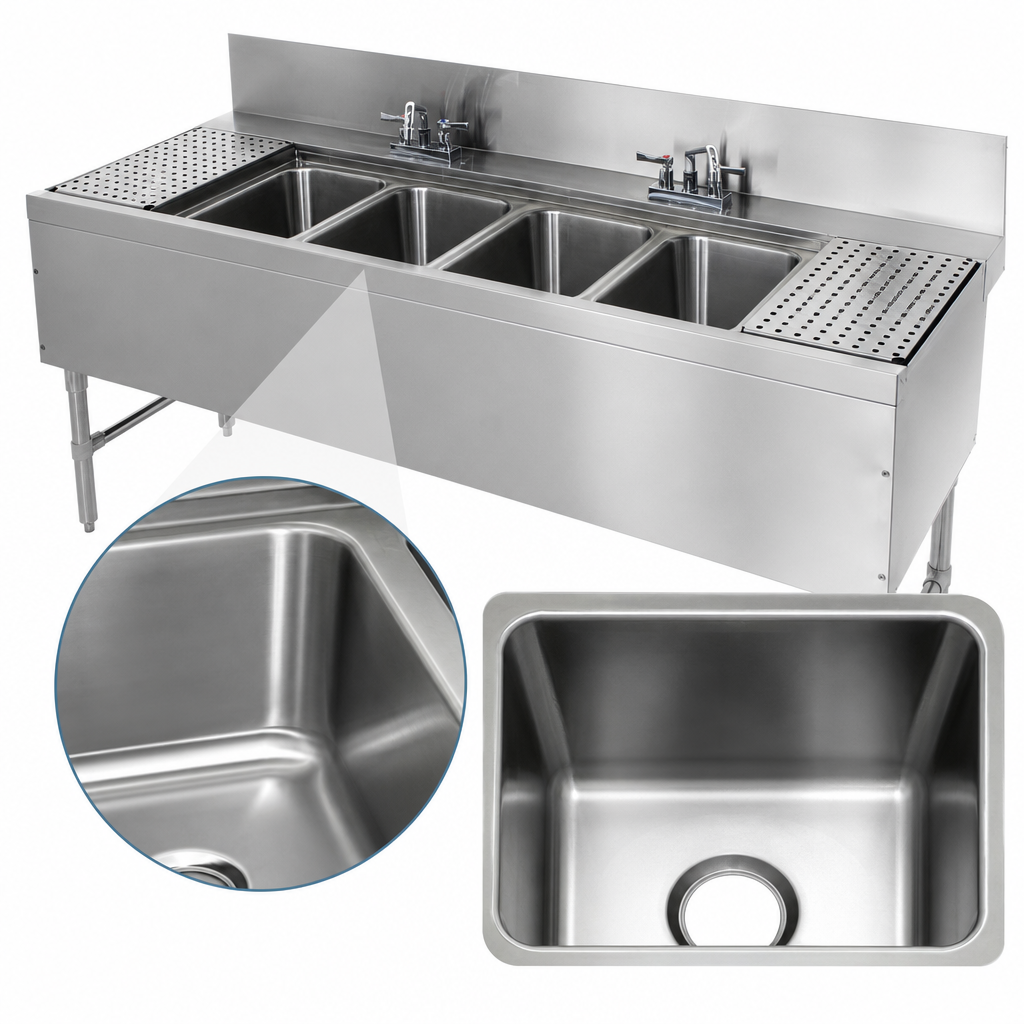

  • Four seamless, deep-drawn bowls (14" × 10" × 10") resist corrosion and clean in seconds.
  • Left & right 18" removable perforated drainboards accelerate drying and keep glassware organized.
  • 7" backsplash with 2" return shields walls from moisture and debris.
  • All-stainless build: 20-ga. top/apron/sides plus 18-ga. backsplash & 1 5/8" Ø legs.
  • Open frame base with welded side cross-rails and adjustable bullet feet for rock-solid stability.
  • Sound-deadening underside reduces vibration and noise behind the bar.
  • (2) 4" O.C. deck-mount faucets with 6" swing spouts included—fully NSF/ANSI 61 & lead-free compliant.
  • Each bowl supplied with 9" overflow standpipe & 1 ½" IPS drain for code-ready installation.
  • NSF certified for safe commercial use.

Specifications

Overall width 84"  (2134 mm)
Overall depth 25"  (635 mm)
Work height 36"  (914 mm)
Backsplash height 7"  (178 mm)
Compartments 4
Bowl size (L × W × D) 14" × 10" × 10"
Drainboards (2) 18" left & right, removable perforated tops
Faucets (2) deck-mount, 4" O.C., 6" swing spouts
Drains / overflow 1 ½" IPS drain & 9" standpipe per bowl
Material 300 series stainless steel
Approx. weight 163 lb / 74 kg
Certifications NSF, NSF/ANSI 61/9 lead-free

What’s included

  • Prestige Supreme PRB-24-74C underbar sink unit
  • (2) 6" swing-spout deck-mount faucets
  • (4) Overflow standpipes with 1 ½" IPS drains
  • Stainless adjustable bullet feet (pre-installed)
California Proposition 65: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Need side splashes, wrist-action handles, or welded cross-bracing? Ask our team about factory-approved accessories and custom fabrication.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

84.0in

Depth

25.0in

Shipping Weight

163.0lbs

Width (side - side) OA

79" - 84"

Sink Compartments

(4)

Drainboards

drainboards on left & right

Depth (front - back) OA

24" - 27"

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Bowl Size

10" x 14" front-to-back

Splash

7"

Specifications

Prestige Underbar Sink Unit, 4-compartment, 84"W x 25"D x 36"H, 14" front-to-back x 10" left-to-right x 10" deep sink bowls, 18" drainboards on left & right, 7"H backsplash, stainless steel open frame base, side crossrails, stainless steel construction, includes: (2) deck mount faucets with 6" swing spouts, NSF
