Advance Tabco  |  Prestige (Supreme)  |  SKU: PRB-24-44C  |  UPC: 747545186119

Advance Tabco PRB-24-44C Prestige (Supreme) Bar Equipment

$1,740.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

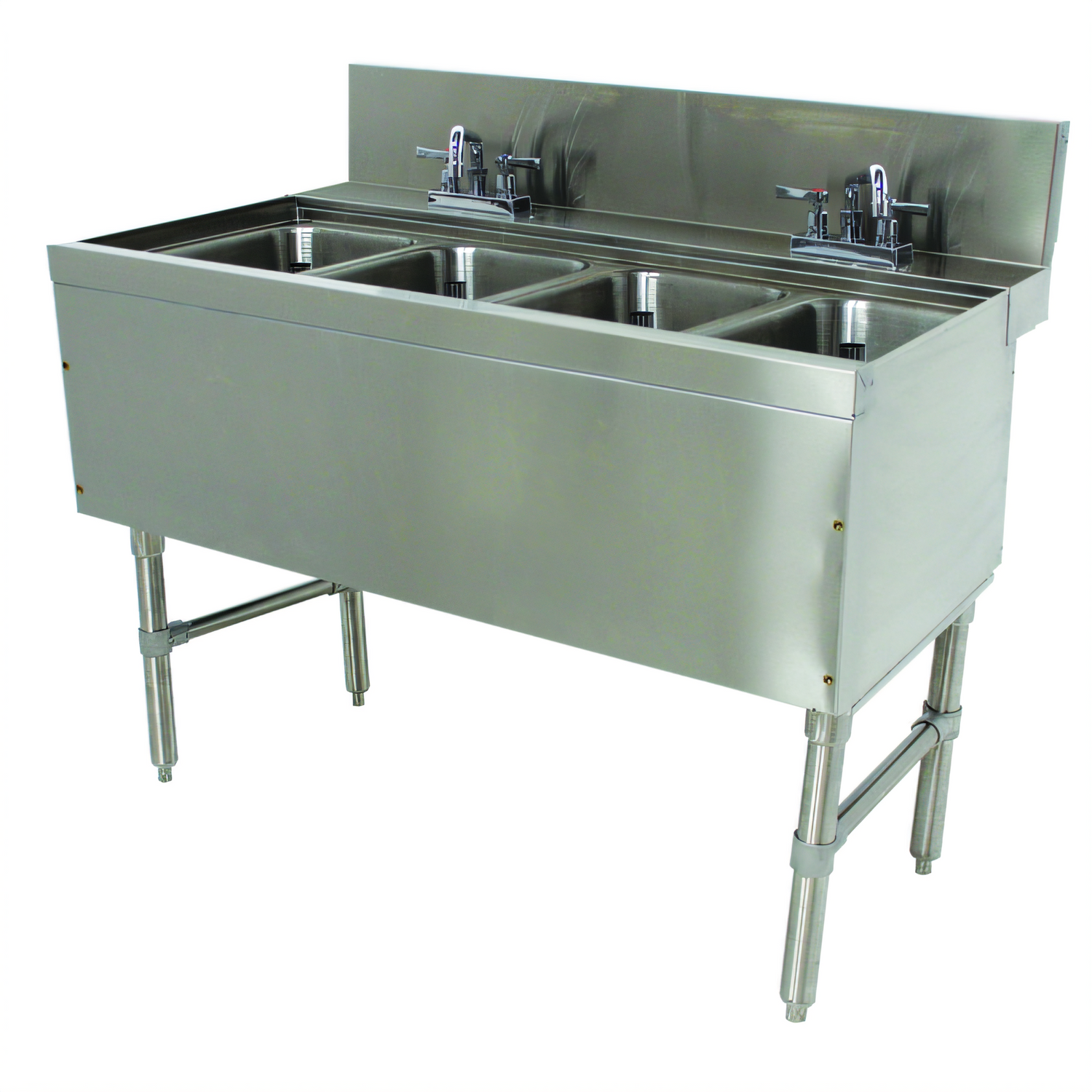

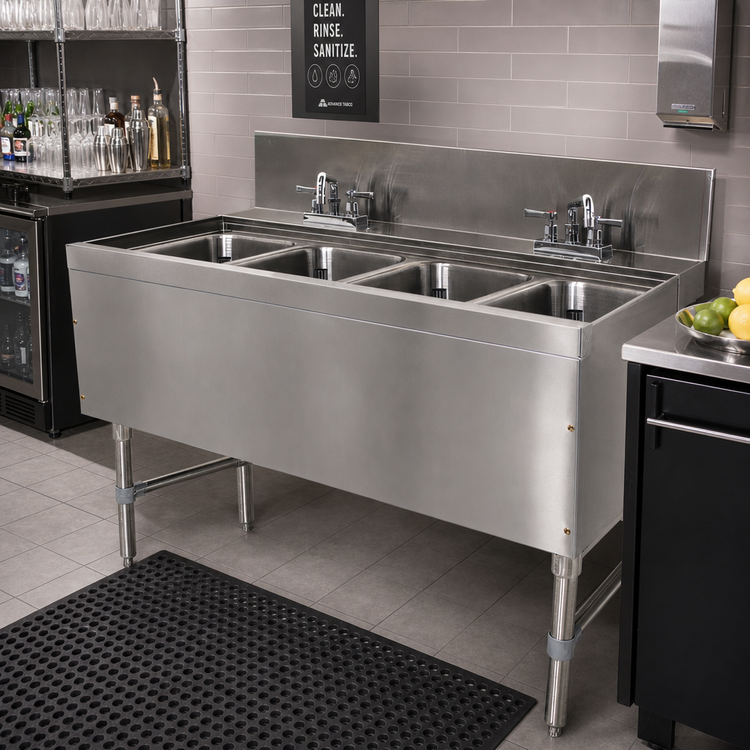

Advance Tabco Prestige (Supreme) 4-Compartment Underbar Sink – 48" W x 25" D

Heavy-duty stainless solution for high-volume bar service

Built for the nightly rush, the Prestige Supreme underbar sink delivers four spacious wash bays, NSF-listed components, and the rock-solid durability Advance Tabco is known for—all in a compact 48" footprint that fits perfectly behind the bar.

Key Features

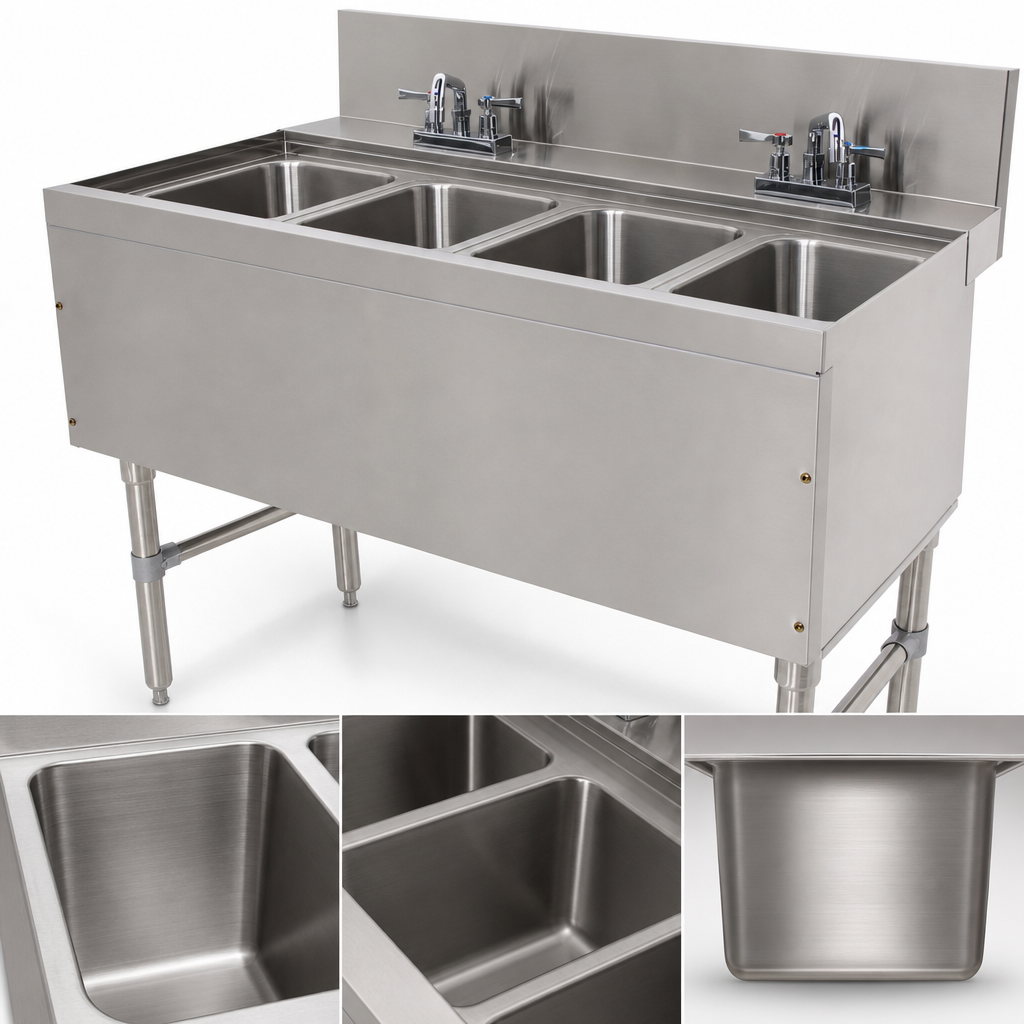

  • Four deep-drawn, seamless bowls – 14" front-to-back x 10" left-to-right x 10" deep.
  • 25" overall depth for extra working room without encroaching on customer space.

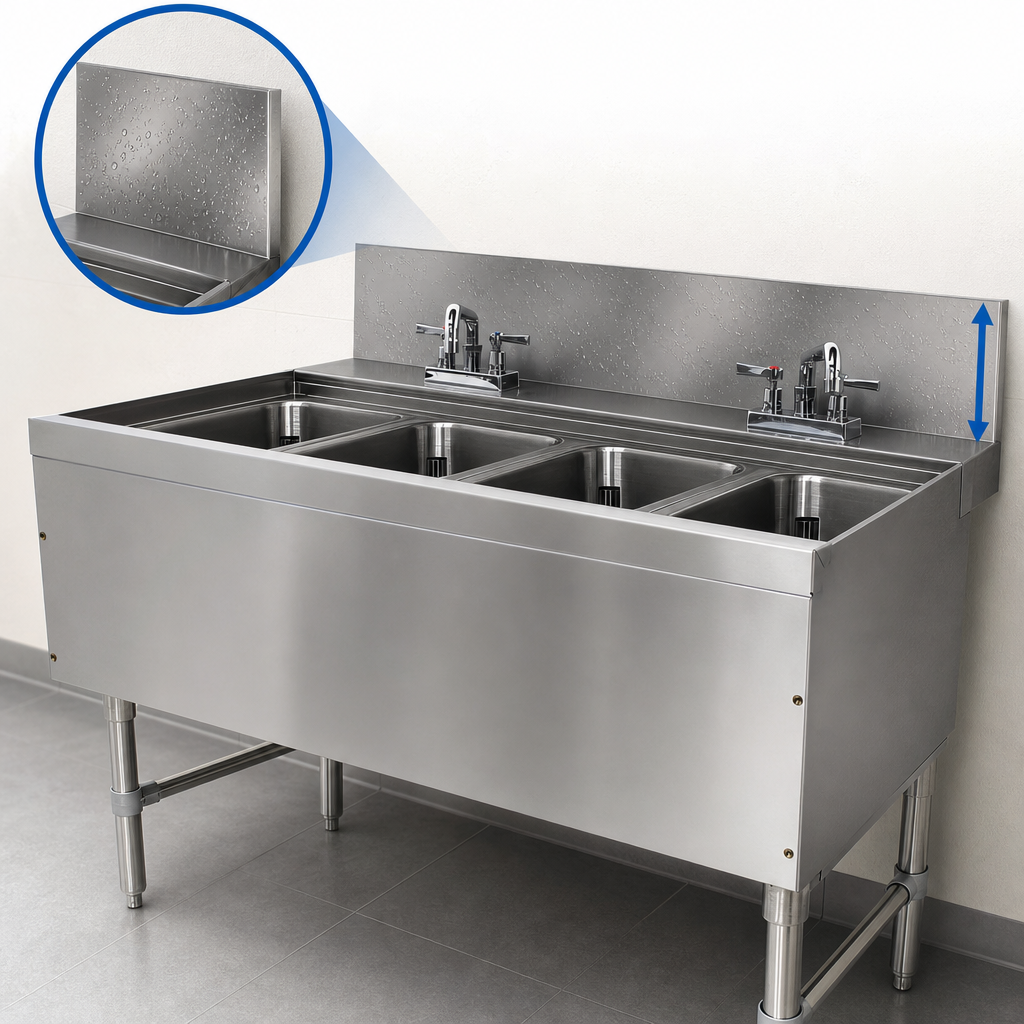

  • 7" backsplash contains splashes and protects walls.
  • Open stainless steel frame with adjustable side cross-bracing for maximum stability.
  • (2) 4" O.C. deck-mount faucets with 6" swing spouts included; NSF/ANSI 61 lead-free.
  • 1 ½" IPS drains with 9" overflow pipes in every compartment.
  • Sound-deadening undercoat reduces operational noise.
  • Adjustable stainless bullet feet—level the unit on uneven floors in seconds.
  • Completely TIG-welded type 300 series stainless steel construction, inside & out.
Specifications
Series / Model Prestige Supreme – PRB-24-44C
Overall Width 48" (1219 mm)
Overall Depth 25" (635 mm)
Working Height 36" (914 mm) to bowl rim
Backsplash Height 7" (178 mm)
Compartments 4
Bowl Interior (each) 14" F/B x 10" L/R x 10" D
Drainboards None
Faucets Included (2) 6" swing-spout, deck-mount faucets (4" centers)
Material Thickness 18-20 ga type 300 stainless steel
Base Open frame, stainless legs & side crossrails
Feet 1" adjustable stainless bullet feet
Approx. Shipping Weight 107 lb / 48.5 kg
Certifications NSF, NSF/ANSI 61/9 Lead-Free

Need factory-installed side splashes, wrist-action handles, or other customizations? Contact us for Advance Tabco Smart Fabrication™ options.

California Prop 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

48.0in

Depth

25.0in

Shipping Weight

107.0lbs

Sink Compartments

(4)

Bowl Depth (rim - drain)

10"

Depth (front - back) OA

24" - 27"

Drainboards

without drainboards

Construction

stainless steel top, front, ends & legs

Bowl Size

10" x 14" front-to-back

Splash

7"

Width (side - side) OA

43" - 48"

Specifications

Prestige Underbar Sink Unit, 4-compartment, 48"W x 25"D x 36"H, 14" front-to-back x 10" left-to-right x 10" deep sink bowls, no drainboards, 7"H backsplash, stainless steel open frame base, side crossrails, stainless steel construction, includes: (2) deck mount faucets with 6" swing spouts, NSF
