Description

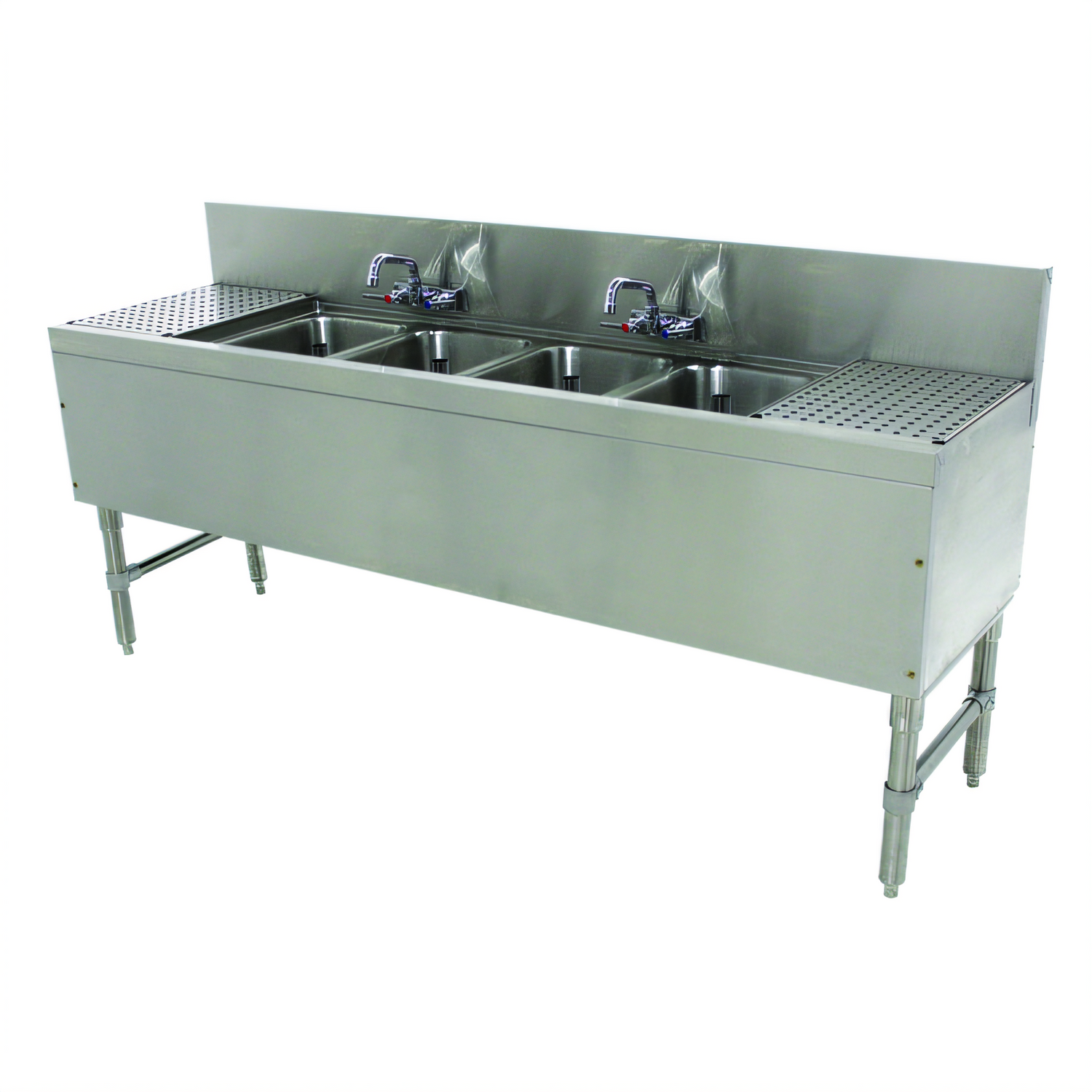

Advance Tabco Prestige 96" 4-Compartment Underbar Sink w/ Dual 24" Drainboards

Model PRB-19-84C – 20" Prestige Series

Engineered for the busiest bars, taprooms and tasting rooms, this 4-compartment Prestige sink combines deep drawn bowls, extra-long drainboards and rock-solid stainless construction in a slim 20" footprint. Everything you need for efficient glassware rotation and NSF-approved sanitation ships in one ready-to-install package.

Key Features

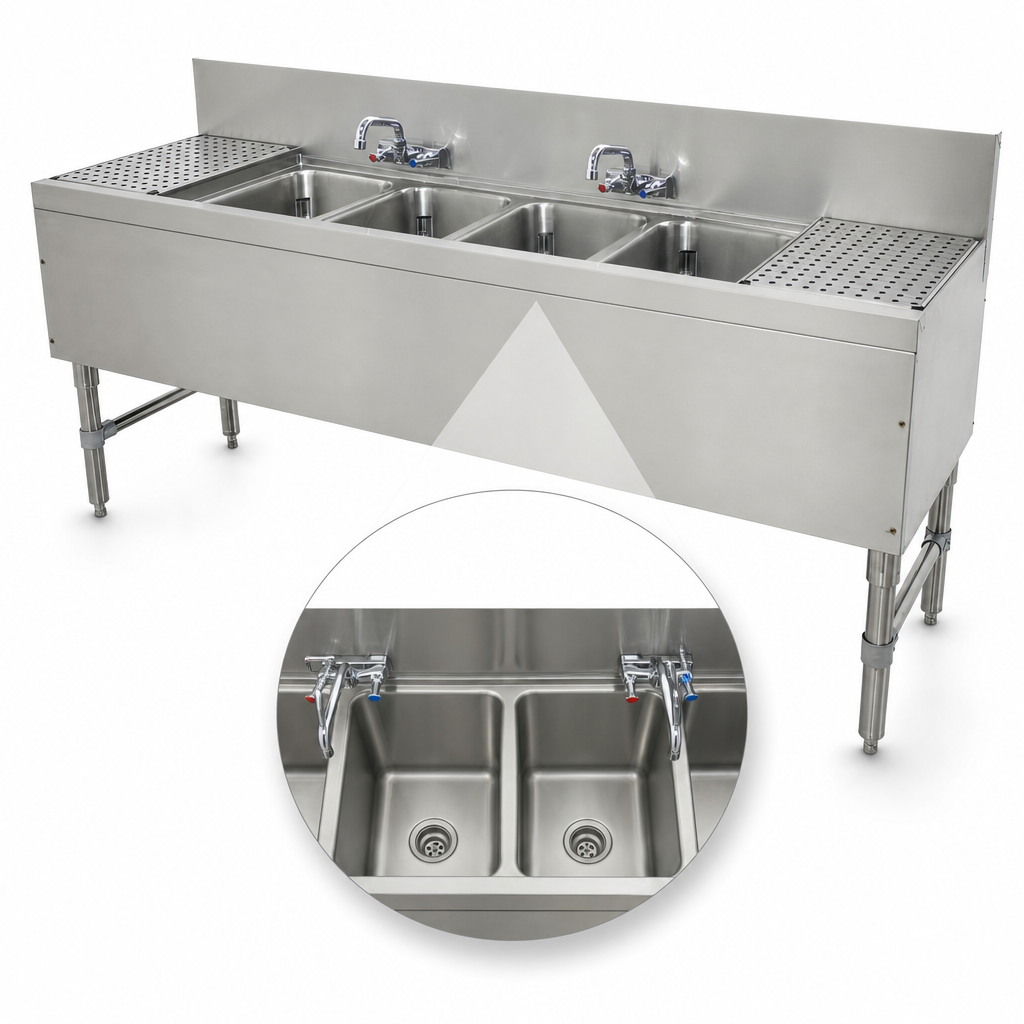

  • (4) seamless 14" F/B × 10" L/R × 10" deep sink bowls – no welded corners, easier to clean.
  • (2) 24" removable perforated drainboards keep glass racks elevated and air-circulating.
  • 7" backsplash with hemmed edges protects surrounding walls and bar equipment.
  • Includes (2) K-125 splash-mount faucets, 4" O.C. with 6" swing spouts.
  • 9" overflow standpipes with 1 1/2" IPS drains prevent accidental flooding.
  • 20 ga. 300 series stainless top & bowls; 18 ga. backsplash; open stainless frame base.
  • Adjustable side cross-rails & stainless bullet feet for fast, wobble-free leveling.
  • Sound-deadening undercoat for a quieter front-of-house environment.
  • NSF listed and NSF/ANSI 61 & 9 lead-free compliant.
At-a-Glance Specifications
Overall length 96" / 2438 mm
Overall width (F/B) 20" / 508 mm
Work height 36" / 914 mm
Backsplash height 7" / 178 mm
Sink compartments 4
Bowl interior size 14" F/B × 10" L/R × 10" D (each)
Drainboards 24" left & 24" right, perforated & removable
Faucets included (2) splash-mount, 4" centers, 6" swing spouts
Material 300 series stainless steel (top, bowls, legs, apron & sides)
Legs / feet 1 5/8" Ø S/S legs with adjustable bullet feet
Compliance NSF, NSF/ANSI 61 & 9 (lead-free)
Why Choose Prestige?

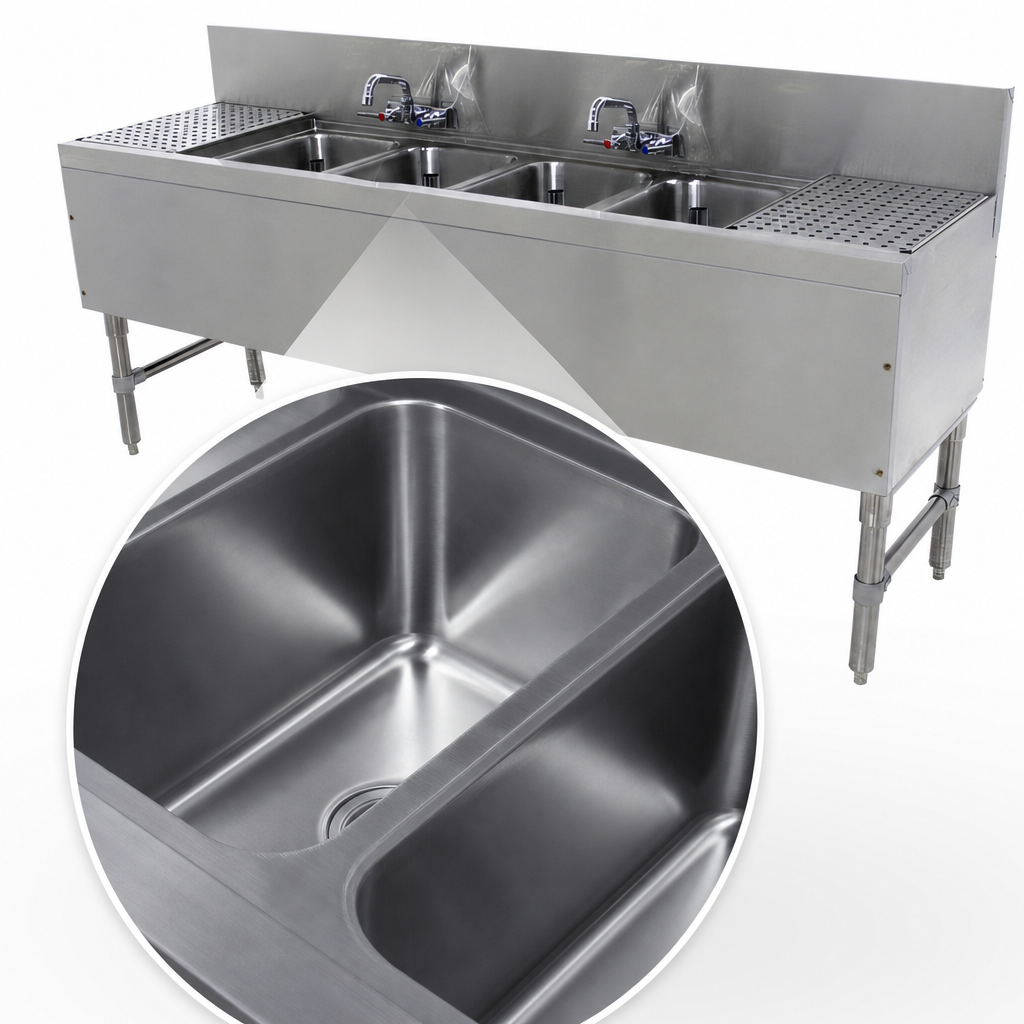

  • Deep-drawn bowls eliminate crevices where bacteria can hide.
  • Tool-free drainboard removal speeds up nightly cleaning.
  • Slim 20" body fits under standard bar tops without reducing patron space.
  • Field-adjustable cross-bracing lets you tailor rigidity to any floor condition.

Need wrist-blade handles, side splashes or an all-welded upgrade? Contact us—most Advance Tabco accessories can ship with your sink.

California Prop 65 Notice: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

96.0in

Depth

20.0in

Shipping Weight

157.0lbs

Bowl Size

10" x 14" front-to-back

Width (side - side) OA

91" - 96"

Splash

7"

Bowl Depth (rim - drain)

10"

Sink Compartments

(4)

Depth (front - back) OA

20" - 21"

Construction

stainless steel top, front, ends & legs

Drainboards

drainboards on left & right

Specifications

Prestige Underbar Sink Unit, 4-compartment, 96"W x 20"D x 36"H, 14" front-to-back x 10" left-to-right x 10" deep sink bowls, 24" drainboards on left & right, 7"H backsplash, stainless steel open frame base, side crossrails, stainless steel construction, includes: (2) splash mount faucets with 6" swing spouts, NSF
