Description

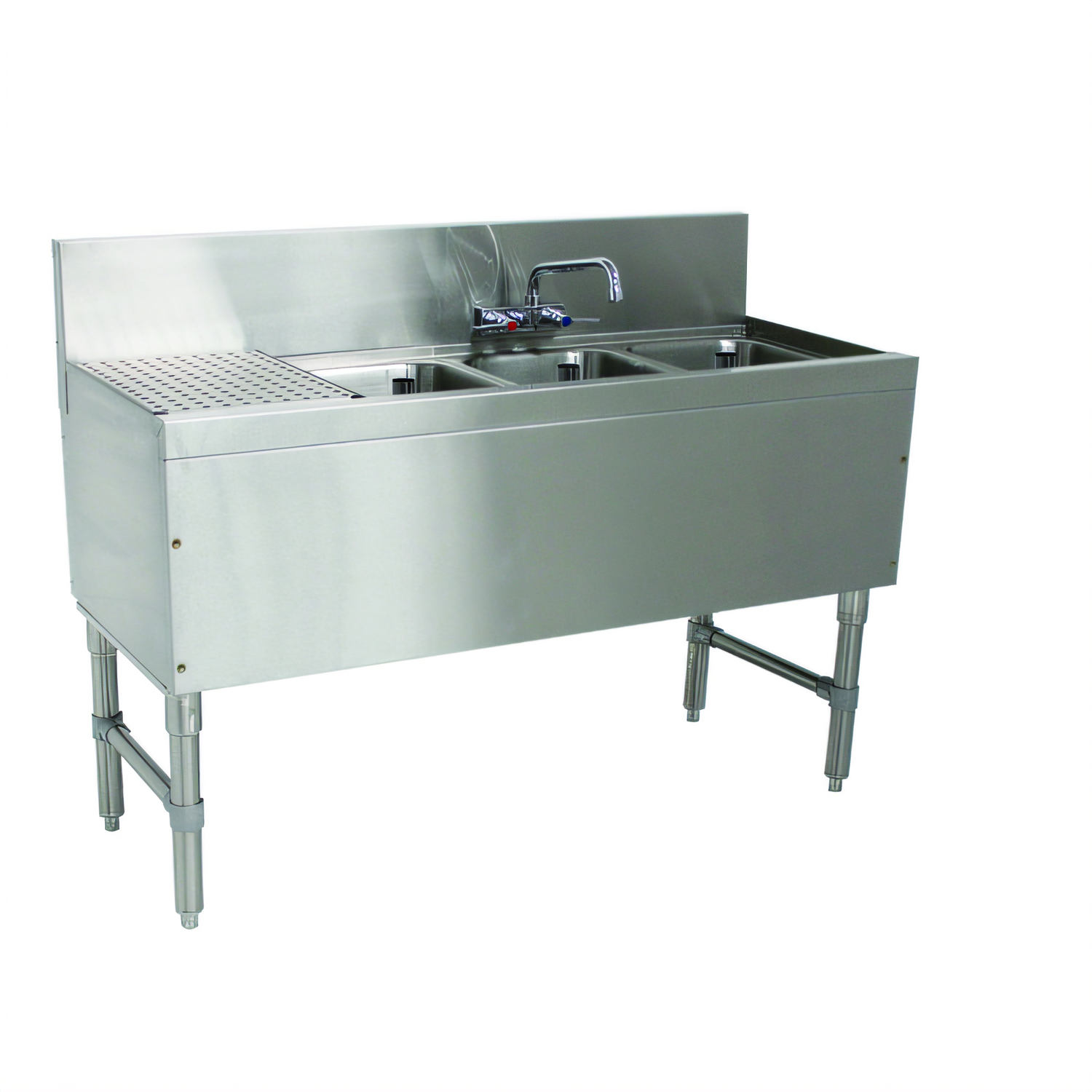

Prestige Supreme 3-Compartment Underbar Sink – 48" W x 20" D

Advance Tabco PRB Series • NSF Certified

Built for high-volume beverage programs that demand durability, speed and sanitation, the Advance Tabco Prestige Supreme underbar sink combines deep drawn seamless bowls with a space-saving 20" footprint. A generous 11" left-side drainboard, included 10" swing-spout faucet and heavy-duty stainless steel frame make this the all-in-one station your bar staff can count on night after night.

Key Features

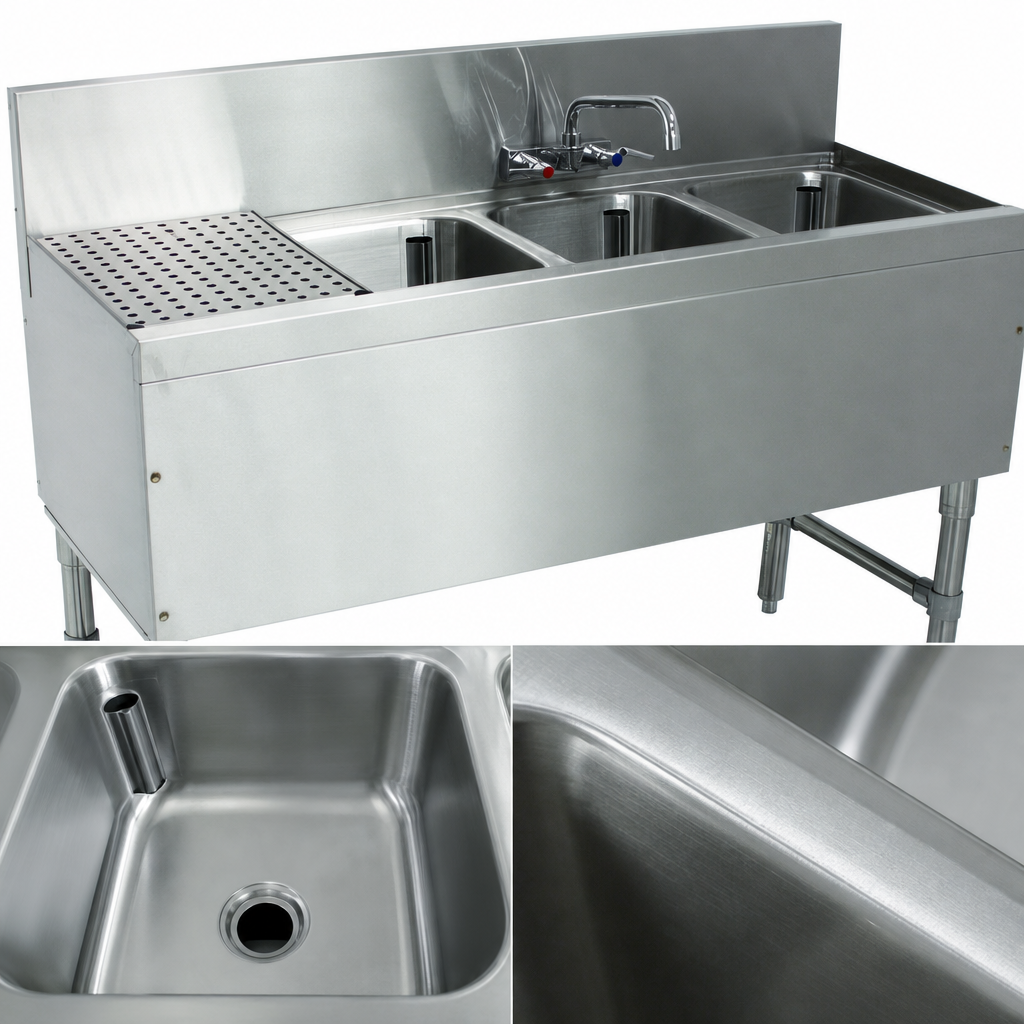

  • Three deep drawn seamless bowls – each 14" front-to-back x 10" left-to-right x 10" deep for fast glass & utensil turnover.

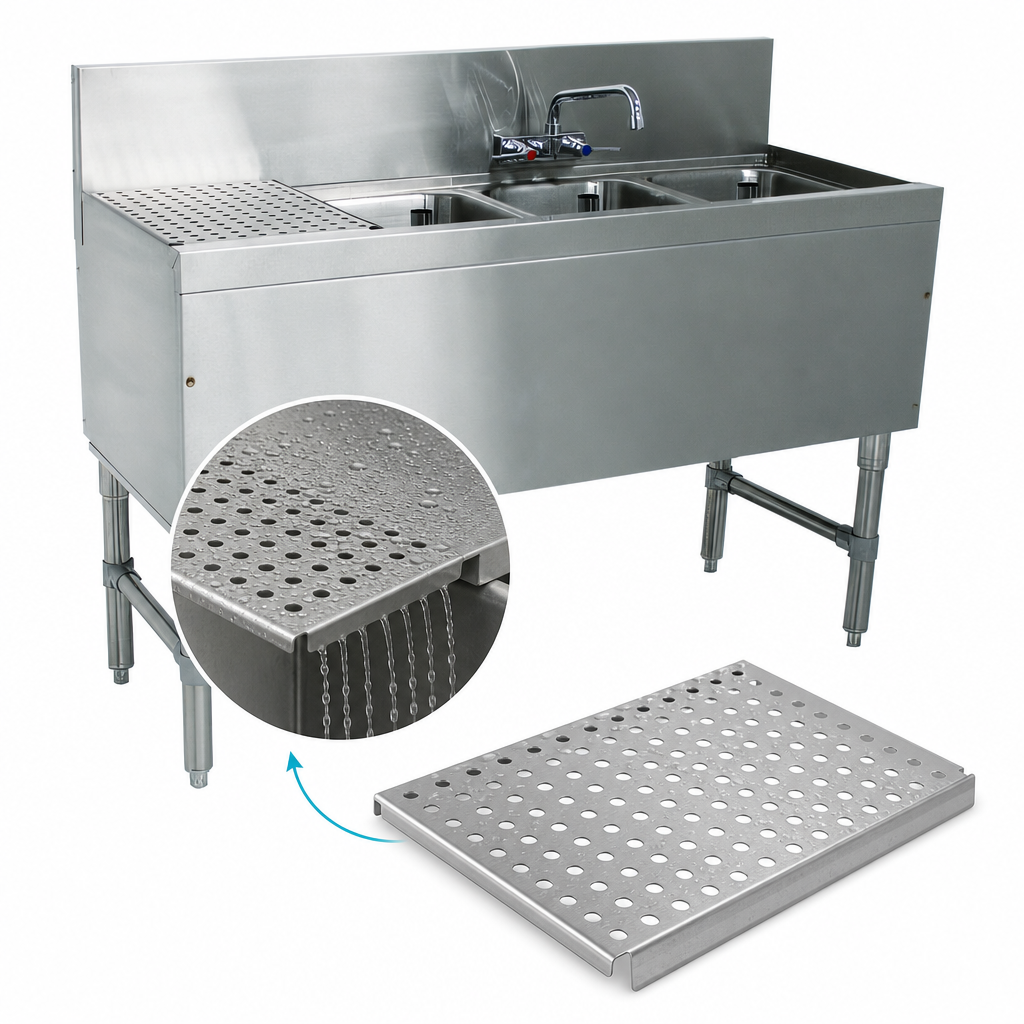

  • 11" perforated drainboard (left) with removable top speeds drying and doubles as a landing area.
  • 7" backsplash protects nearby walls from moisture and chemical splash.
  • Includes a 4" O.C. splash-mount faucet with 10" swing spout; lead-free & NSF/ANSI 61/9 compliant.
  • All 300-series stainless steel: top, apron, sides, bowls, legs & adjustable bullet feet.
  • Open frame base with adjustable side cross-bracing maximizes strength while easing floor cleaning.
  • Bowls furnished with 9" high overflow pipes & 1 ½" IPS drains.
  • Factory sound-deadening undercoat keeps noise down in busy bar environments.

Specifications

Overall width (W) 48" / 1219 mm
Overall depth (D) 20" / 508 mm
Work height 36" / 914 mm to deck
Backsplash height 7" / 178 mm
Compartments 3
Bowl inside dimensions (ea.) 14" F-B × 10" L-R × 10" D
Drainboard length 11" (left side)
Faucet Splash mount, 4" centers, 10" swing spout (included)
Material thickness 20 ga. bowls/top • 18 ga. backsplash & legs
Certifications NSF / ANSI 2, NSF 61/9 Lead Free

Popular Options (sold separately)

  • K-316-LUHA 4" wrist-blade handles for hands-free operation.
  • SU-20R / SU-20L: right or left side splash guards.
  • SU-74: all-stainless construction upgrade.
  • SU-75: factory-welded stainless steel side cross-bracing.

Contact us for additional Smart Fabrication™ modifications.

California Proposition 65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

36.0in

Width

48.0in

Depth

20.0in

Shipping Weight

94.0lbs

Drainboards

drainboard on left

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Width (side - side) OA

43" - 48"

Depth (front - back) OA

20" - 21"

Construction

stainless steel top, front, ends & legs

Sink Compartments

(3)

Splash

7"

Specifications

Prestige Underbar Sink Unit, 3-compartment, 48"W x 20"D x 36"H, 14" front-to-back x 10" left-to-right x 10" deep sink bowls, 11" drainboard on lefts, 7"H backsplash, stainless steel open frame base, side crossrails, stainless steel construction, includes: (1) splash mount faucet with 10" swing spout, NSF
