Advance Tabco PR-44X42SP-10-R Prestige (Supreme) Bar Equipment
Advance Tabco PR-44X42SP-10-R Prestige (Supreme) Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

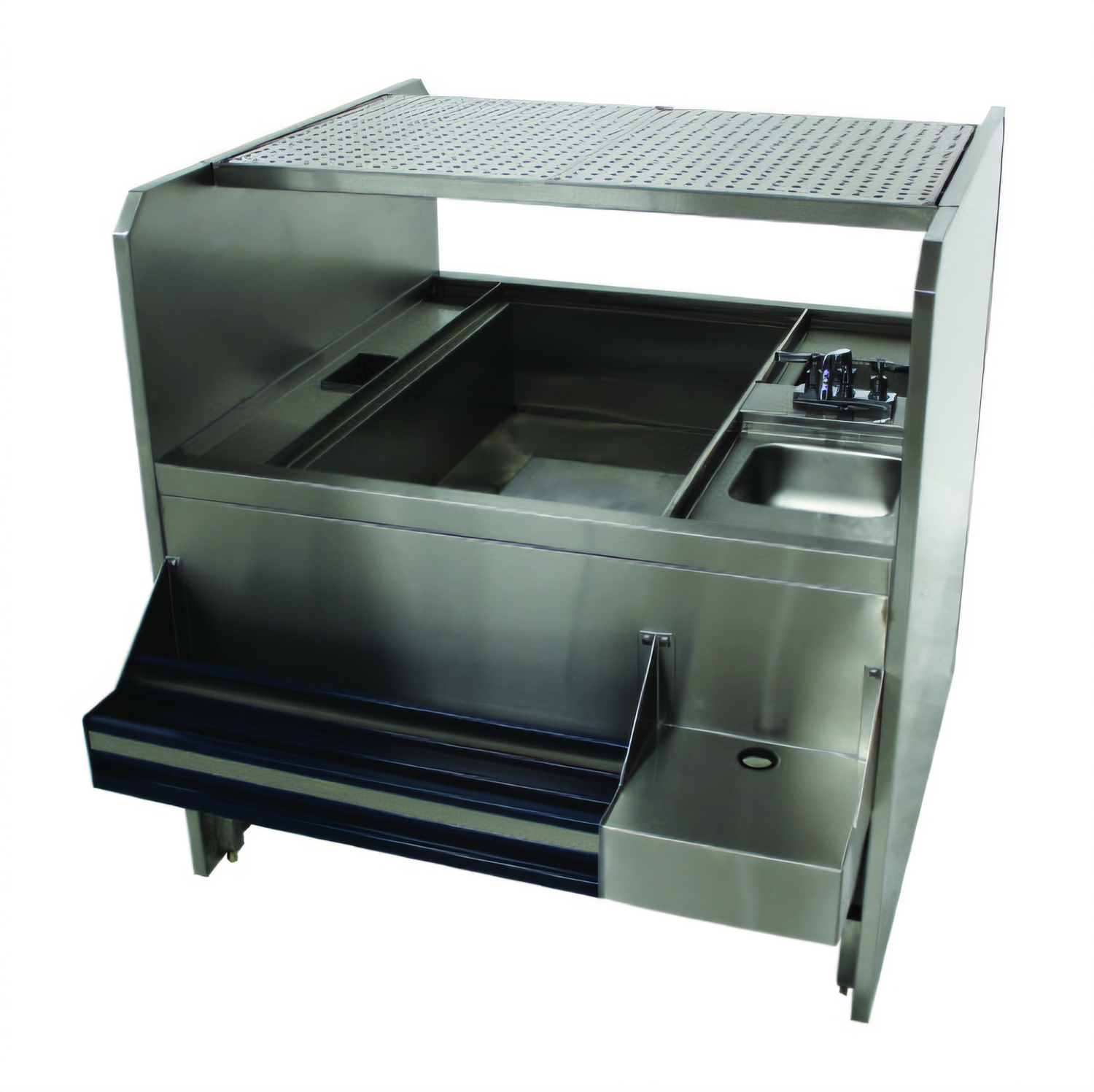

Advance Tabco Prestige® “Supreme” Double Service Station
Model PR-44X42SP-10-R | 44" L × 42" W Pass-Thru WorkstationDesigned for high-volume cocktail bars, nightclubs, hotels and stadium suites, the Prestige® “Supreme” Double Service Station delivers everything a busy bartender needs—ice, sinks, power, speed rails and drainboards—in one compact, all-stainless, NSF-listed workstation.
Why It Stands Out

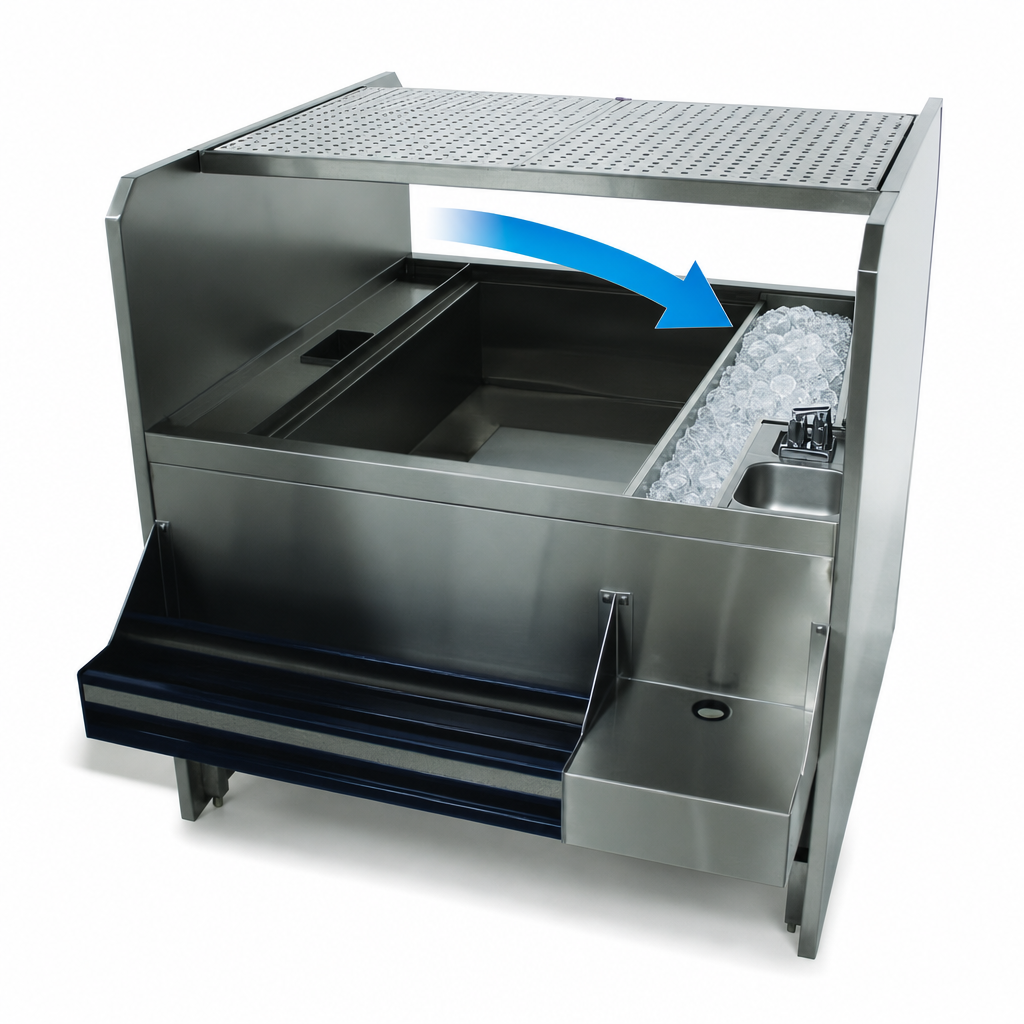

- 174 lb insulated pass-thru ice bin (right side) with cast-aluminum 10-circuit cold plate for rapid soda gun cooling.
- (2) 9" × 9" × 4 ½" deep-drawn hand sinks—left sink ships with K-51 4" O.C. deck-mount swing-spout faucet; right sink includes tubing chase for a soda gun.
- Recessed blender shelf keeps equipment off the main deck and houses a GFCI-protected 15 A/120 V duplex outlet underneath.
- Double-tier speed rail holds your most-used bottles within easy reach.

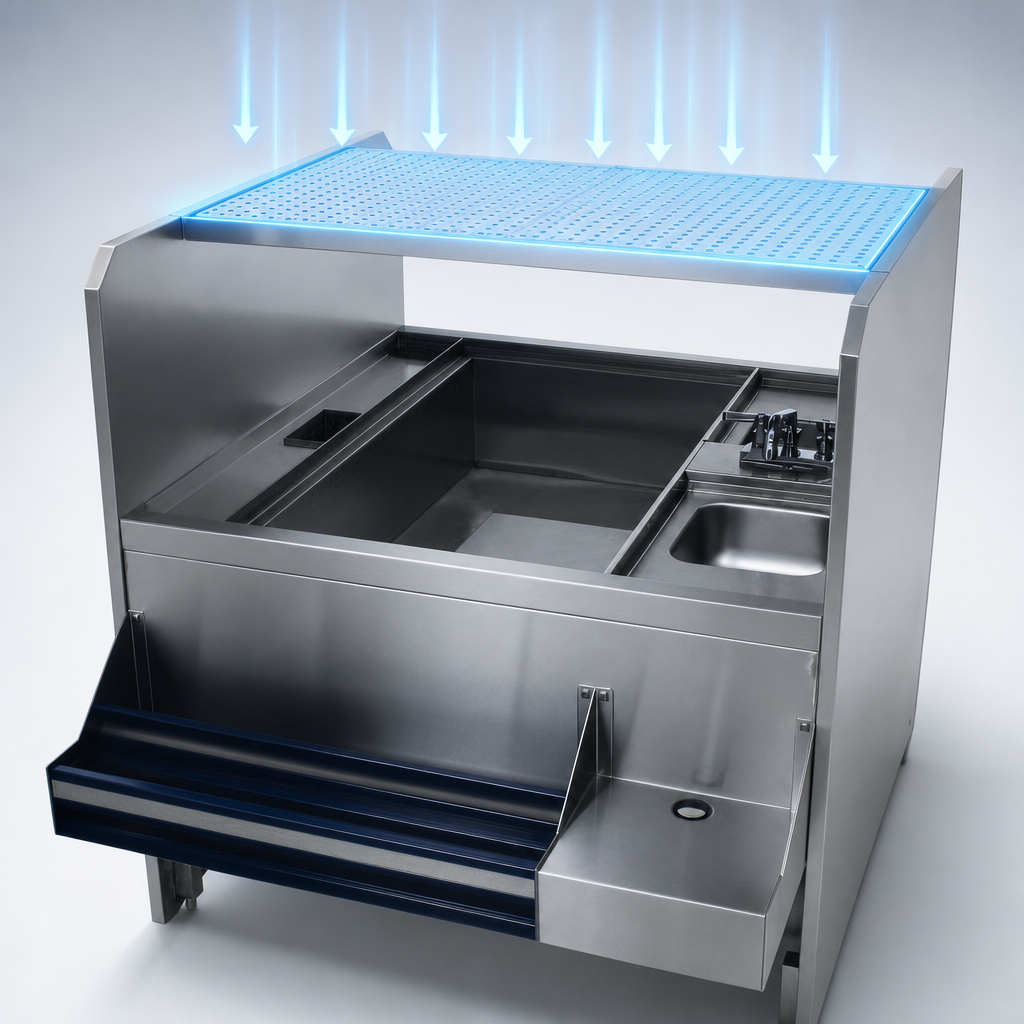

- Perforated drainboard shelf under the serving side lets glasses dry quickly without pooling water.
- Heavy-duty 300 series stainless steel construction throughout—built to survive years of nightly service.
- Meets NSF/ANSI 2 & NSF/ANSI 61/9 lead-free standards; fully NSF certified for open-food contact.
Specifications at a Glance
Model | PR-44X42SP-10-R (ice bin on bartender’s right) |
---|---|
Overall dimensions | 44" L × 42" W × 29" H (work deck) • 44 ⅝" H to top of drainboard shelf |
Ice capacity | 174 lb pass-thru bin, foamed-in-place insulation |
Cold plate | 10 stainless beverage circuits, sealed into bin bottom |
Sinks | (2) 9" × 9" × 4 ½" bowls • 1 ½" IPS drains with 3 ½" basket strainers |
Faucet | K-51 6" swing-spout deck faucet on left sink |
Electrical | 15 A / 120 V GFCI duplex receptacle under blender shelf |
Materials & gauges |
• 20 ga bowls, sides, ice bin & shelf • 22 ga front apron & rail faces • 16 ga speed-rail sides • 18 ga side panels / drainboard shelf |
Plumbing connections | ½" IPS ice-bin drain • 1 ½" IPS sink drains |
Shipping weight / cube | Approx. 575 lb • 59 ft³ |
Certifications | NSF-Listed • NSF/ANSI 61 & 9 Lead-Free |
Built for the Rush
- Foam-insulated ice bin reduces melt and eliminates exterior condensation.
- Self-supporting side-panel design—no legs in the server aisle for a cleaner look and easier floor care.
- Adjustable stainless bullet feet and cross-bracing (bartender side) add rock-solid stability on uneven floors.
- Front apron hides utilities while providing extra knee clearance.
Service-Speed Benefits
- Pass-thru ice bin allows simultaneous bartender and server access, cutting wait times.
- Right-side cold plate lets you centralize soda gun manifolds and keep syrup lines short for maximum carbonation.
- Sinks, blender, ice, bottles and drainboard are all within a single 44" footprint—no wasted steps.
- Perforated drainboard shelf turns unused vertical space into productive glass storage.
