Advance Tabco  |  Prestige (Supreme)  |  SKU: PR-42X42-10-R  |  UPC: 747545199027

Advance Tabco PR-42X42-10-R Prestige (Supreme) Bar Equipment

$5,860.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

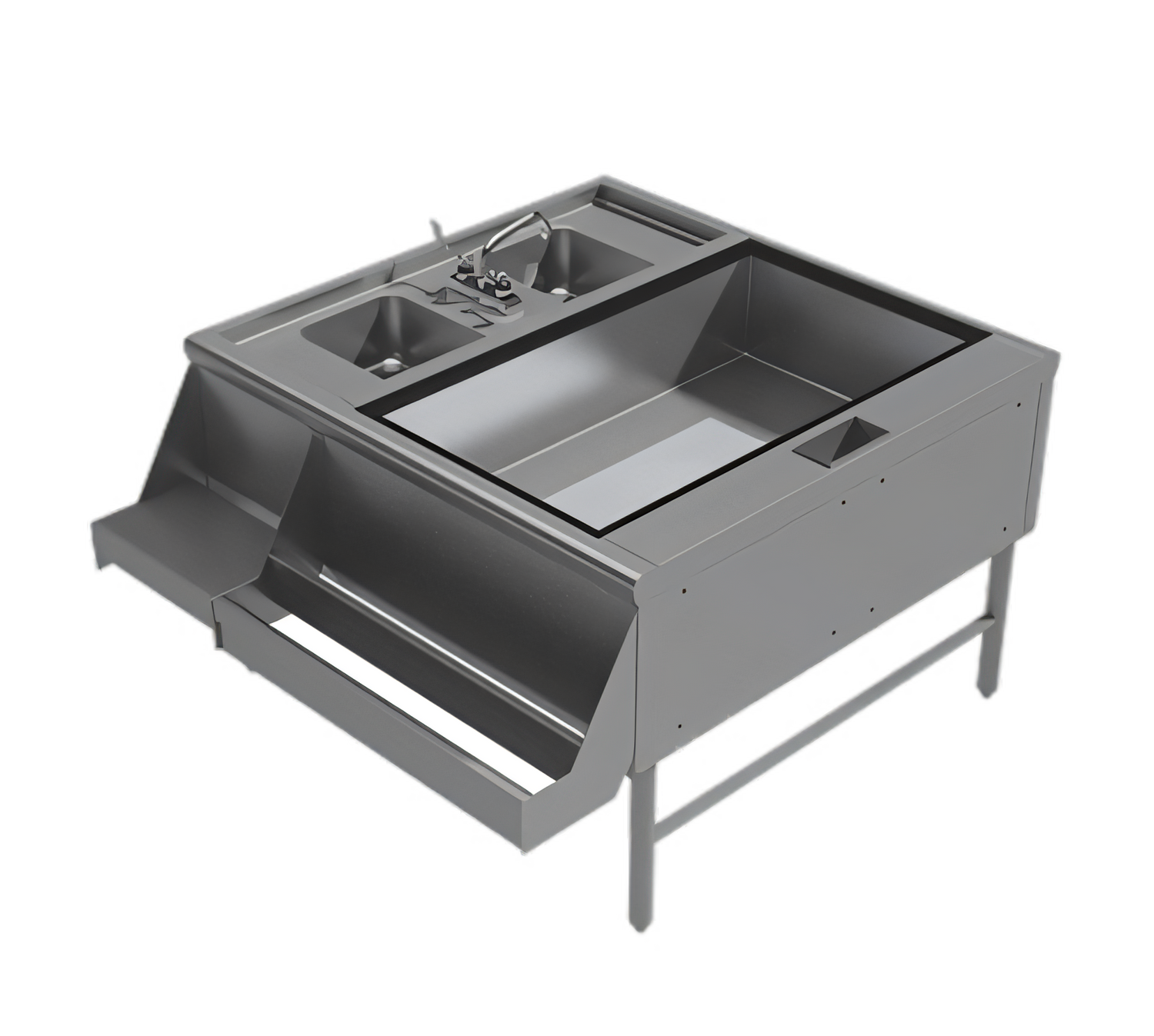

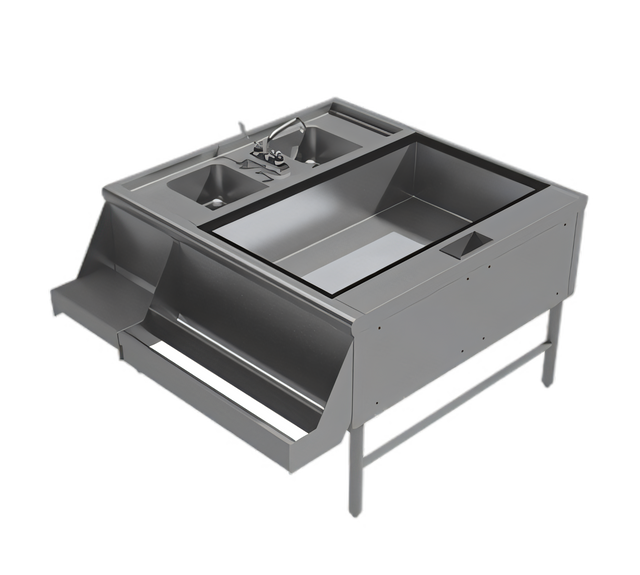

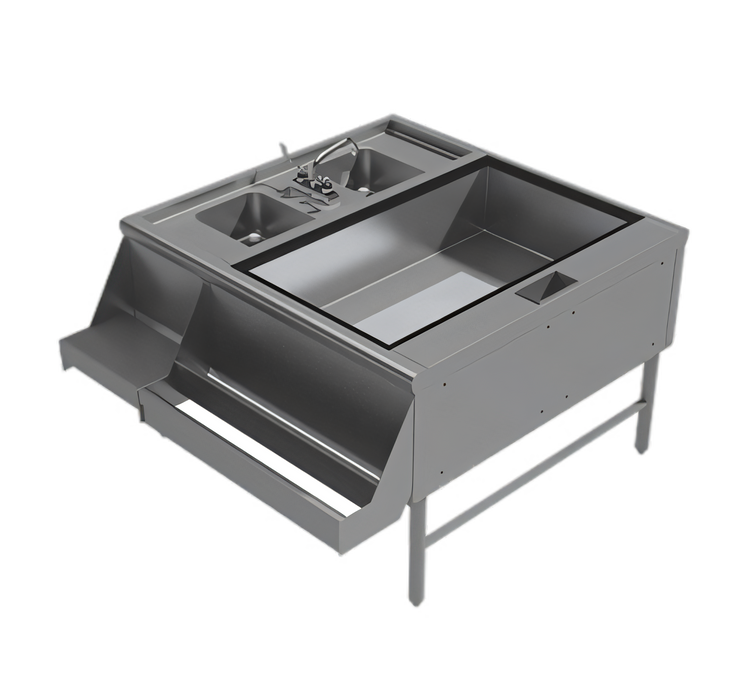

Advance Tabco Prestige® Supreme Pass-Thru Double Service Station – Right Ice Bin

Model PR-42x42-10R | 42" × 52" | NSF Certified

Designed for high-volume bars that demand speed, sanitation and durability, the Prestige® Supreme Double Service Station combines a 174-lb pass-thru ice bin, dual hand sinks and a 10-circuit cold plate in one compact, stainless-steel workstation—so your bartenders can serve both sides of the bar without missing a beat.

Key Features

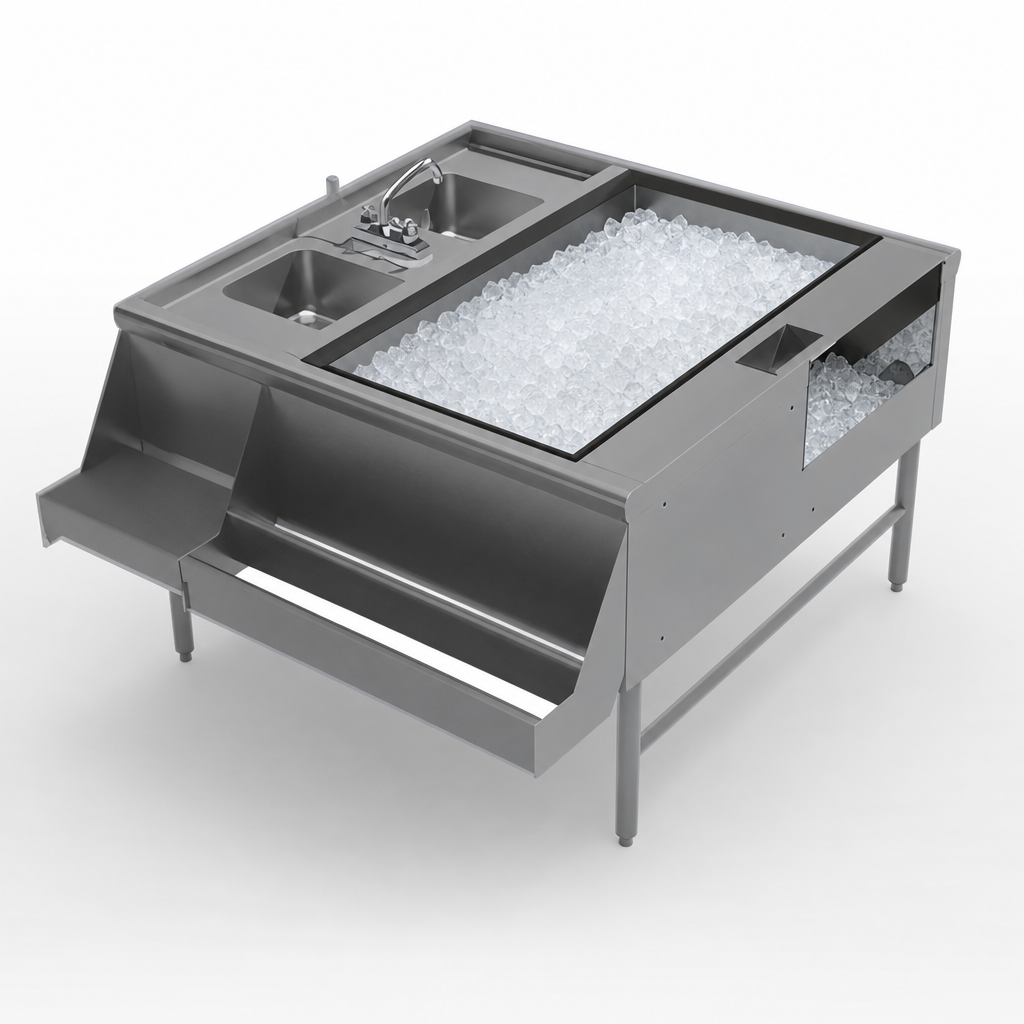

  • Pass-thru ice bin (right side) with 174 lb capacity and full foam insulation.

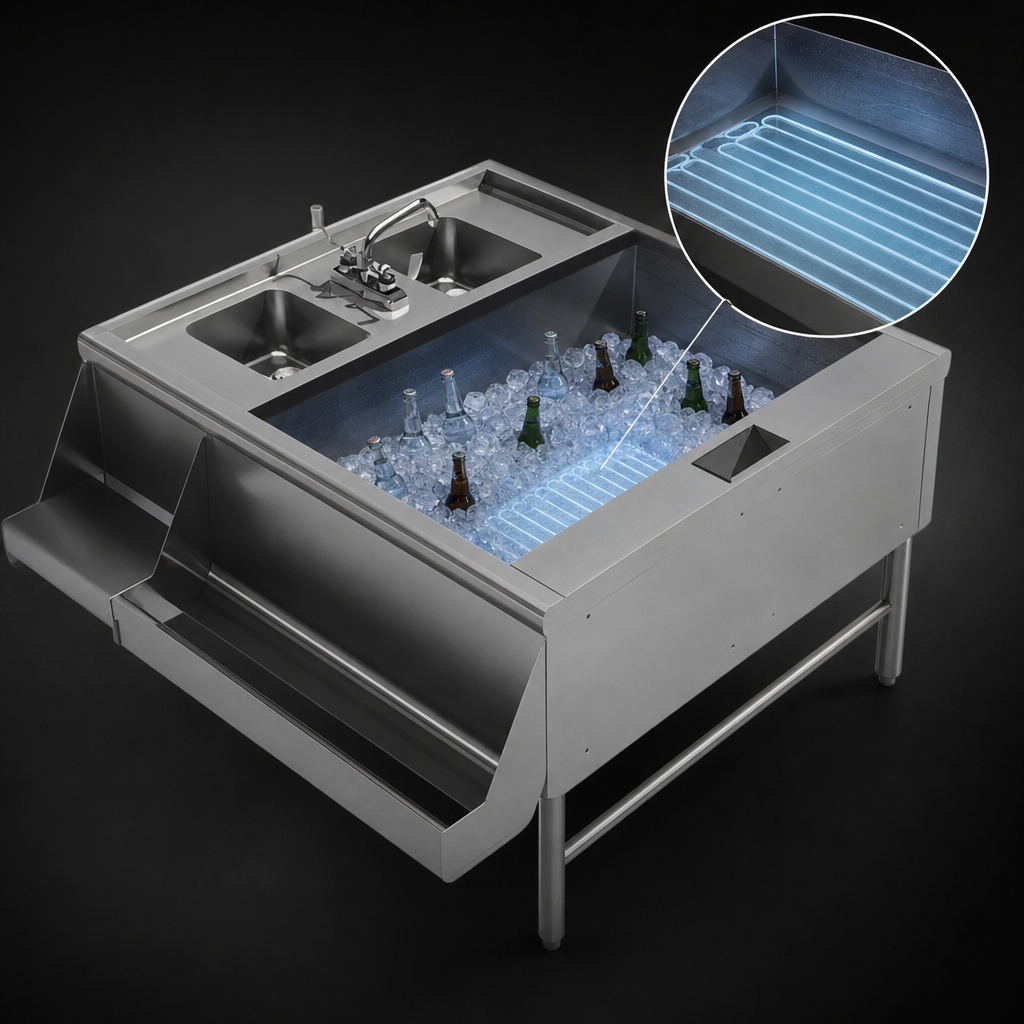

  • Integrated 10-circuit cast-aluminum cold plate keeps up to 10 beverage lines perfectly chilled.
  • (2) deep-drawn 9" × 9" × 4 ½" sink bowls for hand-washing/rinse service.
  • Includes K-51 6" swing-spout faucet on the left sink (4" on-center, lead-free compliant).
  • Factory-installed tubing chase for quick soda-gun connections.
  • Blender shelf with recessed 15 A / 120 V GFI duplex outlet safely hidden underneath.
  • Double-tier speed rail (22 ga rail, 16 ga ends) keeps top movers within reach.
  • 1 ⅝" O.D. 18 ga stainless-steel legs with adjustable bullet feet and side cross-bracing.
  • 300-series stainless-steel construction throughout—rust-resistant, easy to sanitize and built to last.
  • Conforms to NSF, NSF/ANSI 61 Section 9 lead-free requirements.

Specifications

Overall dimensions (L × W × H) 42" × 52" × 29" (to work surface)
Ice bin location Right-hand (from bartender side)
Ice capacity 174 lb
Cold plate Cast aluminum, 10 circuits (sealed)
Sink bowls (2) 9" × 9" × 4 ½" deep-drawn
Faucet included (1) K-51 swing-spout faucet (left sink)
Electrical 15 A / 120 V GFI duplex receptacle (beneath blender shelf)
Primary materials 20 ga 300 SS (sinks, sides, ice bin, shelf); 22 ga front apron & rails; 16 ga rail sides; 18 ga legs
Shipping weight Approx. 400 lb
Certifications NSF, NSF/ANSI 61 Section 9

Popular Options (call to add)

  • PR-SSC-PT42 sliding ice-bin cover
  • SU-43 dual soda-gun holder
California Proposition 65 Notice: This equipment includes a faucet that can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit p65warnings.ca.gov.

Need a different size or accessory package? Advance Tabco’s Smart Fabrication™ team can customize almost any dimension—just ask!

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

29.0in

Width

42.0in

Depth

52.0in

Shipping Weight

400.0lbs

Cold Plate

(10) circuit

Components (left to right)

blender unit with (2) sinks, ice bin, soda chase

Width (side - side) OA

37" - 42"

Specifications

Prestige Double Service Station, 42" x 42", includes pass-thru ice bin on right, 10-circuit cold plate, (2) hand sinks with one faucet on left & tubing chase, blender shelf with recessed duplex outlet underneath, double tier speed rail, stainless steel legs with adjustable steel bullet feet & adjustable side cross-bracing, 174 lb ice capacity, NSF
