Advance Tabco  |  Prestige (Supreme)  |  SKU: PR-42X42-10-L  |  UPC: 747545200693

Advance Tabco PR-42X42-10-L Prestige (Supreme) Bar Equipment

$5,860.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

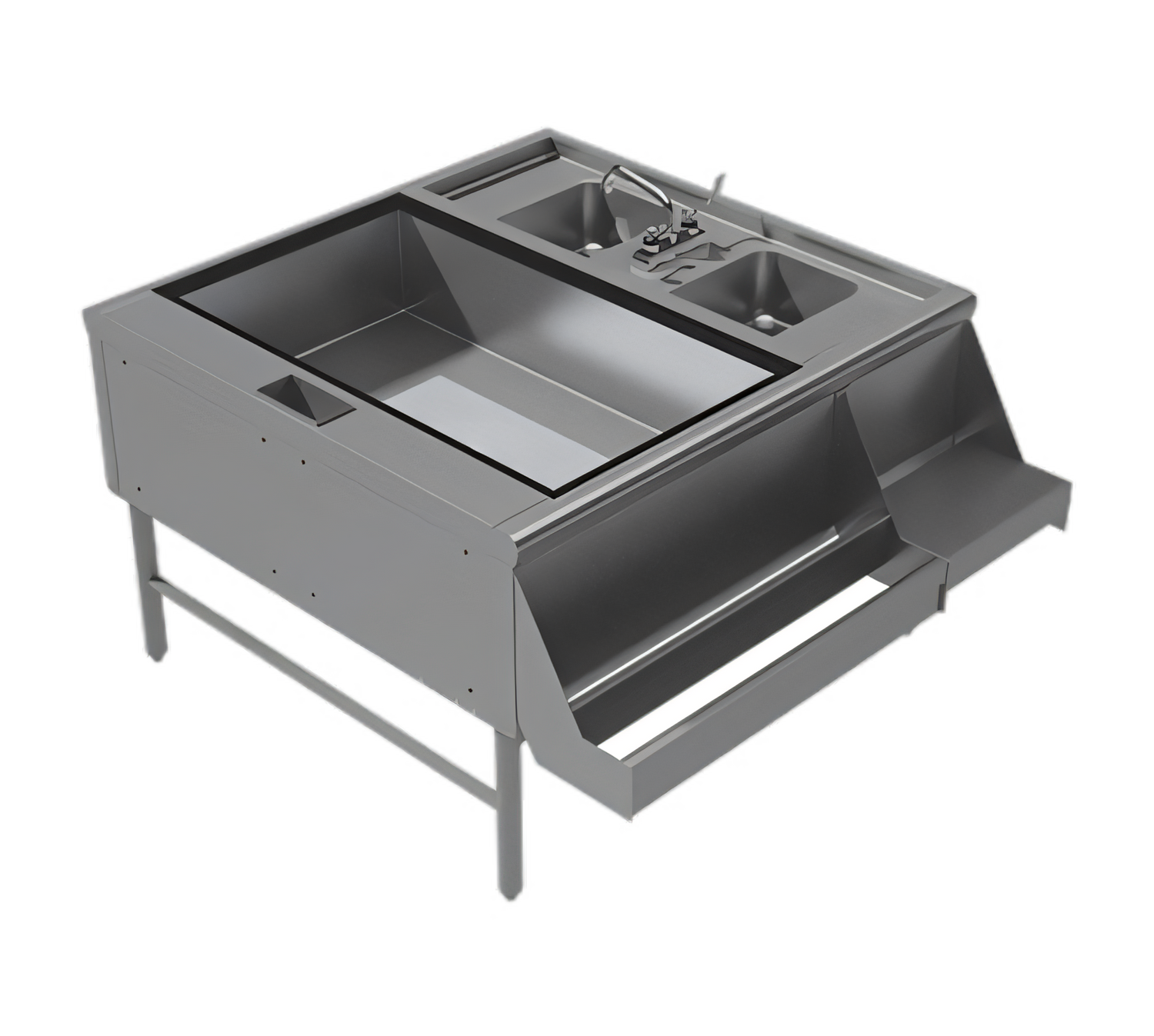

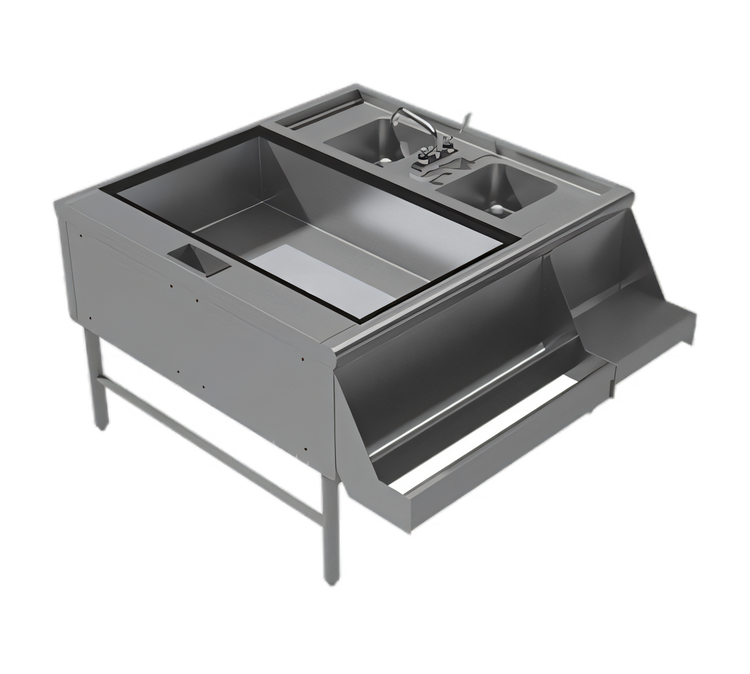

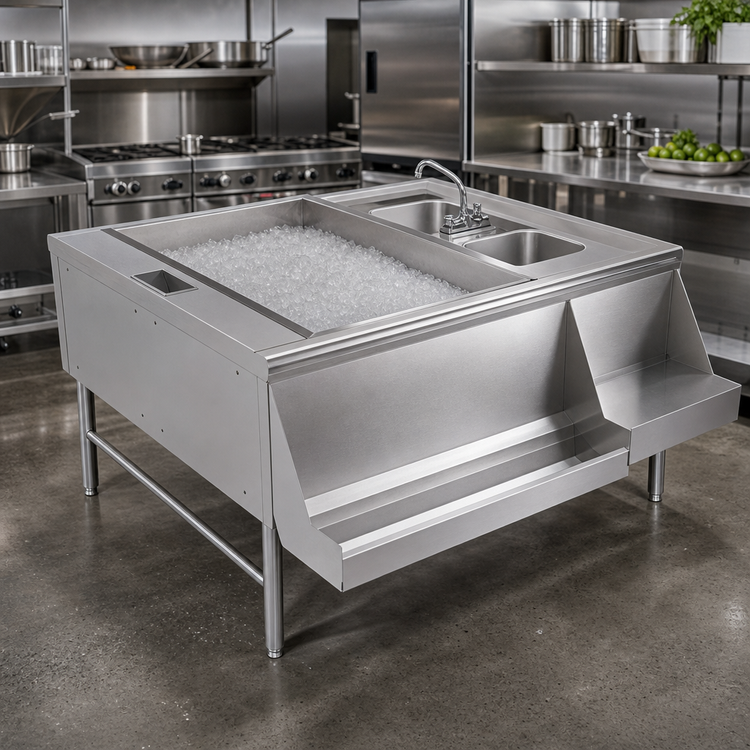

Advance Tabco Prestige® Supreme Double Service Station – 42" × 42"

Model PR-42×42-10-L | Left-Hand Ice Bin

Engineered for high-volume bar service, the Prestige Supreme pass-thru workstation combines a generous 174 lb ice bin, twin hand-sink bowls and dedicated blender, soda and bottle prep zones in one compact, 42" footprint.

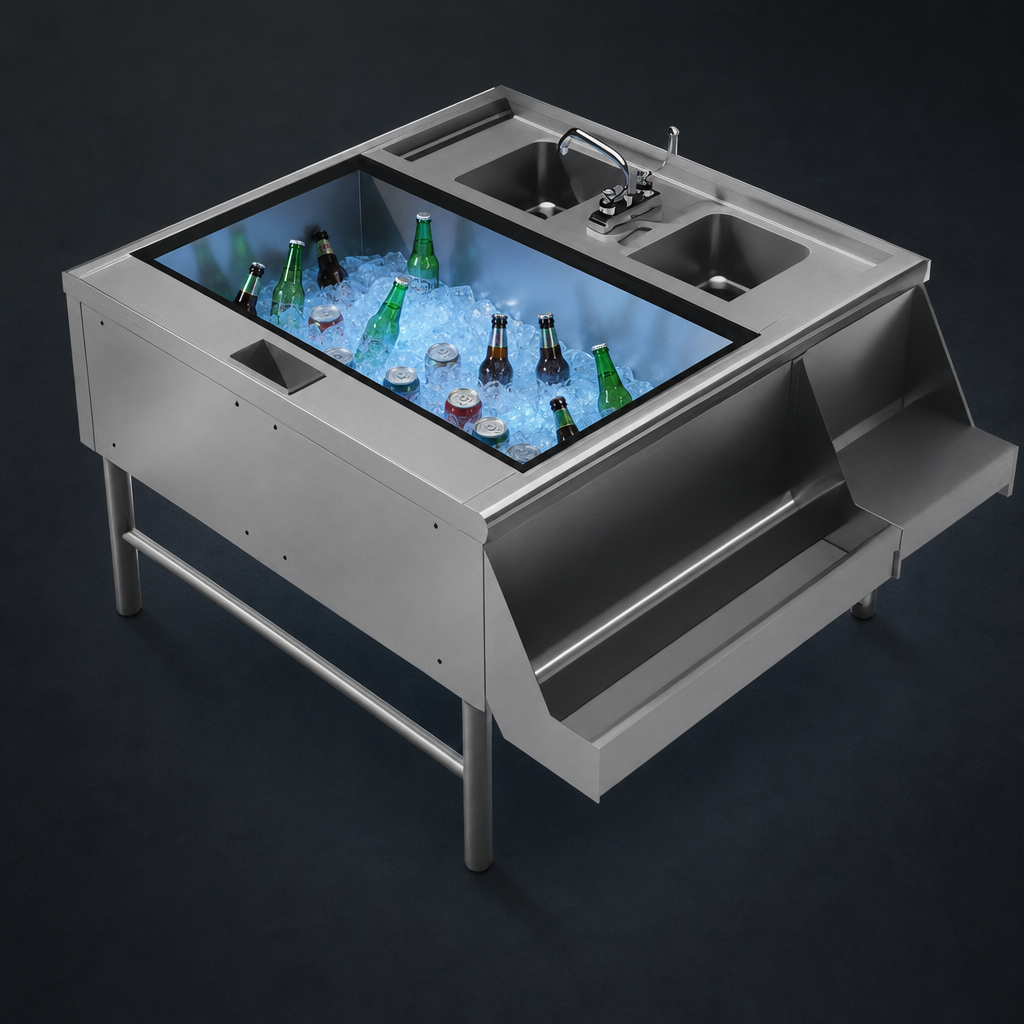

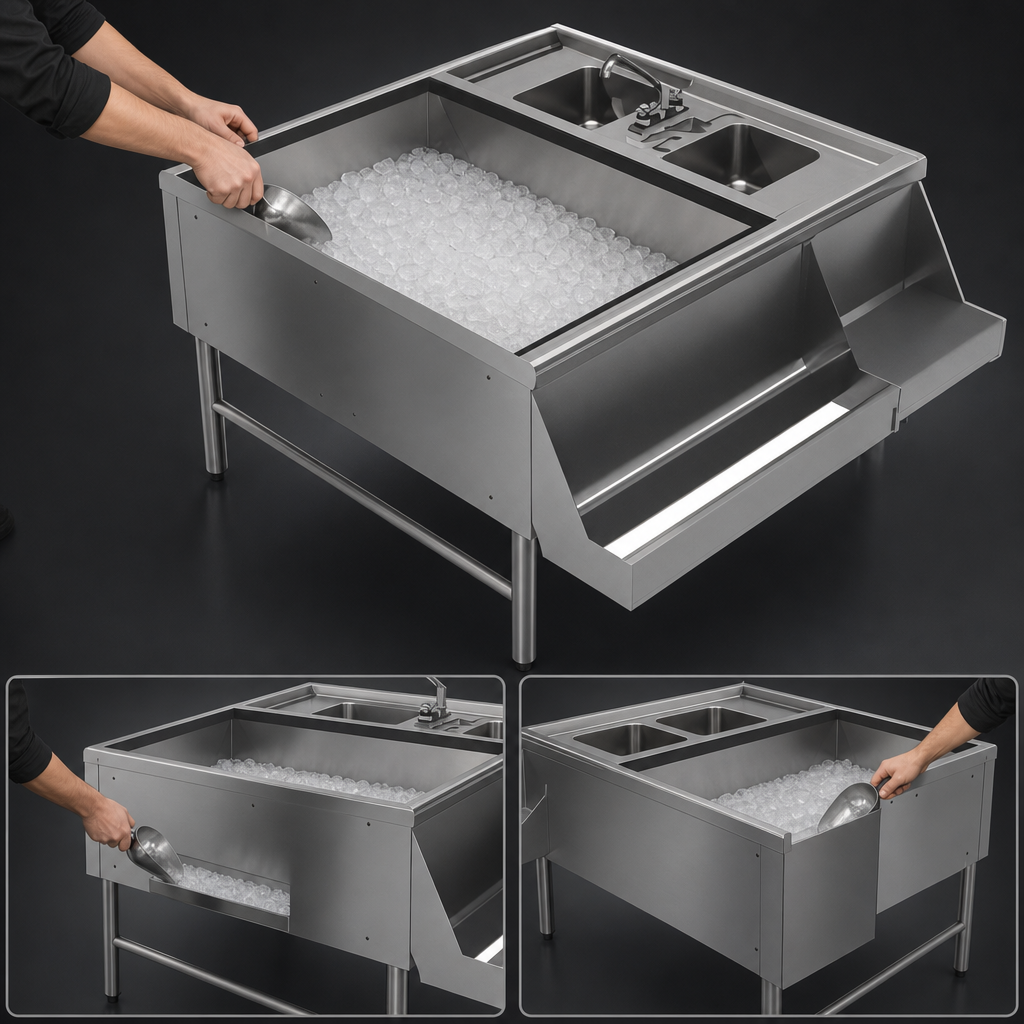

  • High-capacity ice service: insulated 174 lb pass-thru ice bin with factory-sealed 10-circuit cast-aluminum cold plate.
  • True double service: two 9" × 9" × 4½" deep-drawn hand-sink bowls for simultaneous bartender and bar-back use.
  • Space-saving faucet: NSF 61 compliant K-51 6" swing-spout deck faucet (4" O.C.) pre-installed on the right-hand sink.
  • Blender-ready shelf: 20 ga stainless platform with recessed 15 A / 120 V GFI duplex outlet safely tucked beneath.
  • Double-tier speed rail: 22 ga stainless rail with 16 ga sides keeps two full rows of bottles within arm’s reach.
  • Rugged construction: all 300-series stainless steel body; 1 5/8" O.D. legs with adjustable bullet feet and side cross-bracing.
  • Foamed-in-place insulation around the ice bin retains ice longer and prevents exterior sweating.
  • Plumb & pour ready: ½" IPS ice-bin drain, 1-½" IPS basket drains on each sink, built-in tubing chase for soda gun connections.
  • NSF listed and conforms to NSF 61/9 lead-free requirements for peace of mind and code compliance.

Specifications

Overall dimensions 42" W × 42" D × 29" H (working height)
Ice-bin orientation Left side (from bartender side)
Ice capacity 174 lb
Cold plate 10 sealed circuits, cast aluminum
Sink bowls (qty 2) 9" × 9" × 4½" deep, deep-drawn 20 ga 300-series stainless
Faucet K-51 deck-mount swing spout, 4" centers, lead-free
Electrical (1) 15 A 120 V GFI duplex receptacle under blender shelf
Speed rail Double tier, 22 ga rail with 16 ga ends
Legs / feet 1 5/8" O.D. 18 ga stainless legs, adjustable stainless bullet feet, adjustable side cross-bracing
Material thickness Body & ice bin/blender shelf 20 ga; front apron & rail face 22 ga
Certifications NSF, NSF 61/9 lead free

NOTE: “Left” indicates the ice bin is on the bartender’s left when facing the customer.

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Prestige (Supreme)

Certifications

NSF

Height

29.0in

Width

42.0in

Depth

52.0in

Shipping Weight

400.0lbs

Cold Plate

(10) circuit

Components (left to right)

soda chase, ice bin, blender unit with (2) sinks

Width (side - side) OA

37" - 42"

Specifications

Prestige Double Service Station, 42" x 42", includes pass-thru ice bin on left, 10-circuit cold plate, (2) hand sinks with one faucet on right & tubing chase, blender shelf with recessed duplex outlet underneath, double tier speed rail, stainless steel legs with adjustable steel bullet feet & adjustable side cross-bracing, 174 lb ice capacity, NSF
