Advance Tabco PA-24-96-2 Wire Shelving

$3,219.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

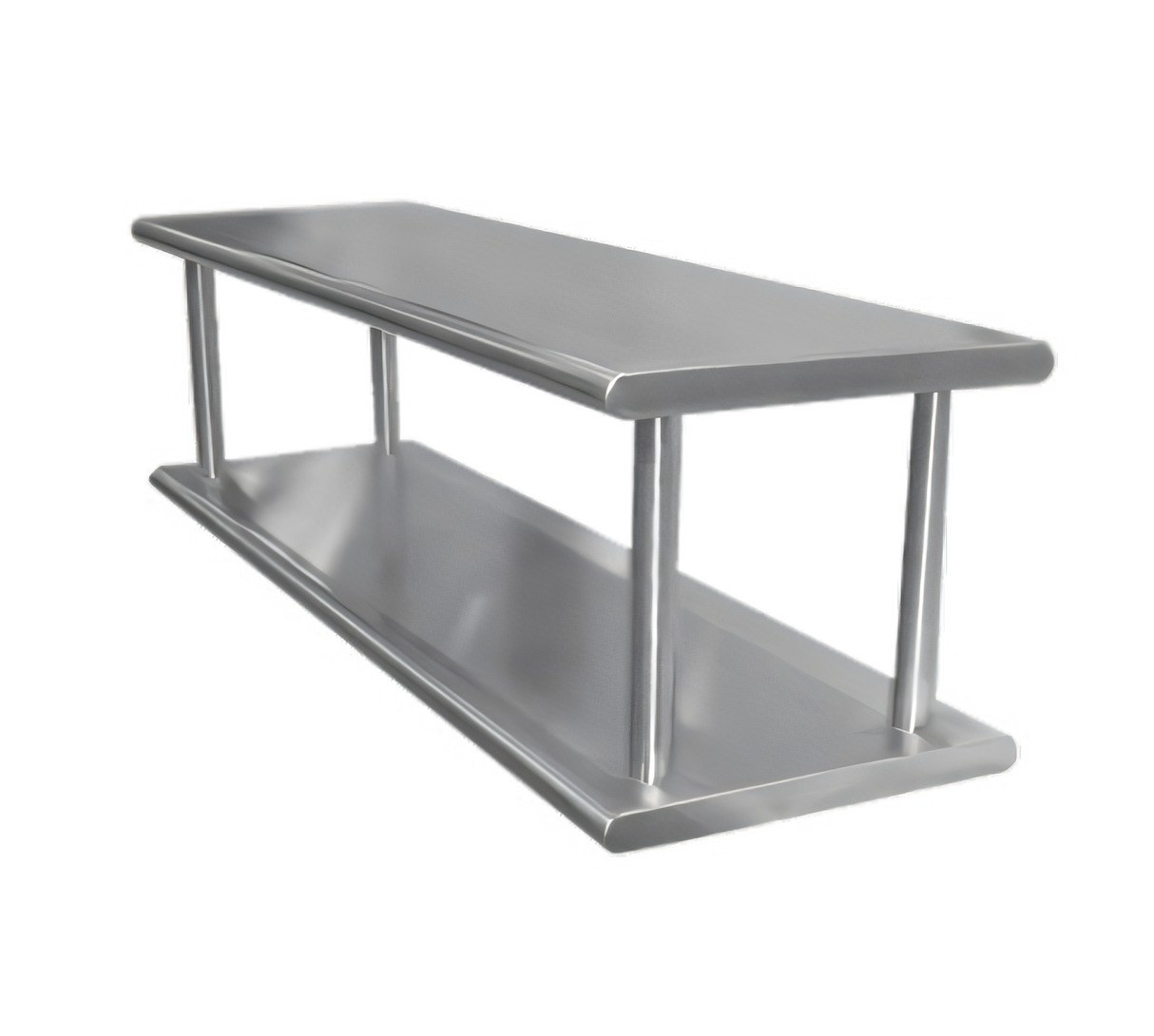

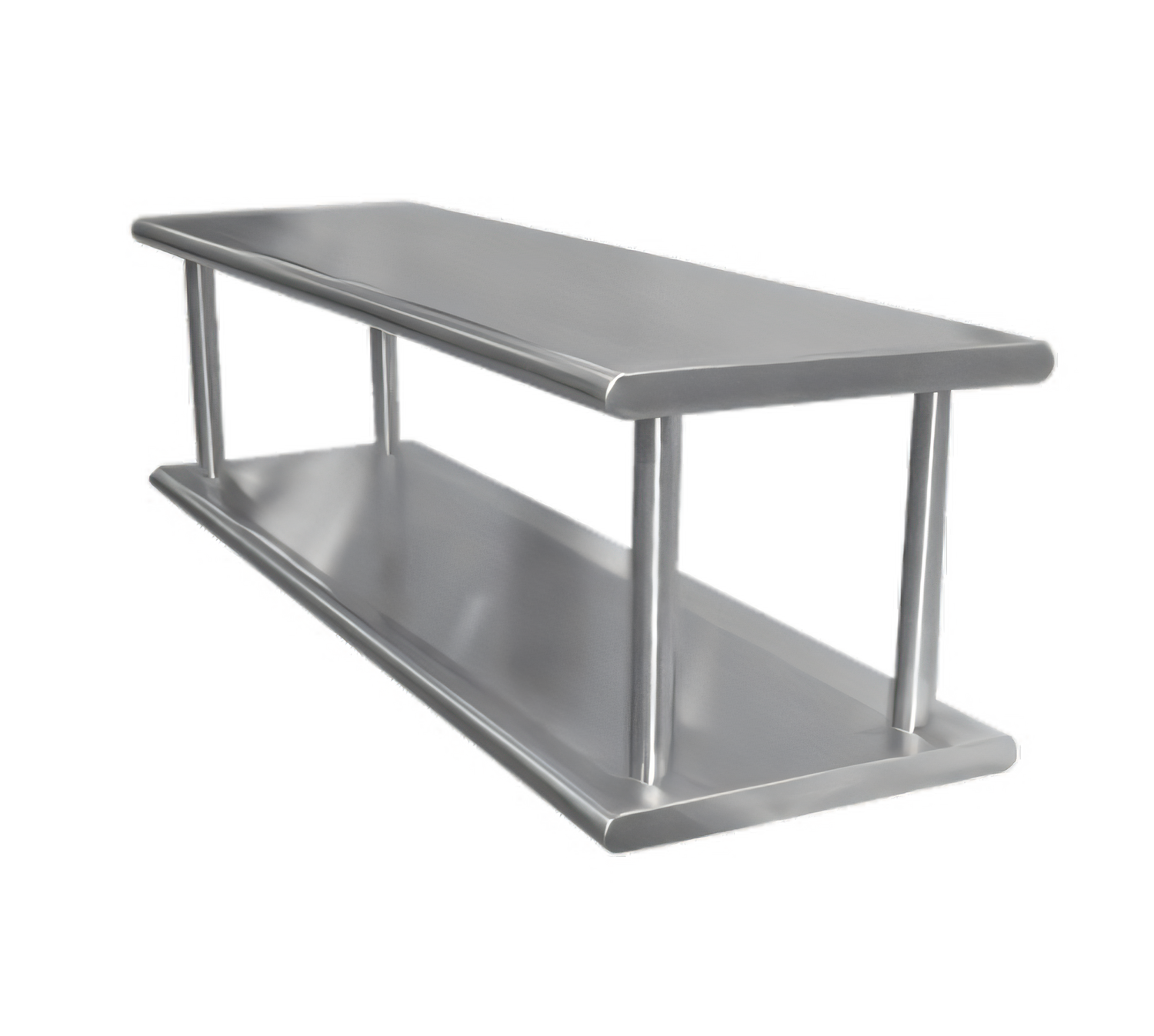

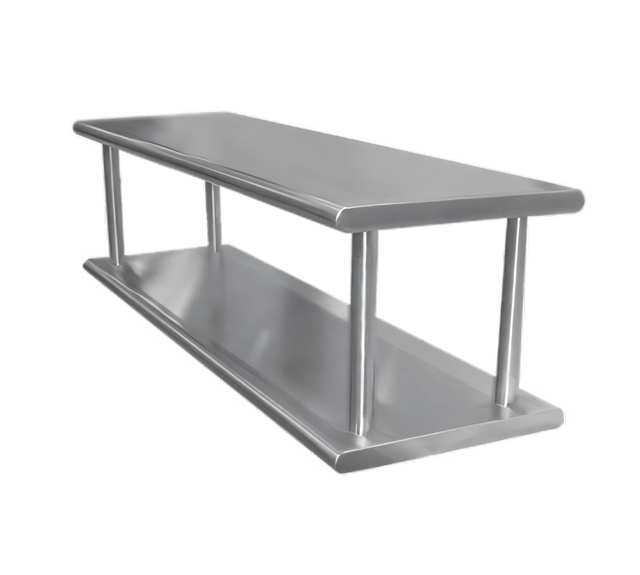

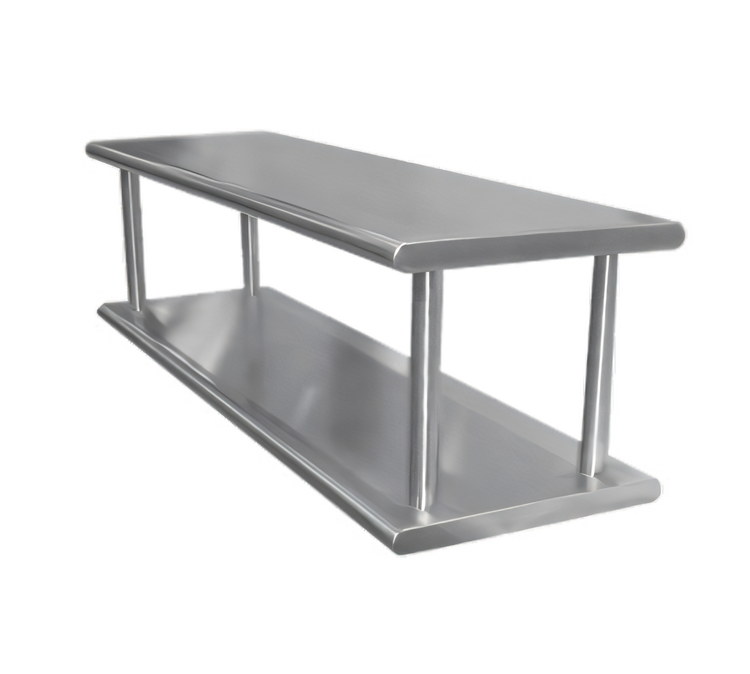

96" x 24" Stainless Steel Pass-Thru Shelf w/ Fixed Overshelf – Double Tier

Advance Tabco Model PA-24-96-2

Create a seamless, sanitary pass-through between prep and service areas while doubling your storage capacity. This fully welded, two-tier shelf ships assembled and mounts securely to the wall, giving you a rock-solid 96 inch work surface below a fixed 96 inch overshelf—perfect for plating, staging and small-equipment storage in high-volume kitchens.

Key Features

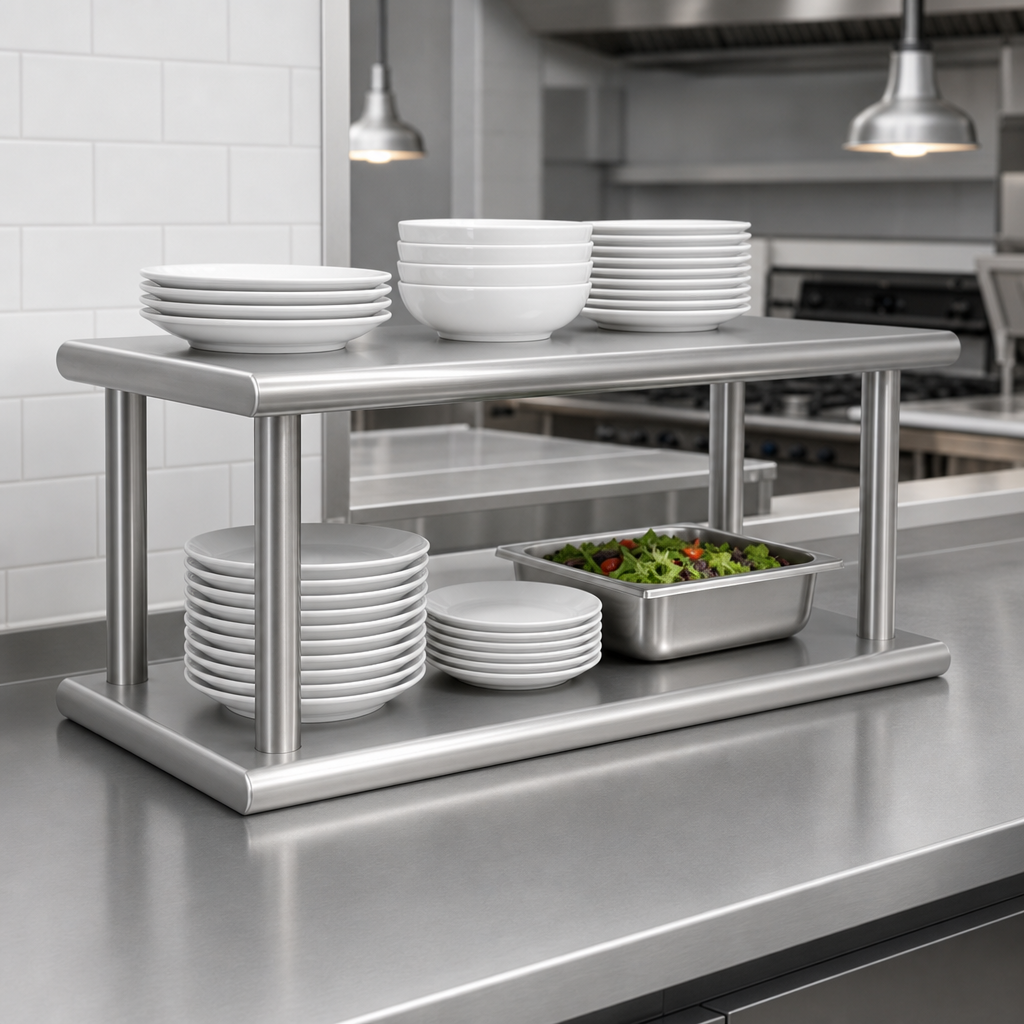

  • Two shelves in one unit – lower pass-thru shelf + fixed overshelf (14" vertical clearance).

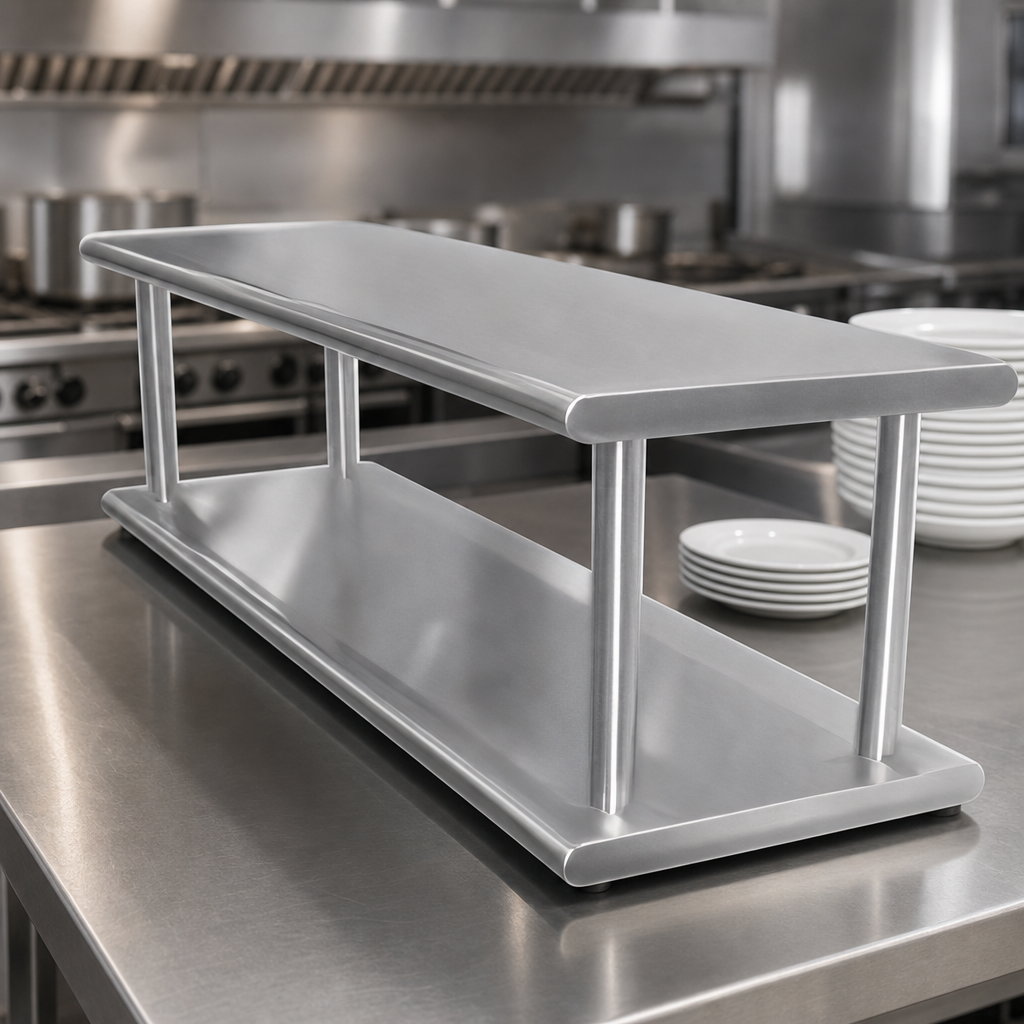

  • 18 ga. type 430 stainless steel tops with attractive bull-nose front & rear edges and square sides.
  • 1-5/8" polished stainless steel tubing posts with center tube support for added rigidity (required on 96"+ models).
  • Heavy-gauge galvanized hat channel lets you position the lower shelf precisely during installation.
  • Includes four 5" × 7" stainless steel cantilever mounting brackets to anchor the unit to the wall.
  • Ships fully TIG-welded; exposed welds are ground & polished to match the surrounding satin finish.
  • NSF listed construction for safe food-contact use.

Ideal Applications

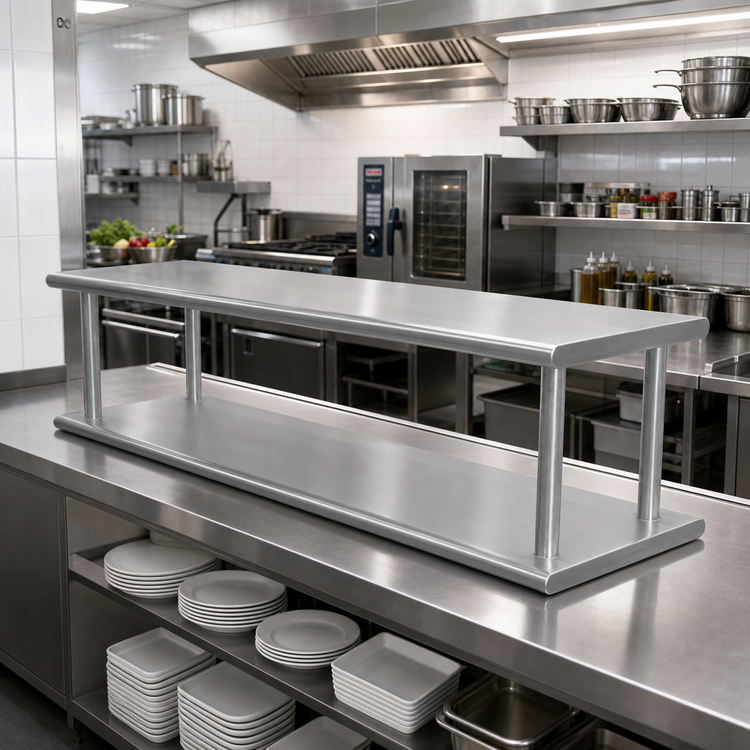

  • Expeditor & pass-thru window stations
  • Cookline plating & finishing areas
  • Buffets, cafeterias & school service lines
  • Beverage & dessert assembly counters

Specifications

Model PA-24-96-2
Overall Length 96" (243.8 cm)
Shelf Depth 24" (61 cm)
Vertical Clearance Between Shelves 14"
Top / Overshelf Material 18 ga. type 430 stainless steel
Edge Style 1-1/2" sanitary bull-nose front & rear; 1-1/2" square ends turn down at wall
Support Posts 1-5/8" OD stainless steel tubing (includes center post)
Underside Reinforcement Heavy-gauge galvanized hat channel
Mounting Brackets (included) (4) 5" × 7" stainless steel cantilever brackets
Shipping Weight Approx. 256 lb
Ships Assembled Yes
Certifications NSF
Installation Note: The lower shelf work surface sits 1-1/2" higher than the wall opening it rests on. Verify wall opening height before mounting. Anchors and hardware appropriate for your wall type are required but not included.

Advance Tabco continuously improves its products and reserves the right to modify specifications without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

96.0in

Depth

24.0in

Shipping Weight

256.0lbs

Type

double

Construction

stainless steel

Depth (front - back)

24"

Width (side - side)

96"

Specifications

Pass-Thru Shelf, double tier, 96"W x 24"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 5" x 7" stainless steel cantilever mounting brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
