Advance Tabco  |  SKU: PA-24-84  |  UPC: 747545145062

Advance Tabco PA-24-84 Wire Shelving

$1,436.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

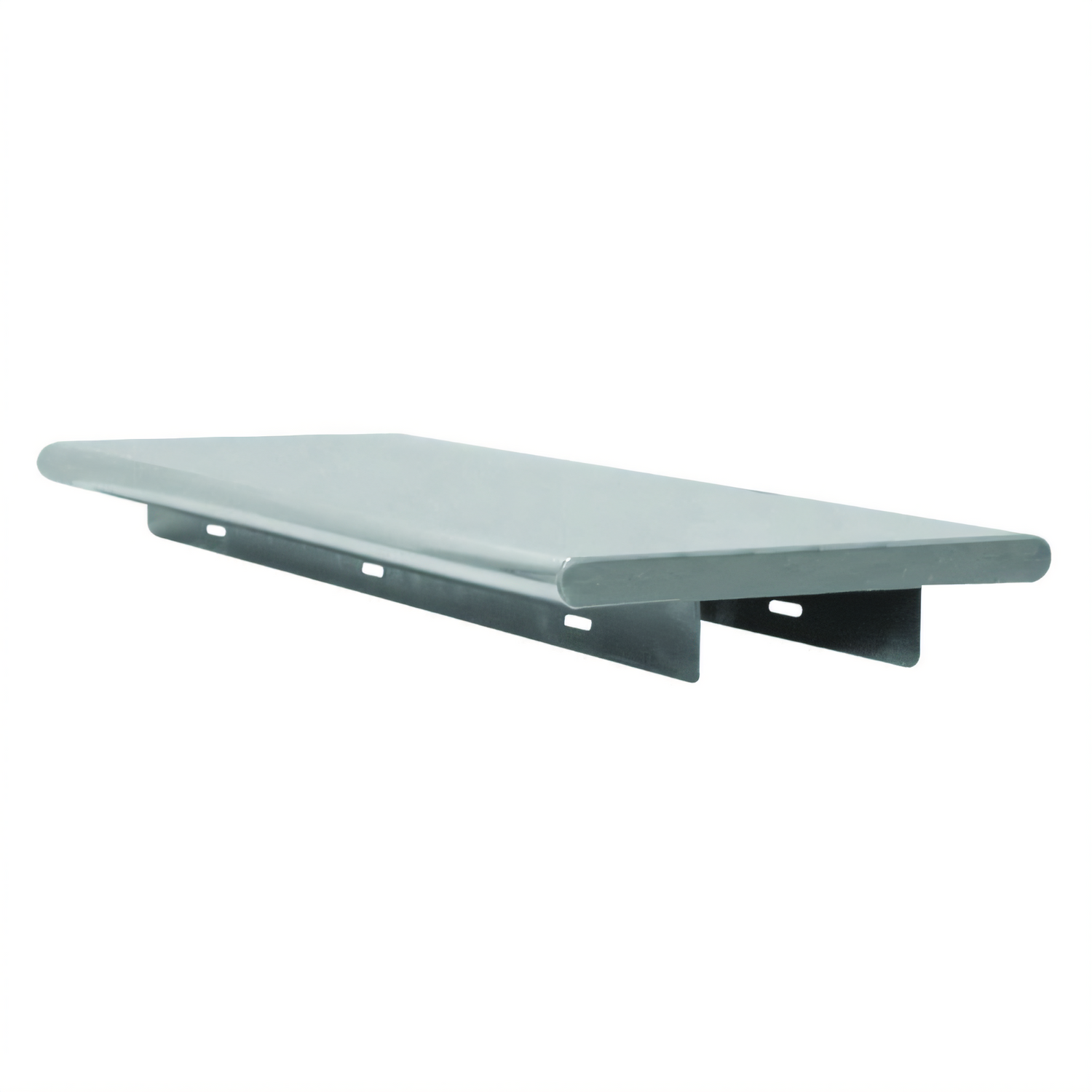

Advance Tabco PA-24-84 Pass-Thru Shelf – 84" W × 24" D

Heavy-Duty 18/430 Stainless Steel with Cantilever Brackets

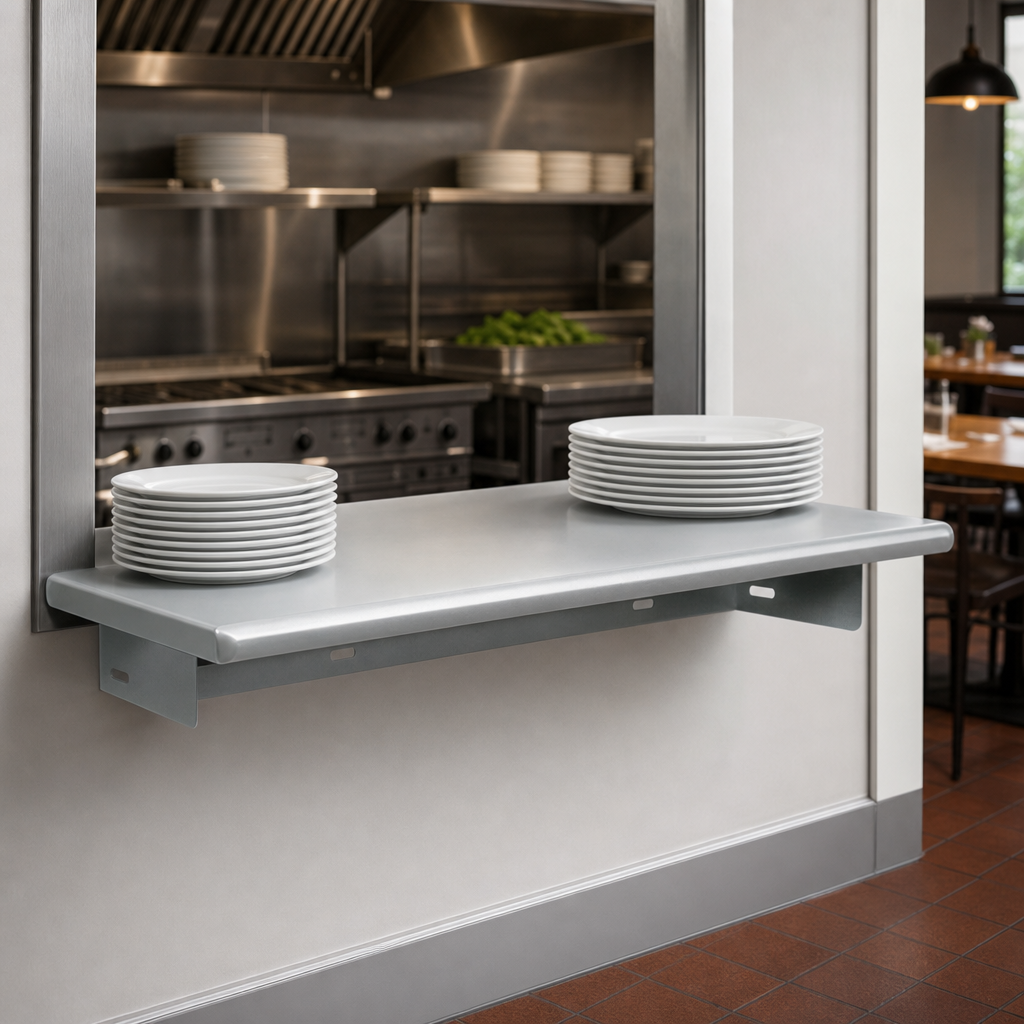

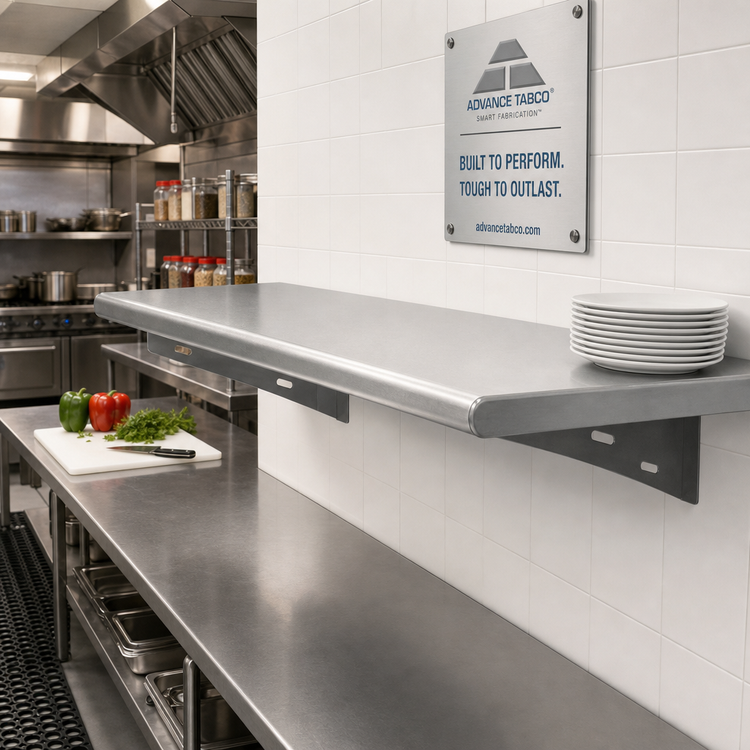

Upgrade your pass-thru window, serving line, or expo station with a rugged, easy-to-clean stainless steel shelf engineered for day-to-day food-service demands. The PA-24-84 features a full 7-foot span, rolled bull-nose edges, and sturdy cantilever brackets that keep the floor area clear for staff, carts, and equipment.

Why You’ll Love It

  • Spacious 84" wide × 24" deep staging surface accommodates plates, trays, and smallwares.

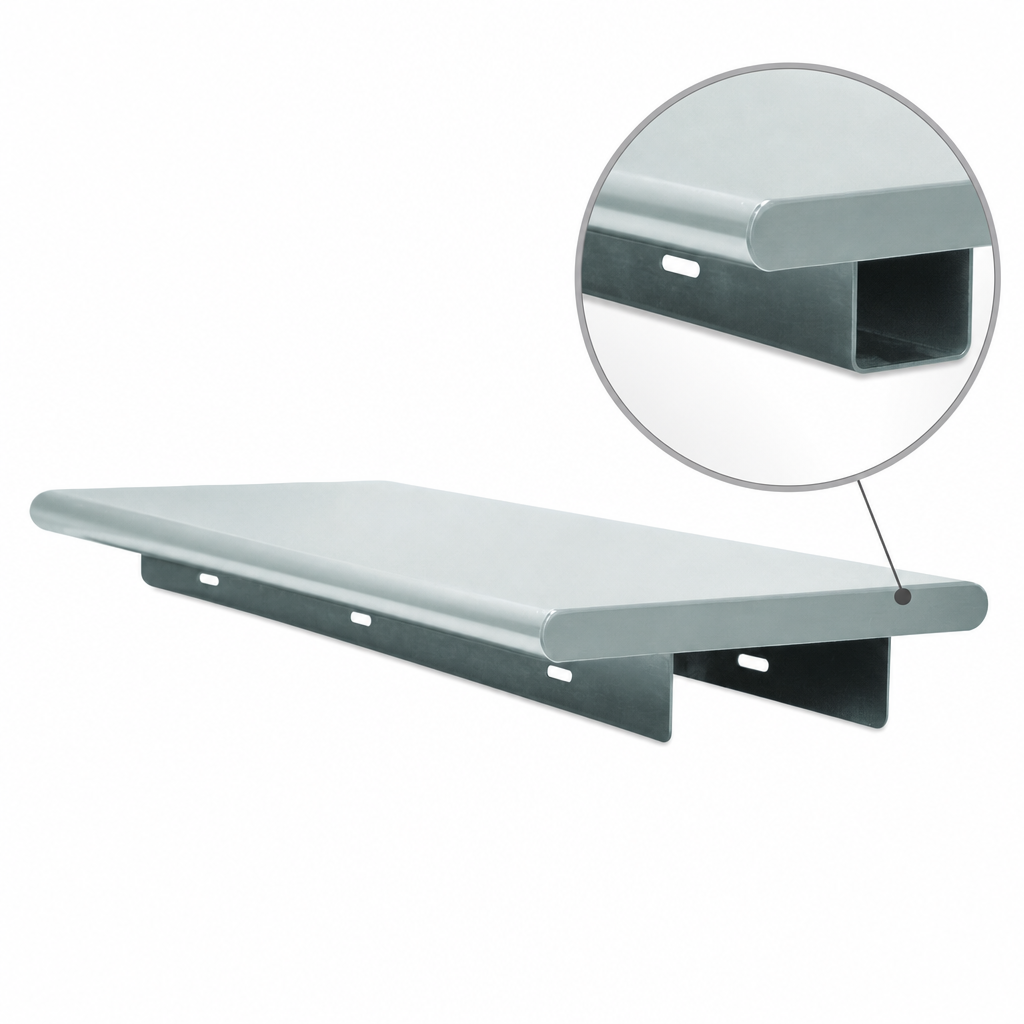

  • 1-5/8" sanitary bull-nose (rolled) front & rear edges for comfort and fast wipe-downs.
  • Square sides with 1-5/8" downturn sit flush against adjacent walls or equipment.
  • (2) 5" × 7" stainless steel cantilever brackets eliminate the need for under-shelf legs.
  • Galvanized hat channel reinforcement allows brackets to be positioned anywhere along the shelf.
  • All TIG-welded construction; exposed welds polished to a uniform finish.
  • NSF listed for safe, hygienic use in commercial kitchens.

What’s Included

  • 84" × 24" 18 ga 430-series stainless steel shelf
  • (2) 5" × 7" stainless steel cantilever mounting brackets
  • Pre-installed galvanized hat channel
  • Bracket mounting holes (wall-anchoring hardware supplied by installer)

Technical Specs

Manufacturer Advance Tabco
Model # PA-24-84
Shelf dimensions 84" W × 24" D
Work surface height 1-1/2" above wall opening once installed
Front / rear edges 1-5/8" rolled bull-nose
Side edges Square with 1-5/8" turn-down
Material 18 ga 430 SS shelf & brackets; galvanized steel hat channel
Bracket type 5" × 7" stainless steel cantilever (wall-mount)
Shipping weight ≈ 100 lb
Certifications NSF
Made in USA
Installation note: After mounting, the shelf’s working surface will sit about 1-1/2" higher than the wall opening. Confirm clearances before drilling.

Looking for another size or depth? Advance Tabco pass-thru shelves are offered in lengths from 24" to 144". Reach out and we’ll match the perfect fit for your kitchen.

Features & Specs

Manufacturer

Advance Tabco

Height

15.5in

Width

84.0in

Depth

24.0in

Shipping Weight

100.0lbs

Width (side - side)

84"

Depth (front - back)

24"

Type

single

Construction

stainless steel

Specifications

Pass-Thru Shelf, 84"W x 24"D, bull nose front & rear with square sides, 18/430 stainless steel, galvanized hat channel, includes: 5" x 7" stainless steel cantilever mounting brackets to secure to wall (note: work surface will be 1-1/2" higher than the wall it rests on)
