Description

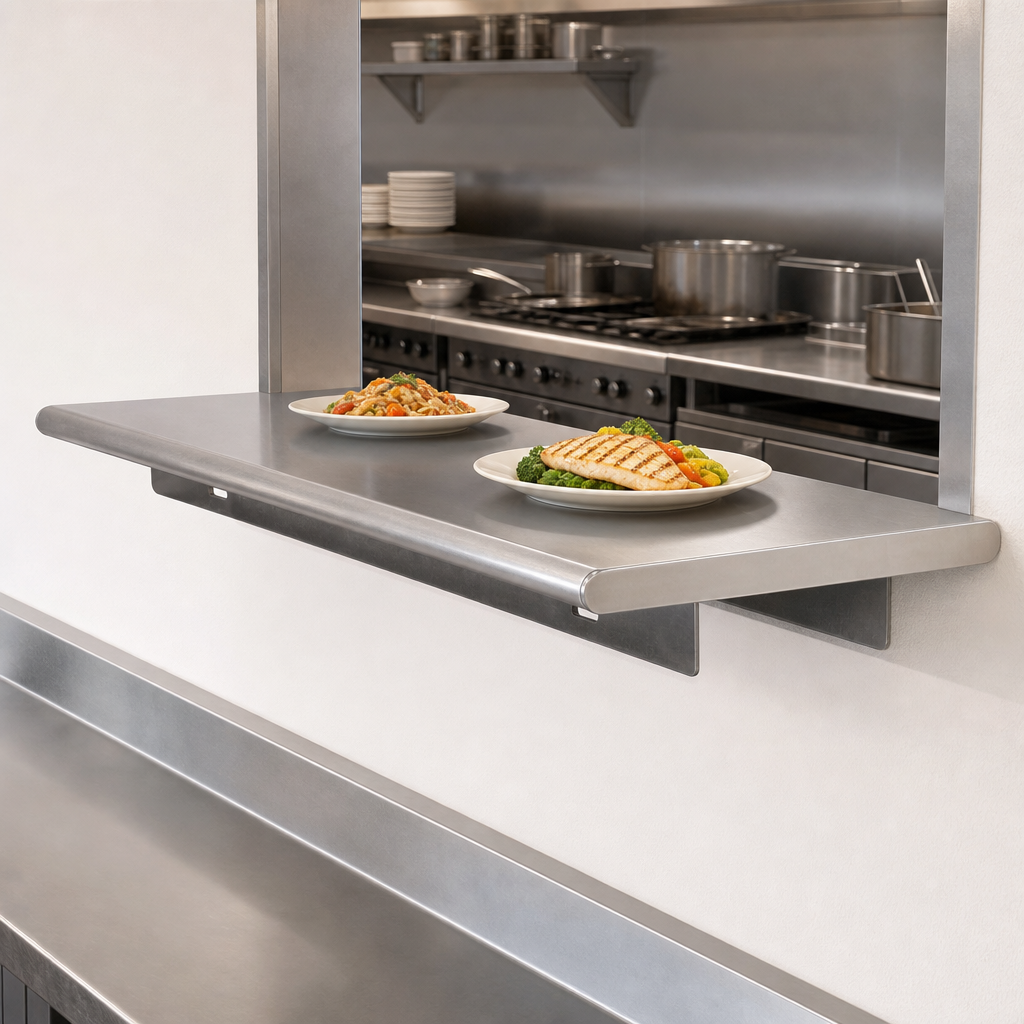

Advance Tabco 72" x 24" Stainless Steel Pass-Thru Shelf

Model PA-24-72 | NSF Certified

Built for demanding commercial environments, this 72" long, 24" deep pass-thru shelf lets you streamline plating, pick-up and service at any wall opening. Heavy-duty stainless steel, fully TIG-welded construction and included cantilever brackets deliver long-lasting strength and simple installation.

Key Features & Benefits

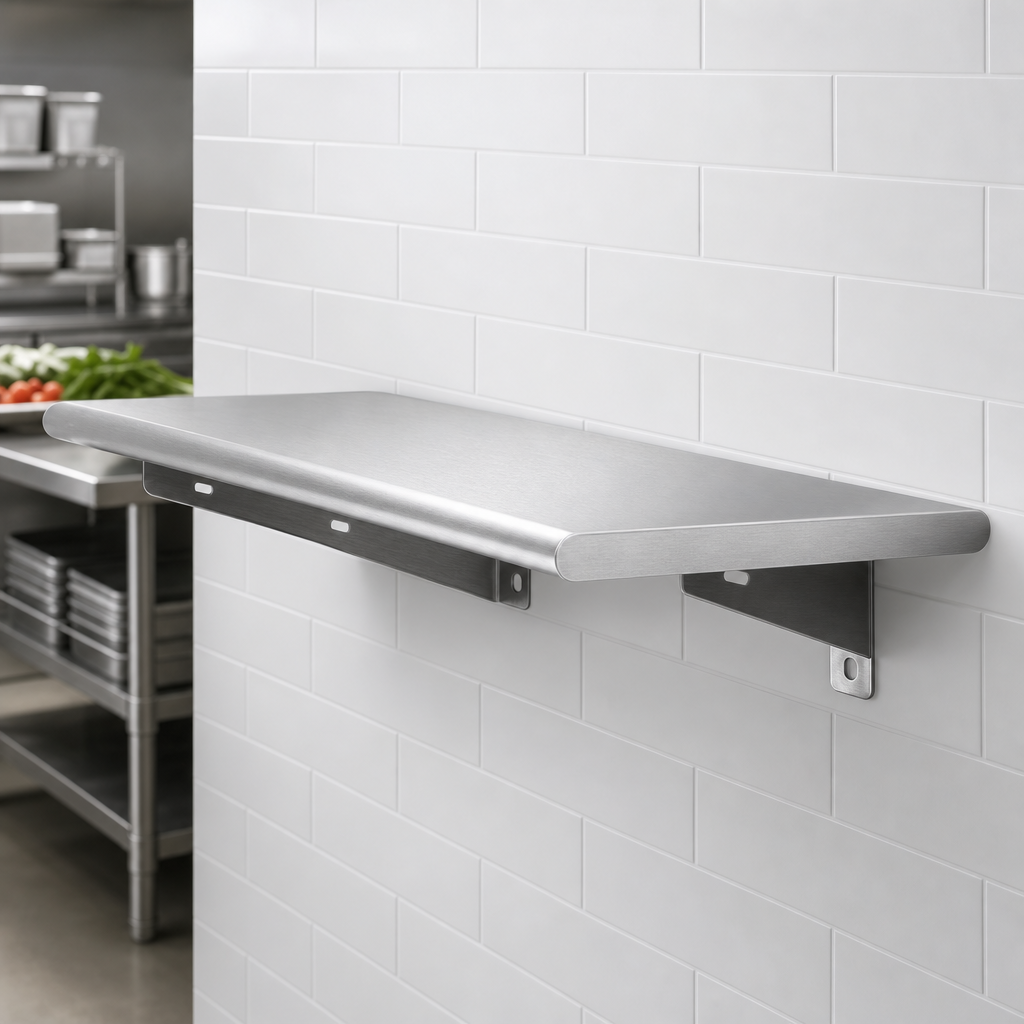

  • 18 gauge, Type 430 stainless steel shelf resists corrosion and daily wear.
  • 1-5/8" sanitary bull-nose roll on front & rear edges prevents spills and feels comfortable to the touch.
  • Square ends with 1-5/8" turn-down sit flush against the wall for a clean, finished look.
  • Galvanized hat channel lets you freely position the shelf before fastening—no preset bracket locations to limit you.
  • All TIG-welded joints are polished to match the surrounding surface for a seamless appearance.
  • NSF certified for easy code compliance in food-service operations.
What’s Included
  • (2) 5" × 7" stainless steel cantilever wall-mount brackets
  • Pre-installed galvanized hat channel
  • Advance Tabco installation & maintenance guide
Ideal For
  • Kitchen pass-thru windows
  • Cafeteria service lines
  • Bar or beverage pick-up stations
  • Healthcare and institutional meal delivery areas
Technical Specifications
Manufacturer Advance Tabco
Model PA-24-72
Overall Length 72" (1829 mm)
Depth 24" (610 mm)
Shelf Material 18 gauge, Type 430 stainless steel
Hat Channel Heavy-gauge galvanized steel
Front / Rear Edge 1-5/8" sanitary bull-nose roll
End Construction Square ends with 1-5/8" turn-down
Brackets Supplied (2) 5" × 7" stainless steel cantilever brackets
Mounting Style Wall-mount, pass-thru
Weight 85 lb (38.6 kg)
Welding Fully TIG welded; polished seams
Certifications NSF

NOTE: The work surface sits approximately 1-1/2" higher than the wall opening after installation.

Features & Specs

Manufacturer

Advance Tabco

Height

15.5in

Width

72.0in

Depth

24.0in

Shipping Weight

85.0lbs

Width (side - side)

72"

Depth (front - back)

24"

Type

single

Construction

stainless steel

Specifications

Pass-Thru Shelf, 72"W x 24"D, bull nose front & rear with square sides, 18/430 stainless steel, galvanized hat channel, includes: 5" x 7" stainless steel cantilever mounting brackets to secure to wall (note: work surface will be 1-1/2" higher than the wall it rests on)
