Description

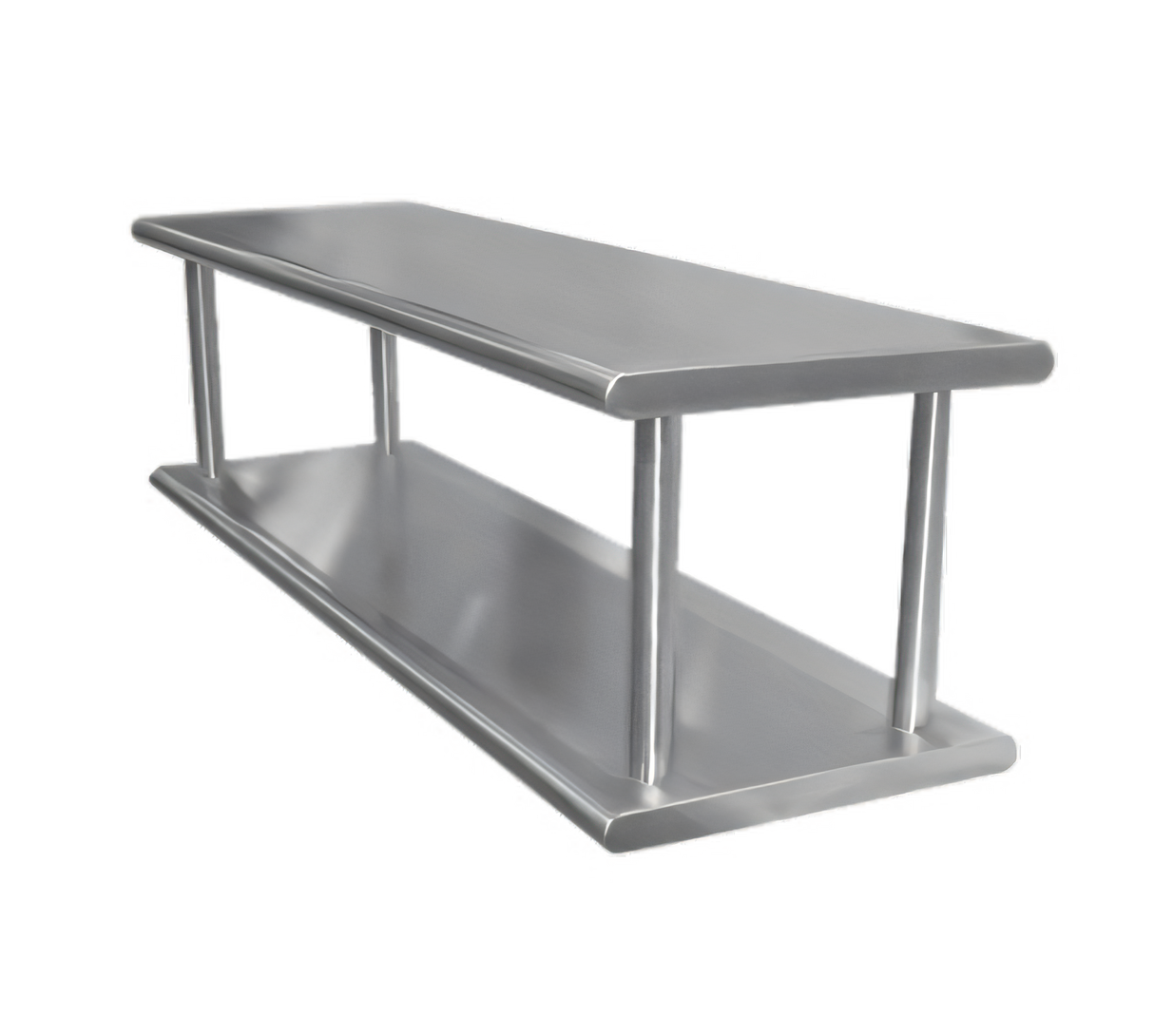

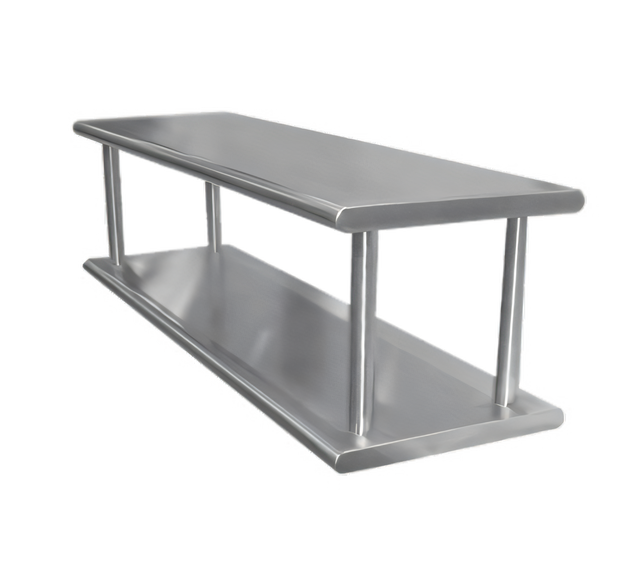

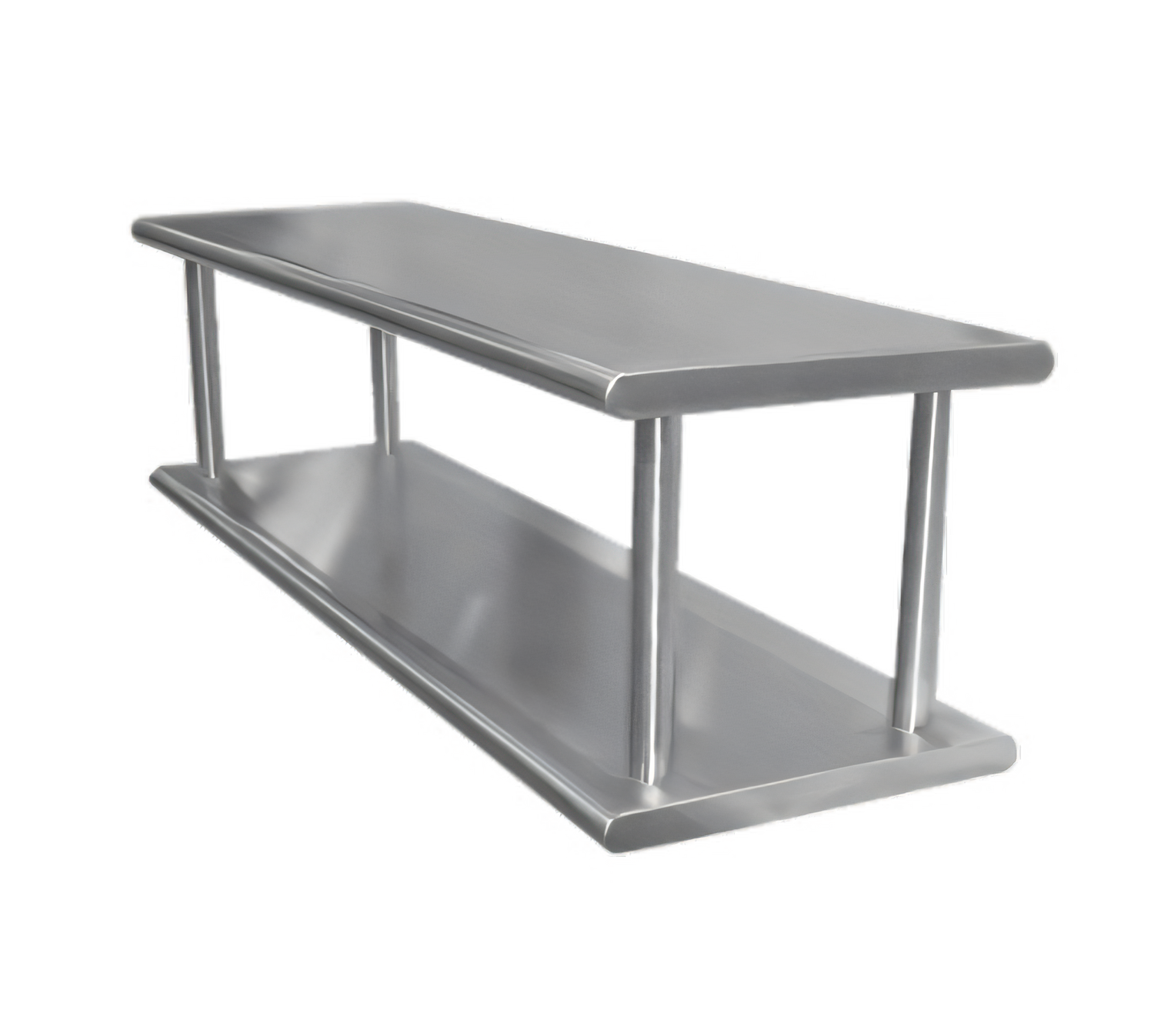

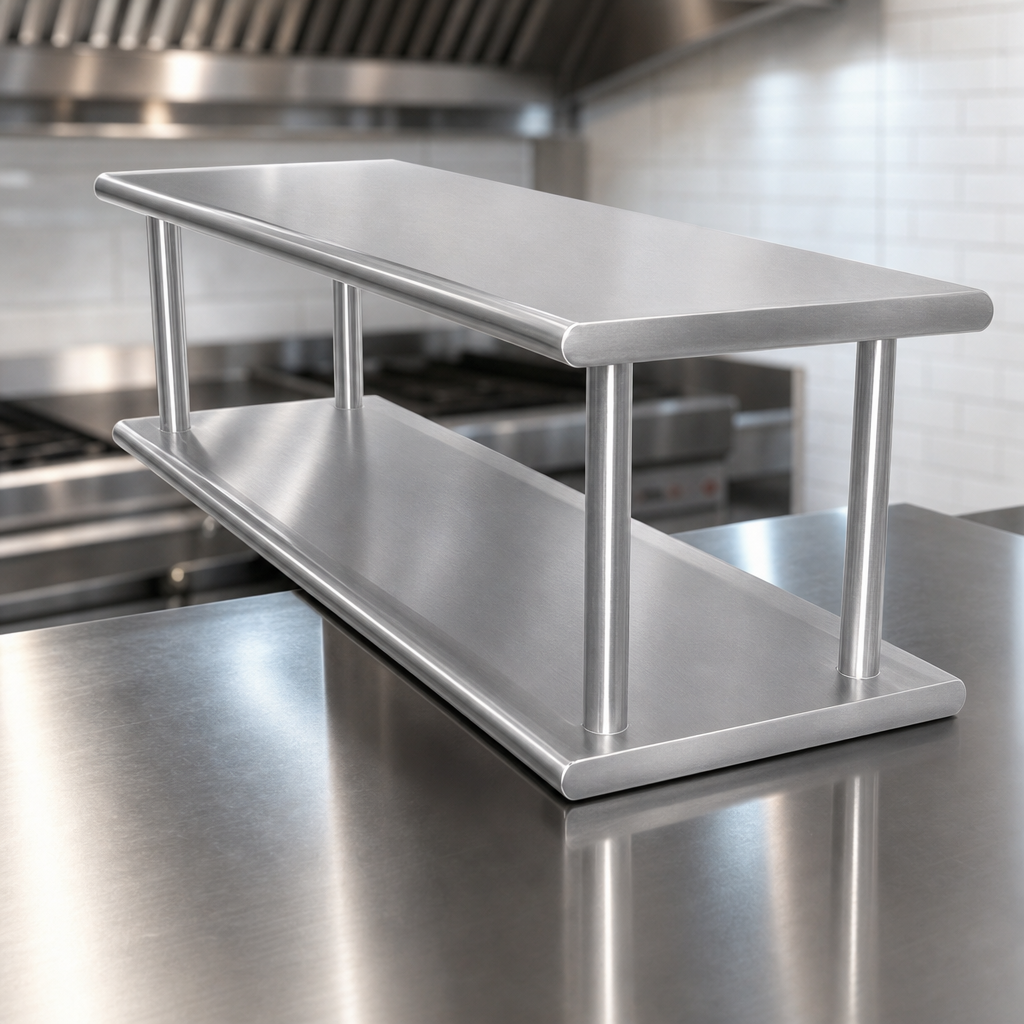

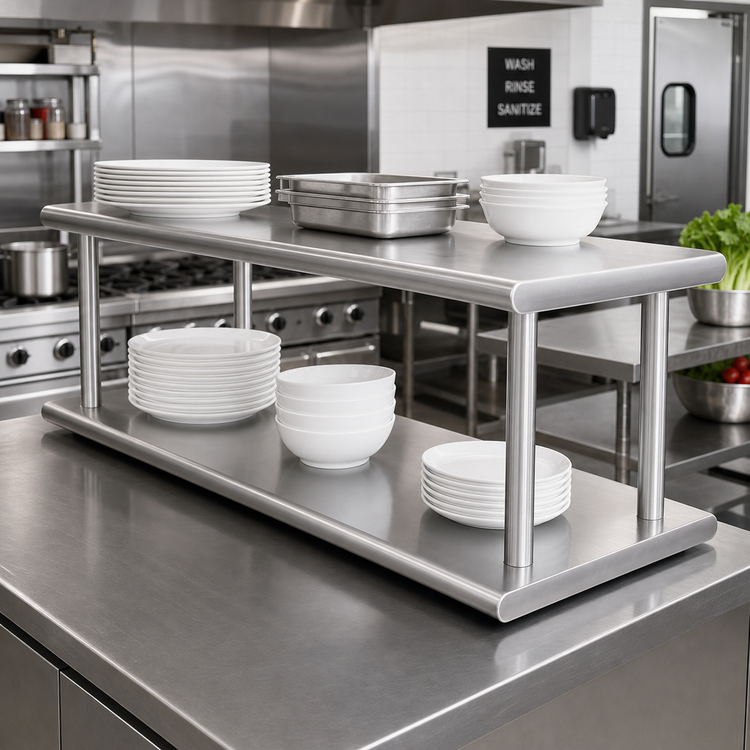

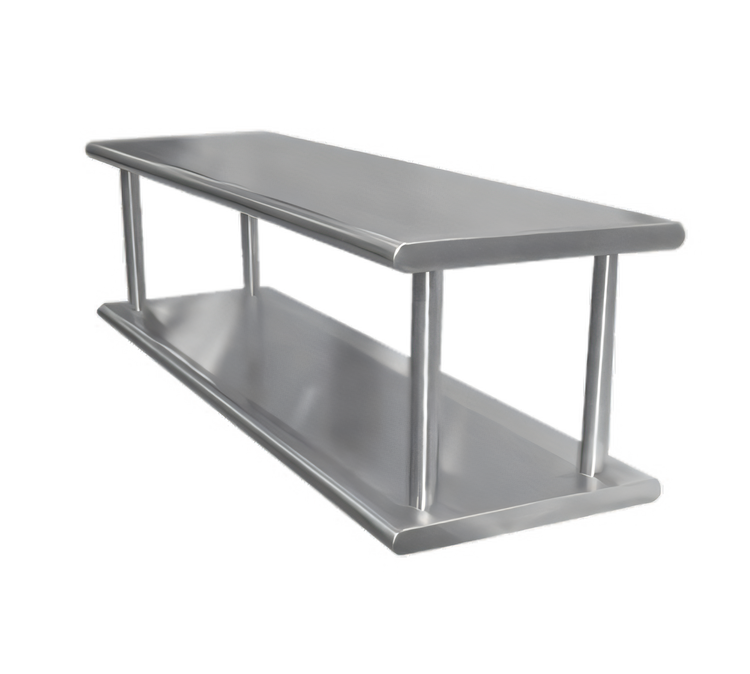

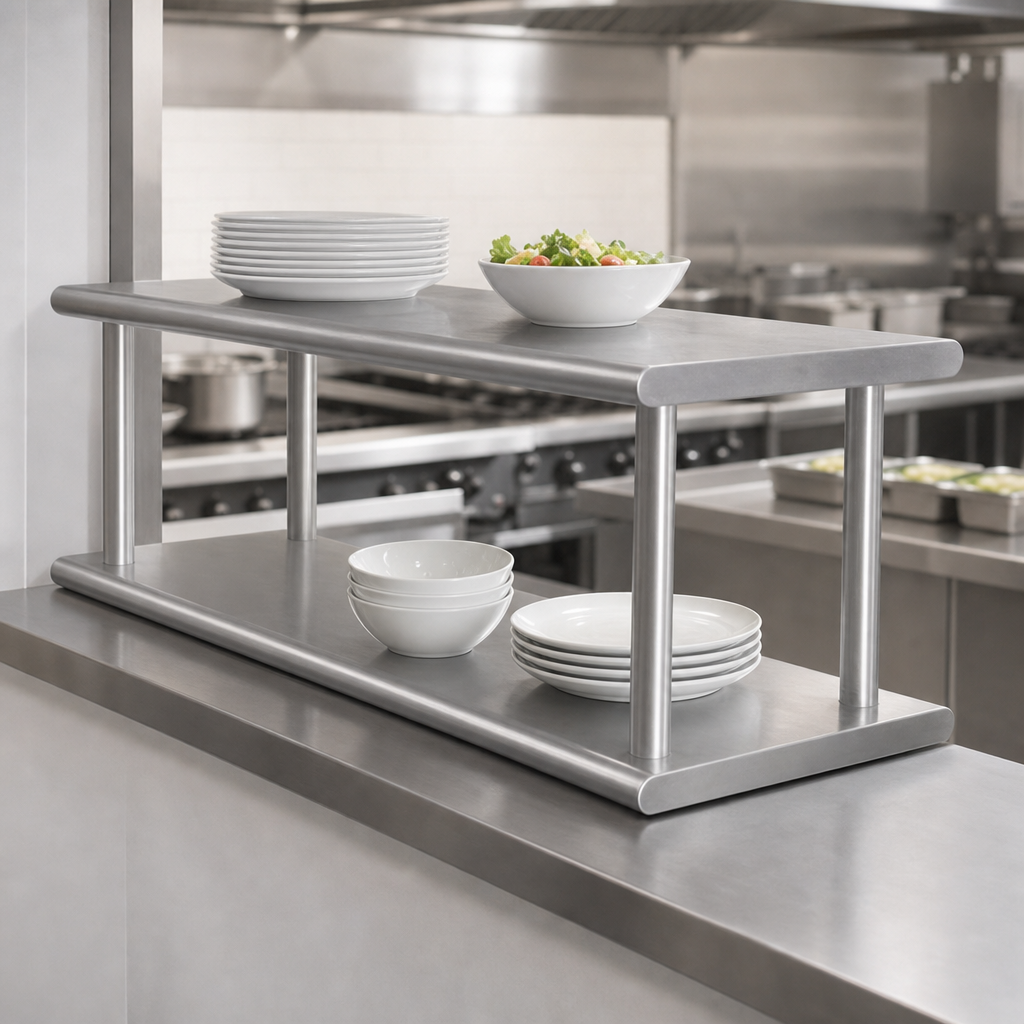

Advance Tabco PA-24-60-2 | 60" × 24" Stainless Steel Pass-Thru Shelf with Overshelf

Double-tier wall-mounted shelf system for fast, efficient service windows

Transform your pass-thru window into a streamlined plating and pickup station. This Advance Tabco two-tier shelf arrives fully assembled and ready to mount, giving cooks and servers 60 inches of bull-nose stainless workspace on both sides of the line.

Key Features

  • Two fixed tiers—overshelf is 14" above the lower work surface for added vertical capacity.
  • Bull-nose front & rear edges with square sides for snag-free, pass-thru access.
  • 18 ga. Type 430 stainless steel shelves; all TIG-welded and polished.
  • 1 5/8" O.D. stainless steel tubular posts provide uncompromising stability.
  • Heavy-gauge galvanized hat channel lets you position the lower shelf as needed.
  • Includes (2) 5" × 7" stainless steel cantilever brackets for secure wall mounting.
  • Ships fully assembled—unpack, anchor, and start serving.

At-a-Glance Specifications

Manufacturer / Model Advance Tabco PA-24-60-2
Overall Size (L × D) 60" × 24"
Shelf Tiers 2 (pass-thru shelf & fixed overshelf)
Clearance Between Tiers 14"
Edge Style 1 1/2" sanitary bull-nose front & rear, square sides
Material 18 ga. Type 430 stainless steel (shelves & brackets)
Support Posts 1 5/8" O.D. stainless steel tubing
Hat Channel Heavy-gauge galvanized steel
Mounting Brackets (2) 5" × 7" stainless steel cantilever brackets (included)
Lower Shelf Position 1 1/2" higher than the wall opening it rests on
Ships Fully assembled
Shipping Weight Approx. 138 lb.
Certification NSF

Perfect For

  • Kitchen-to-expo or bar pass-thru windows
  • Plating lines needing quick double-sided access
  • Holding garnishes, smallwares, order tickets, or finished plates
  • Maximizing storage without taking up floor space
Installation note: This shelf must be anchored to a solid wall or adequate blocking capable of supporting the full static and live load. Use hardware appropriate for your wall construction (not included). Improper installation can result in injury or property damage.

Looking for additional sizes? Pass-thru shelves from Advance Tabco are available from 48" to 144". Contact us for custom sizing and freight quotes.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

60.0in

Depth

24.0in

Shipping Weight

138.0lbs

Width (side - side)

60"

Depth (front - back)

24"

Type

double

Construction

stainless steel

Specifications

Pass-Thru Shelf, double tier, 60"W x 24"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 5" x 7" stainless steel cantilever mounting brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
