Advance Tabco  |  SKU: PA-24-48-2  |  UPC: 747545178428

Advance Tabco PA-24-48-2 Wire Shelving

$2,366.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

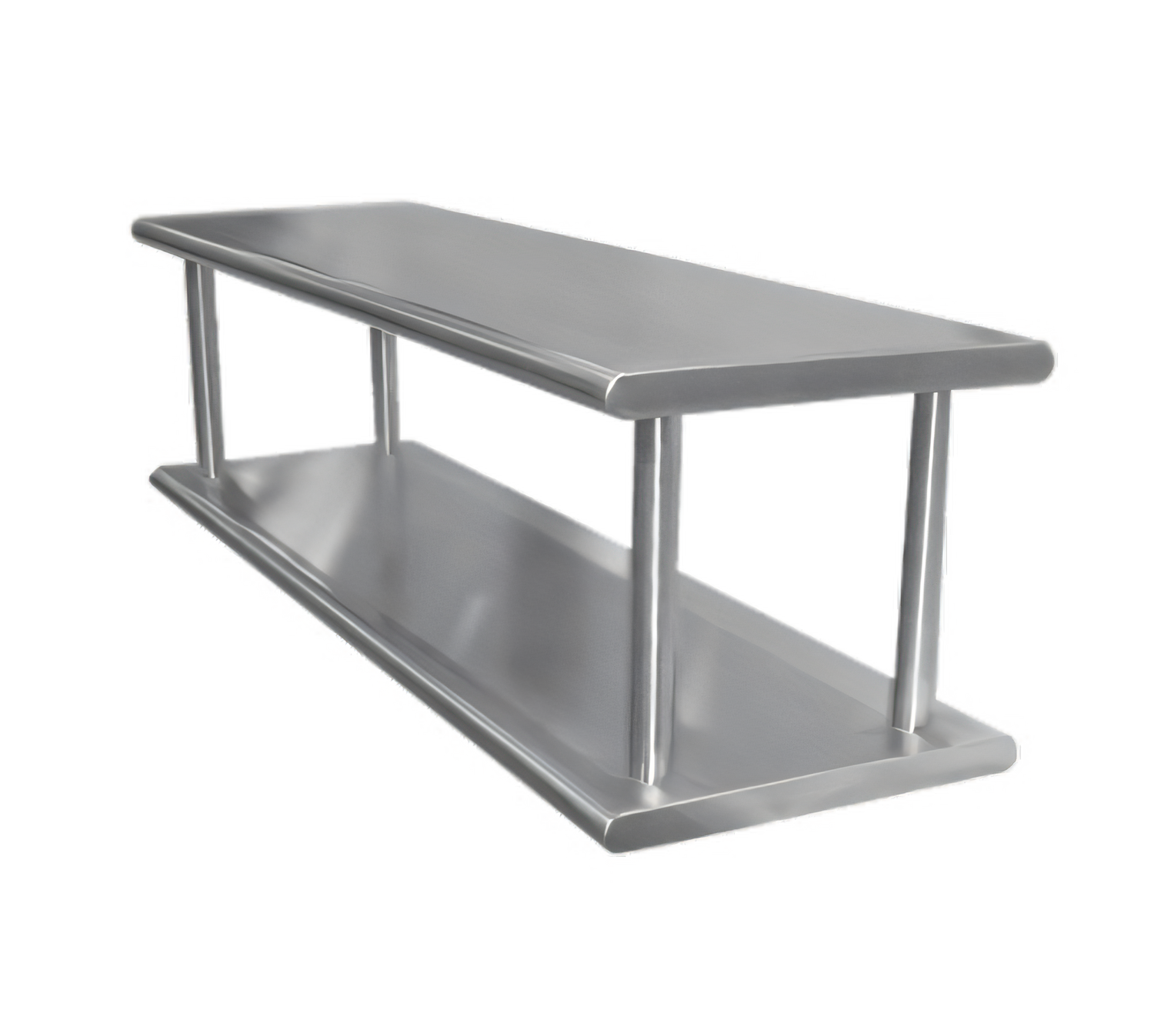

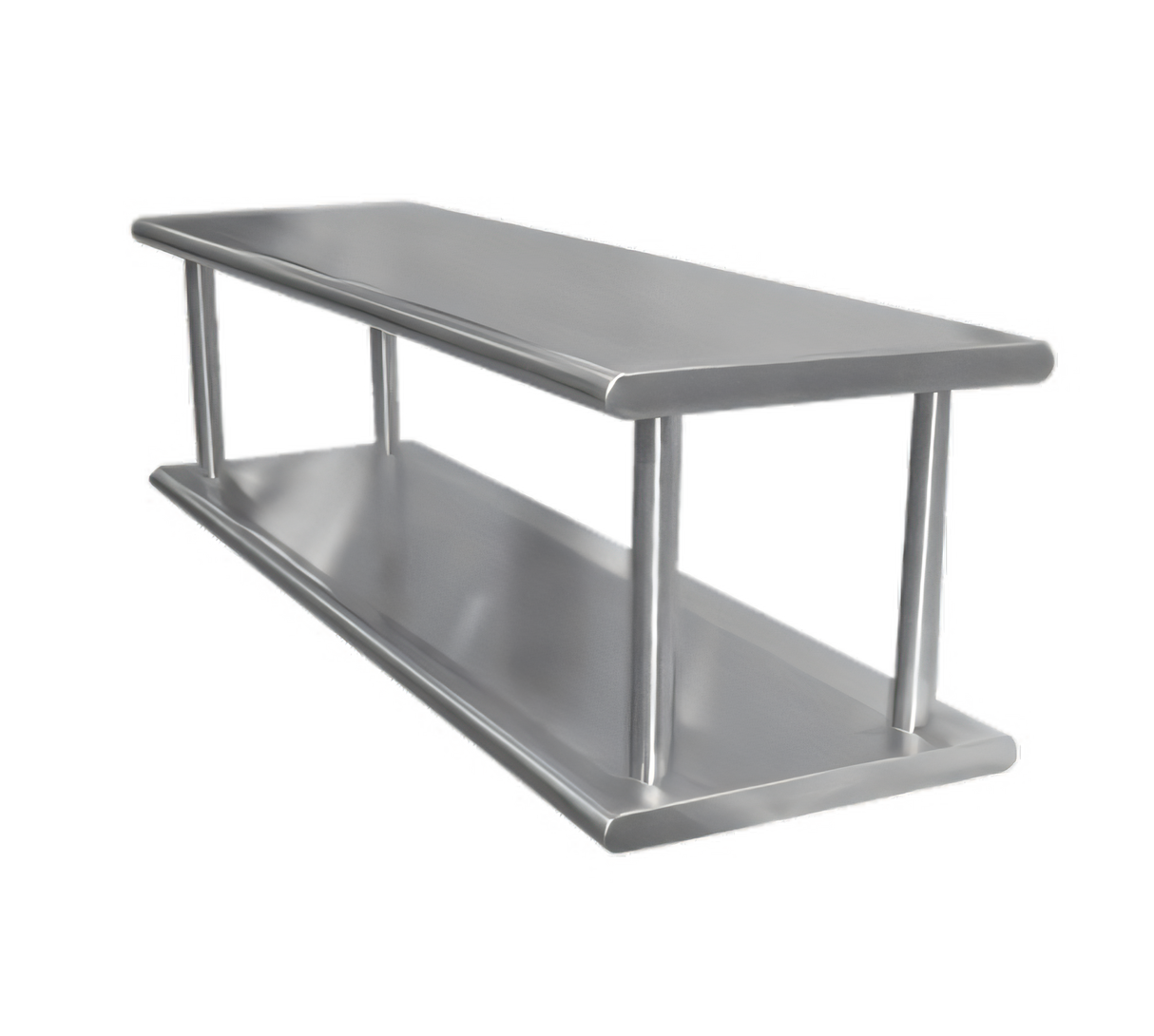

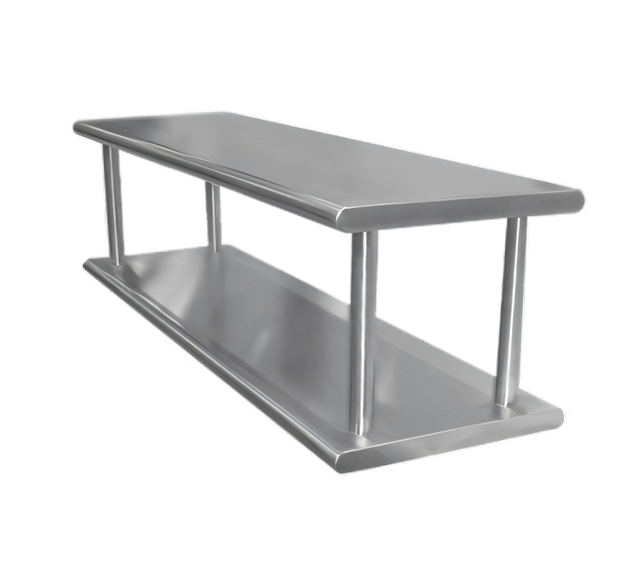

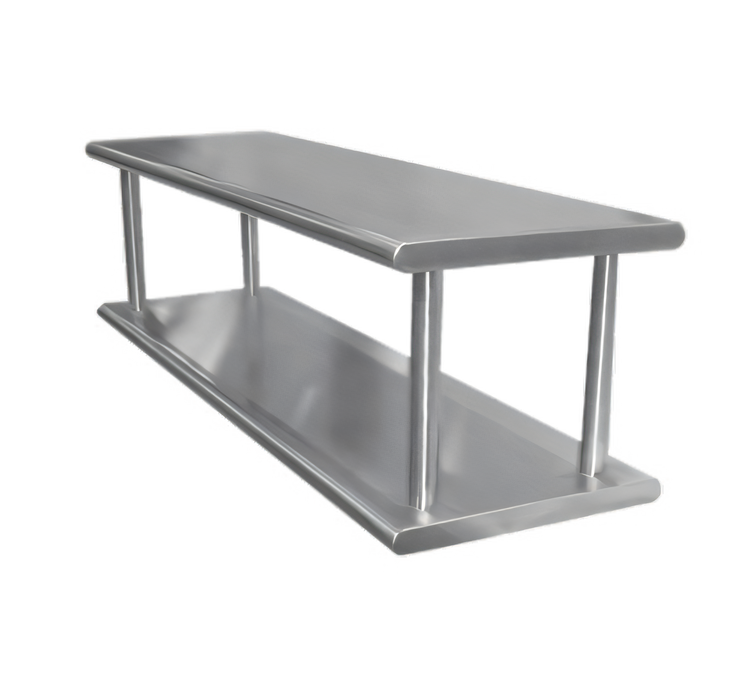

Advance Tabco 48" x 24" Stainless Steel Pass-Thru Shelf with Fixed Overshelf

Model PA-24-48-2 • Double-Tier, Cantilever Wall-Mount

Add instant plating, staging, and storage space to any pass-thru window with this fully welded, two-tier shelf system. The lower shelf aligns neatly above your wall opening, while a rigid 14 inch-high overshelf keeps dishes, smallwares, and to-go orders within easy reach. Built entirely from food-service-grade stainless steel, it ships assembled so you can install and put it to work in minutes.

Why You’ll Love It

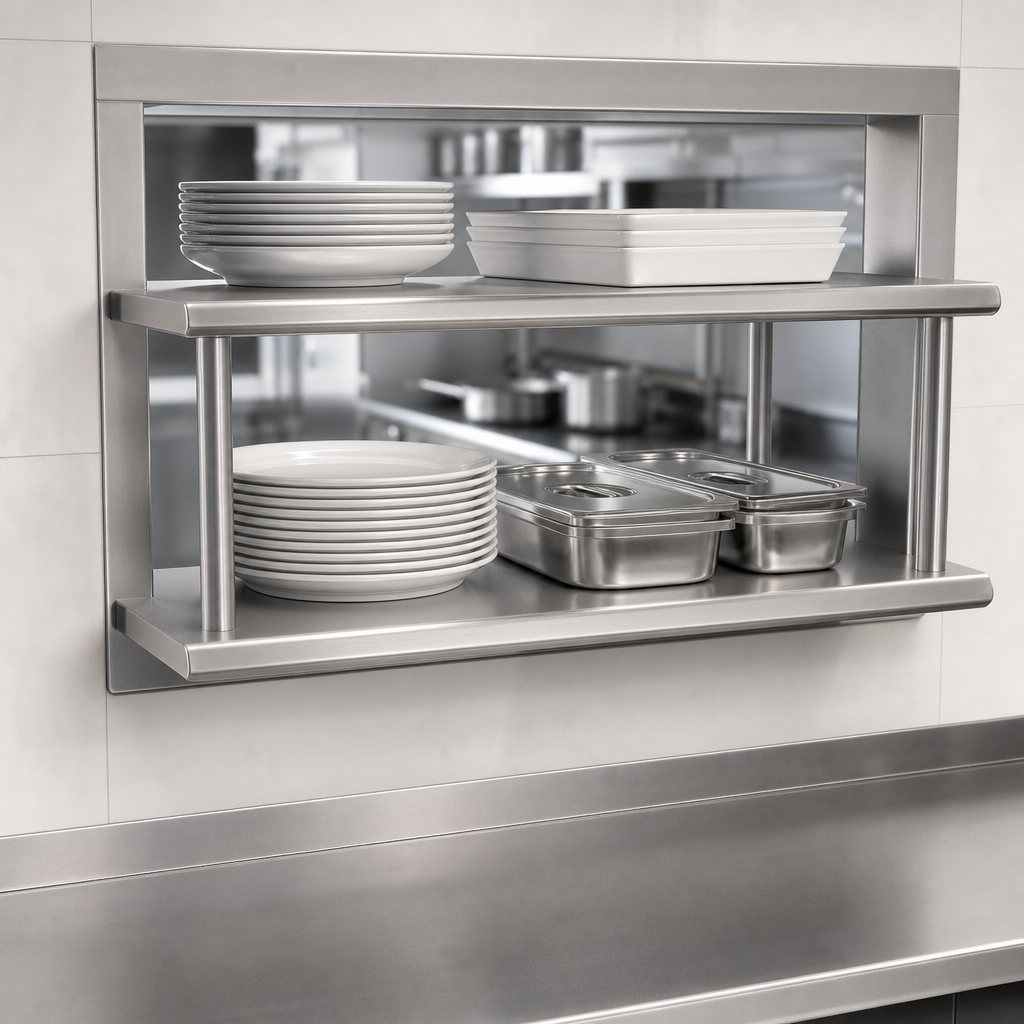

  • Two shelves in one: maximize vertical space and streamline order hand-offs.
  • Sanitary bull-nose edges (1 ½" roll front & rear) eliminate sharp corners and simplify wipe-downs.

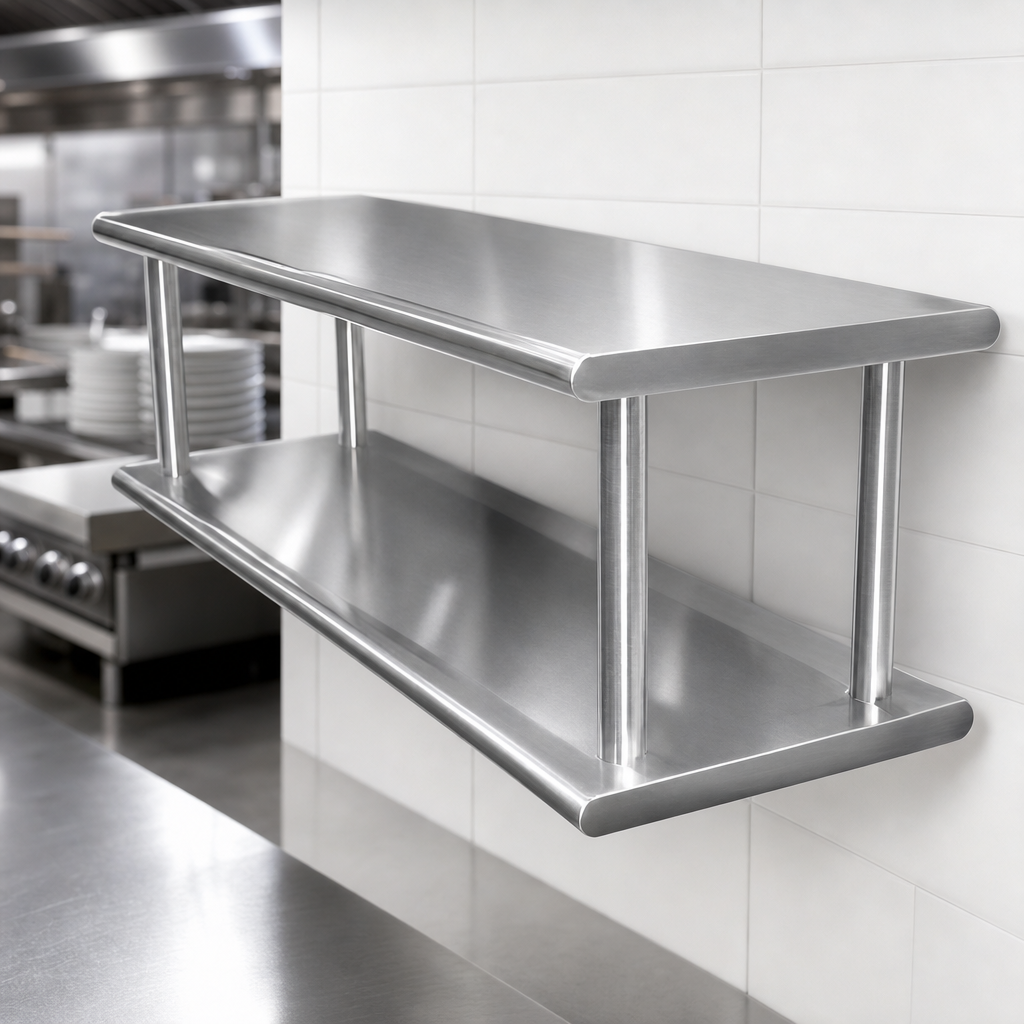

  • 18 ga type 430 stainless steel tops resist corrosion, heat, and chemicals.
  • 1 ⅝" stainless tubing posts support the fixed overshelf—no flimsy brackets or visible screws on the customer side.
  • Galvanized hat channel under-structure lets you slide the lower shelf to the perfect depth before locking it in place.
  • Ships fully TIG-welded & polished—no field assembly, fewer seams, and a professional fit & finish.
  • (2) 5" × 7" stainless cantilever brackets included for a clean, unobstructed wall mount.
  • NSF listed for safe use in open-kitchen and front-of-house environments.

Technical Specs

Overall (L × D) 48" × 24"
Vertical clearance between shelves 14"
Lower shelf height above wall opening 1 ½"
Shelf material / gauge 18 ga type 430 stainless steel
Post diameter & material 1 ⅝" O.D. stainless steel tubing
Under-structure Heavy-gauge galvanized hat channel
Included mounting hardware (2) 5" × 7" stainless steel cantilever brackets
Construction method All TIG welded, polished welds
Ships assembled Yes
Shipping weight ≈ 116 lb
Certifications NSF
Installation Reminder: For safe support, mount brackets to solid wall framing or approved masonry with appropriate fasteners (not included). Verify that the wall can support the shelf’s weight plus anticipated load.

Advance Tabco continuously improves its products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

48.0in

Depth

24.0in

Shipping Weight

116.0lbs

Width (side - side)

48"

Type

double

Depth (front - back)

24"

Construction

stainless steel

Specifications

Pass-Thru Shelf, double tier, 48"W x 24"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 5" x 7" stainless steel cantilever mounting brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
