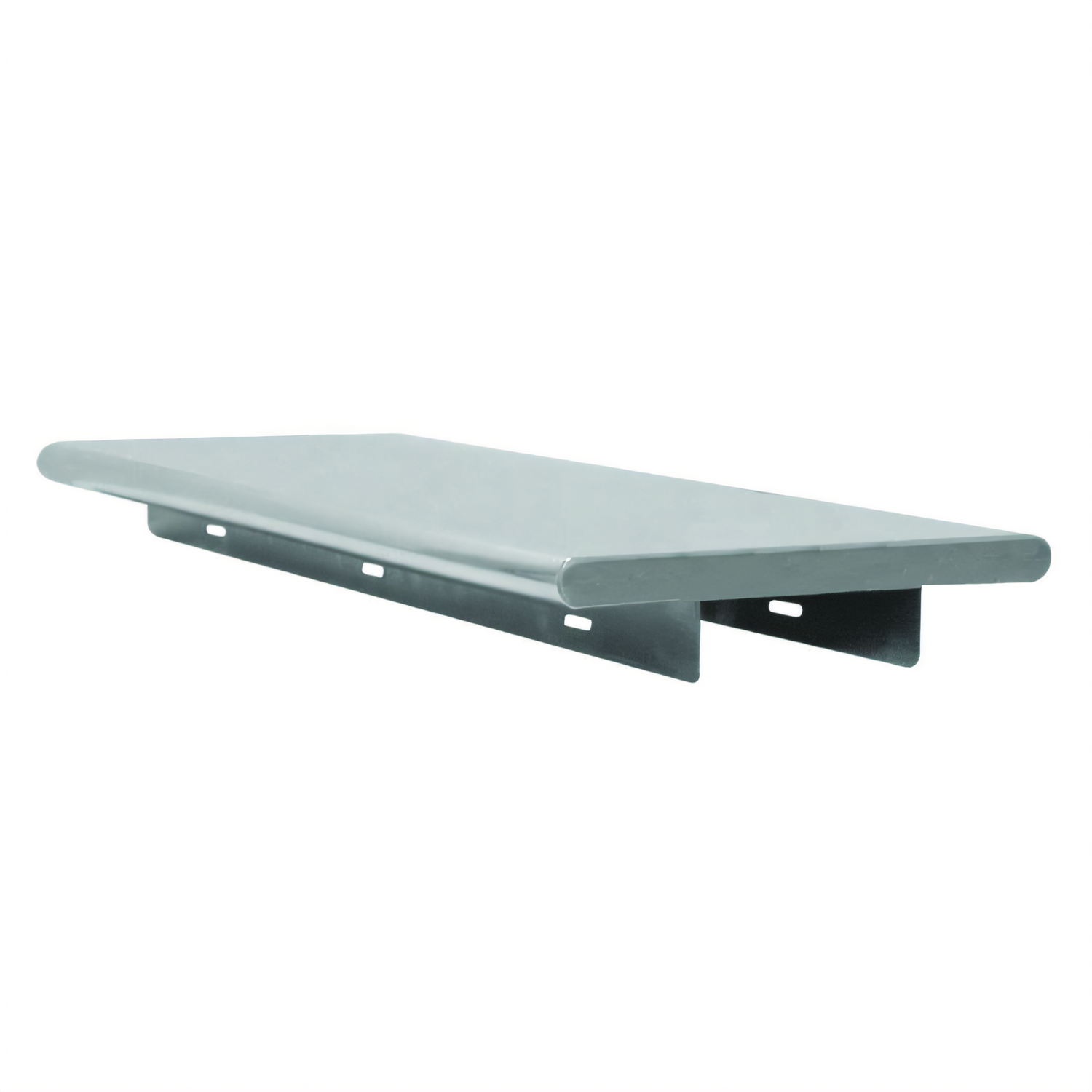

Advance Tabco PA-24-132 Pass-Thru Shelf – 132" L x 24" D
18 ga. 430 Stainless Steel | Includes 5" × 7" Cantilever BracketsTurn wide wall openings into productive staging space with Advance Tabco’s extra-long, heavy-duty pass-thru shelf. The 132" × 24" surface delivers nearly 22 sq. ft. of NSF-listed stainless-steel work area while robust cantilever brackets leave the area below completely open.
Key Features
- One-piece, TIG-welded 18 ga. 430 stainless steel resists corrosion and daily wear.
- 1-5/8" sanitary bull-nose roll at front and rear for safe edges and fast cleanup.
- Square sides sit flush against adjoining walls or equipment.
- Heavy-gauge galvanized hat channel stiffener prevents sagging across the full 132" span.
- 5" × 7" stainless-steel cantilever brackets create a clutter-free, easy-to-clean underside.
- NSF certified for open-kitchen, prep-line, and serving applications.
Built to Last
All welds are fully TIG-finished and polished to blend with adjoining surfaces, eliminating crevices where food soil can hide. The shelf’s new hat-channel design lets you position brackets exactly where you need them for balanced support.
What’s Included
- (1) 132" × 24" pass-thru shelf
- (4) 5" × 7" stainless-steel cantilever mounting brackets
- Pre-punched mounting holes
Specifications
| Model | PA-24-132 |
|---|---|
| Overall length | 132" (335.3 cm) |
| Overall depth | 24" (61 cm) |
| Work-surface height | 1-1/2" above wall opening* |
| Front & rear edge | 1-5/8" sanitary bull-nose roll |
| Side edges | Square with 1-5/8" turn-down |
| Shelf material | 18 ga. type 430 stainless steel |
| Stiffener | Heavy-gauge galvanized hat channel |
| Mounting brackets | 5" × 7" stainless-steel cantilever (included) |
| Approx. shipping weight | 168 lb |
| Certifications | NSF |
*When installed per manufacturer instructions, the shelf surface will sit 1-1/2" higher than the wall or opening it rests on.

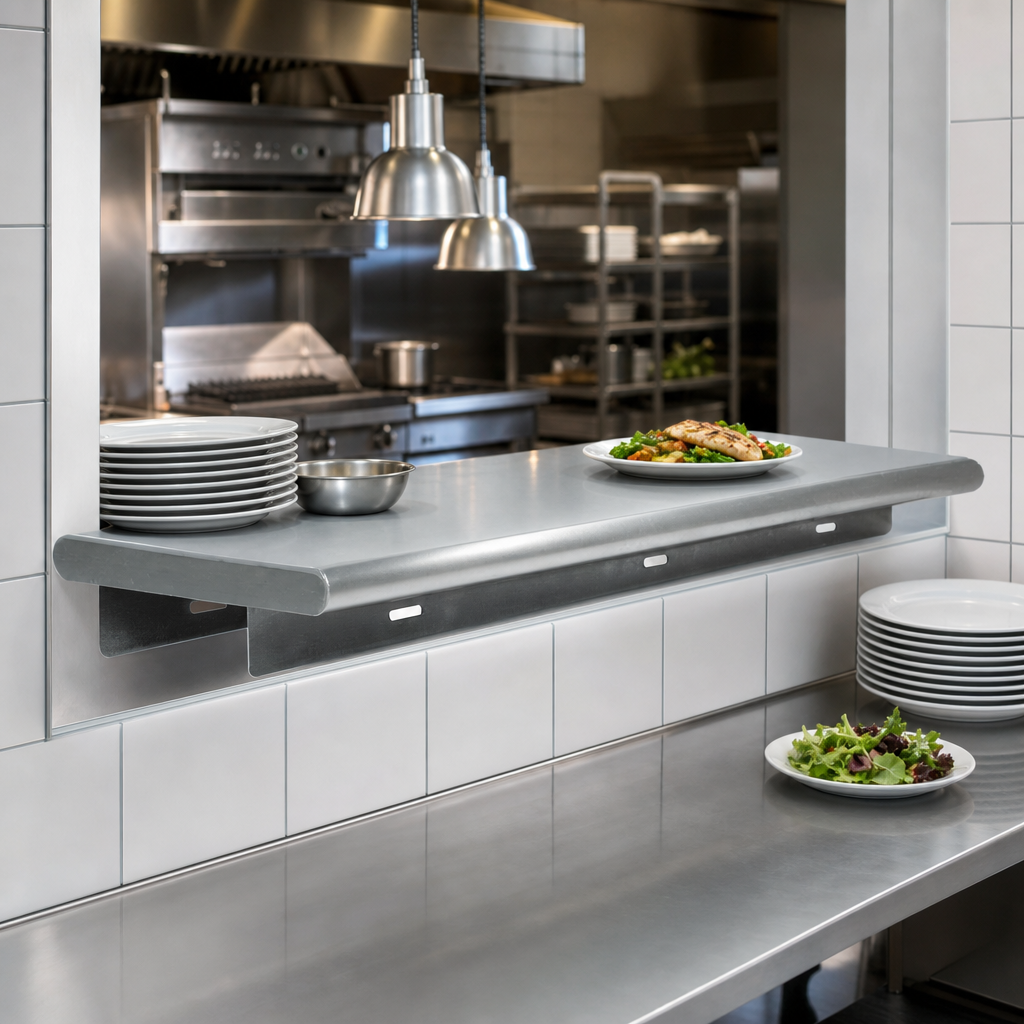

Ideal For
- Expediting stations between kitchen and service areas
- Pass-thru windows for take-out or curbside pickup
- Over-counter storage on prep or cook lines
- Beverage or condiment service areas in cafeterias
