Advance Tabco PA-24-120-2 Wire Shelving
Advance Tabco PA-24-120-2 Wire Shelving is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

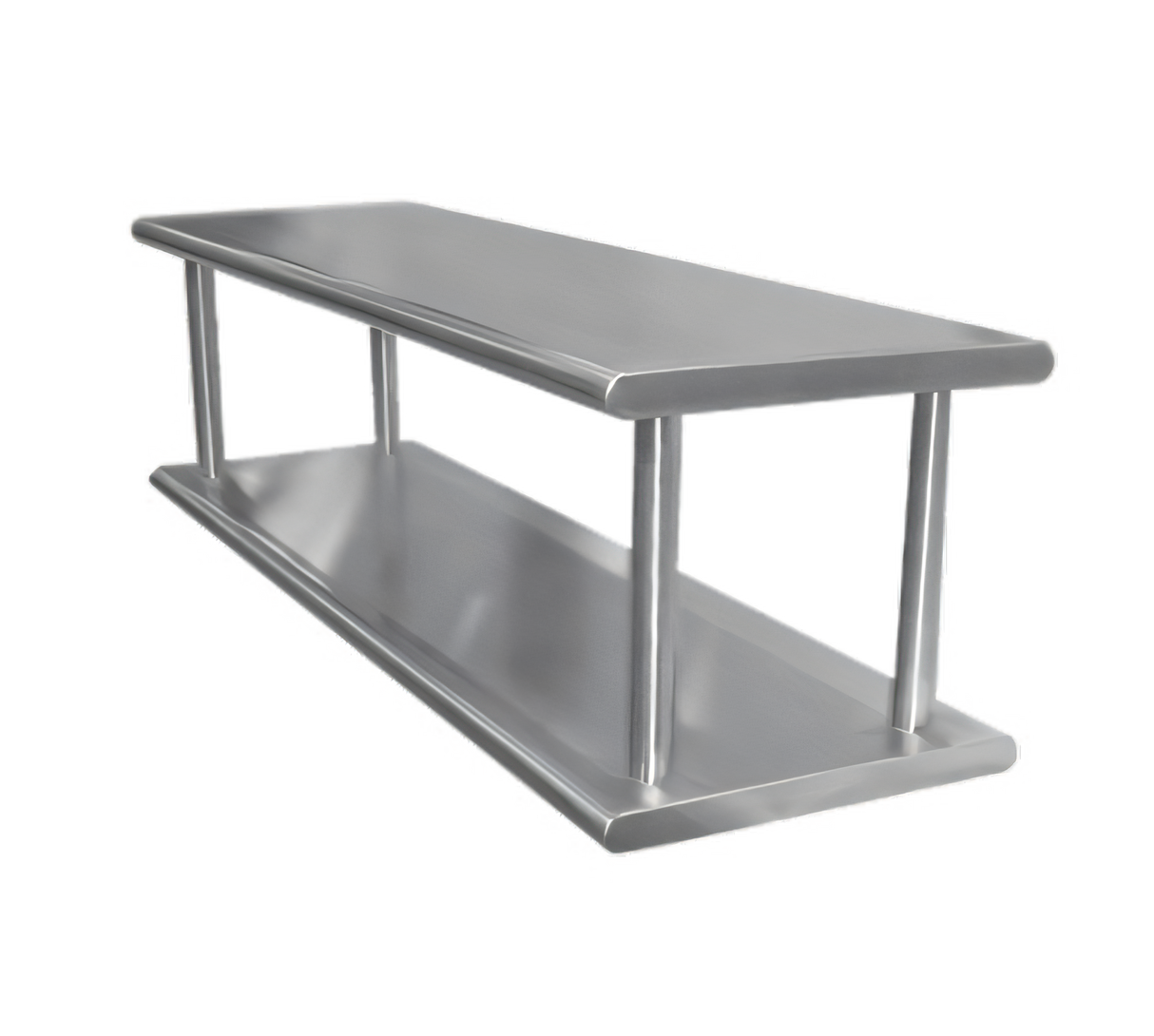

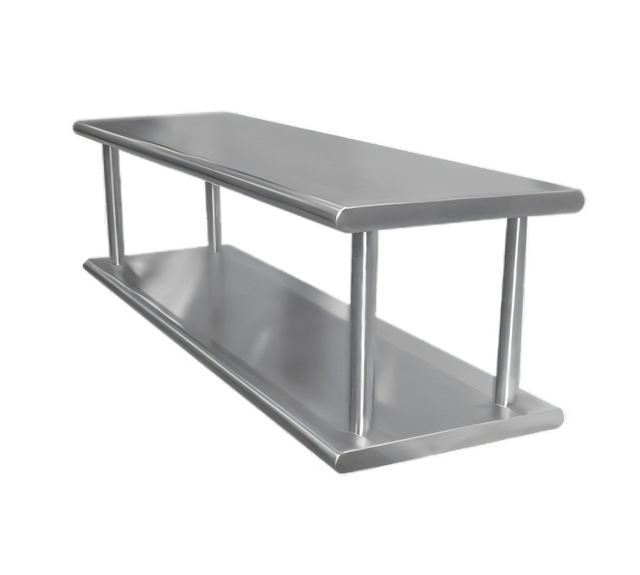

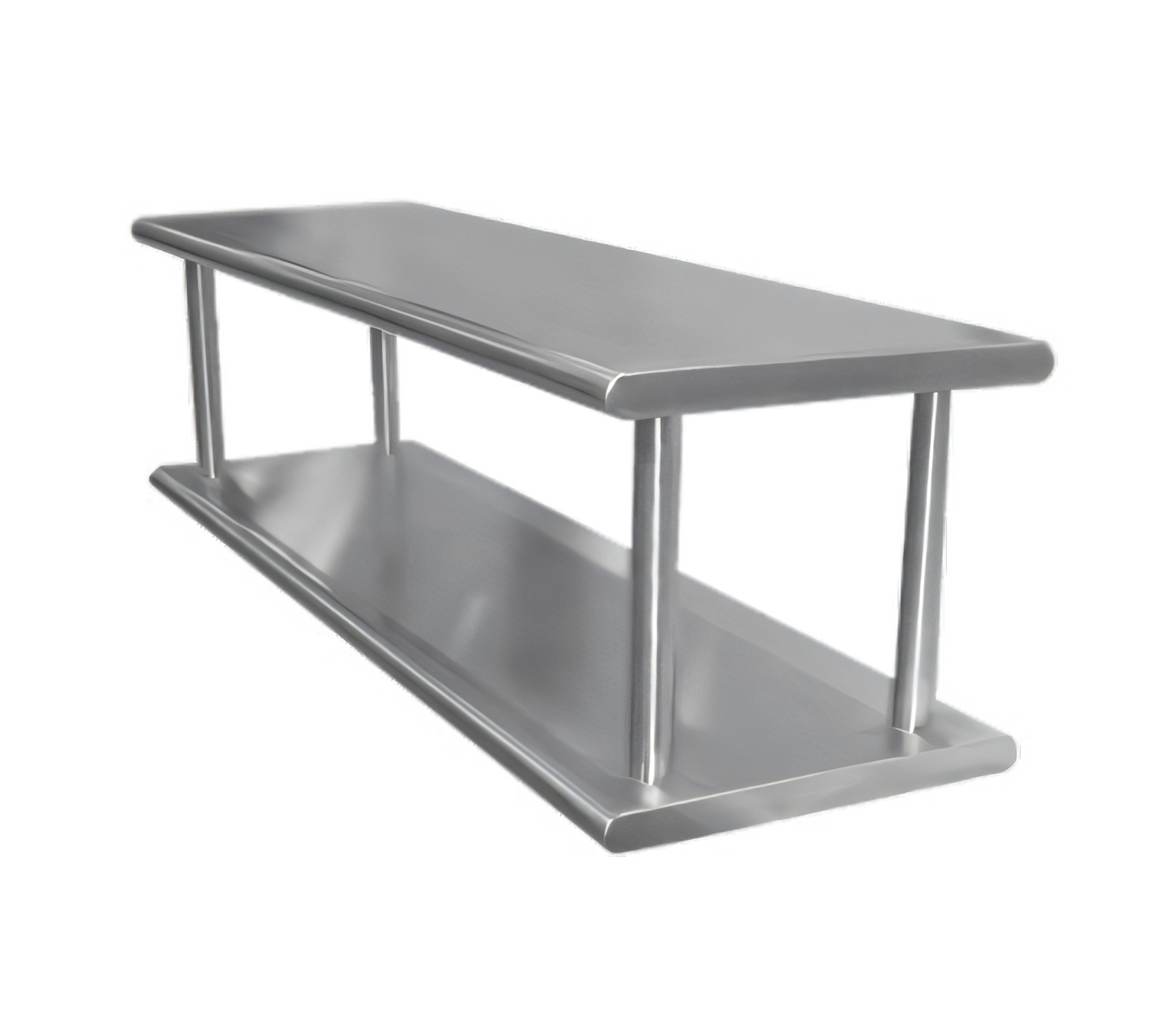

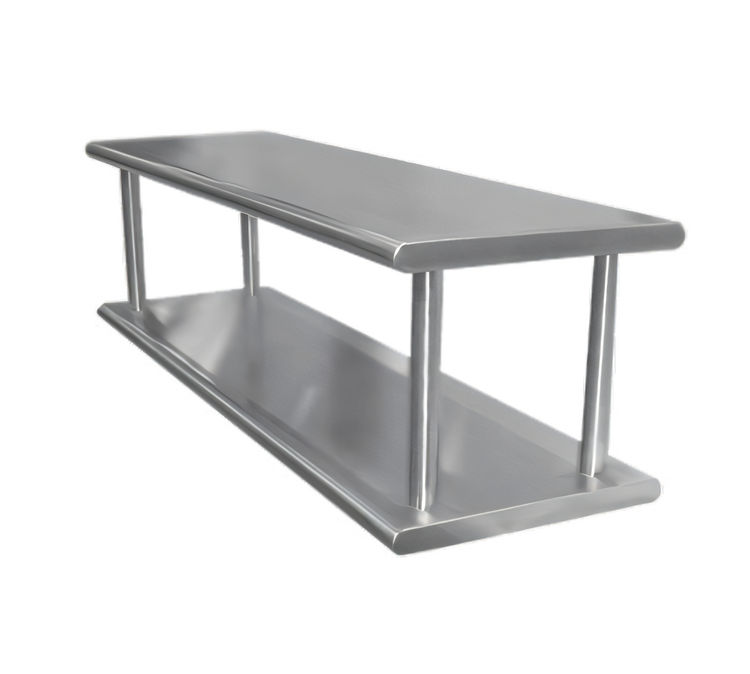

Advance Tabco Stainless Steel Pass-Thru Shelf w/ Overshelf – 120" W x 24" D
Model PA-24-120-2 | Double-Tier, Cantilever-MountInstantly turn a wide service window into a high-capacity plating and staging station. This 120-inch Advance Tabco pass-thru shelf arrives fully welded and ready to mount, giving you two rock-solid stainless-steel work surfaces without eating up valuable floor space.
Why You’ll Love It
- 120" span handles large pass-thru or expo windows with ease.
- Generous 24" depth provides ample room for trays, hotel pans, to-go orders and smallwares.

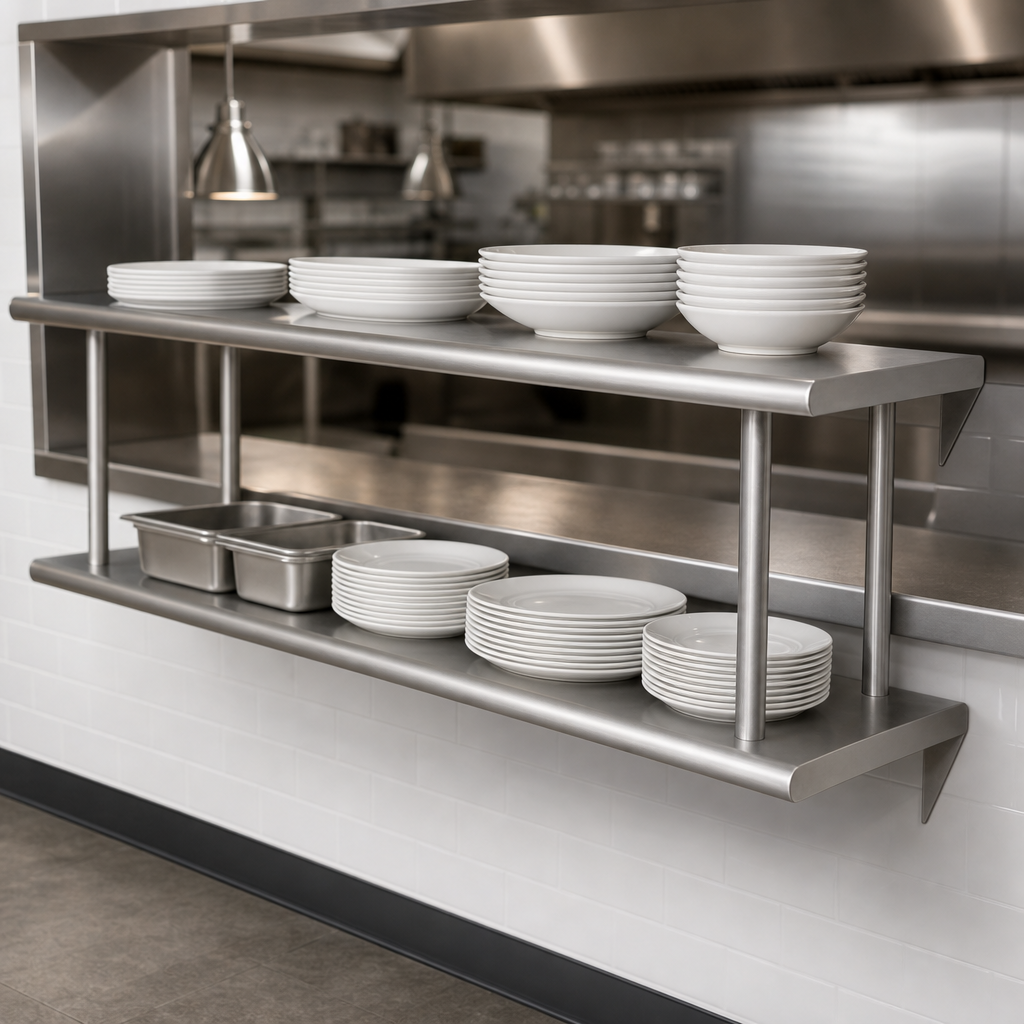

- Two-tier layout doubles usable surface area—overshelf is fixed 14" above the lower shelf for fast plate pick-ups and ingredient storage.
- Bull-nose front & rear edges with square sides give staff a safe, snag-free work area and a clean, finished look customer-side.

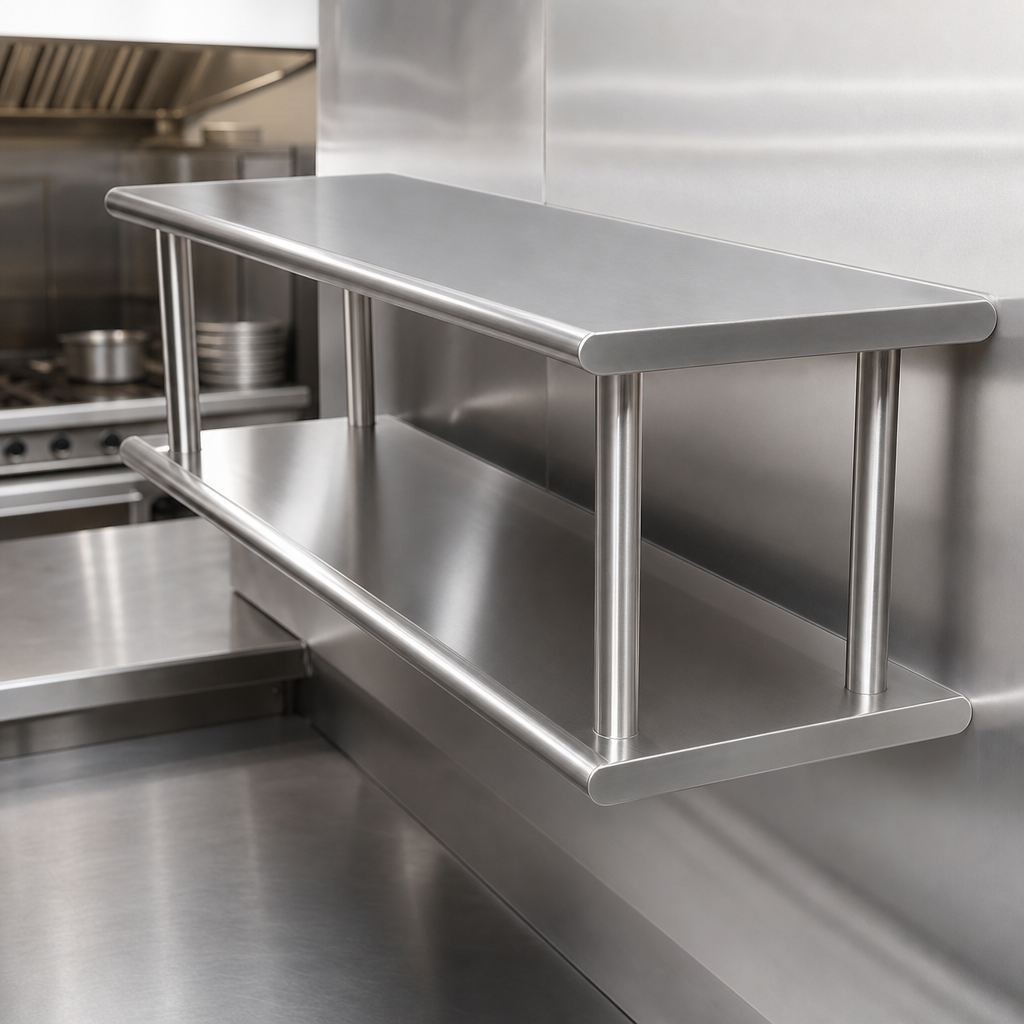

- 18 GA Type 430 stainless steel top & bottom shelves resist corrosion, staining and daily abrasion.
- 1-5/8" stainless-steel tubing posts and heavy galvanized hat channel keep the span rigid and level across its full length.
- Includes (4) 5" x 7" stainless-steel cantilever brackets for secure wall mounting—no floor legs to obstruct traffic.
- TIG-welded construction; exposed welds are polished to match adjacent surfaces.
- NSF listed for open-kitchen and back-of-house use.
At-a-Glance Specs
Overall width | 120" (3048 mm) |
---|---|
Overall depth | 24" (610 mm) |
Upper shelf clearance | 14" between work surfaces |
Lower shelf height | 1-1/2" above wall opening when installed* |
Shelf material | 18 GA Type 430 stainless steel |
Edge profile | Bull-nose on front & rear; square ends |
Posts | 1-5/8" dia. stainless-steel tubing |
Reinforcement | Heavy-gauge galvanized hat channel |
Mounting hardware | (4) 5" x 7" stainless-steel cantilever brackets (included) |
Shipping weight | Approx. 306 lb |
*When installed per manufacturer instructions, the lower shelf’s work surface will sit 1-1/2" higher than the wall it rests on, ensuring a flush pass-thru transition.
