Advance Tabco  |  SKU: PA-18-72-2  |  UPC: 747545177278

Advance Tabco PA-18-72-2 Wire Shelving

$2,047.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

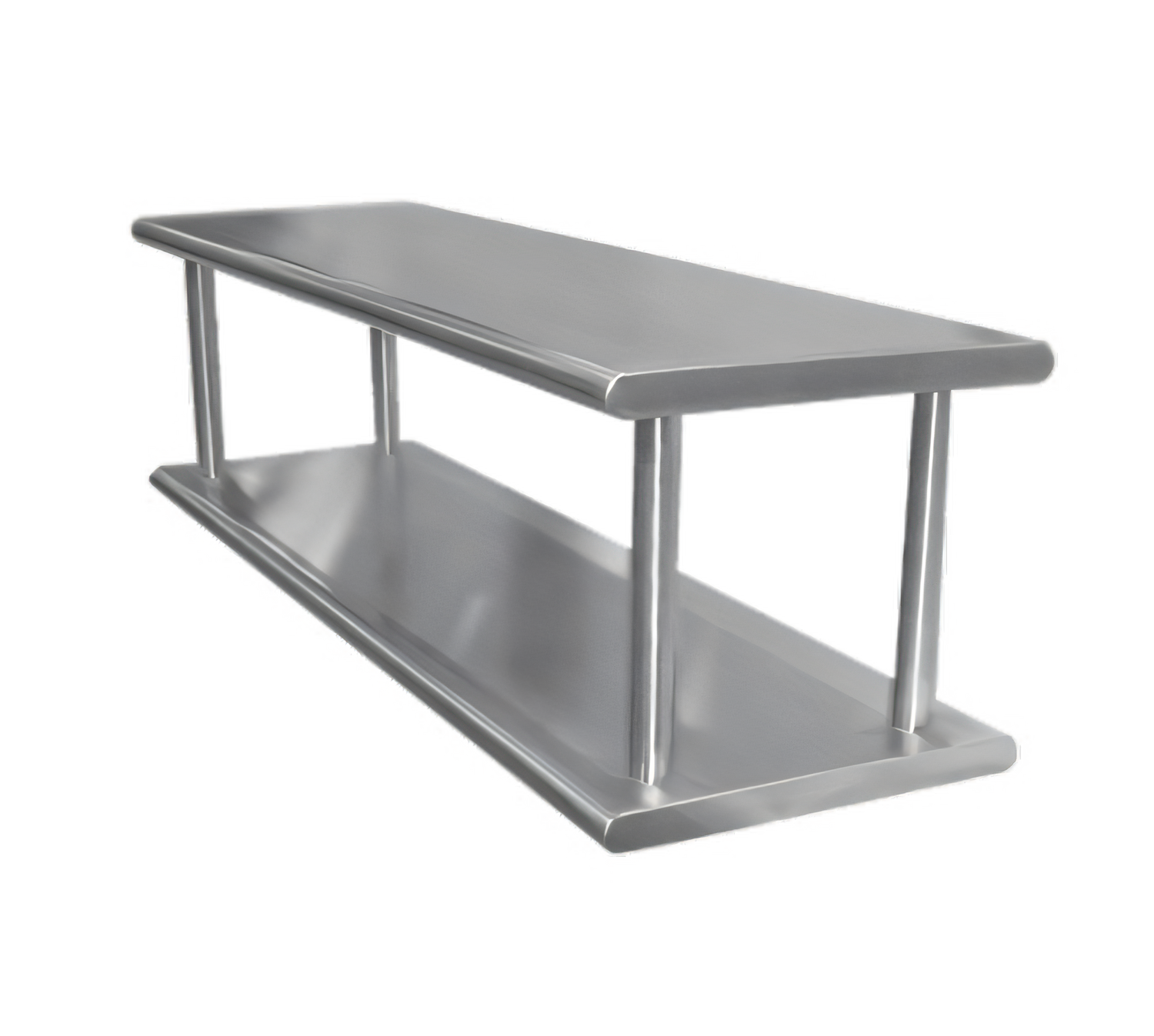

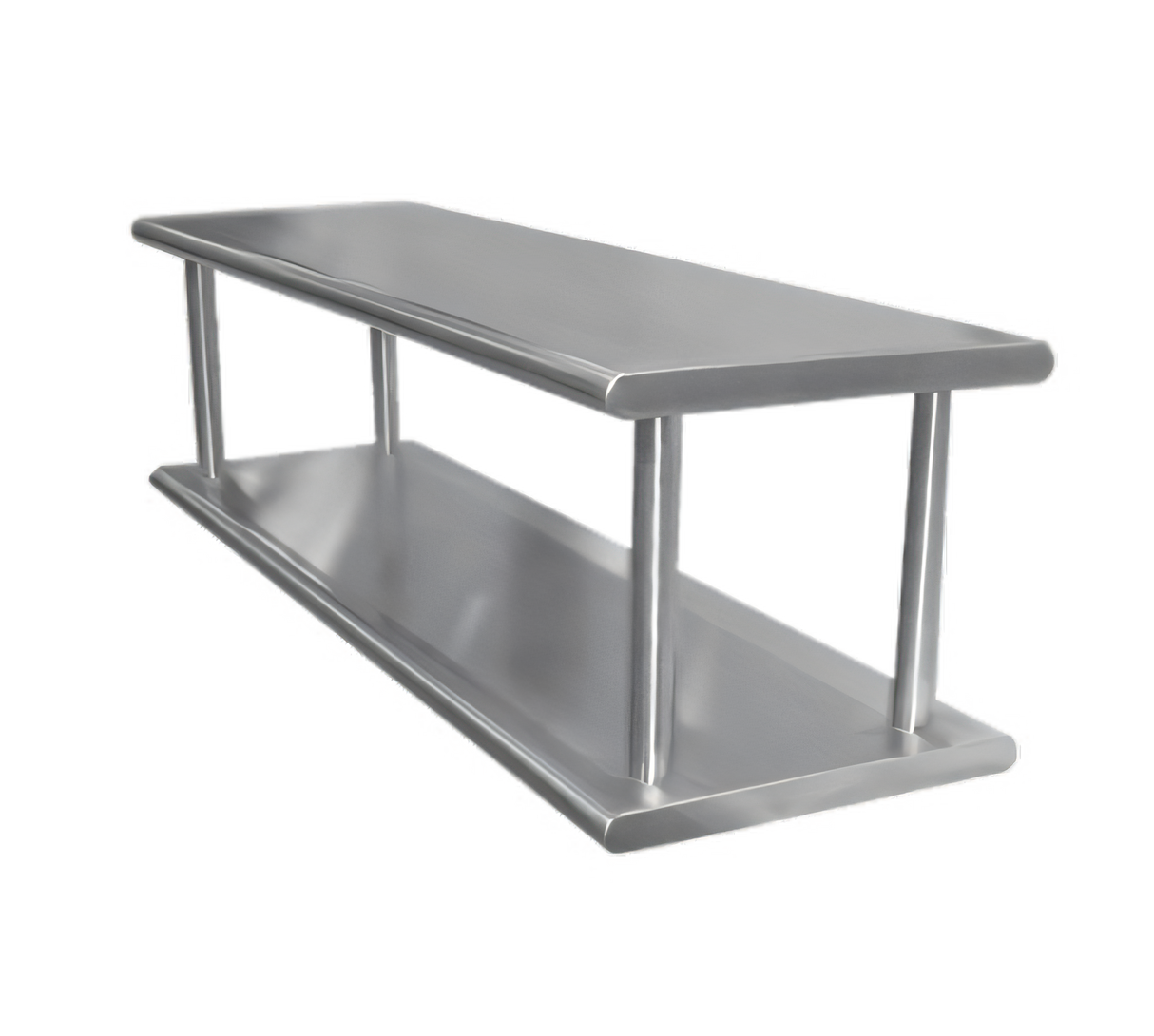

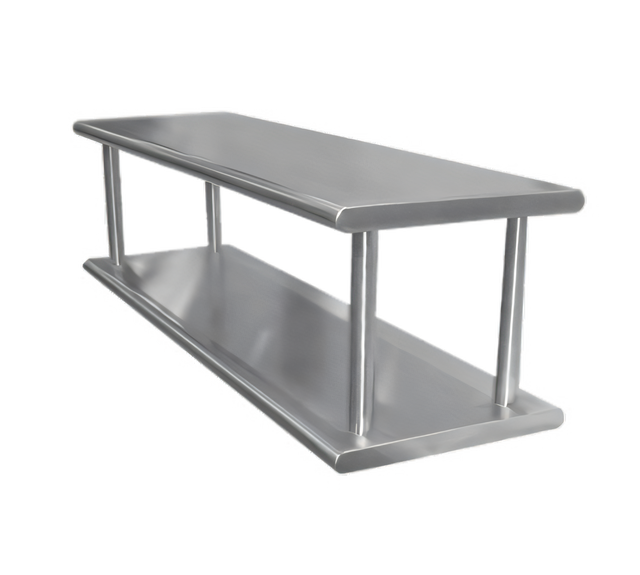

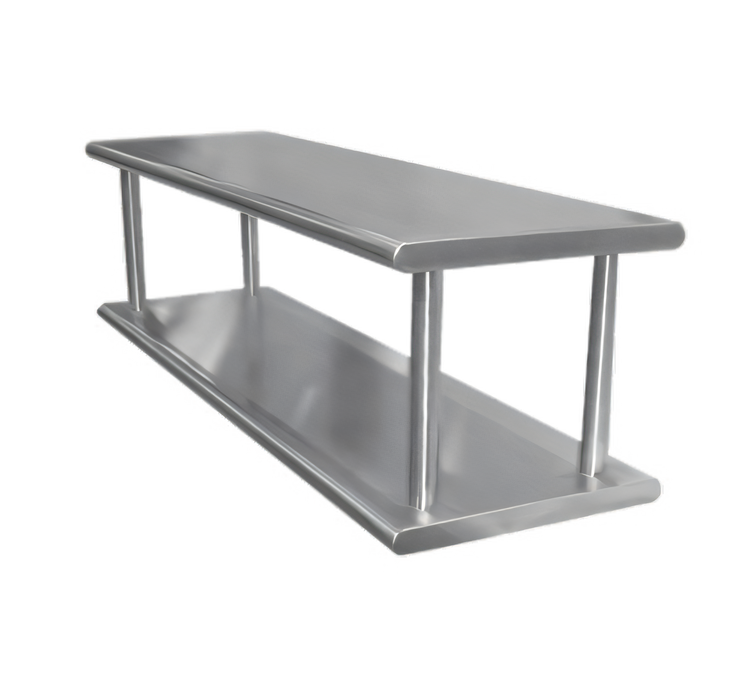

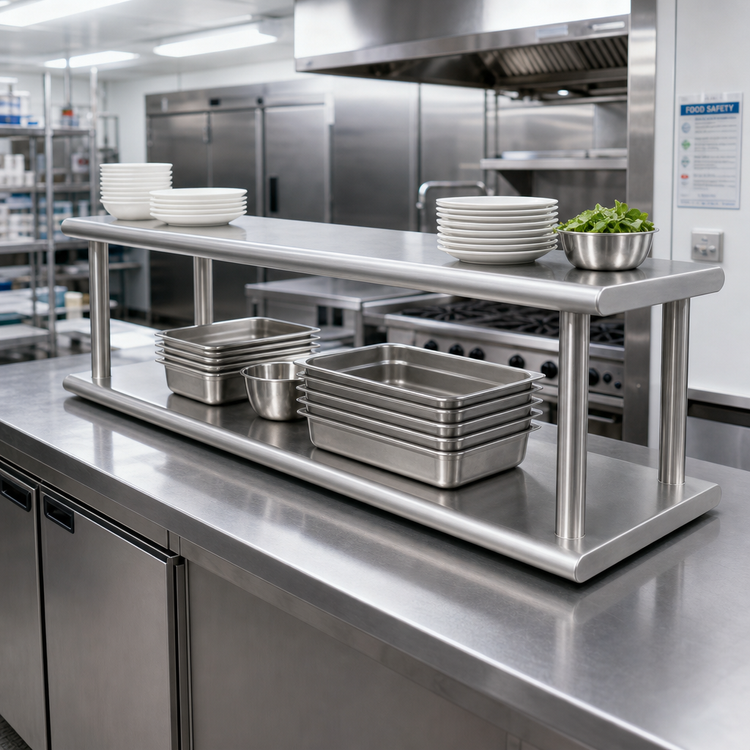

Advance Tabco 72" x 18" Stainless Steel Pass-Thru Shelf with Overshelf

Model PA-18-72-2  |  Double-Tier  |  Ships Fully Assembled

Instantly expand plating and staging space on both sides of your service window with this rugged, two-tier pass-thru shelf from Advance Tabco. Built from heavy-gauge 18/430 stainless steel and polished to a professional finish, it arrives ready to mount and engineered to thrive in the most demanding food-service environments.

Key Features

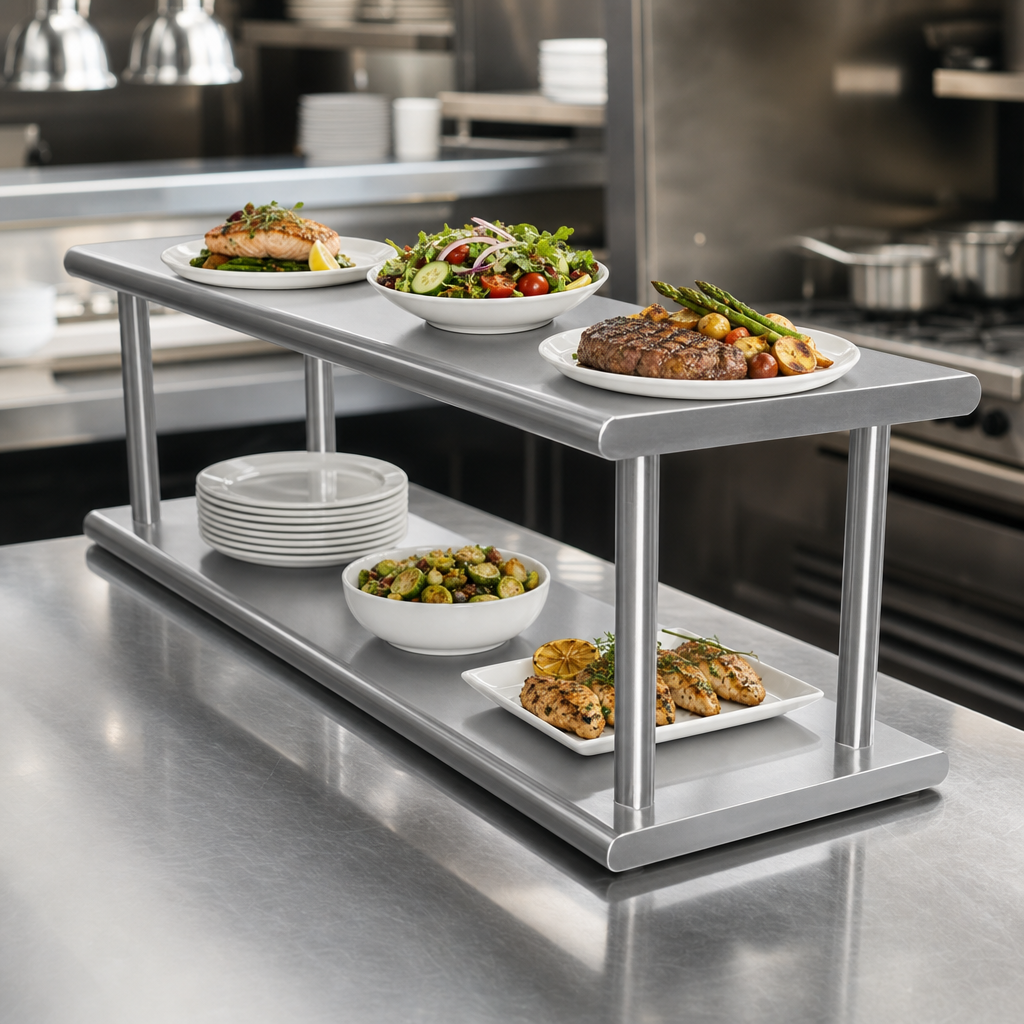

  • Two-tier design maximizes vertical storage—fixed overshelf sits 14" above the lower pass-thru shelf.

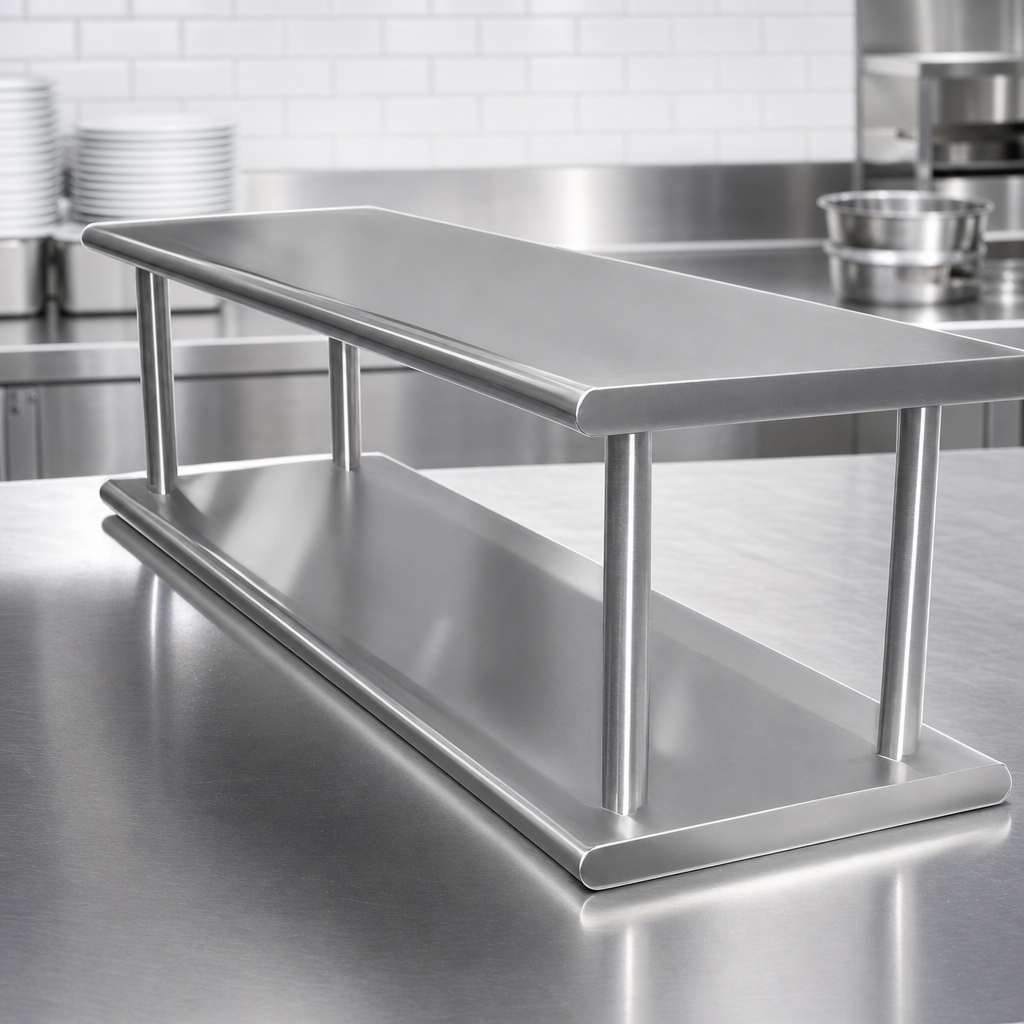

  • 18 ga. type 430 stainless steel with sanitary bull-nose edges front & rear; square ends with 1-1/2" turn-down.
  • 1-5/8" O.D. stainless steel tubing posts deliver exceptional rigidity while keeping the pass-thru unobstructed.
  • Galvanized hat-channel underside allows the lower shelf to be positioned exactly where you need it.
  • All TIG-welded construction; exposed welds are polished to match adjacent surfaces.
  • Includes (2) 3" x 4" stainless steel “L” brackets for secure wall mounting.
  • Lower shelf work surface sits 1-1/2" higher than the wall opening to create a seamless landing zone.
  • NSF listed for safe use in commercial kitchens.

Ideal For

  • Server pick-up or expo windows
  • Buffet, cafeteria & quick-service pass-thru lines
  • Commissaries, bakeries and ghost kitchens needing extra plating space

Specifications

Overall length 72" (1829 mm)
Overall depth 18" (457 mm)
Shelf tiers 2 (pass-thru shelf + fixed overshelf)
Vertical clearance between shelves 14"
Material 18 ga. type 430 stainless steel
Posts 1-5/8" O.D. stainless steel tubing
Hat channel Heavy-gauge galvanized steel
Edge style Bull-nose front & rear; square ends with 1-1/2" turn-down
Mounting hardware (2) 3" x 4" stainless steel “L” brackets (included)
Ship weight Approx. 152 lb / 69 kg
NSF Yes

Looking for a different size? Advance Tabco pass-thru shelves are available in lengths from 48" to 144" and in 18" or 24" depths.

Wall fasteners not included: Use anchors appropriate for your wall type and anticipated load to ensure safe installation.

Advance Tabco reserves the right to modify product design and specifications without prior notice.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

72.0in

Depth

18.0in

Shipping Weight

152.0lbs

Depth (front - back)

18"

Construction

stainless steel

Width (side - side)

72"

Type

double

Specifications

Pass-Thru Shelf, double tier, 72"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
