Advance Tabco  |  SKU: PA-18-48-2  |  UPC: 747545176646

Advance Tabco PA-18-48-2 Wire Shelving

$1,874.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual
Related Searches
Bakery Display Cases Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

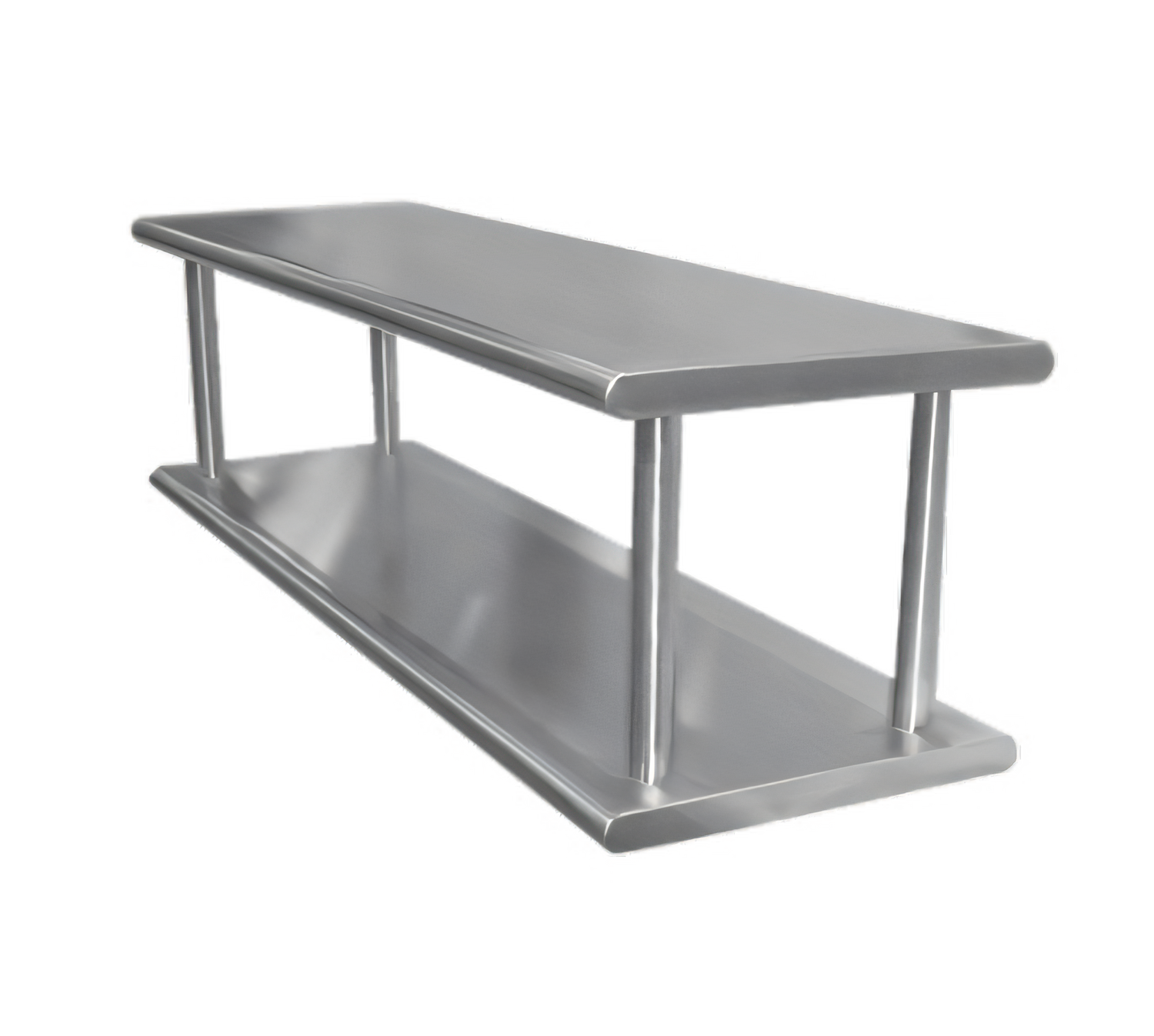

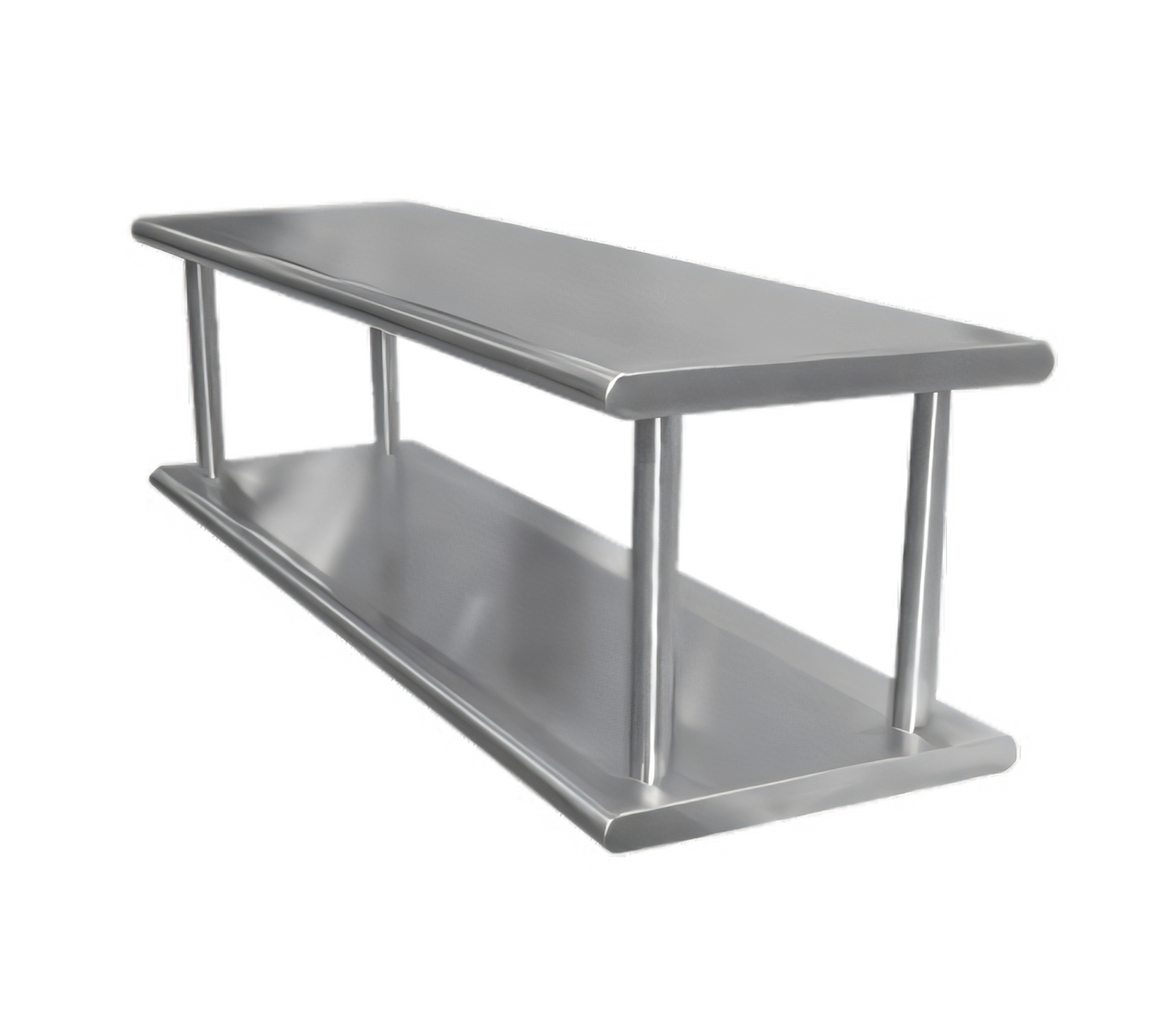

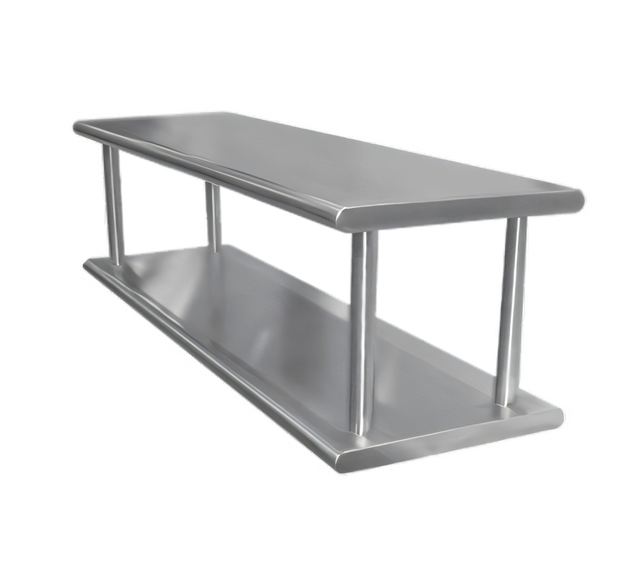

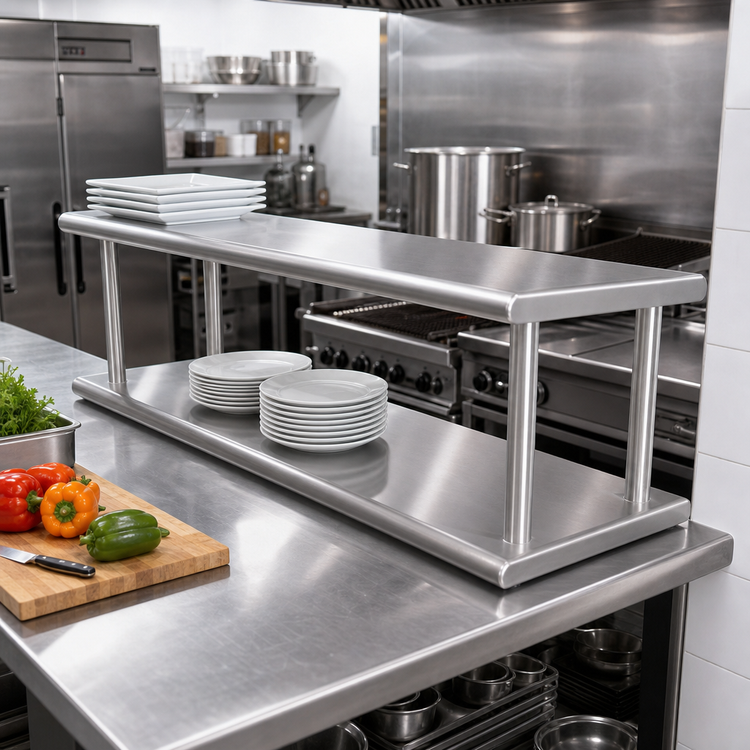

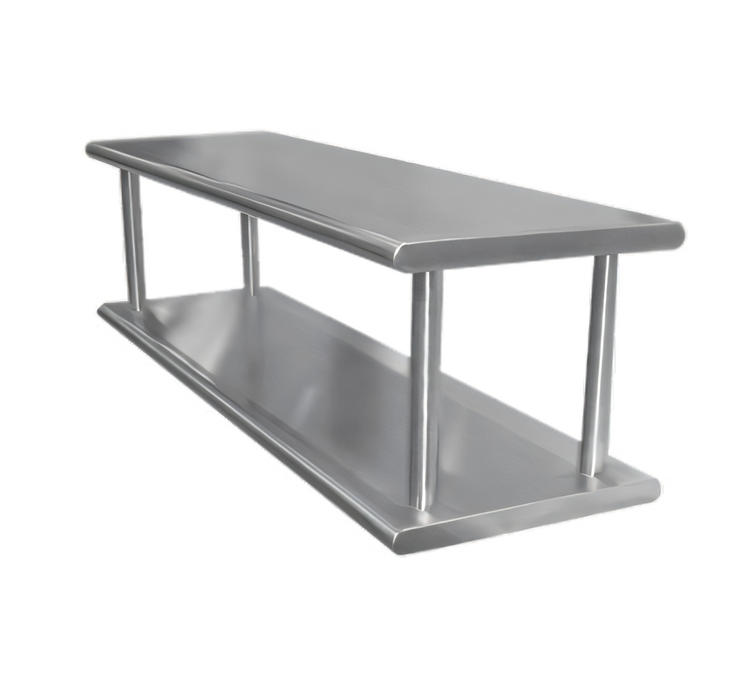

Advance Tabco PA-18-48-2 Stainless Steel Pass-Thru Shelf with Overshelf – 48" x 18"

Double-tier, wall-mounted shelf ships fully assembled

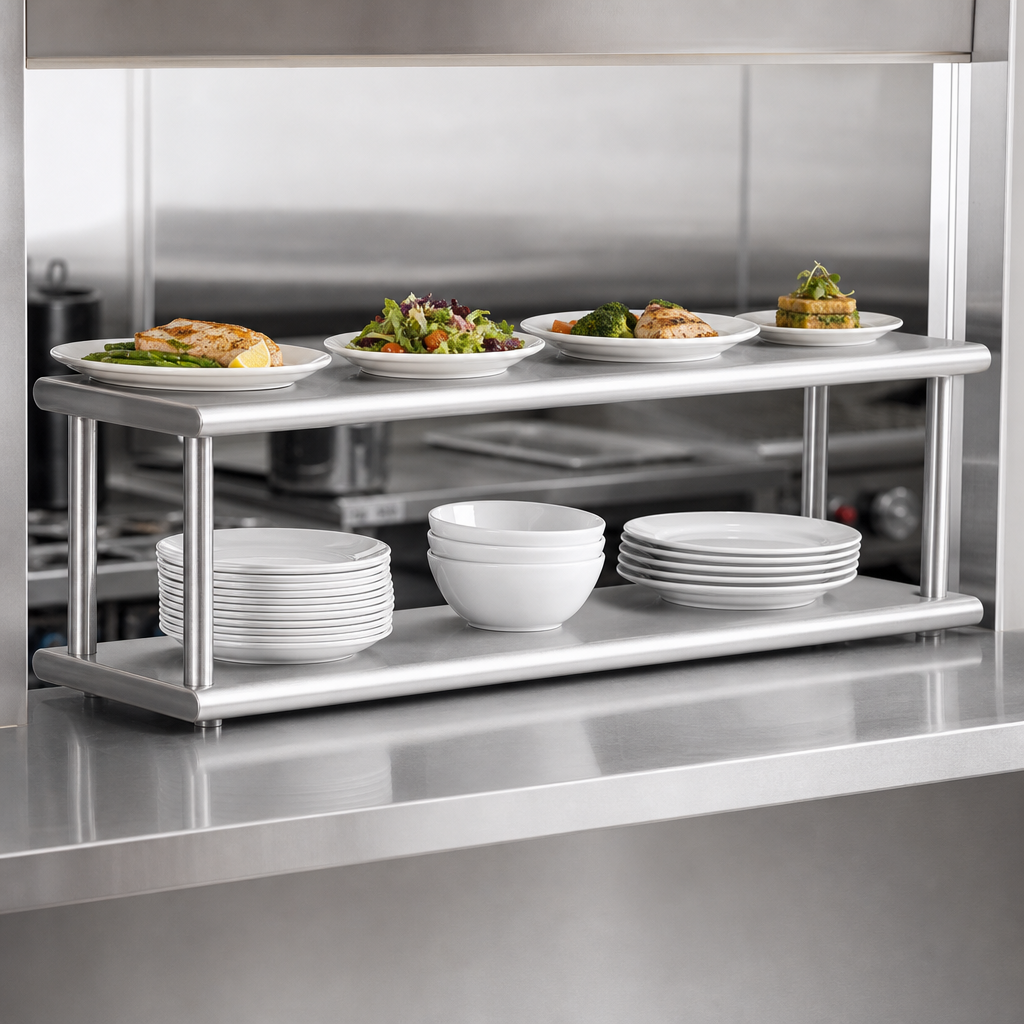

Perfect for pass-through windows and plating lines, this two-tier shelf system delivers a sanitary stainless steel work surface plus a fixed overshelf 14" above it. The 48" x 18" unit arrives fully TIG-welded and ready to mount with the included “L” brackets.

Key Features
  • 48" W x 18" D double-tier pass-thru shelf with fixed overshelf
  • Upper shelf positioned 14" above lower shelf to maximize vertical storage

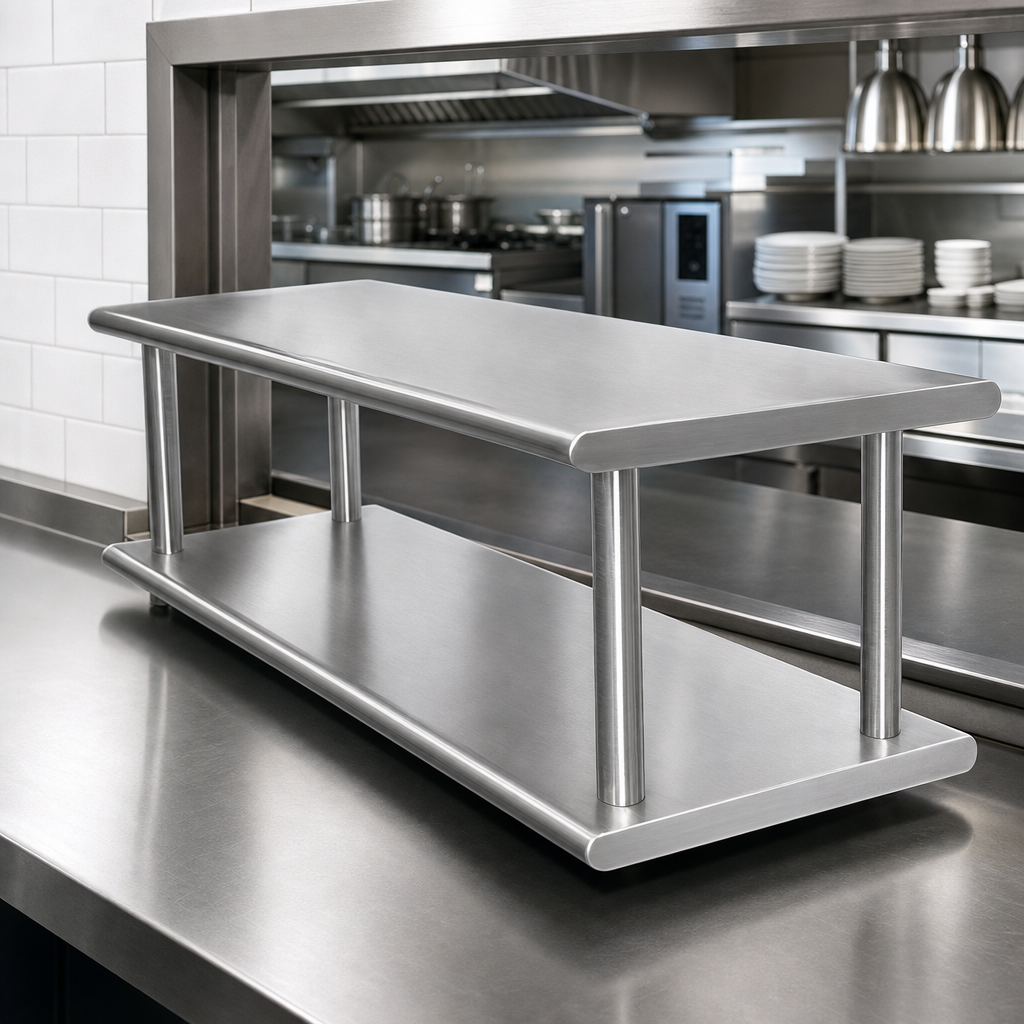

  • 18 gauge type 430 stainless steel shelves with bull-nose front & rear edges and square sides
  • 1-5/8" O.D. stainless steel tubing posts support the overshelf
  • Heavy-gauge galvanized hat channel allows lower shelf to be freely positioned during installation
  • Ships fully assembled—no on-site welding required
  • Includes two 3" x 4" stainless steel “L” brackets for secure wall mounting
  • Lower shelf work surface rests 1-1/2" above the wall opening for smooth pass-thru operation
  • All TIG welds ground and polished to match adjoining surfaces for an easy-to-clean, professional finish
Specifications
Manufacturer Advance Tabco
Model PA-18-48-2
Overall width 48" (1219 mm)
Overall depth 18" (457 mm)
Number of tiers 2 (pass-thru shelf & fixed overshelf)
Shelf spacing 14" between work surfaces
Material 18 ga. type 430 stainless steel shelves & brackets; heavy-gauge galvanized hat channel
Posts 1-5/8" O.D. stainless steel tubing
Mounting hardware (2) 3" x 4" stainless steel “L” brackets (included)
Shipping weight Approx. 100 lb
Ships Fully assembled
Installation Notes
Clearance: The lower work surface sits 1-1/2" higher than the wall opening. Confirm clearance before drilling mounting holes.
Anchor the supplied “L” brackets into wall studs or equivalent blocking capable of supporting the full shelf load.

Advance Tabco continues to improve products; specifications may change without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

48.0in

Depth

18.0in

Shipping Weight

100.0lbs

Width (side - side)

48"

Depth (front - back)

18"

Construction

stainless steel

Type

double

Specifications

Pass-Thru Shelf, double tier, 48"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
