Advance Tabco | SKU:
PA-18-144
Advance Tabco PA-18-144 Wire Shelving
$1,436.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco PA-18-144 Wire Shelving is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco PA-18-144 Wire Shelving
$1,436.00
Unit price
/
Unavailable
Description

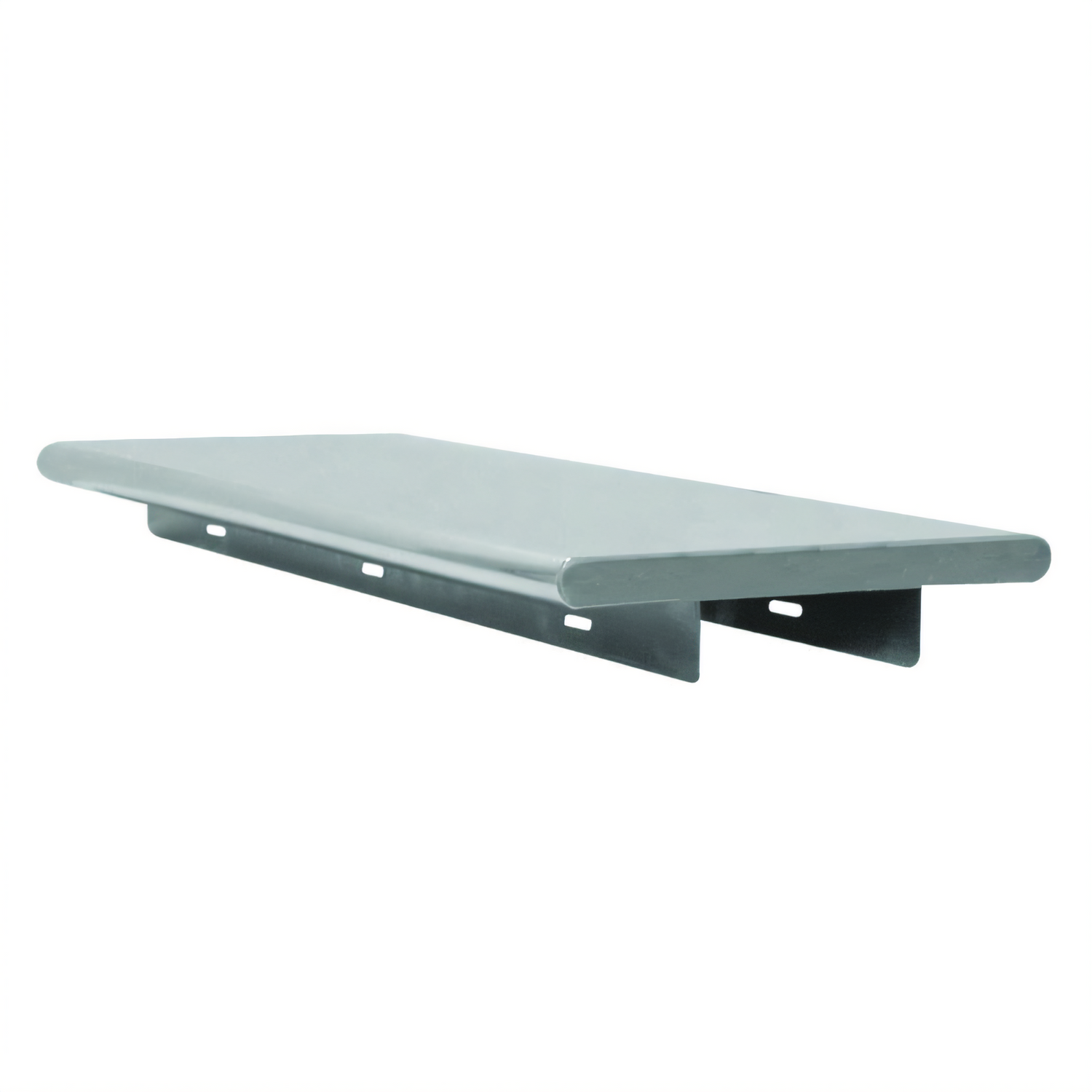

144" x 18" Stainless Steel Pass-Thru Shelf

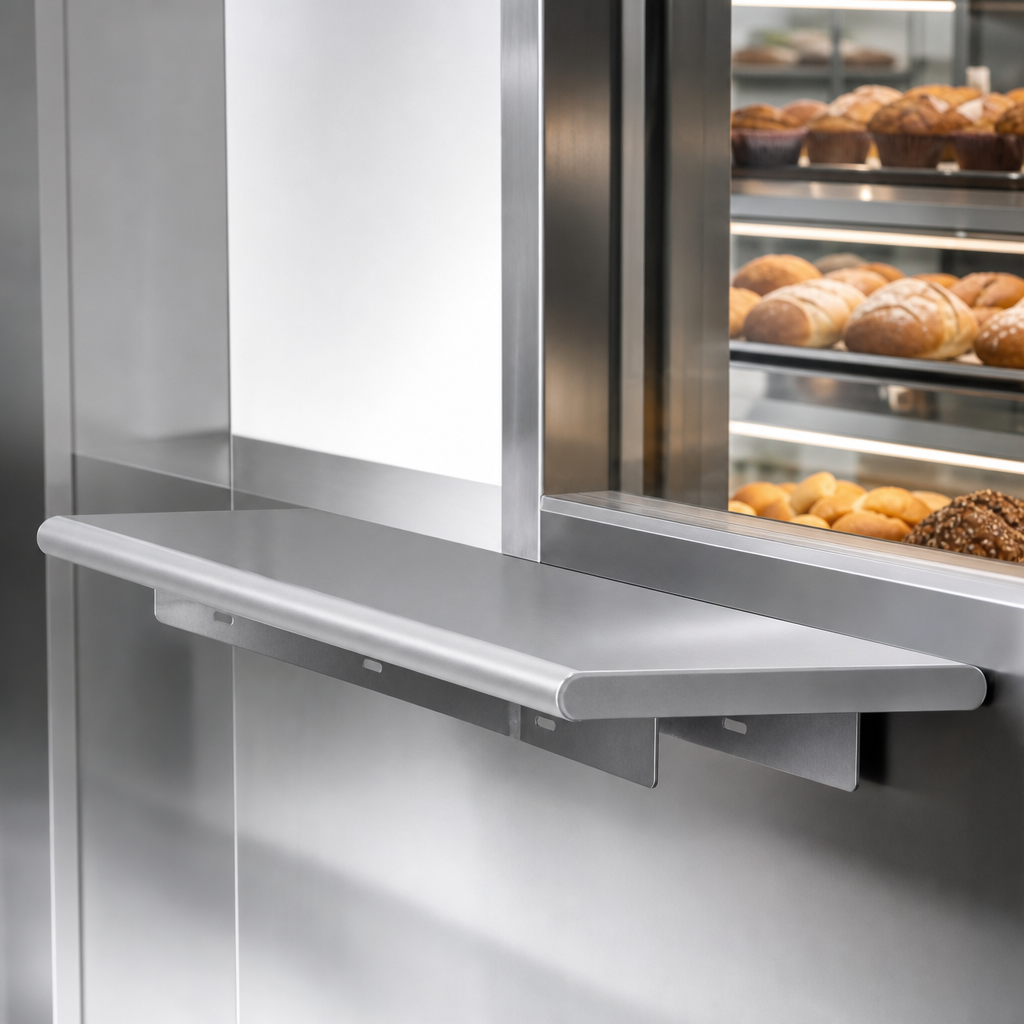

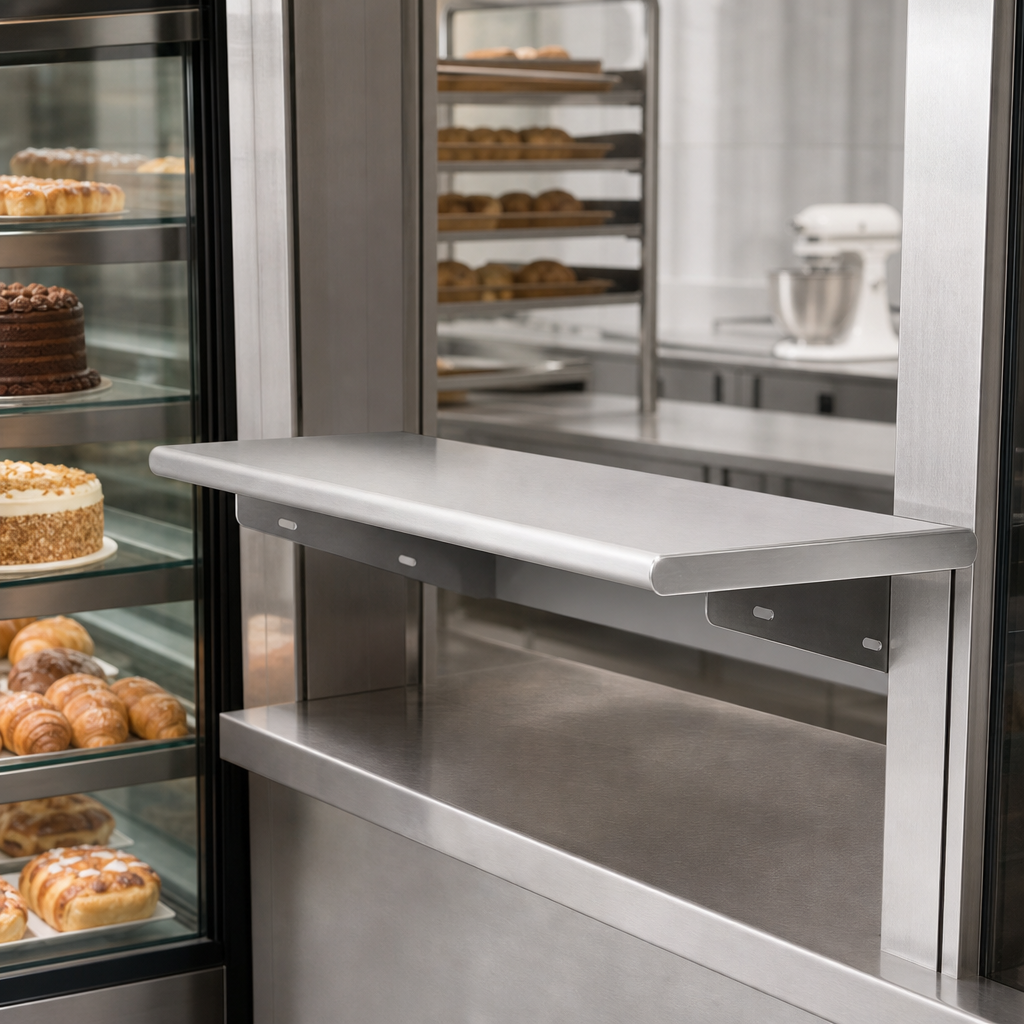

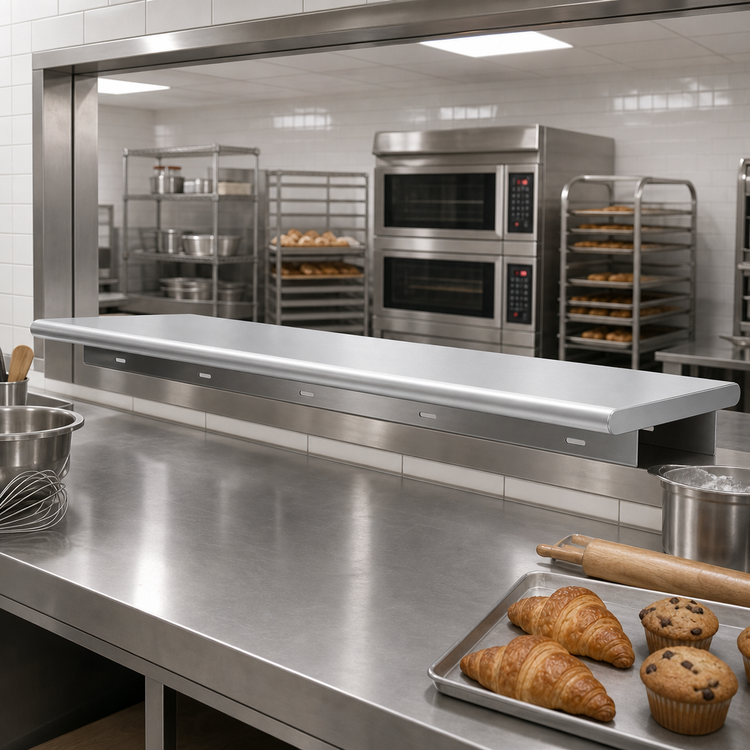

Advance Tabco Model PA-18-144Create a seamless pass-through between the kitchen and service area with this heavy-duty, 12-foot Advance Tabco shelf. Its sanitary bull-nose edges, reinforced galvanized hat channel, and included L-brackets provide the strength and cleanability today’s commercial kitchens demand.
Key benefits at a glance
- 1-5/8" bull-nose front & rear edges for a smooth, easy-to-wipe surface
- Square ends with 1-5/8" turndown sit flush against the wall cut-out
- Galvanized hat channel allows flexible bracket positioning along the shelf length
- Includes two 3" x 4" stainless steel L-brackets for secure wall mounting
- All TIG-welded construction; exposed welds polished to match surrounding metal
- Fabricated from 18 ga, type 430 stainless steel—magnetic, durable & corrosion-resistant
- NSF listed for food-contact environments
Technical specifications
| Overall length | 144 in / 3658 mm |
|---|---|
| Overall depth | 18 in / 457 mm |
| Shelf material | 18 ga, type 430 stainless steel |
| Reinforcement | Heavy-gauge galvanized hat channel (welded) |
| Edge profile | 1-5/8" sanitary bull-nose (front & rear), square sides |
| Mounting hardware | (2) 3" x 4" stainless steel L-brackets (included) |
| Installed surface height | 1-1/2" above wall opening |
| Shipping weight | 165 lb / 74.8 kg |
| Certifications | NSF |
| Manufacturer | Advance Tabco |
Installation note:
When the shelf is mounted flush to the wall opening, the work surface will
sit approximately 1-1/2" higher than the wall it rests on. Please
verify clearances before making final cuts or framing.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
1.5in
Width
144.0in
Depth
18.0in
Shipping Weight
165.0lbs
Width (side - side)
144"
Type
single
Construction
stainless steel
Depth (front - back)
18"
Specifications
Pass-Thru Shelf, 144"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (note: work surface will be 1-1/2" higher than the wall it rests on)
