Advance Tabco  |  SKU: PA-18-144-2  |  UPC: 747545178015

Advance Tabco PA-18-144-2 Wire Shelving

$3,002.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual
Related Searches
Bakery Display Cases Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

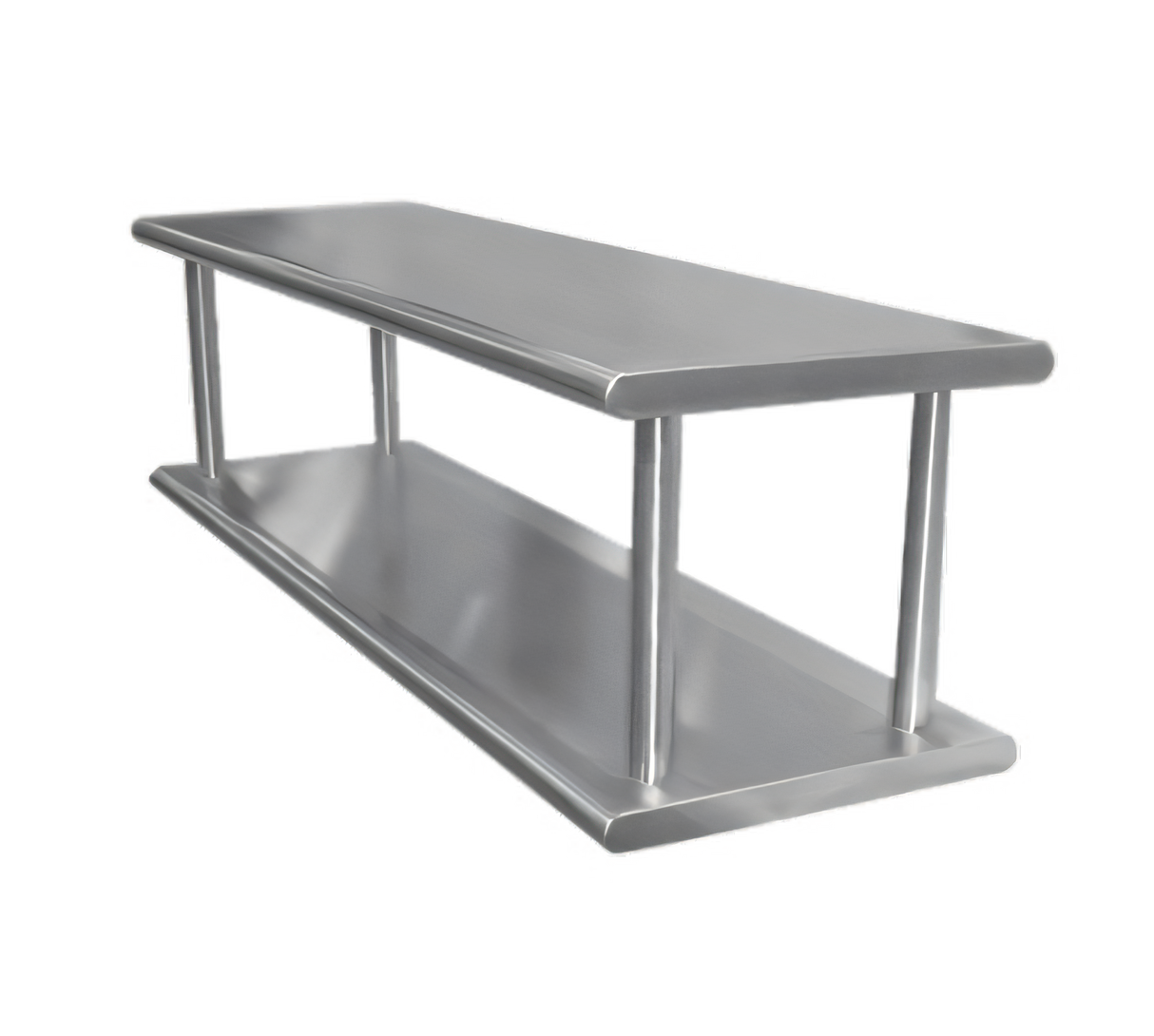

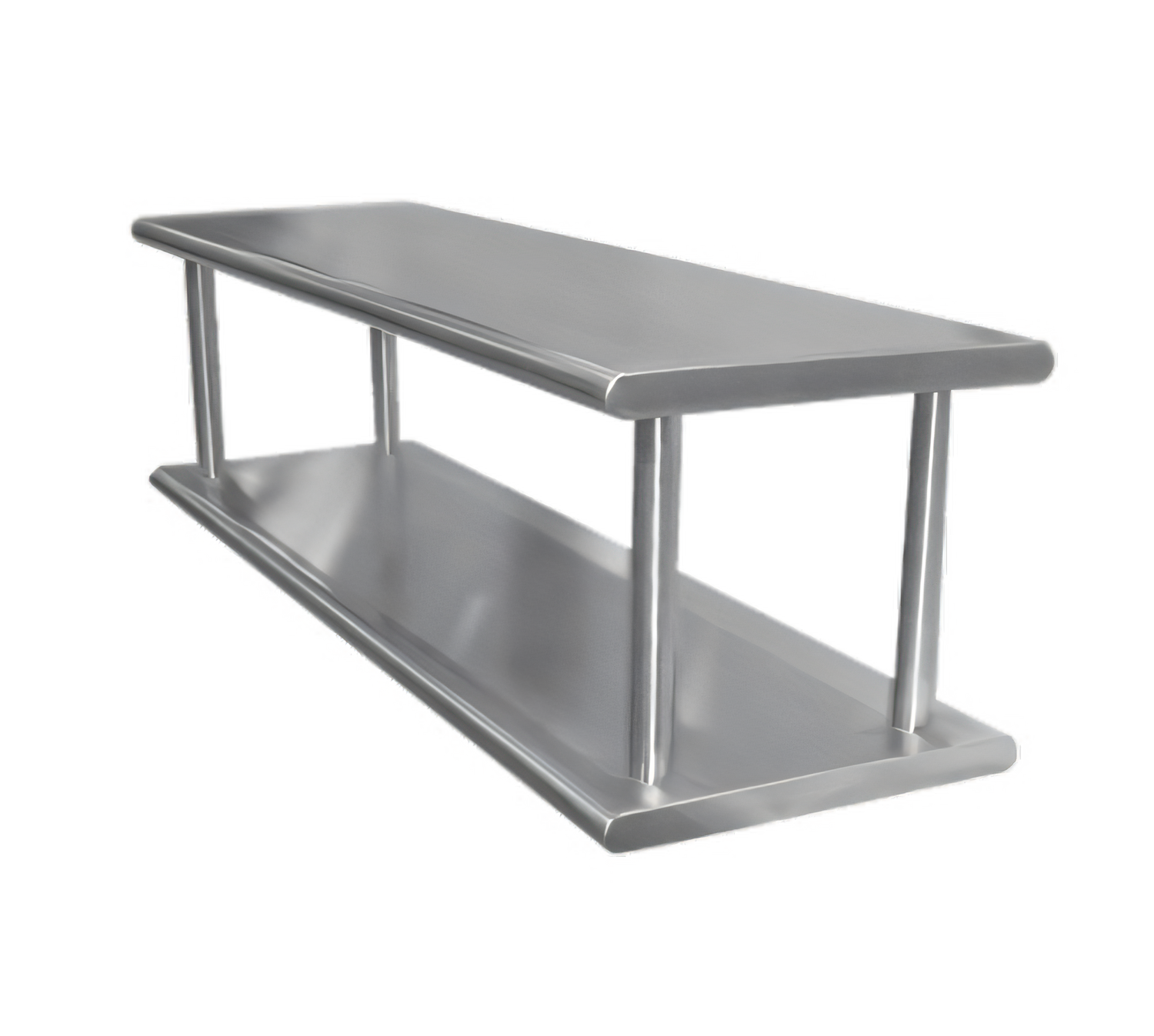

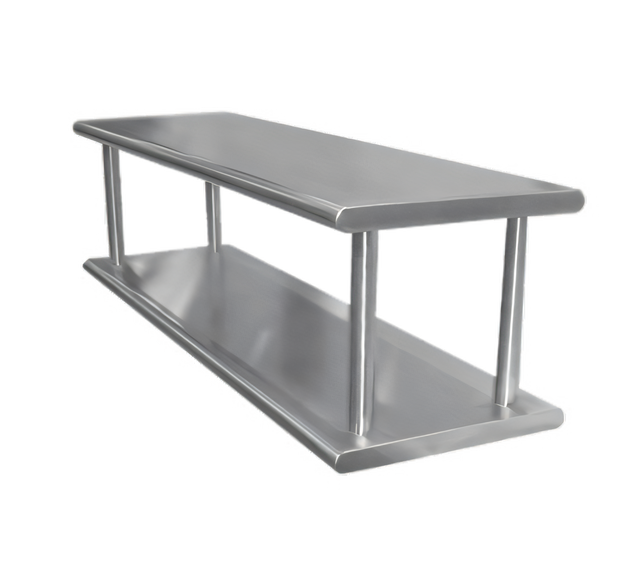

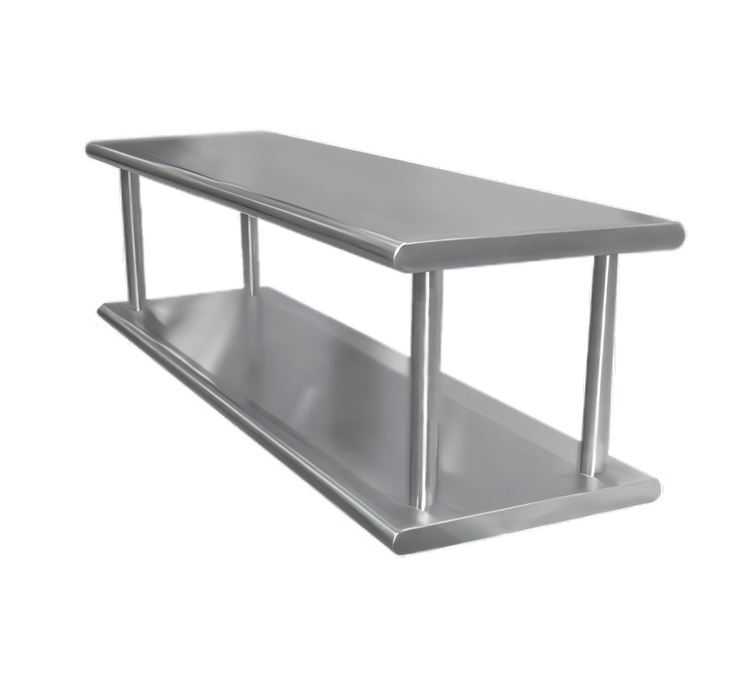

Advance Tabco PA-18-144-2 Pass-Thru Shelf with Fixed Overshelf – 144"L x 18"D

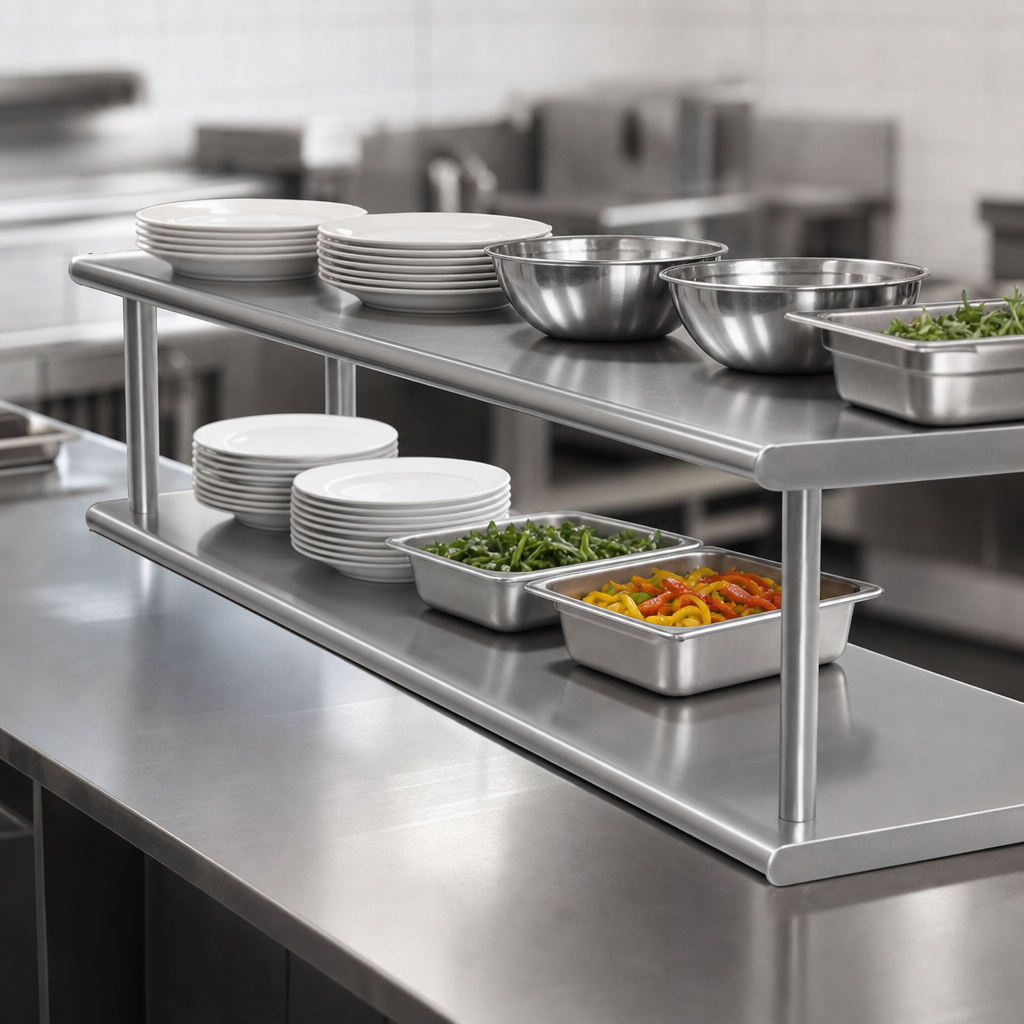

Double-tier, wall-mounted service shelf – ships fully welded & ready to install

Add 12 feet of rugged, food-service-safe staging space to any pass-thru window or plating line. This two-level assembly combines an 18 gauge stainless steel pass-thru shelf with a TIG-welded overshelf, giving you generous storage above the counter while keeping the lower deck perfectly aligned with your wall opening.

Key Features

  • Massive 144" span delivers an uninterrupted work surface across wide wall openings.

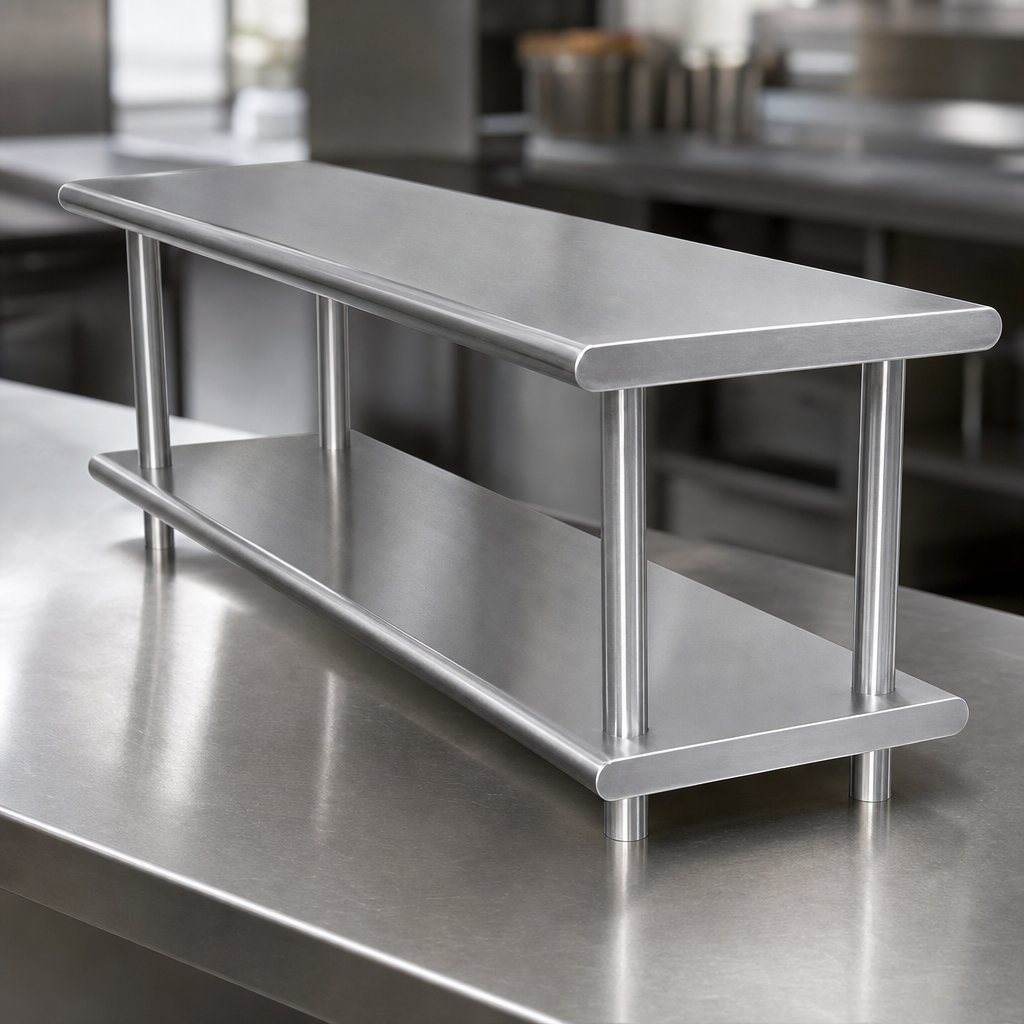

  • 18 gauge type 430 stainless steel shelves with front & rear bull-nose roll for easy cleaning and comfort.
  • Fixed overshelf supported by 1-5/8" O.D. stainless steel tubing posts – includes center tube support for added rigidity on 96"+ lengths.
  • New galvanized hat-channel design allows the lower shelf to be positioned exactly where you need it, then locked in place.
  • 3" × 4" stainless steel “L” wall brackets included for quick, secure installation (18"-deep models).
  • 14" vertical clearance between lower shelf and overshelf lets you slide hotel pans, plates, and smallwares with ease.
  • NSF listed and completely TIG-welded with polished seams for sanitary performance.
  • Ships fully assembled—uncrate, anchor to wall, and start using immediately.

At-a-Glance Specifications

Manufacturer / Model Advance Tabco PA-18-144-2
Overall length 144" (365.8 cm)
Shelf depth 18" (45.7 cm)
Vertical clearance 14" between lower shelf & overshelf
Lower shelf height 1-1/2" above wall opening (when mounted flush to wall)
Material – shelves & brackets 18 ga. type 430 stainless steel
Support posts 1-5/8" O.D. stainless steel tubing
Internal reinforcement Heavy-gauge galvanized steel hat channel
Included mounting hardware (2) 3" × 4" S/S “L” brackets + center tube support
Shipping weight ≈ 330 lb. (149.7 kg)
Certifications NSF

Ideal For

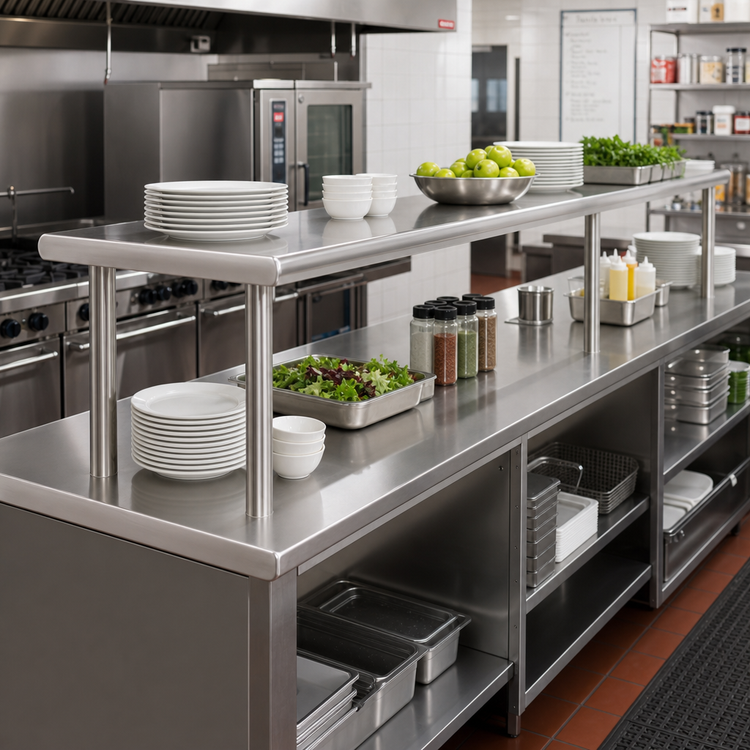

  • Pass-thru windows between kitchen and server station
  • Cafeteria tray slide & plating areas
  • High-volume prep lines that need vertical storage without sacrificing counter space
Installation note: This shelf assembly weighs over 300 lb. Always anchor brackets to structural wall studs or blocking capable of supporting the load, and follow local code requirements.

Advance Tabco continually refines its products. Published specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

16.0in

Width

144.0in

Depth

18.0in

Shipping Weight

330.0lbs

Depth (front - back)

18"

Construction

stainless steel

Type

double

Width (side - side)

144"

Specifications

Pass-Thru Shelf, double tier, 144"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
