Description

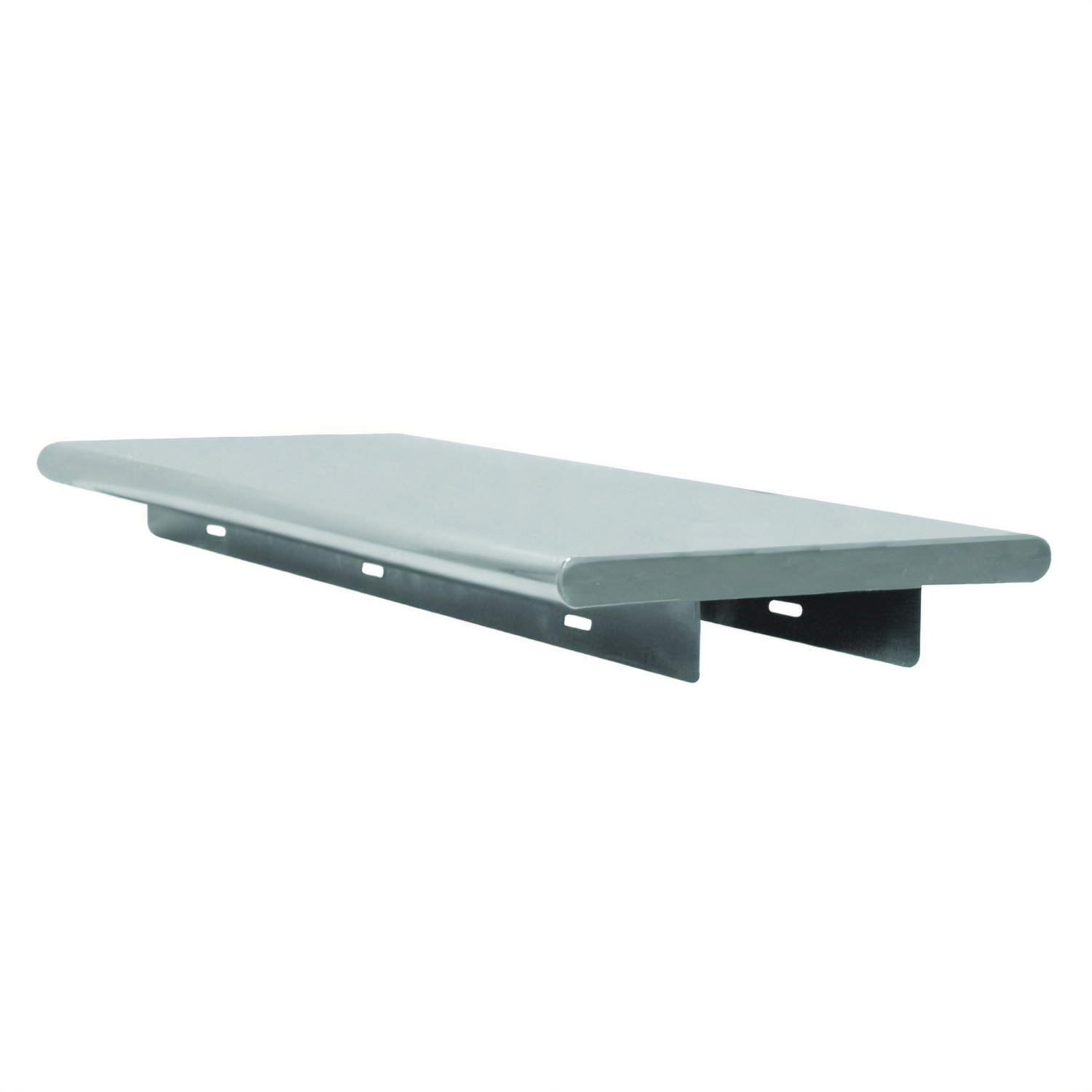

120" x 18" Stainless Steel Pass-Thru Shelf – Advance Tabco

Model PA-18-120 | 18 ga 430 SS • Bull-Nose Edge • Includes L-Brackets

Bridge the gap between your kitchen and service area with a shelf that’s built to handle commercial workloads without sacrificing presentation. Advance Tabco’s 10-foot pass-thru shelf delivers rock-solid support, easy sanitation, and hassle-free installation in one NSF-approved package.

Key Features

  • One-piece TIG-welded construction ensures maximum rigidity over the full 120" span.

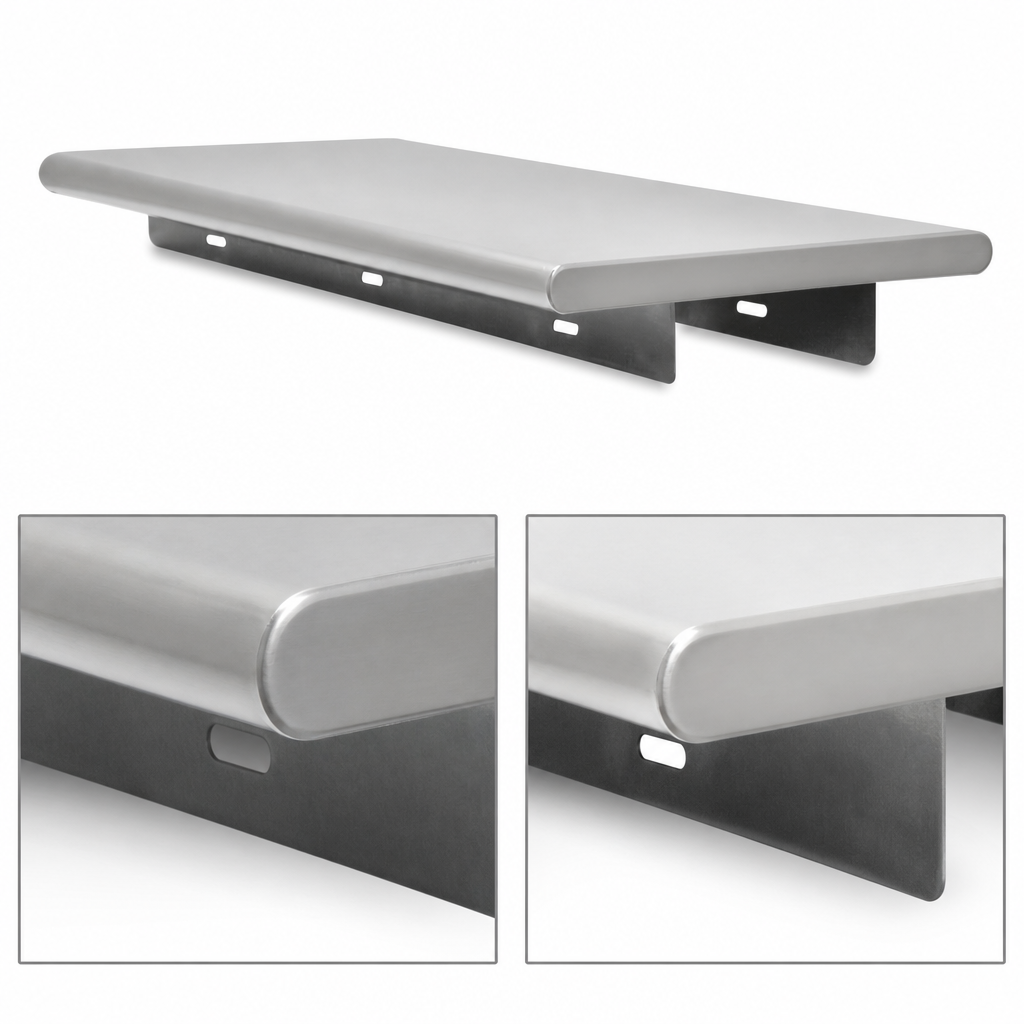

  • 1-5/8" sanitary bull-nose roll on front & rear edges protects hands and prevents food buildup.
  • Square side edges with 1-5/8" turn-down rest cleanly inside wall openings.
  • Heavy-gauge galvanized hat channel stiffens the shelf and offers flexible mounting positions.
  • (2) 3" × 4" stainless steel L-brackets included for secure wall attachment.
  • Work surface sits 1-1/2" above wall opening—perfect for passing plates, drinks, and smallwares.

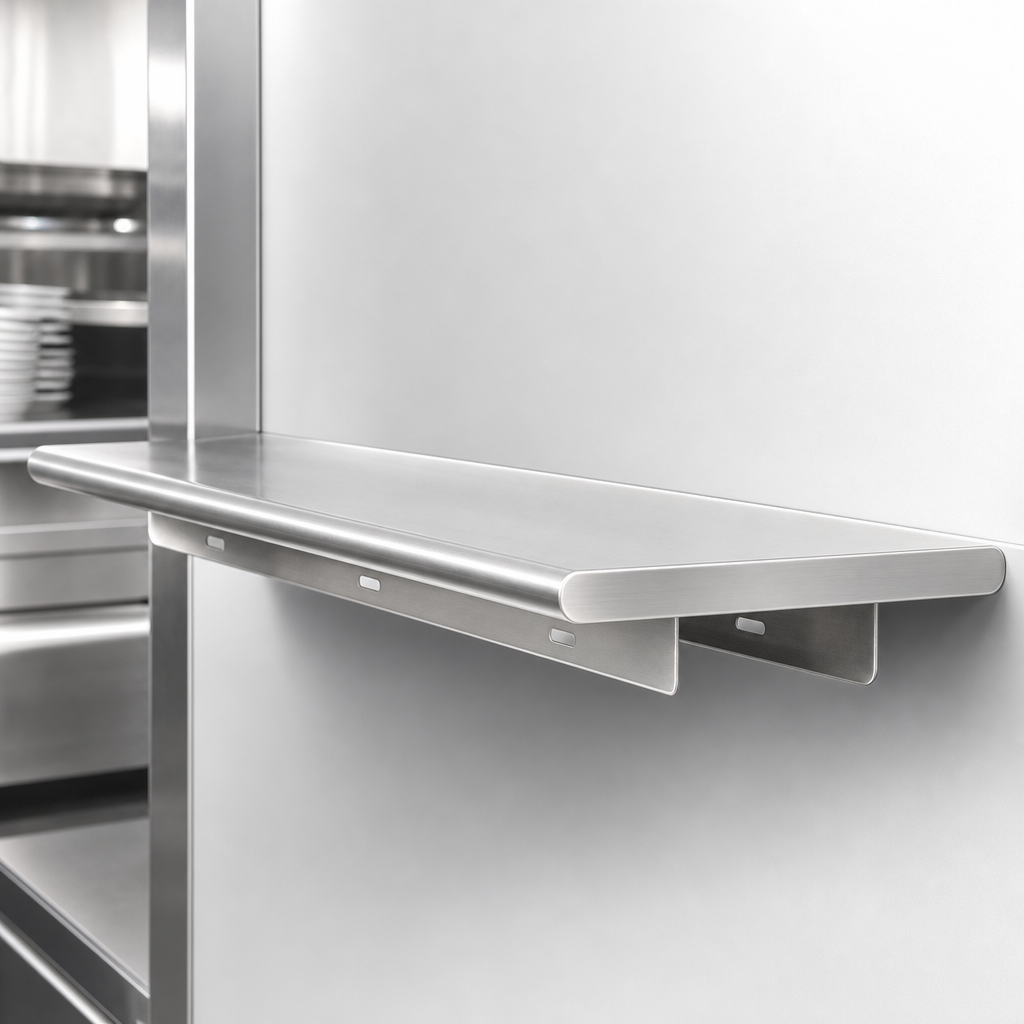

  • 18 ga, 430 series stainless steel resists corrosion while matching adjacent equipment.
  • NSF listed for safe use in any commercial foodservice environment.

Specifications

Manufacturer Advance Tabco
Series / Model Stainless Pass-Thru Shelf / PA-18-120
Overall Dimensions 120" W × 18" D
Surface Height Above Opening 1 1/2"
Shelf Material 18 ga, 430 series stainless steel
Support Channel Heavy-gauge galvanized hat channel (welded)
Edge Profile 1 5/8" sanitary bull-nose roll (front & rear); square sides
Mounting Hardware (2) 3" × 4" stainless steel L-brackets (included)
Approx. Weight 140 lb
Certifications NSF

Perfect For

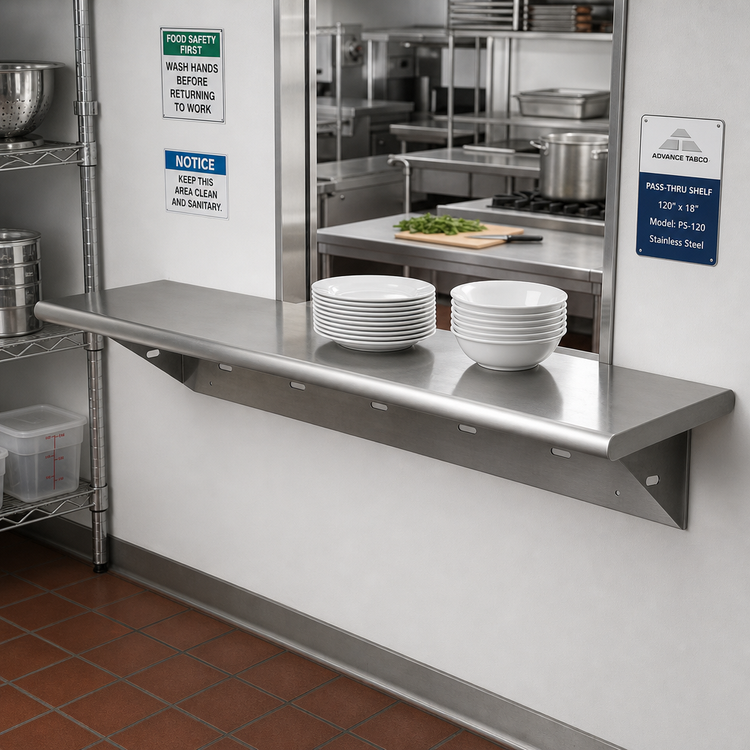

  • Kitchen pass-thru windows
  • Pickup stations and expo lines
  • Cafés, bars & food trucks
  • Anywhere a sturdy, easy-to-clean service ledge is needed
Installation Note: The shelf’s work surface is designed to sit 1-1/2" higher than the wall opening. Verify your opening size and use wall anchors suitable for your substrate (not included) to achieve full load capacity.

Looking for another length or depth? Explore additional Advance Tabco pass-thru shelves or contact us for a custom quote.

Features & Specs

Manufacturer

Advance Tabco

Height

1.5in

Width

120.0in

Depth

18.0in

Shipping Weight

140.0lbs

Width (side - side)

120"

Type

single

Construction

stainless steel

Depth (front - back)

18"

Specifications

Pass-Thru Shelf, 120"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (note: work surface will be 1-1/2" higher than the wall it rests on)
