Advance Tabco PA-18-120-2 Wire Shelving
$2,597.00
Unit price
/
Unavailable
Description

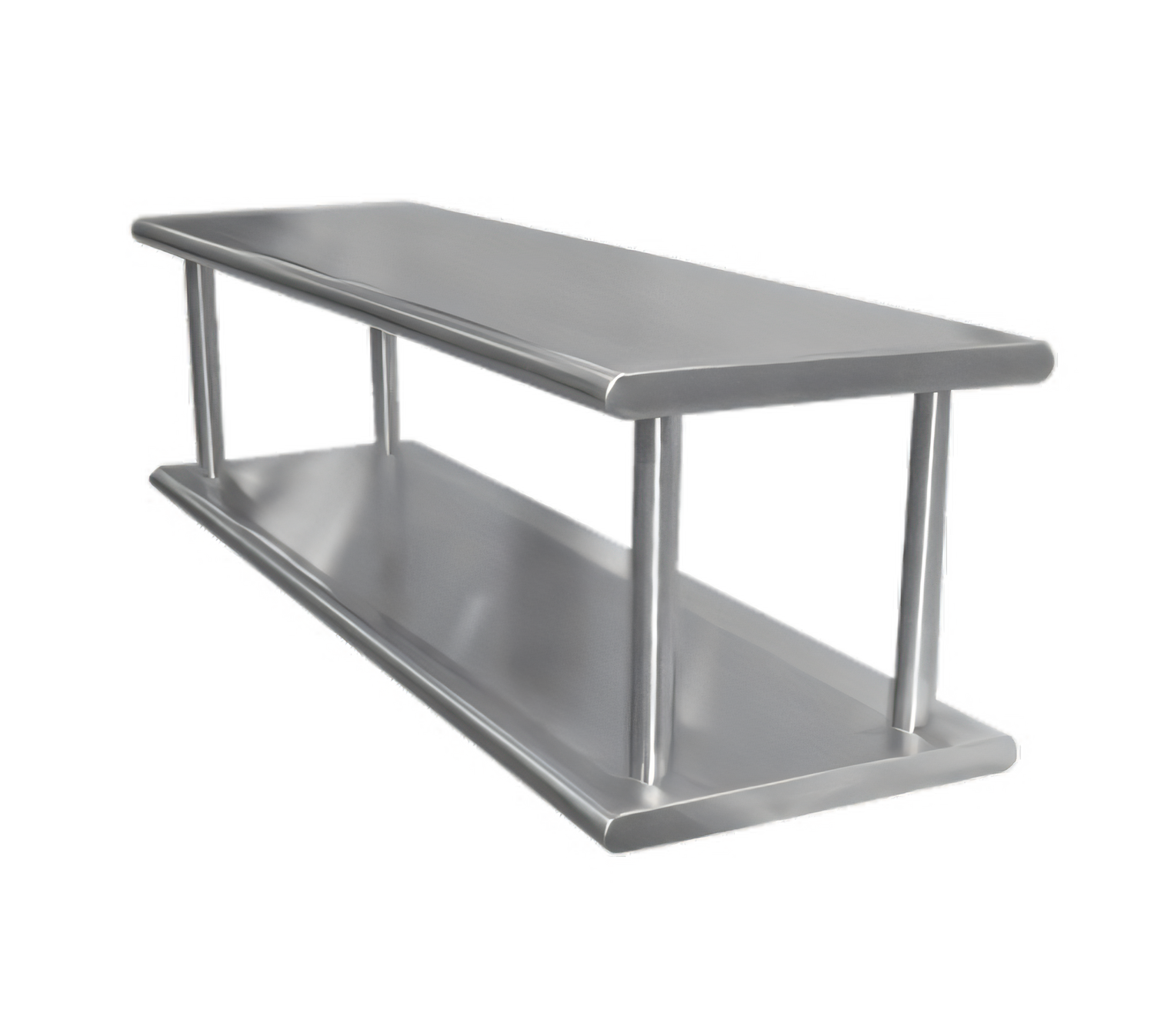

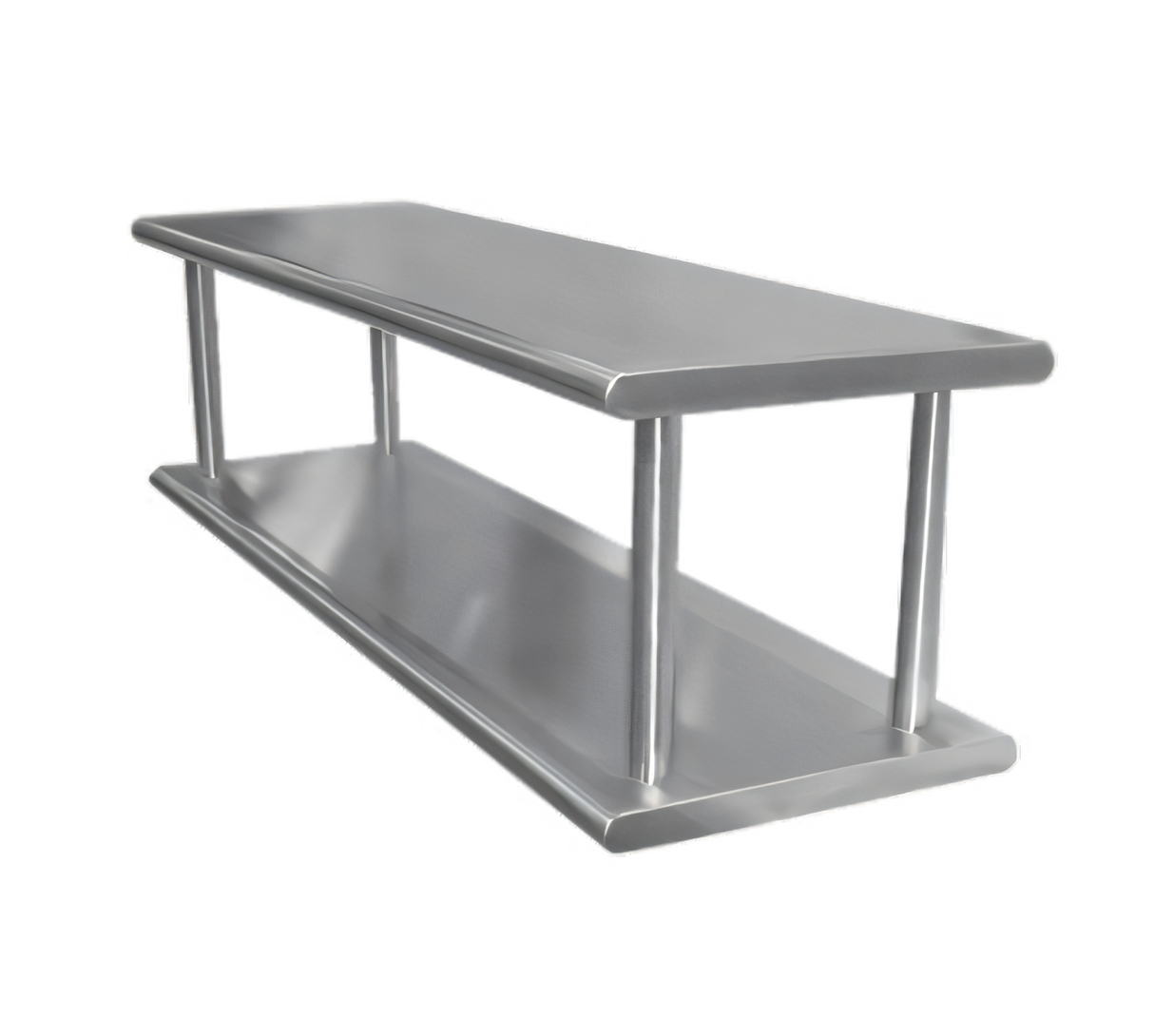

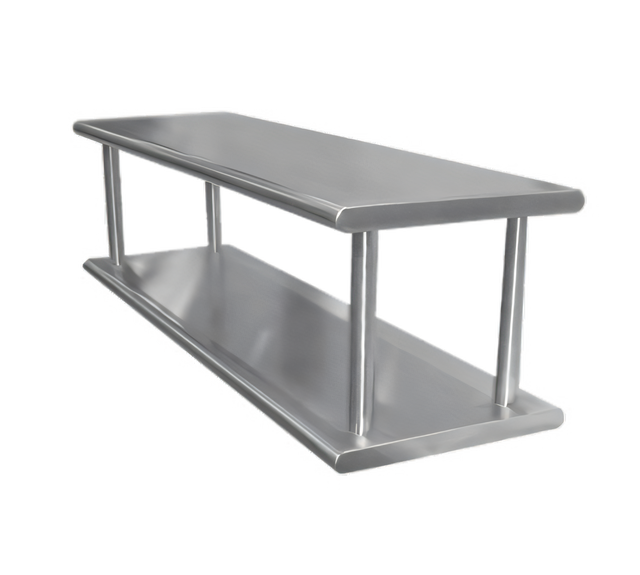

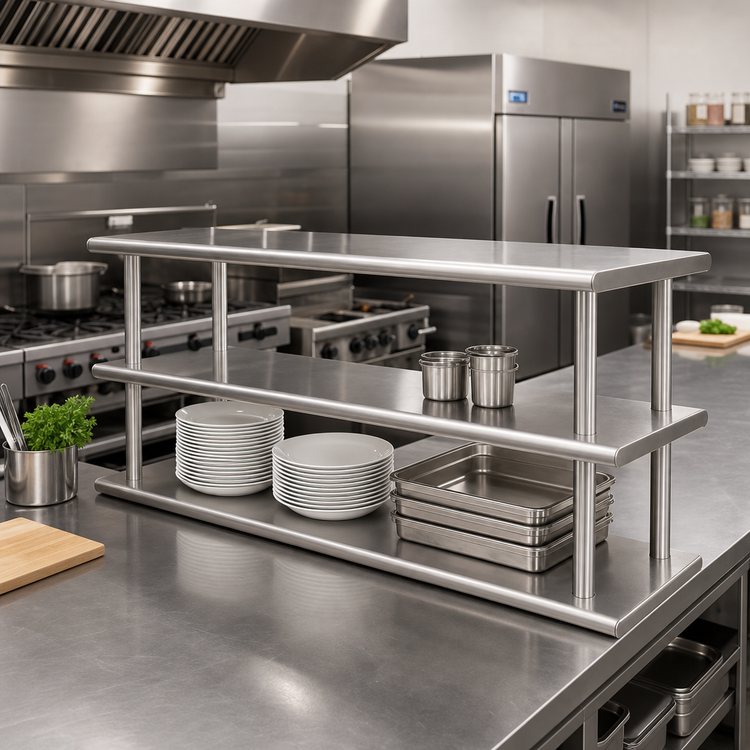

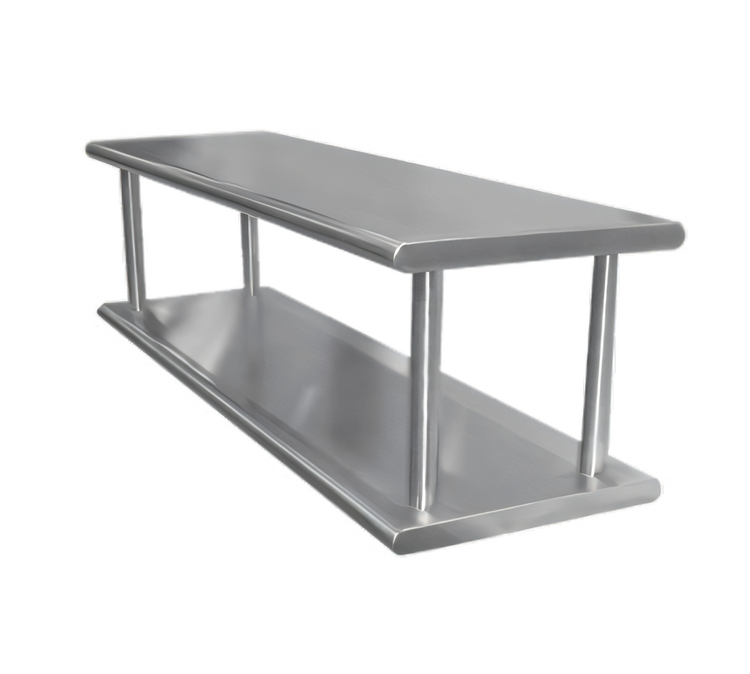

Advance Tabco 120" Pass-Thru Shelf with Fixed Overshelf – 18" Deep
Model PA-18-120-2 | Double-Tier 18 ga 430 SS ConstructionMaximise plating speed and keep both sides of the line moving with this heavy-duty, two-tier pass-thru shelf from Advance Tabco. Designed for 10 ft service openings, it ships fully assembled and includes everything you need to mount it securely, so you can start putting it to work the moment it arrives.

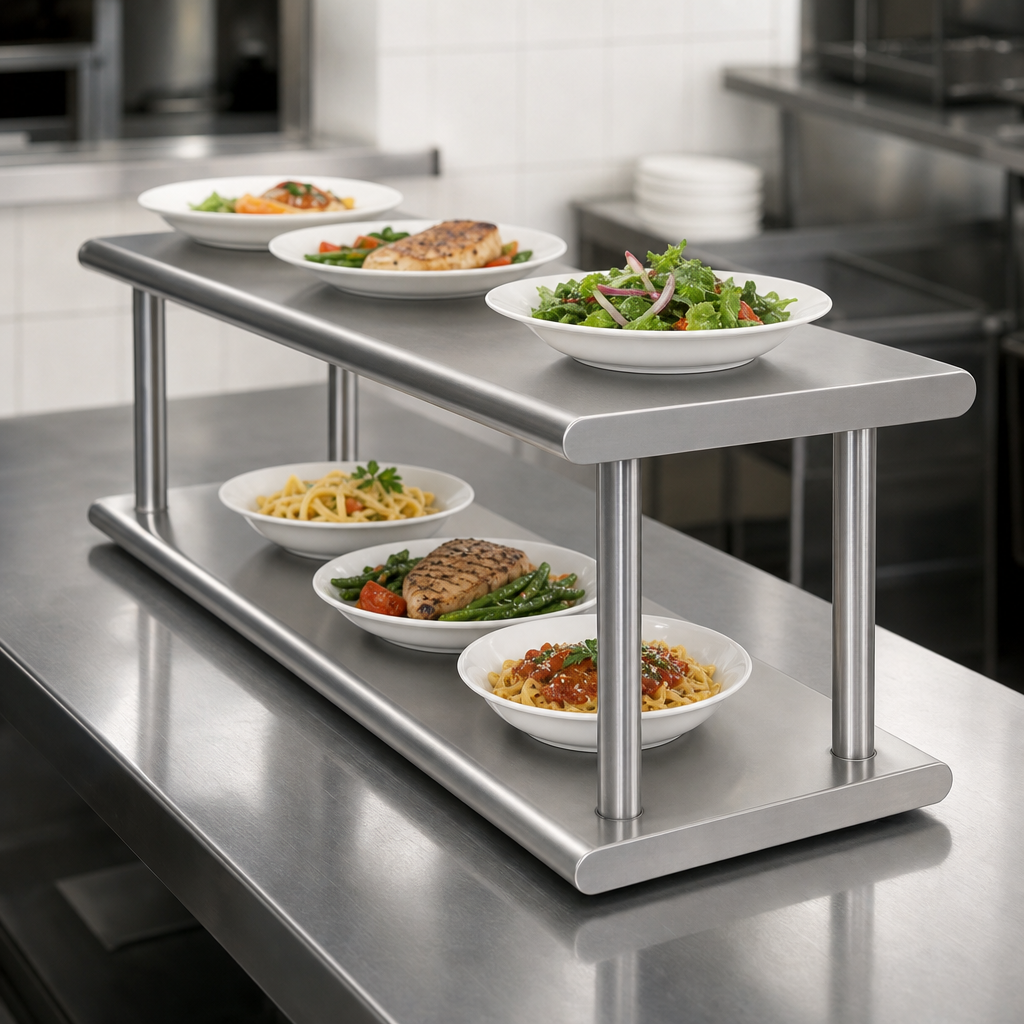

Key benefits- Two independent work surfaces — 14" vertical clearance lets pans, plates and small equipment slide straight through.

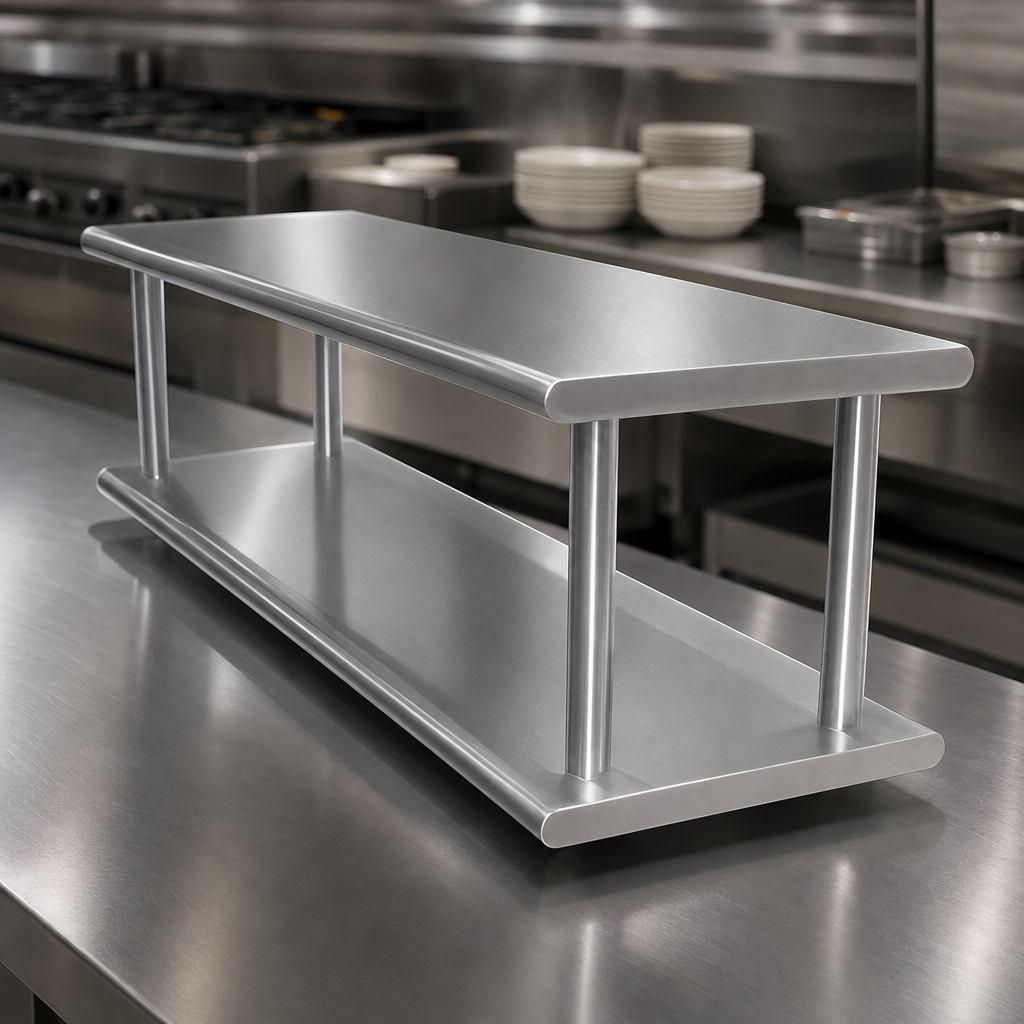

- Full 120" x 18" footprint in space-saving 18 ga type 430 stainless steel.
- Bull-nose front & rear edges with square ends and 1-1/2" sanitary turn-down for quick wipe-downs and safer handling.
- 1-5/8" Ø stainless steel tubing posts with welded centre support (required on shelves 96"+) – rock-solid stability even when fully loaded.
- New galvanized hat-channel design allows the lower shelf to be positioned exactly where you need it.
- Ships assembled and includes four 3" × 4" stainless steel L-brackets for wall attachment.
- NSF listed for food-contact applications.
| Overall width | 120" (3048 mm) |
|---|---|
| Overall depth | 18" (457 mm) |
| Number of tiers | 2 (lower pass-thru shelf & fixed overshelf) |
| Clearance between shelves | 14" |
| Lower shelf height above wall opening | 1-1/2" |
| Shelf material | 18 ga type 430 stainless steel, TIG-welded & polished |
| Support posts | 1-5/8" Ø stainless steel tubing (with centre post on 96"+ models) |
| Hat channel | Heavy-gauge galvanized steel |
| Included hardware | (4) 3" × 4" stainless steel L-brackets for wall mounting |
| Shipping weight | Approx. 280 lb (127 kg) |
| NSF certification | Yes |
Installation note: The wall or curb must be capable of supporting the shelf’s weight plus any service load.
Mounting screws/anchors are field-supplied to suit your wall construction.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
16.0in
Width
120.0in
Depth
18.0in
Shipping Weight
280.0lbs
Width (side - side)
120"
Type
double
Construction
stainless steel
Depth (front - back)
18"
Specifications
Pass-Thru Shelf, double tier, 120"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
