Advance Tabco PA-18-108-2 Wire Shelving
$2,494.00
Unit price
/
Unavailable
Description

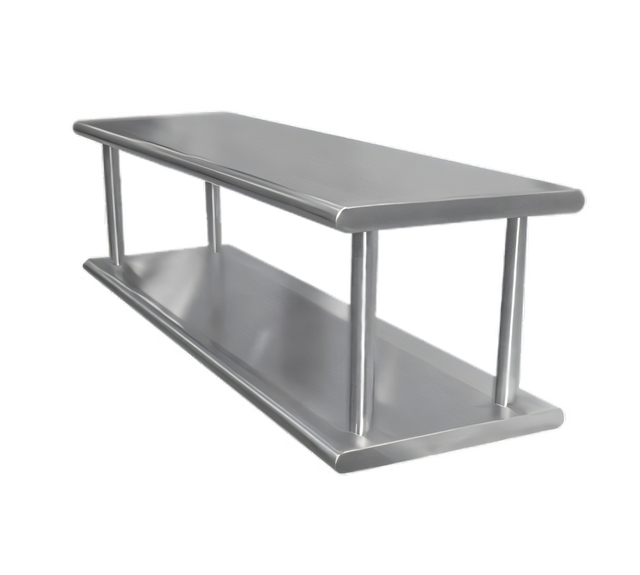

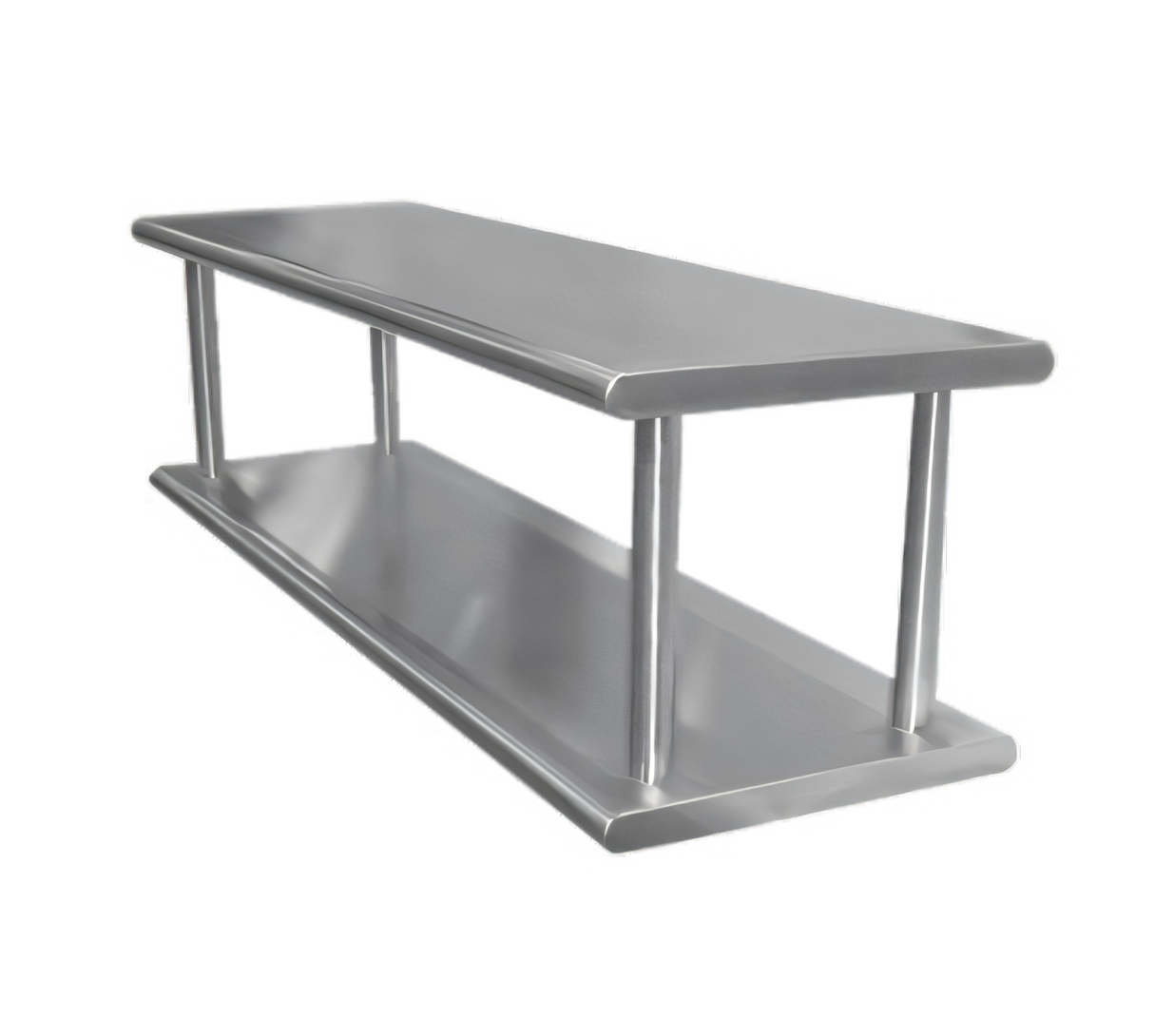

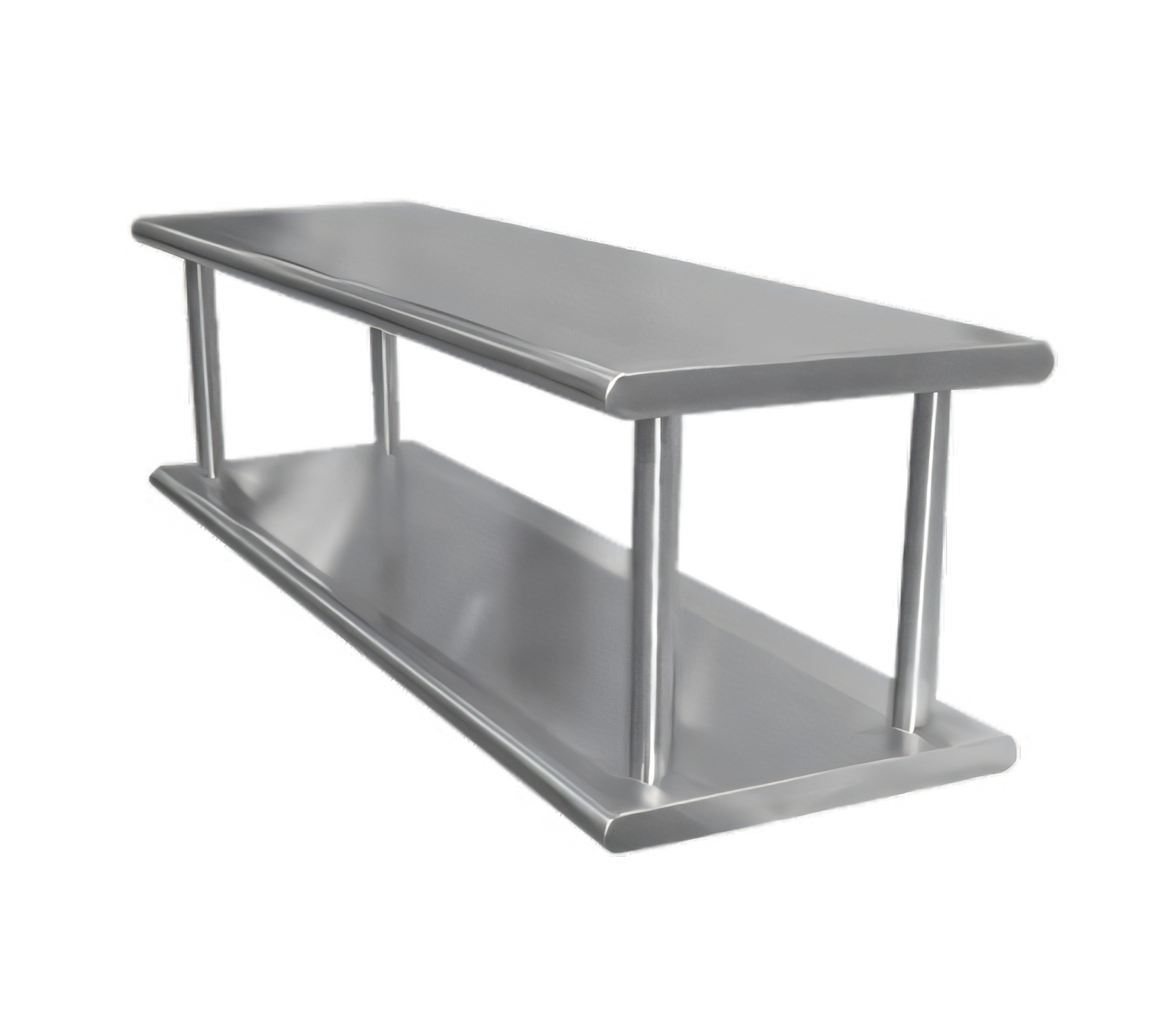

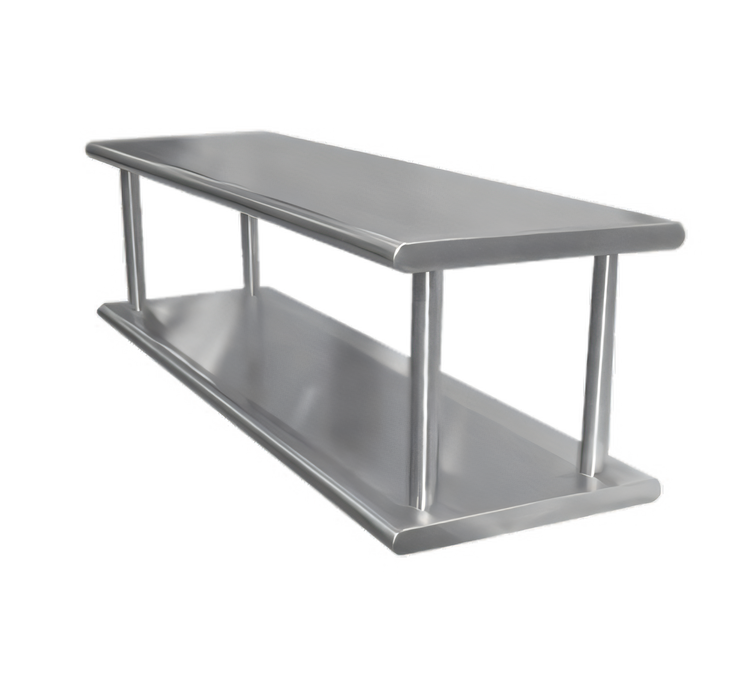

108" x 18" Stainless Steel Pass-Thru Shelf & Overshelf – Double Tier
Advance Tabco Model PA-18-108-2Expand plating, staging, or service capacity on even the busiest cook-lines with this heavy-duty, two-level pass-thru shelf. Engineered and factory-welded by Advance Tabco, the 108" wide unit arrives fully assembled and ready to bolt in place, giving you a rock-solid stainless work surface on both tiers.
Key Features

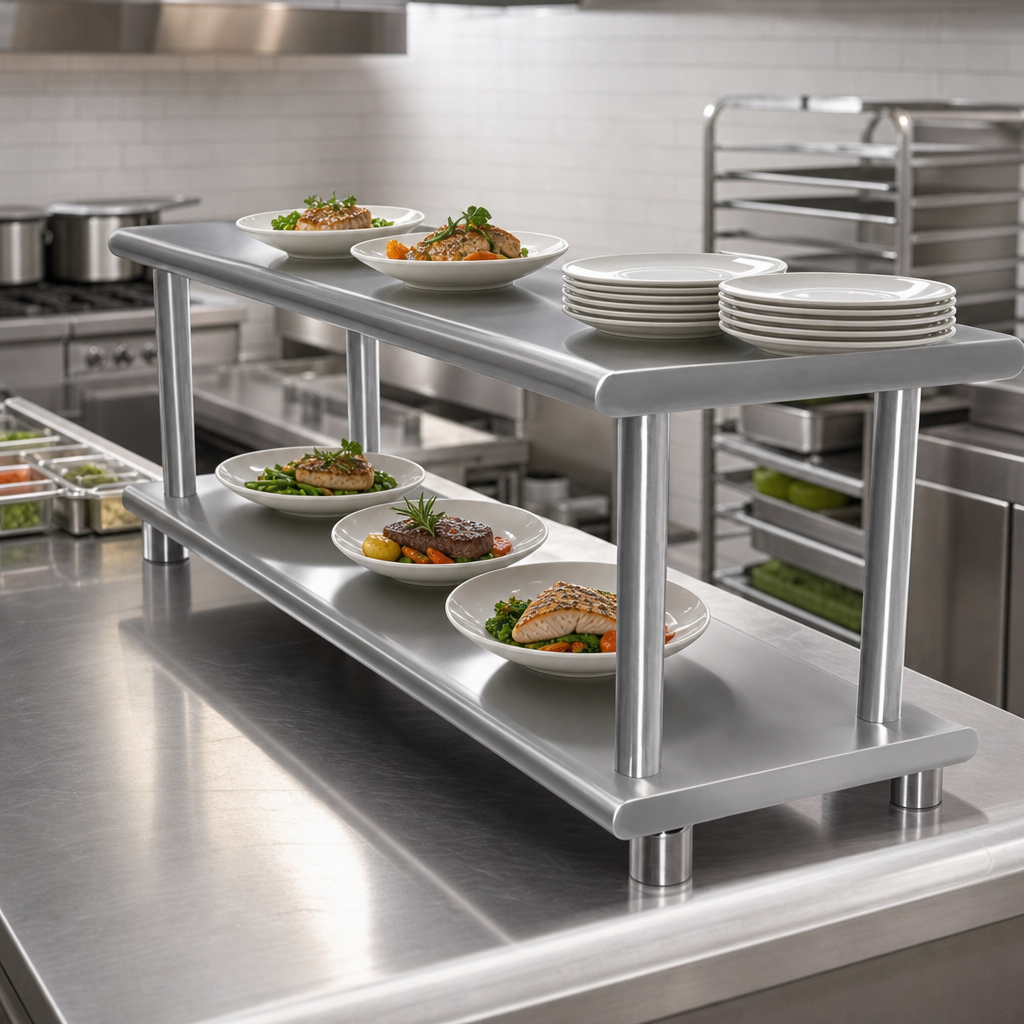

- Two seamless work surfaces: lower pass-thru shelf plus fixed overshelf 14" above.
- 18 ga. Type 430 stainless steel with sanitary 1-1/2" bull-nose edge on front & rear.
- 1-5/8" stainless tubing posts and galvanized hat channels for unmatched rigidity.
- New hat-channel design lets the lower shelf be positioned exactly where you need it.
- Includes (2) 3" × 4" stainless steel L-brackets for secure wall mounting.
- Center tube support supplied on all lengths 96" and longer for extra stability.
- Ships fully TIG-welded and polished—no field assembly required.
- NSF compliant construction for easy code approvals.
At-a-Glance Specifications
| Overall width | 108 in. |
|---|---|
| Shelf depth | 18 in. |
| Tier spacing | 14 in. between lower and upper work surfaces |
| Lower shelf height | 1-1/2 in. higher than wall opening it rests on |
| Edge profile | Bull-nose front & rear; square sides with 1-1/2" turn-down at wall |
| Material | 18 ga. Type 430 stainless steel shelves & brackets |
| Post construction | 1-5/8" O.D. stainless steel tubing |
| Support channels | Heavy-gauge galvanized hat channel |
| Included hardware | (2) 3" × 4" stainless steel L-brackets; mounting fasteners by others |
| Shipping weight | ≈ 252 lb. |
| Certifications | NSF |

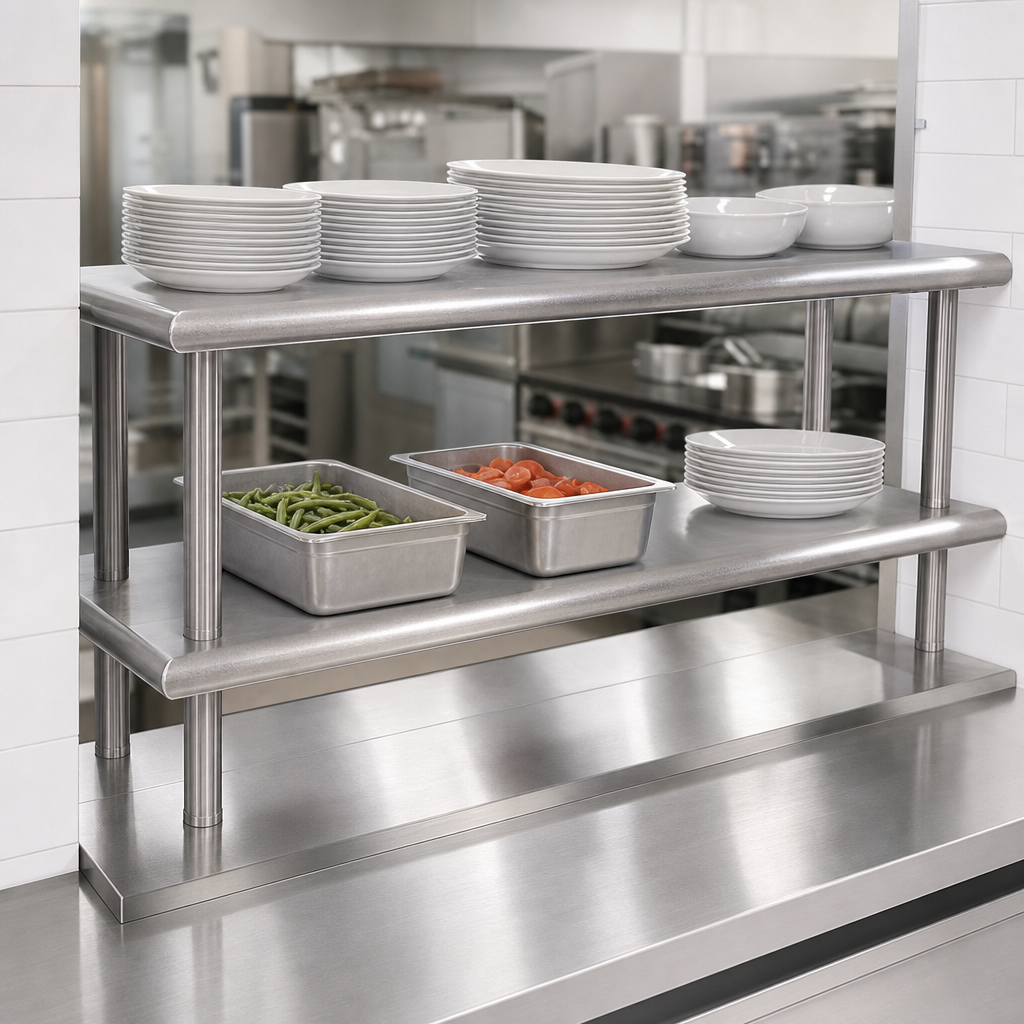

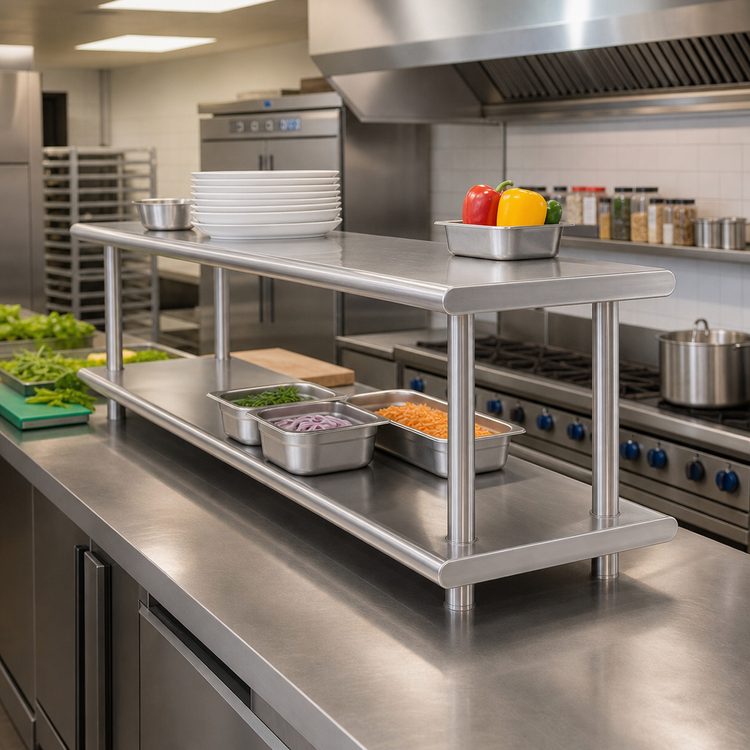

Ideal Applications
- Pass-thru windows between kitchen & service areas
- Expedite and plating stations
- Cafeteria and buffet service lines
- High-volume commissaries or ghost kitchens
Installation Note: This unit weighs over 250 lb. Ensure that wall substrates, anchors, and field fasteners (not included) are rated to support the shelf’s full live-load capacity.
Advance Tabco continually improves its products and may change specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
16.0in
Width
108.0in
Depth
18.0in
Shipping Weight
252.0lbs
Construction
stainless steel
Width (side - side)
108"
Depth (front - back)
18"
Type
double
Specifications
Pass-Thru Shelf, double tier, 108"W x 18"D, bull nose front & rear with square sides, 18/430 stainless steel, 1-5/8" stainless steel tubing post, galvanized hat channel, includes: 3" x 4" stainless steel L-brackets to secure to wall (upper shelf work surface is 14" above lower shelf work surface) (note: lower shelf work surface will be 1-1/2" higher than the wall it rests on)
