Advance Tabco

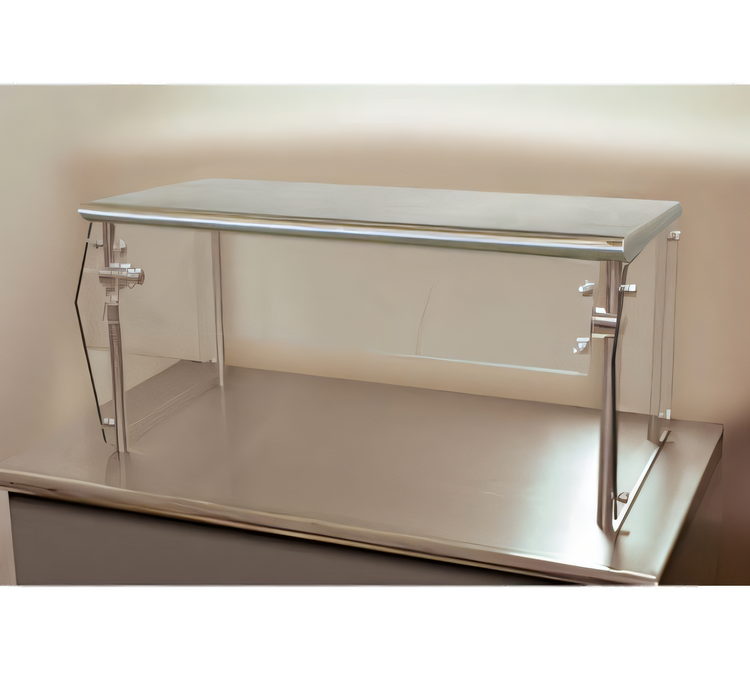

Advance Tabco Sleek Shield Single-Sided Self-Service Food Shield with Stainless Steel Shelf and Adjustable Front Glass, 48 x 15 Inch

SKU: NSG-15-48
GTIN: 747545173348
$2,412.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Food Bar Accessories Food Bar Tray Slides & End Shelves General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts Stainless Steel Shelving Storage & Shelving

Advance Tabco Sleek Shield Single-Sided Self-Service Food Shield with Stainless Steel Shelf and Adjustable Front Glass, 48 x 15 Inch

Heat-Tempered Glass, Satin Finish, Concealed Mounting

Designed for self-service stations, this 48-inch food shield pairs adjustable heat-tempered glass with a durable stainless steel shelf for clean, attractive food protection.

  • Single-sided, self-service food shield for 48-inch food bar stations
  • Adjustable front glass locks in 15° increments with Chamber Lock technology
  • 1/4-inch heat-tempered front and side glass for durability and visibility
  • 18-gauge Type 430 stainless steel shelf with 1-inch stainless steel posts
  • TIG-welded construction with satin-finished stainless surfaces for a clean presentation
  • Concealed mounting hardware and brass expander included for undermount installation

Overall Dimensions:

48.0"W x 15.0"D x 19.25"H

Product Weight:

155.0 lb

Chamber Lock Adjustable Front Glass

Front glass rotates and locks in 15-degree increments for flexible serving angles.

Heat-Tempered Glass Panels

Includes 1/4-inch heat-tempered front and side glass for protection and clear visibility.

Stainless Steel Shelf

18-gauge Type 430 stainless steel shelf provides a durable, easy-to-clean serving surface.

Stainless Steel Posts

1-inch diameter stainless steel posts support the food shield assembly.

TIG-Welded Construction

All TIG welded for strength, with exposed stainless steel surfaces polished to a satin finish.

Concealed Mounting Hardware Included

Standard concealed fastener mounting hardware includes a brass expander; access below the countertop is required for installation.

NSF-Ready Side Glass Sizing

Side glass panels are sized to meet NSF requirements for food shield applications.

Type Food Shield
Style Single-Sided Self-Service
Installation Type Countertop
Material Stainless Steel
Finish Satin Finish
Shipping Width 48 Inches
Shipping Depth 15 Inches
Shipping Height 20 Inches
Shipping Weight 155 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Video PDF Download

Frequently Asked Questions

The front glass locks in place at 15-degree intervals using Chamber Lock technology mounted to the upright legs.
It uses an 18-gauge Type 430 stainless steel shelf, 1-inch stainless steel posts, 1/4-inch heat-tempered glass front and side panels, and anodized aluminum Chamber Lock assemblies.
The standard glass opening is 10-1/2 inches, with a maximum of 13 inches from the table to the bottom of the glass.
Standard concealed mounting requires access below the countertop, a 3/8-inch hole in the table top, and a countertop thickness of up to 1-3/4 inches.
Yes. The GSG-15-48 is the 48-inch-wide glass-top version referenced in the documentation.
No. The documentation states that Sleek Shield food shields are non-stock special order items and may not be canceled once ordered.
