Advance Tabco MACP-5-DR Serving Counters
$9,648.00
Unit price
/
Unavailable
Description

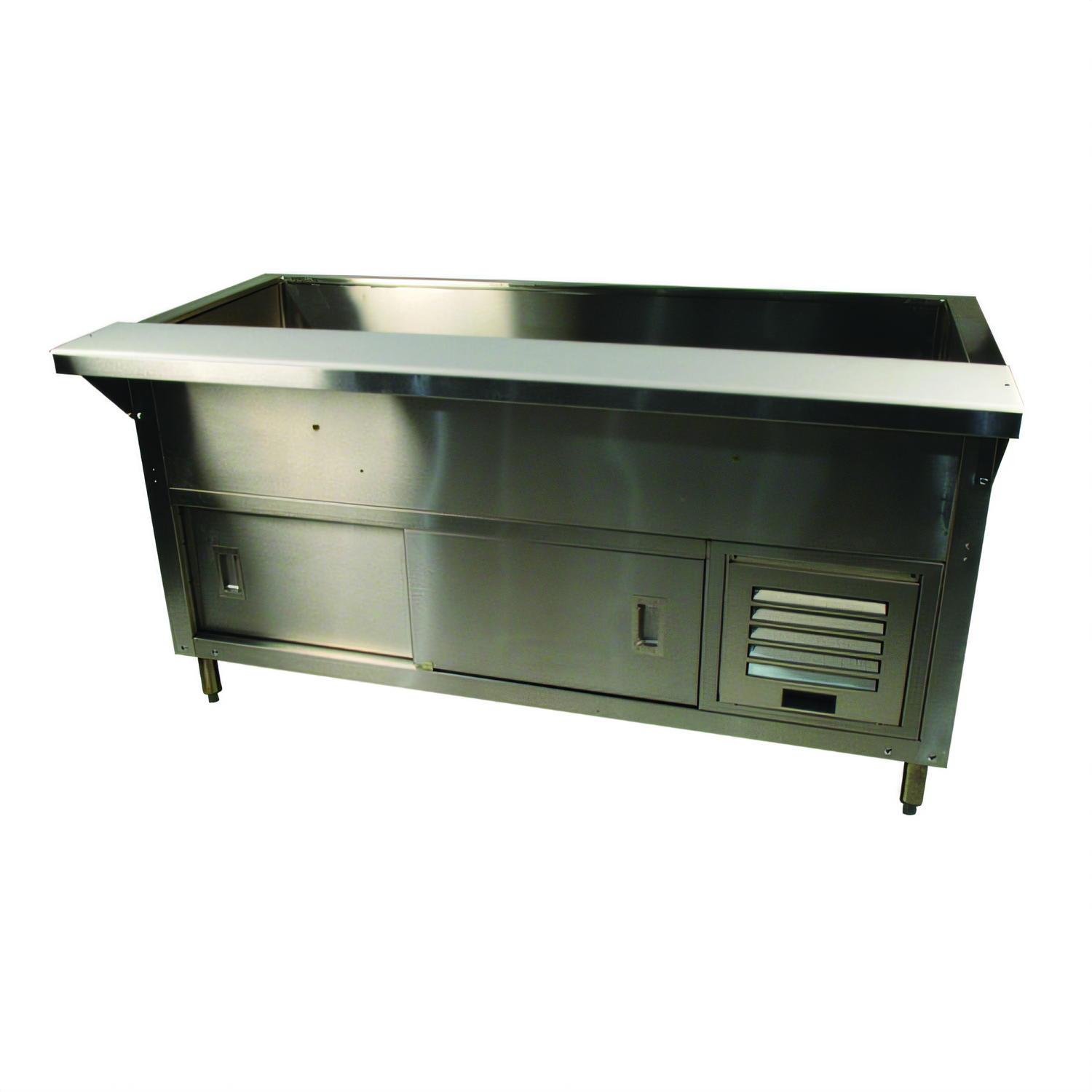

Advance Tabco MACP-5-DR Refrigerated Cold Pan Table, 5-Well, 77 3/4"
Mechanically-assisted refrigeration with enclosed base & sliding doorsKeep salads, deli items, desserts and toppings perfectly chilled and ready for service. The MACP-5-DR combines a high-capacity cold pan, full stainless steel work surface and generous dry storage—everything you need for a streamlined cold-food station in one self-contained unit.
Key Advantages

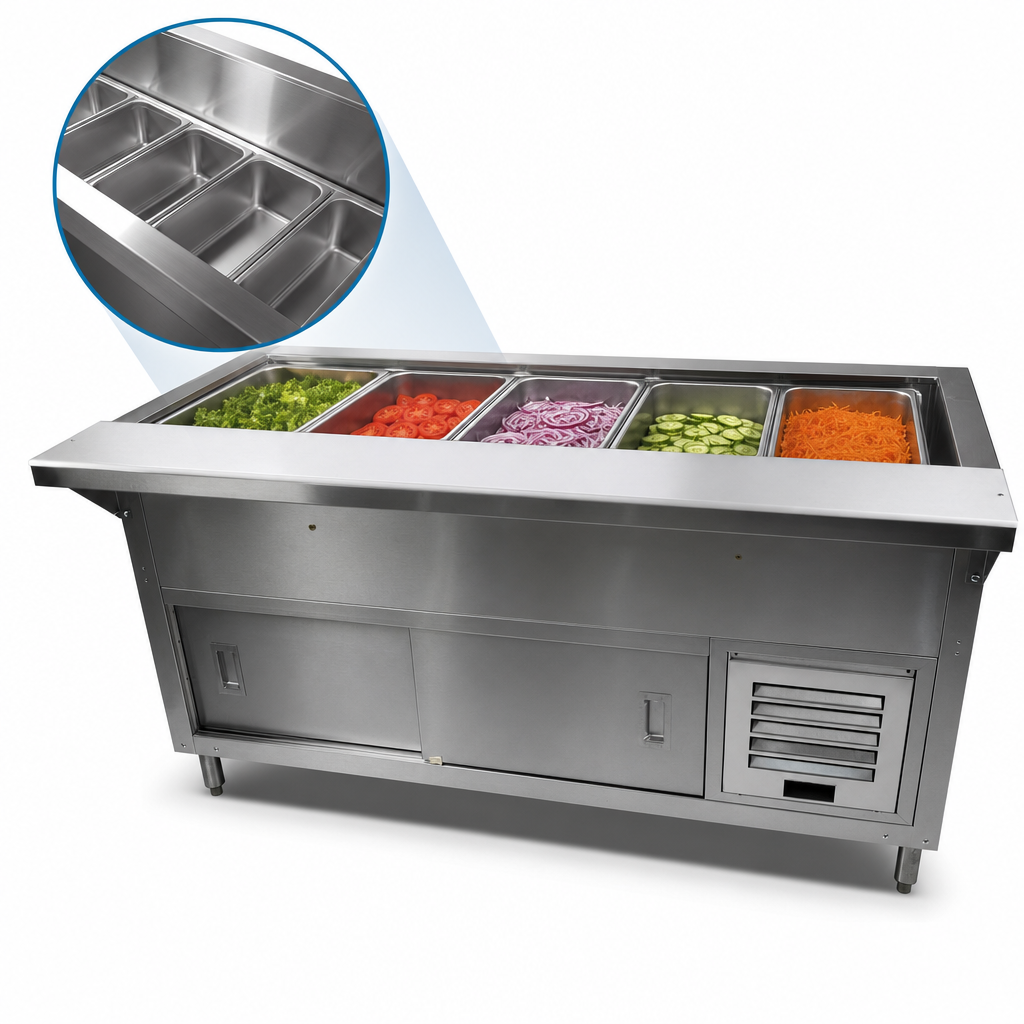

- Fully insulated 8" deep well fits (5) full-size 12" × 20" pans up to 6-1/4" deep, with extra air space below each pan for even circulation.
- Digital, programmable thermostat holds pre-chilled food safely below 41 °F.
- 8" D × 3/8" thick white thermoplastic cutting board creates a convenient prep or plating zone.
- Stainless steel enclosed base with rear sliding doors keeps utensils, lids and backup stock out of sight yet within reach.
- High-efficiency refrigeration system features an expansion valve, aluminum-encased copper evaporator panels, filter drier, sight glass & liquid receiver for reliable performance in any kitchen environment.
- Ships ready to plug in—115 V, 8 A, 1/3 HP with a 6' cord and NEMA 5-15P plug.
- Adjustable stainless steel legs with non-marking plastic bullet feet level the unit on uneven floors.
- ETL US & ETL-Sanitation listed for electrical & food-safety compliance.
Built for Daily Demands
- Top & liner: 18 ga 304 stainless steel, one-piece welded and coved for quick wipe-downs.
- Cabinet base: 20 ga 304 stainless steel resists dents and corrosion.
- Under-structure: 16 ga galvanized steel houses the self-contained condensing unit for easy service access.
- 1" I.P.S. drain speeds cleanup at the end of the shift.
Dimensions & Utilities
| Overall (W × D × H) | 77 3/4" × 30 3/4" × 34 1/8" |
|---|---|
| Pan Opening | 73 1/4" × 20" × 8" deep |
| Pan Capacity | (5) 12" × 20" full-size pans, up to 6-1/4" deep |
| Electrical | 115 V / 60 Hz / 1-phase / 8 A | 1/3 HP compressor | NEMA 5-15P |
| Refrigerant | R-404A (environmentally friendly) |
| Shipping Weight | Approx. 505 lb |
| Certifications | ETLus, ETL-Sanitation |
Compatible Accessories (sold separately)
- SU-45A Adapter Bar—12" × 1" for fractional pan layouts
- SU-45B Adapter Bar—20" × 3" for versatile pan arrangements
Important: This unit is engineered to maintain cold food at safe temperatures.
Always pre-chill product before placing it in the wells.
Advance Tabco continuously improves its products; specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
ETLus, ETL-Sanitation
Height
34.13in
Width
77.75in
Depth
30.75in
Shipping Weight
505.0lbs
Cooling Type
refrigerated
Mobile or Stationary
stationary
Base Finish
stainless steel
Overall Width (side - side)
73" - 78"
Working Height
34"
Top Construction
stainless steel top
Pan Capacity
(5) pan
Base Design
fully enclosed
Base Construction
stainless steel
Specifications
Refrigerated Cold Pan, 77-3/4"W x 30-3/4"D x 34-1/8"H (overall), fully insulated 73-1/4"W x 20"D x 8" deep well (accommodates (5) 12" x 20" pans up to 6-1/4" deep, with additional space below for cold air circulation), digital programmable thermostat, 8"D x 3/8" thick cutting board, enclosed front & sides with rear storage with sliding doors, stainless steel construction, self-contained refrigeration housed in a 16 gauge galvanized under structure, expansion valve, 1" drain, adjustable plastic bullet feet, R290 refrigerant, ETLus, ETL-Sanitation
