Key specifications
- Amps
- 8 Amps
- Phase
- 1-Phase
- Dimensions
- 77.75"W × 30.75"D × 34.13"H
- Type
- Cold Pan Table
- Style
- Enclosed Base
- Installation Type
- Floor Model
Advance Tabco MACP-5-BS 5-Pan Refrigerated Cold Pan Table
- Enclosed
- Enclosed with Sliding Doors
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

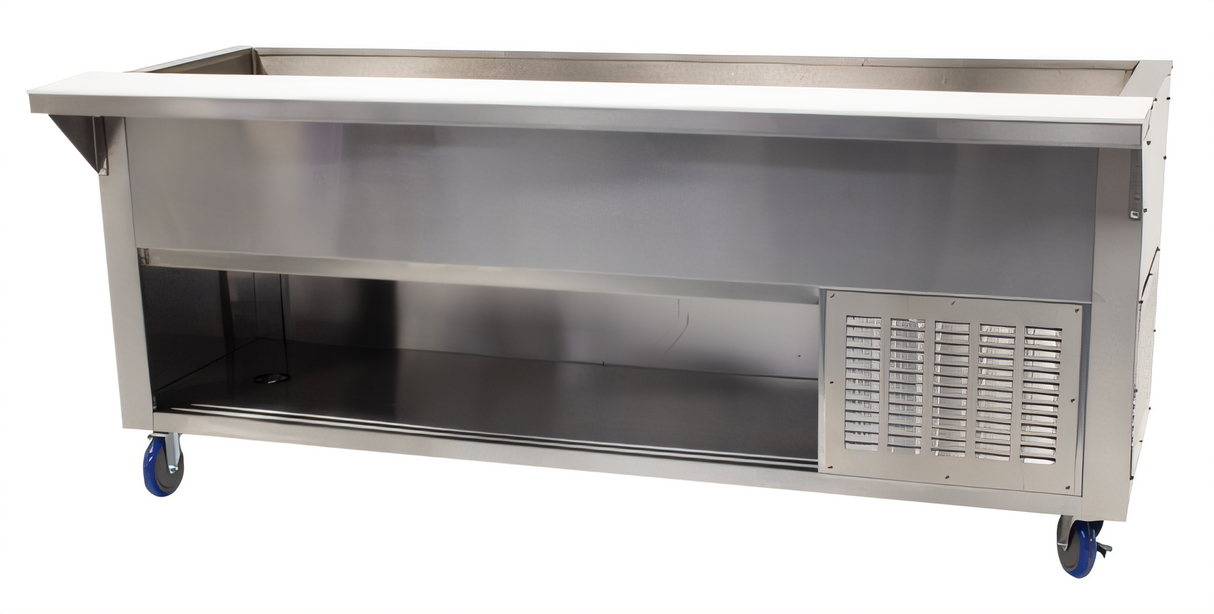

The Advance Tabco MACP-5-BS is a refrigerated cold pan table with a five-pan well, enclosed front and sides, and rear open storage.
The fully insulated 73-1/4-inch W x 20-inch D x 8-inch deep well accommodates five 12-inch x 20-inch pans up to 6-1/4 inches deep. A digital programmable thermostat controls the self-contained refrigeration system, which uses R290 refrigerant.
The stainless steel table includes an 8-inch-deep, 3/8-inch-thick white thermoplastic cutting board, a 1-inch drain, and adjustable plastic bullet feet. It is intended to maintain food that is already chilled rather than cool warm food.
- Overall dimensions: 77-3/4 inches W x 30-3/4 inches D x 34-1/8 inches H
- Electrical specification: 115 volts, 8 amps, 60 Hz, single phase
- Includes an 8-foot cord with a NEMA 5-15P plug
Overall Dimensions:
77.75"W x 30.75"D x 34.13"HProduct Weight:

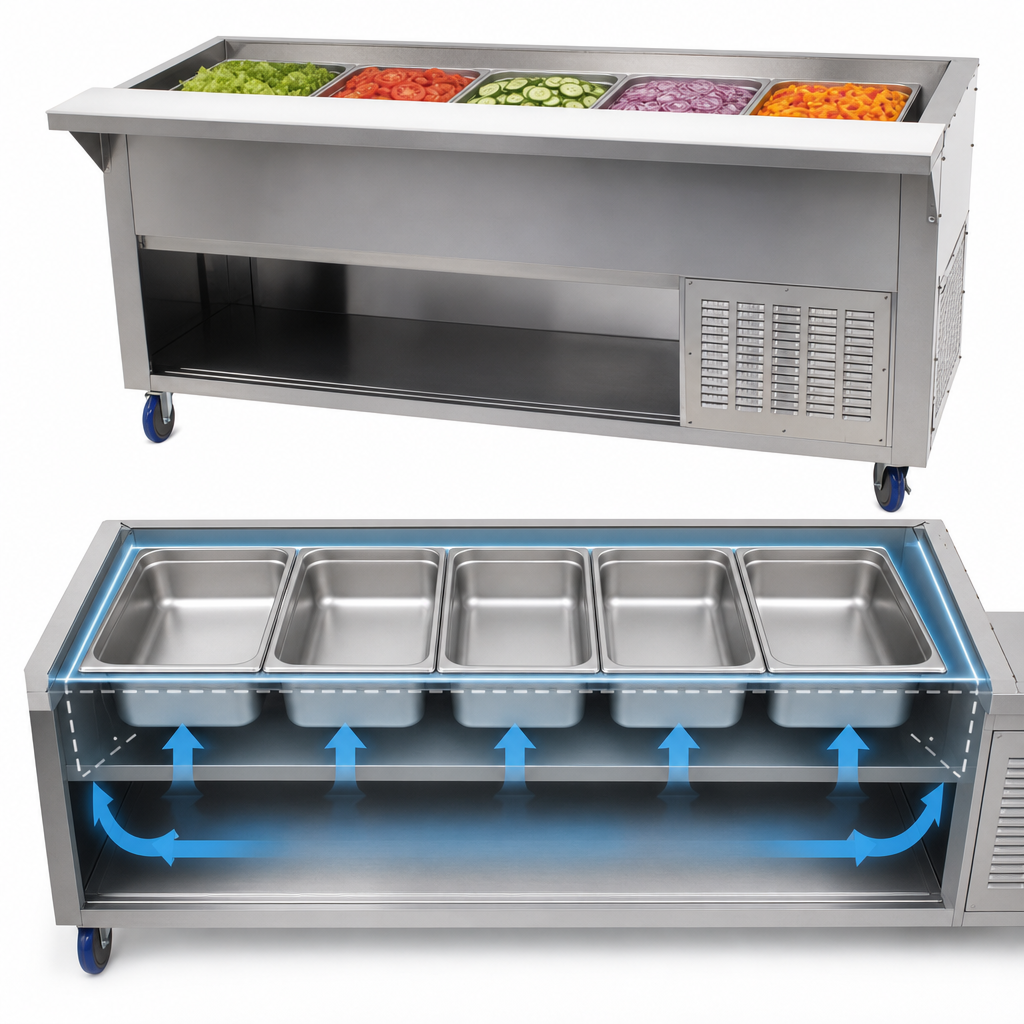

320.0 lbFive-Pan Refrigerated Well
The fully insulated 73-1/4-inch W x 20-inch D x 8-inch deep well accommodates five 12-inch x 20-inch pans up to 6-1/4 inches deep.
Enclosed Base
The front and sides are enclosed, with rear open storage.
Self-Contained Refrigeration
The refrigeration system is housed in the understructure and uses R290 refrigerant.
Digital Programmable Thermostat
Provides programmable control for the refrigerated well.
304 Stainless Steel Construction
The cabinet base, top, and liner are specified as 304 stainless steel.
Cutting Board
The unit is specified with a white thermoplastic cutting board measuring 8 inches deep and 3/8 inch thick.
Adjustable Bullet Feet
Adjustable plastic bullet feet support the table.
Expansion Valve
An expansion valve is specified for refrigeration operation at various temperature conditions.
