Advance Tabco MACP-4-DR Serving Counters
Description

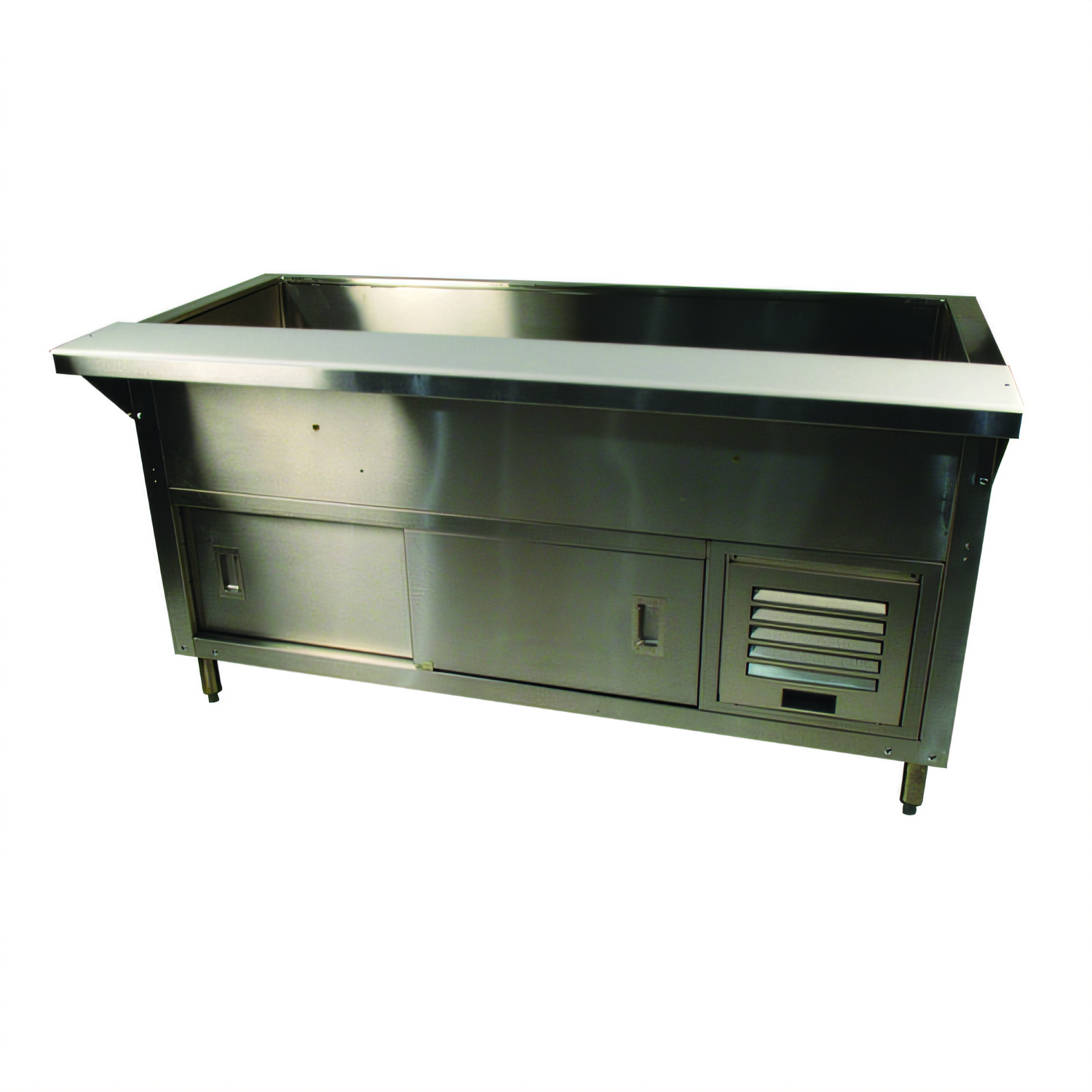

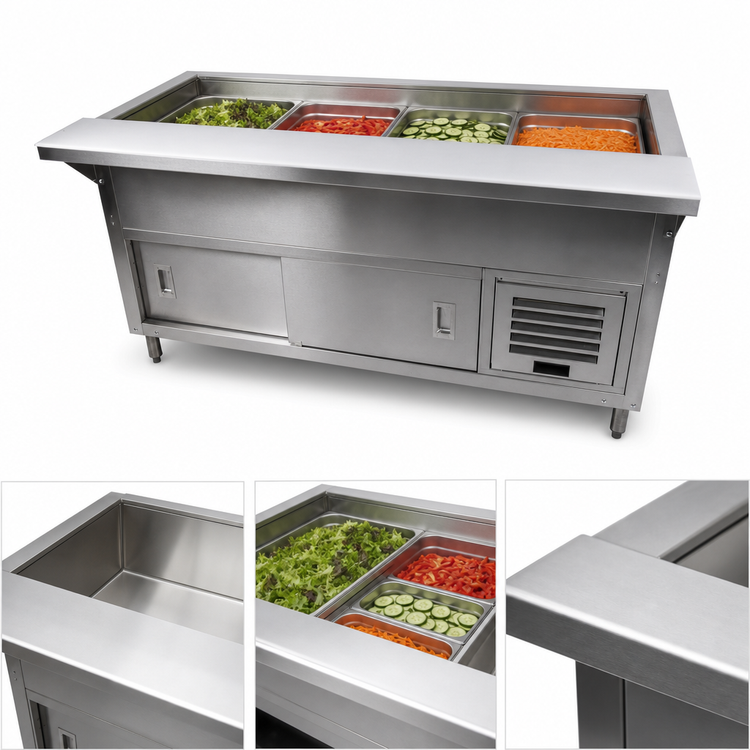

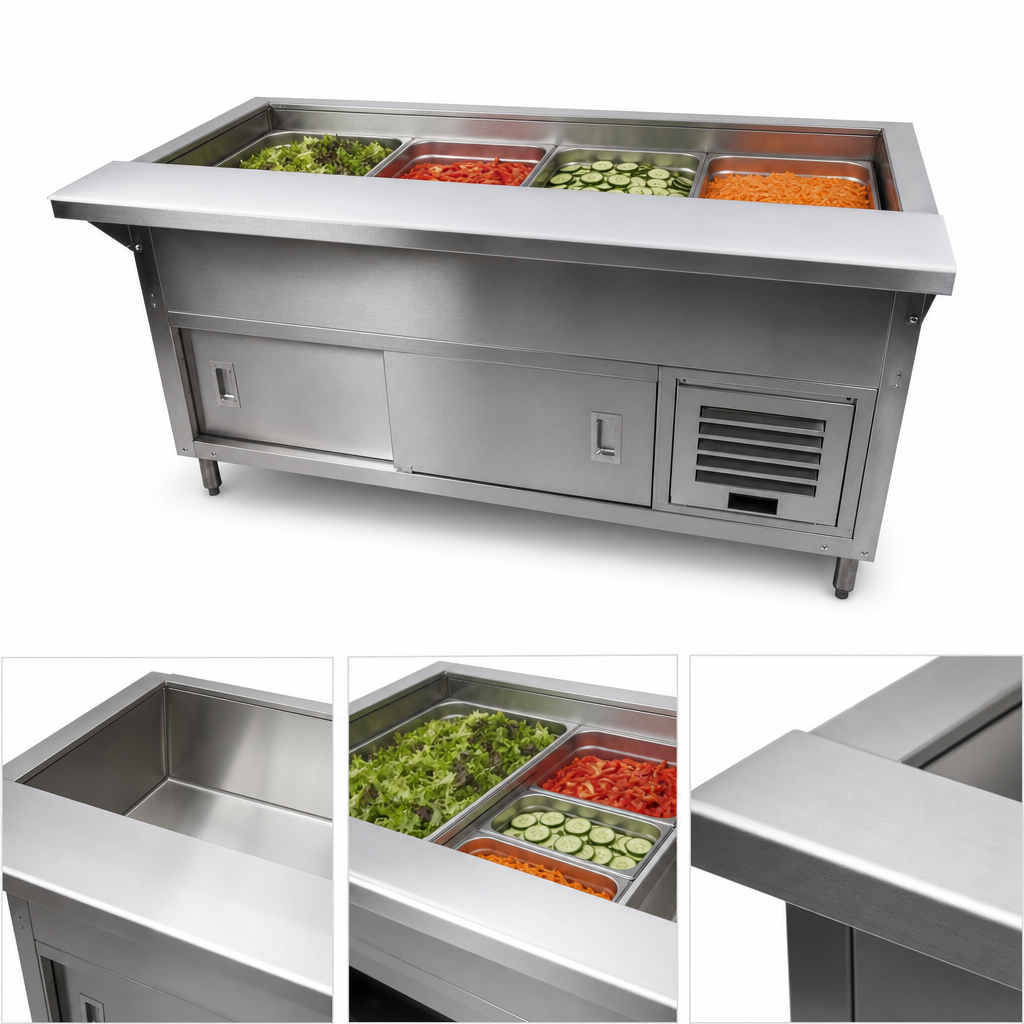

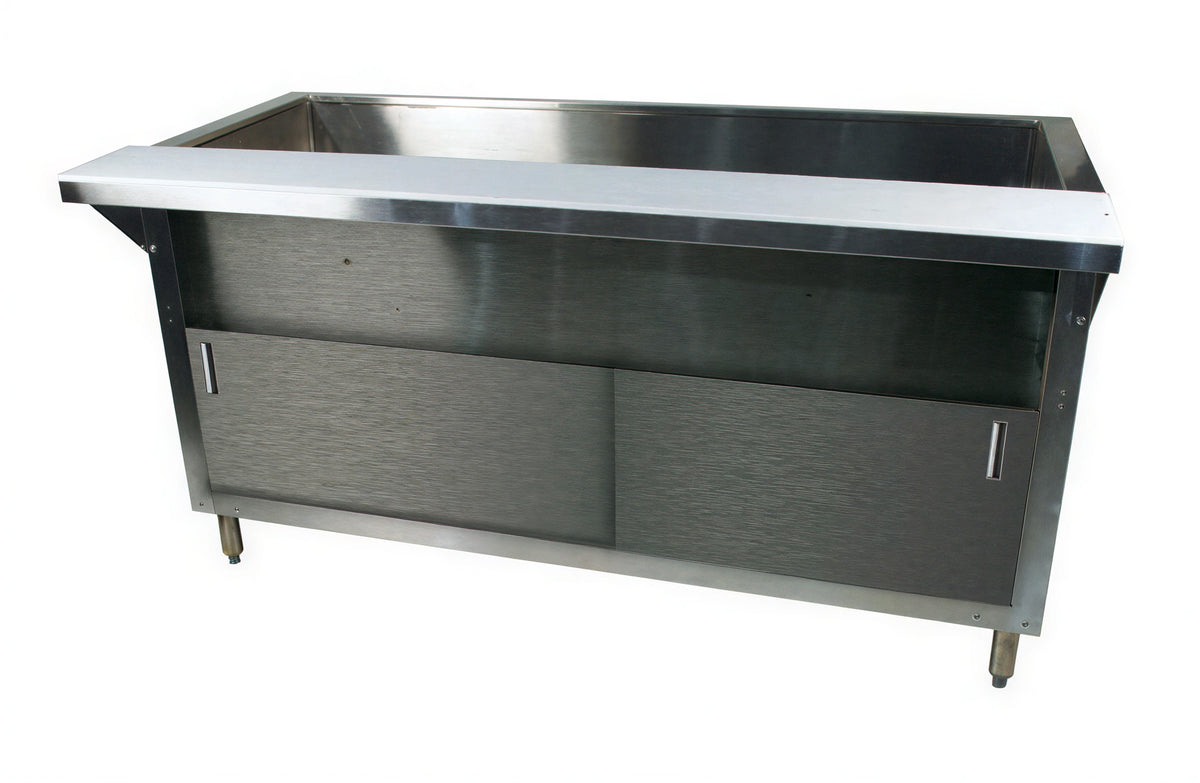

Advance Tabco MACP-4-DR Refrigerated Cold Pan Table
62-1/2" W • 4-Pan Capacity • Self-Contained & Fully InsulatedKeep salads, toppings and grab-n-go menu items at safe, appetizing temperatures inside this heavy-duty, mechanically assisted cold pan from Advance Tabco. Built for high-volume foodservice operations, the MACP-4-DR combines a powerful self-contained refrigeration system with a rugged stainless steel work station and convenient rear storage — all in one, plug-and-play unit.
Why You’ll Love It
- Fully insulated 57-15/16" W x 20" D x 8" H well holds (4) full-size 12" x 20" pans up to 6-1/4" deep.
- Aluminum-encased copper tube evaporator panels maximize contact area for faster pull-down and lower energy use.
- Digital, programmable thermostat delivers precise temperature control at the push of a button.
- 8" D x 3/8" thick white thermoplastic cutting board creates an instant prep/serve station.
- Operator-side stainless steel sliding doors hide a spacious storage cavity for utensils, condiments or back-up pans.
- Self-contained refrigeration (R404A) with expansion valve, filter drier, sight glass & liquid receiver for dependable, long-term performance.
- Durable all-welded 18 & 20-gauge #304 stainless steel construction with 16-gauge galvanized under-structure.
- Field-adjustable plastic bullet feet level the table on uneven floors without scuffing.
- Ships ready to run with a 6' cord and NEMA 5-15P plug; draws only 8 Amps on a standard 115 V circuit.
Fast Facts
| Model | MACP-4-DR |
|---|---|
| Exterior Dimensions (W x D x H) | 62-1/2" x 30-3/4" x 34-1/8" |
| Well Dimensions | 57-15/16" x 20" x 8" deep |
| Pan Capacity | 4 full-size (12" x 20") pans, up to 6-1/4" deep |
| Refrigeration | Self-contained, 1/3 HP, R404A |
| Electrical | 115 V / 60 Hz / 1-ph, 8 A, NEMA 5-15P plug |
| Drain | 1" I.P.S. welded drain |
| Cutting Board | 8" deep x 3/8" thick, removable |
| Certifications | ETLus & ETL-Sanitation listed |
| Shipping Weight | Approx. 420 lb |
Perfect For
- Salad bars, deli & sandwich stations
- Quick-service & fast-casual restaurants
- C-stores, cafeterias & buffet lines
- Catering venues needing a portable cold hold solution
Care & Compliance
- Foods must be pre-chilled before being placed in the well for safe holding.
- Flush the 1" drain after each service for optimal sanitation.
- Clean the condenser regularly to maintain peak cooling efficiency.
Need adapter bars, replacement parts or custom fabrication? Call Advance Tabco customer service at 800-645-3166 for expert assistance.
