Key specifications

Amps
8 Amps
Phase
1-Phase
Dimensions
62.5"W × 30.75"D × 34.13"H
Type
Cold Pan Table
Style
Enclosed Base
Installation Type
Floor Model
Spec sheet
Advance Tabco SKU: MACP-4-BS UPC: 747545184979

Advance Tabco MACP-4-BS 4-Pan Refrigerated Cold Pan Table

$8,320.00
/each
Estimated to ship in 4–7 business days
Width
Base Style
Factory Add-Ons
Adapter bars
Included: Advance Tabco warranty 90-day parts-only warranty from factory shipment; on refrigerated models, refrigeration components are covered 12 months parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $770/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Pan Table
Style Enclosed Base
Installation Type Floor Model
Material 304 Stainless Steel
Finish Stainless Steel
Pan Capacity 4 Pans
Pan Size 12 x 20 Inches
Well Dimensions 57.5 x 20 x 8 Inches
Maximum Pan Depth 6-1/4 Inches
Cutting Board Depth 8 Inches
Cutting Board Thickness 3/8 Inch
Cutting Board Material White Thermoplastic
Storage Type Rear Open
Mobility Stationary
Controls Digital Programmable Thermostat
Drain Size 1 Inch
Foot Type Adjustable Plastic Bullet Feet
Refrigeration Type Self-Contained
Refrigerant Type R290
Compressor Horsepower 1/3 HP
Voltage 115 Volts
Amps 8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet

Description

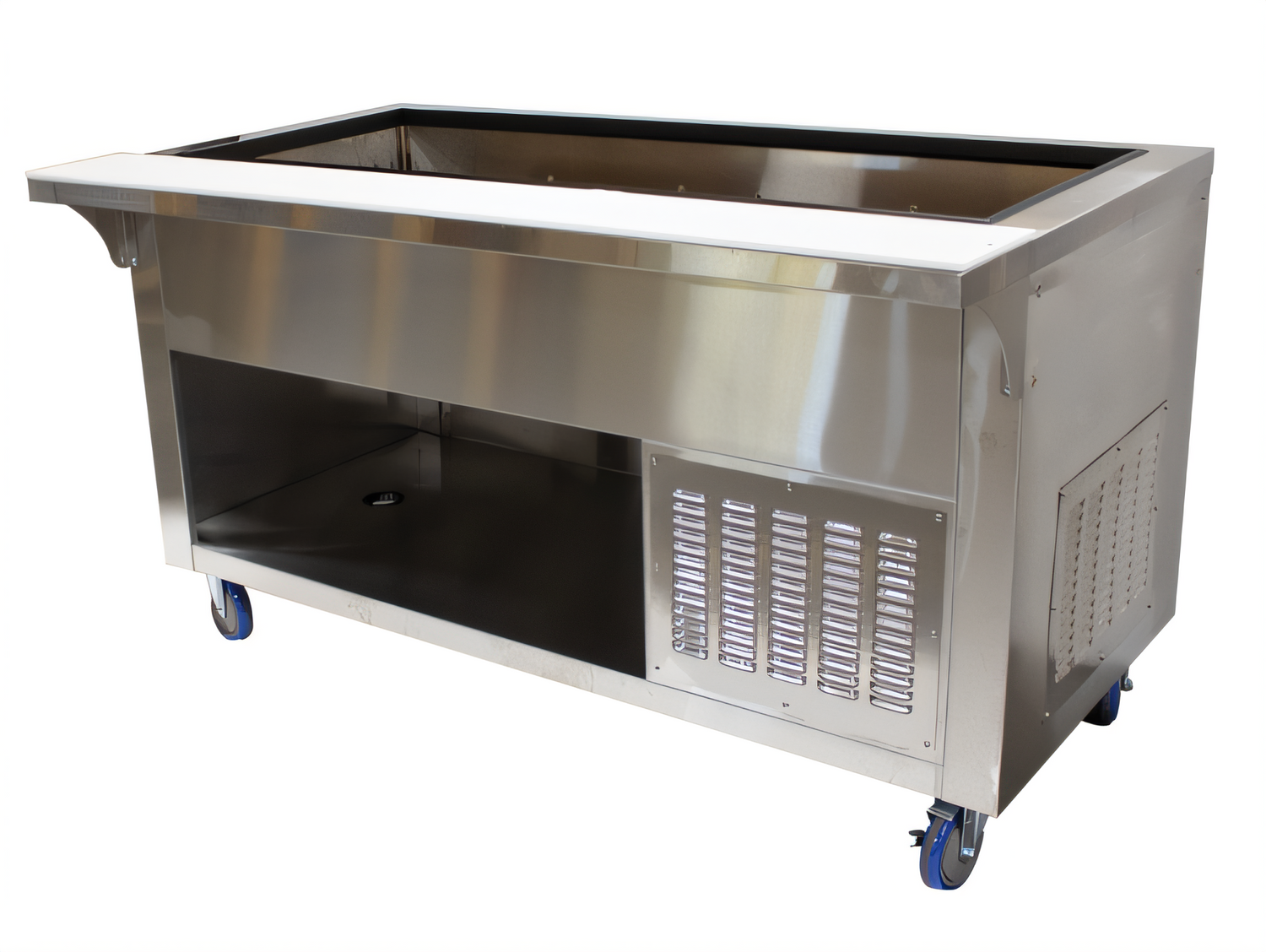

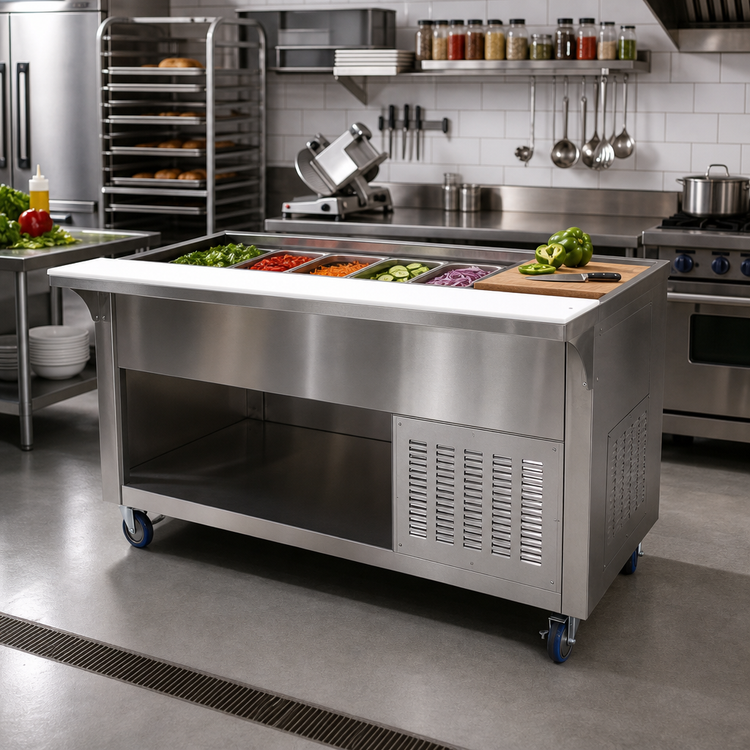

The MACP-4-BS is a four-pan refrigerated cold pan table with a fully insulated well, enclosed stainless steel front and sides, and rear open storage.

The 57.5-inch-wide by 20-inch-deep by 8-inch-deep well accommodates four 12-inch by 20-inch pans up to 6-1/4 inches deep. A digital programmable thermostat, self-contained R290 refrigeration system, and 8-inch-deep cutting board support serving and preparation workflows.

  • Overall dimensions: 62-1/2 inches wide by 30-3/4 inches deep by 34-1/8 inches high
  • 8-inch-deep, 3/8-inch-thick white thermoplastic cutting board
  • 115-volt, 8-amp, single-phase operation with an 8-foot cord and NEMA 5-15P plug
  • Includes a 1-inch drain and adjustable plastic bullet feet

Overall Dimensions:

62.5"W x 30.75"D x 34.13"H

Product Weight:

365.0 lb

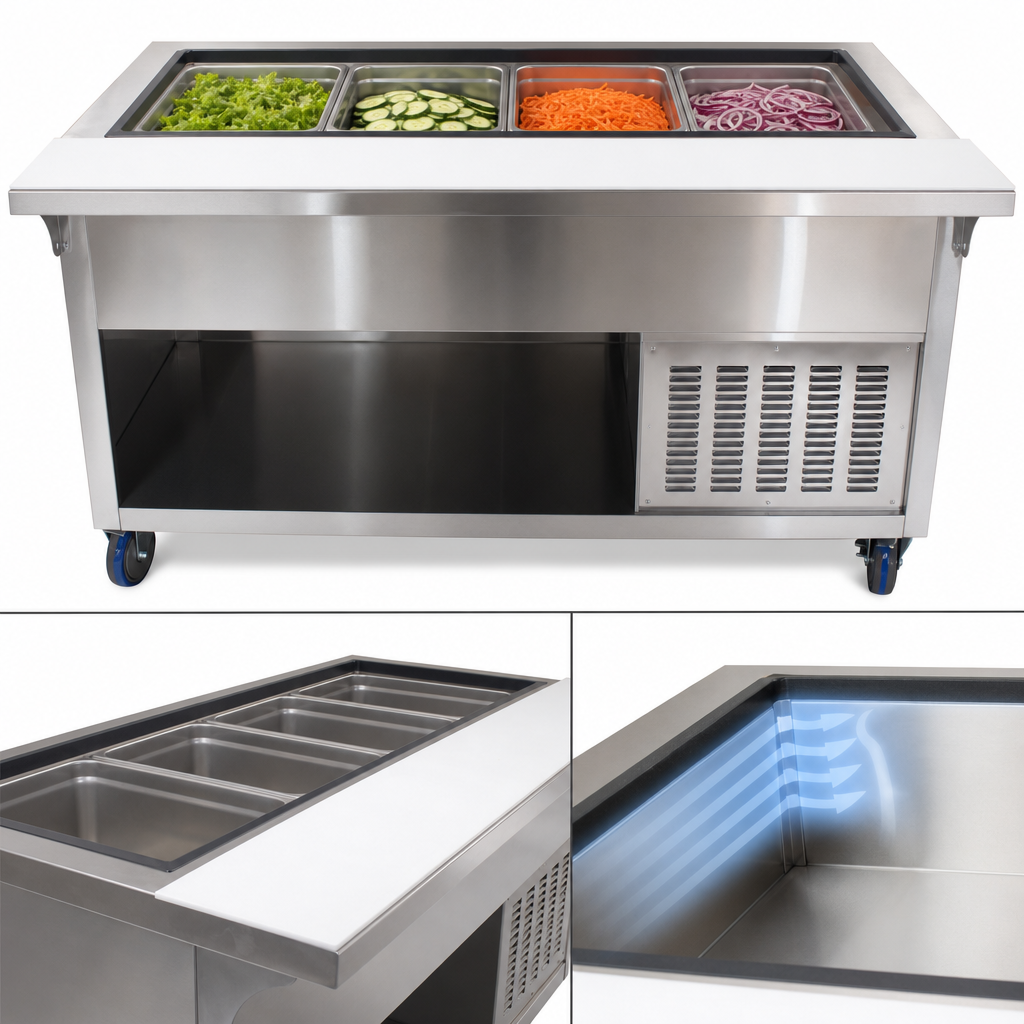

Four-Pan Refrigerated Well

The fully insulated well accommodates four 12 x 20-inch pans up to 6-1/4 inches deep.

Enclosed Stainless Steel Base

The front and sides are enclosed, with open storage at the rear.

Self-Contained Refrigeration

The refrigeration system is housed in the understructure and uses R290 refrigerant.

Digital Programmable Thermostat

Provides programmable temperature control for the refrigerated well.

Integrated Cutting Board

The unit has an 8-inch-deep, 3/8-inch-thick white thermoplastic cutting board.

Stainless Steel Construction

The cabinet base, top, and liner use stainless steel construction.

Drain and Adjustable Feet

Includes a 1-inch drain and adjustable plastic bullet feet.

Electrical Connection

Uses 115-volt, 8-amp, 60 Hz, single-phase operation with an NEMA 5-15P plug.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It accommodates four 12 x 20-inch pans up to 6-1/4 inches deep.
The overall dimensions are 62.5 inches wide by 30.75 inches deep by 34.13 inches high.
It has an 8-inch-deep, 3/8-inch-thick white thermoplastic cutting board.
It is specified for 115-volt, 8-amp, 60 Hz, single-phase operation and includes an 8-foot cord with a NEMA 5-15P plug.
No. The unit is not designed to cool foods originally warm; food should already be chilled to maintain proper temperatures.
It uses R290 refrigerant in a self-contained refrigeration system.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
