Advance Tabco | SKU:
MACP-3-DR
Advance Tabco MACP-3-DR Serving Counters
$7,610.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco MACP-3-DR Serving Counters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco MACP-3-DR Serving Counters
$7,610.00
Unit price
/
Unavailable
Description

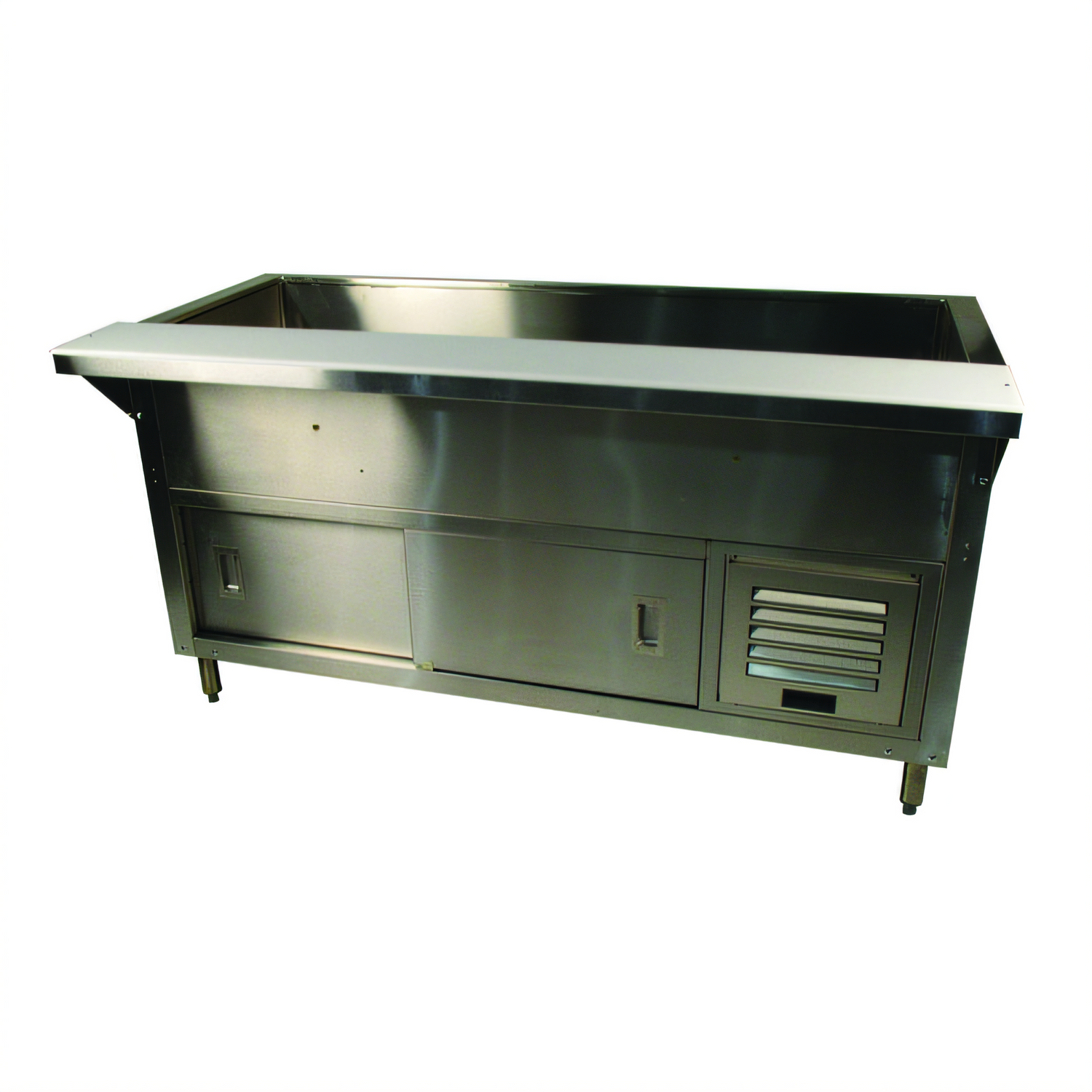

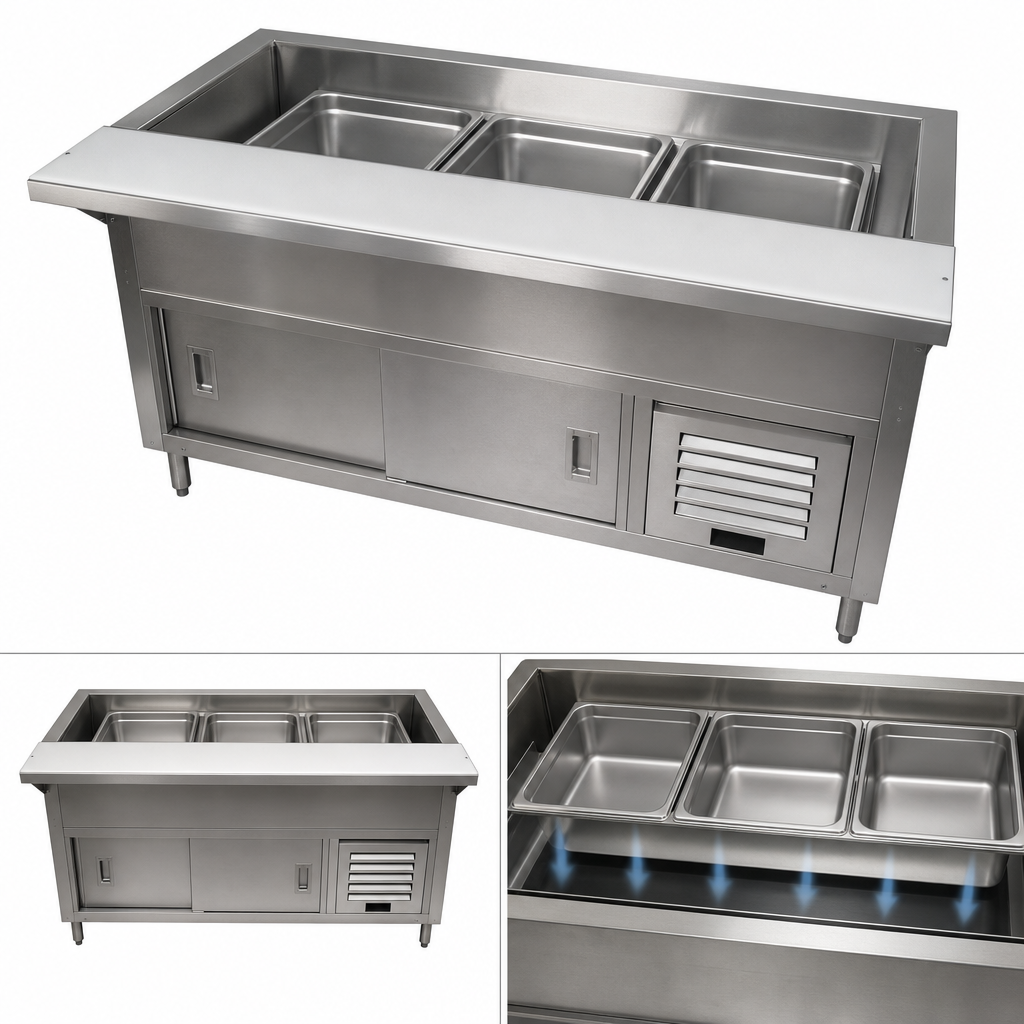

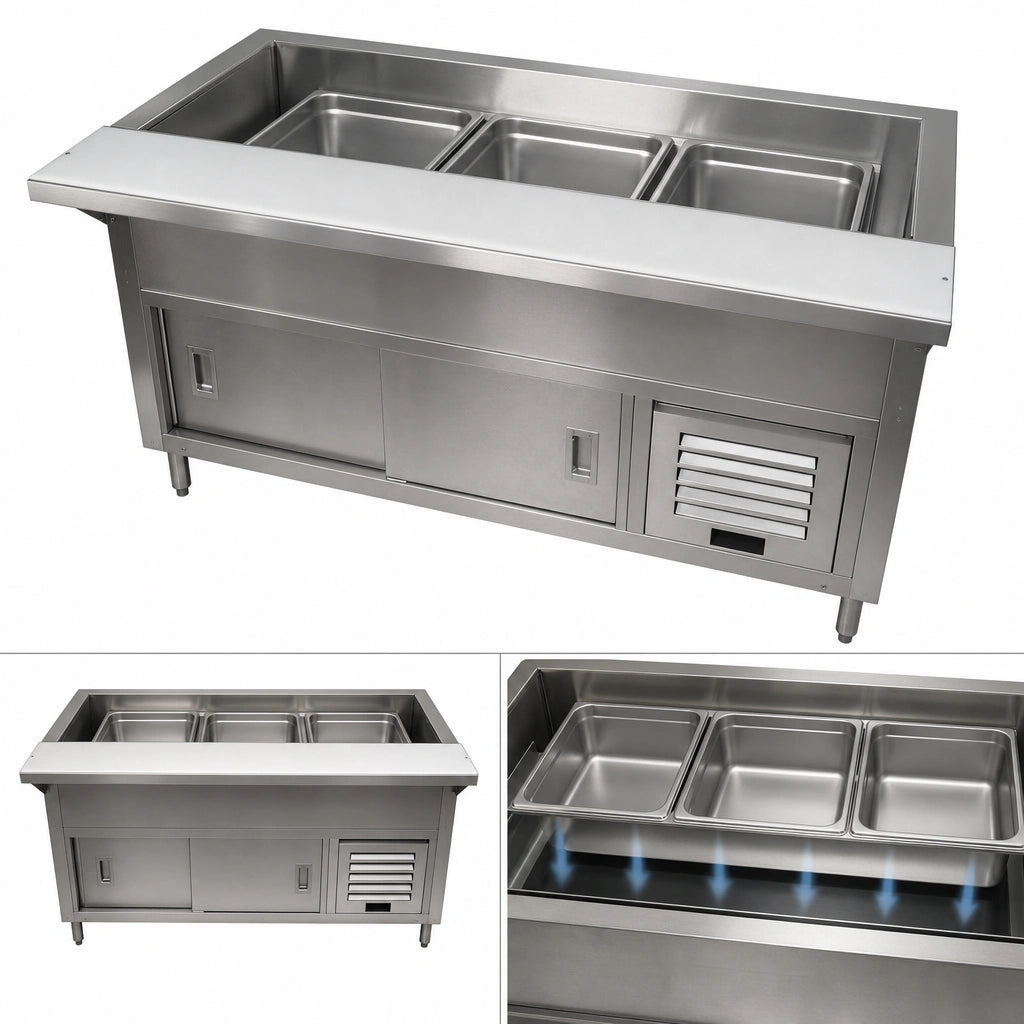

Advance Tabco MACP-3-DR Refrigerated Cold Pan Table
(3) 12" x 20" Pan Capacity • Self-Contained R404A System • Enclosed Base w/ Sliding DoorsBuilt for high-volume prep lines, the MACP-3-DR keeps pre-chilled product consistently cold while giving staff a durable cutting surface and a convenient enclosed storage base. Advance Tabco’s mechanically assisted design combines heavy-duty stainless steel craftsmanship with a high-performance refrigeration package that simply plugs into a standard 120 V outlet.
Key benefits
- Chills up to three full-size (12" × 20") pans in a fully insulated, 8" deep well.
- Digital programmable thermostat delivers precise holding temperatures with push-button ease.
- Energy-efficient refrigeration features aluminum-encased copper evaporator panels, expansion valve and sight glass for optimum charge control.
- 8"-deep, 3/8" thick white poly cutting board doubles as a sturdy prep station and removable service shelf.
- Enclosed base with two stainless steel sliding doors keeps utensils, lids and backup product out of sight yet within reach.
- Rugged stainless steel construction—18 ga. #304 top & liner, 20 ga. cabinet base—stands up to busy kitchens.
- Adjustable bullet feet level the unit on uneven floors without marring finishes.
- ETL us & ETL-Sanitation listed for electrical safety and NSF-equivalent sanitation compliance.
Refrigeration system
- Self-contained 1/5 HP hermetically sealed compressor housed in a 16 ga. galvanized under-structure.
- Charged with eco-friendly R404A refrigerant.
- Filter drier, liquid receiver and expansion valve maintain efficiency across varying loads.
- Low 8 A draw operates on any 115 V / 15 A circuit (cord & NEMA 5-15P plug included).
- 1" I.P.S. drain for quick, sanitary well clean-out.
Thoughtful construction
- One-piece, 18 ga. 304-SS liner with 1/4" coved corners for fast wipe-downs.
- Aluminum-encased evaporator panels maximize contact area for faster pull-down.
- 8" cutting board is supported by 16 ga. stainless brackets—remove it in seconds for deep cleaning.
- 18 ga. #302-SS legs with non-marking bullet feet.
At-a-glance specs
| Model | MACP-3-DR |
|---|---|
| Overall dimensions (W × D × H) | 47-1/8" × 30-3/4" × 34-1/8" |
| Well opening (W × D × H) | 42-5/8" × 20" × 8" |
| Pan capacity | (3) 12" × 20" pans, up to 6-1/4" deep |
| Cutting board | 8" D × 3/8" thick white thermoplastic (removable) |
| Refrigerant | R404A |
| Compressor | 1/5 HP • self-contained |
| Electrical | 120 V / 60 Hz / 1 ph • 8 A • NEMA 5-15P cord (6') |
| Drain | 1" I.P.S. |
| Certifications | ETL us, ETL-Sanitation |
| Shipping weight | 385 lb |
Popular accessories (sold separately)
- SU-45A – 12" × 1" adapter bar for fractional pans
- SU-45B – 20" × 3" adapter bar for varying pan layouts
Important: Unit is designed to maintain cold food temperatures.
Always pre-chill product before placing into the well.
⚠️ This product can expose you to chemicals including ethane, known to the State of California to cause cancer or birth
defects. For more information, visit
www.P65Warnings.ca.gov.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
ETLus, ETL-Sanitation
Height
34.13in
Width
47.13in
Depth
30.75in
Shipping Weight
385.0lbs
Pan Capacity
(3) pan
Working Height
34"
Mobile or Stationary
stationary
Base Finish
stainless steel
Overall Width (side - side)
43" - 48"
Base Construction
stainless steel
Top Construction
stainless steel top
Cooling Type
refrigerated
Base Design
fully enclosed
Specifications
Refrigerated Cold Pan, 47-1/8"W x 30-3/4"D x 34-1/8"H (overall), fully insulated 42-5/8"W x 20"D x 8" deep well (accommodates (3) 12" x 20" pans up to 6-1/4" deep, with additional space below for cold air circulation), digital programmable thermostat, 8"D x 3/8" thick cutting board, enclosed front & sides with rear storage with sliding doors, stainless steel construction, self-contained refrigeration housed in a 16 gauge galvanized under structure, expansion valve, 1" drain, adjustable plastic bullet feet, R290 refrigerant, ETLus, ETL-Sanitation
