Key specifications

Amps
8 Amps
Phase
1-Phase
Dimensions
47.13"W × 30.75"D × 34.13"H
Type
Cold Pan Table
Style
Enclosed Base
Installation Type
Floor Model
Spec sheet
Advance Tabco SKU: MACP-3-BS UPC: 747545184955

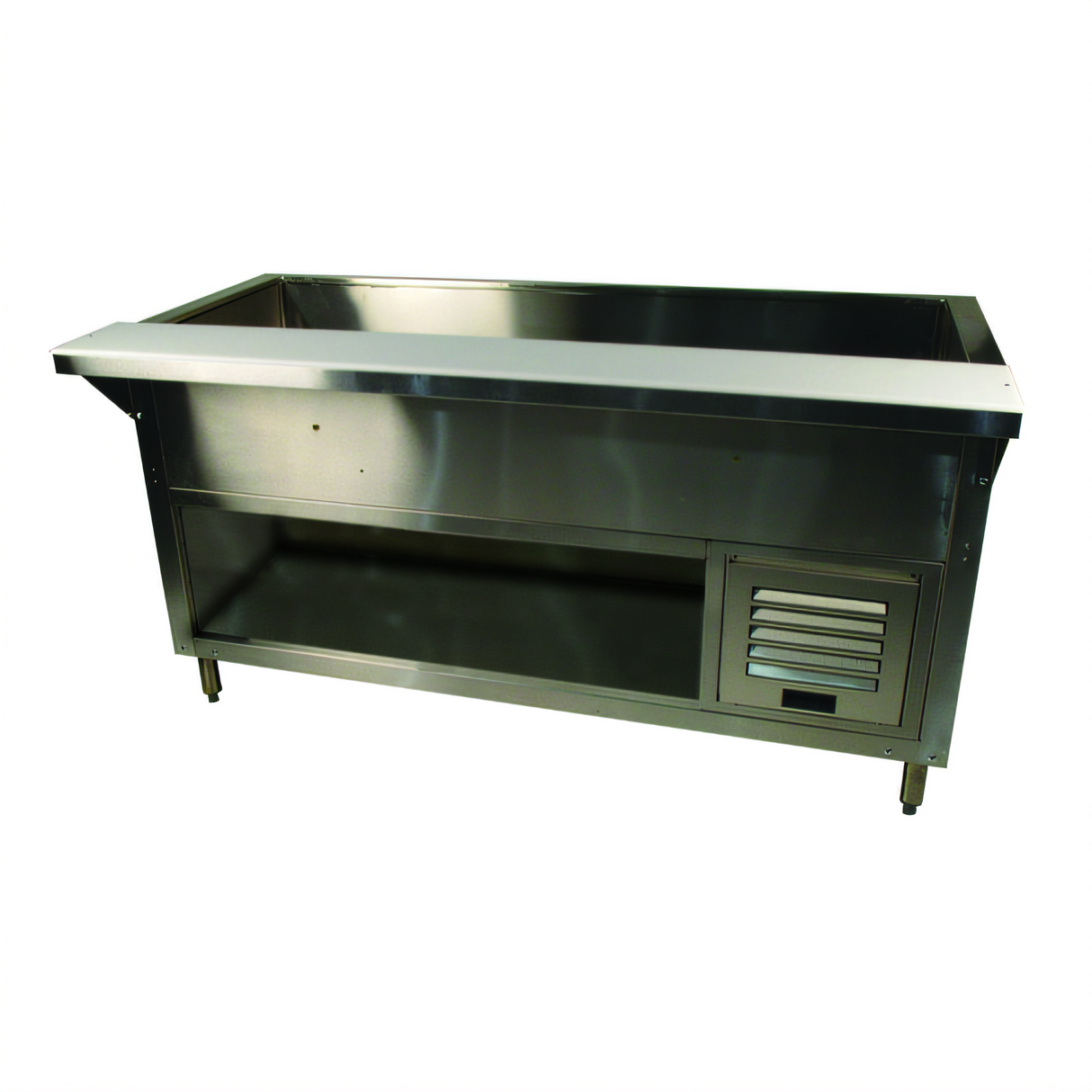

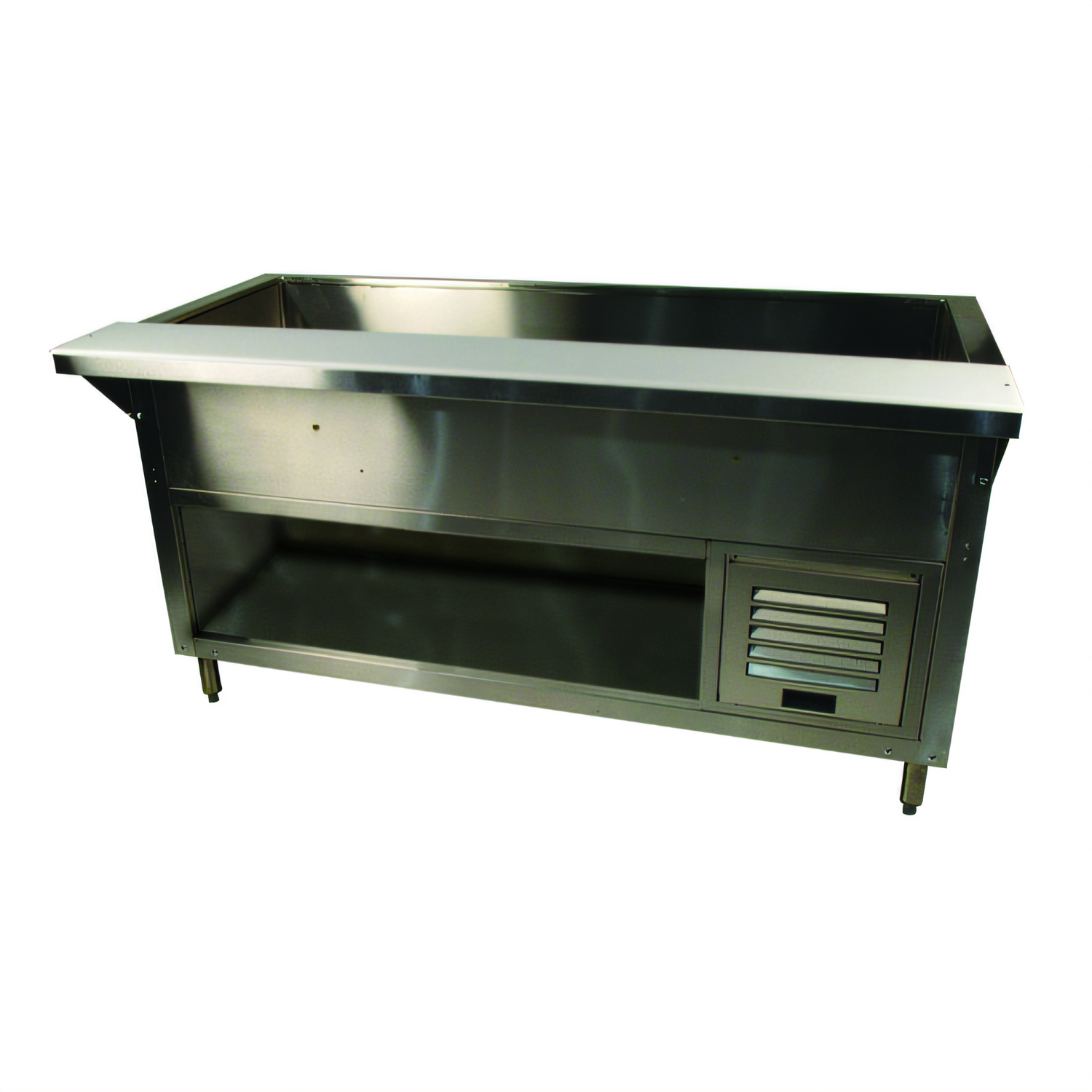

Advance Tabco MACP-3-BS 3-Pan Refrigerated Cold Pan Table

$7,699.00
/each
Estimated to ship in 4–7 business days
Width
Base Style
Factory Add-Ons
Adapter Bars
Included: Advance Tabco warranty 90-day parts-only warranty from factory shipment; on refrigerated models, refrigeration components are covered 12 months parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $712/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Pan Table
Style Enclosed Base
Installation Type Floor Model
Material 304 Stainless Steel
Finish Stainless Steel
Interior Finish Ground And Polished
Pan Capacity 3 Pans
Pan Size 12 x 20 Inches
Well Depth 8 Inches
Refrigeration Type Mechanically Assisted
Refrigerant Type R290
Controls Digital Programmable Thermostat
Voltage 115 Volts
Amps 8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 ft
Compressor Power 1/5 HP
Drain Size 1 Inch IPS
Storage Configuration Rear Open Storage
Cutting Board Depth 8 Inches
Cutting Board Thickness 3/8 Inch

Description

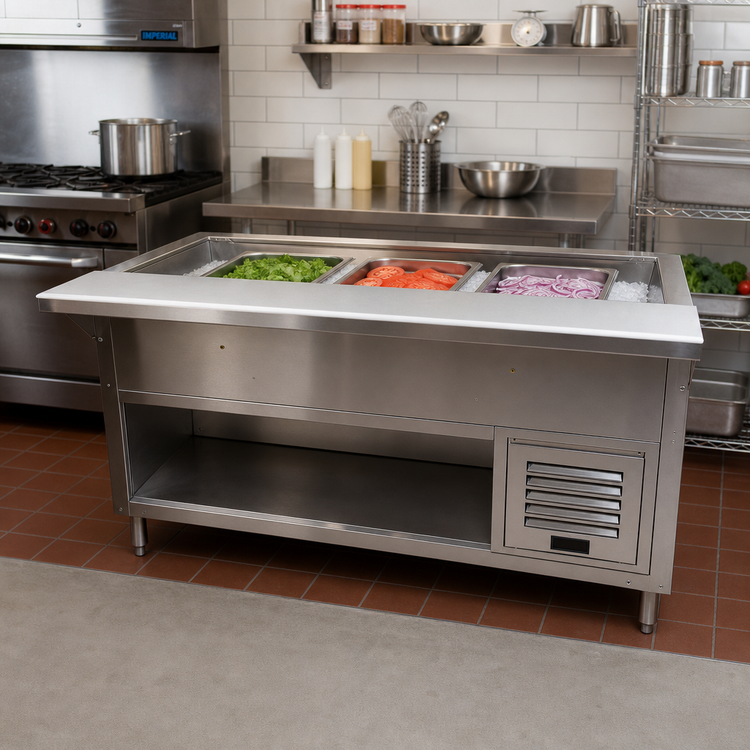

The Advance Tabco MACP-3-BS is a refrigerated cold pan table with an enclosed base and a fully insulated three-pan well.

  • The well measures 42-5/8 inches wide by 20 inches deep by 8 inches deep and accommodates three 12 x 20 inch pans up to 6-1/4 inches deep.
  • The enclosed front and sides provide rear open storage, while the 8-inch-deep cutting board supports food preparation.
  • Self-contained refrigeration uses a digital programmable thermostat, expansion valve, and R290 refrigerant.
  • The table has stainless steel construction, adjustable plastic bullet feet, and a 1-inch drain.

Overall Dimensions:

47.13"W x 30.75"D x 34.13"H

Product Weight:

265.0 lb

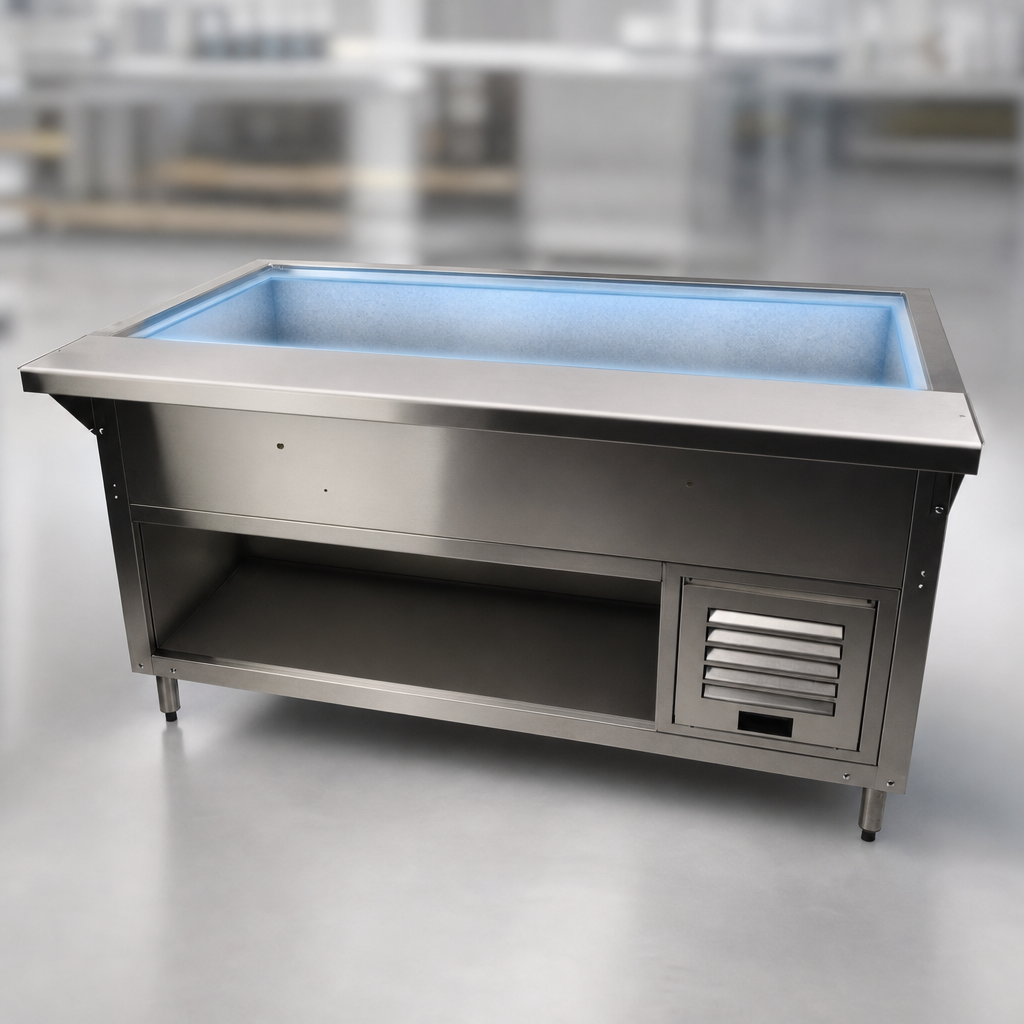

Three-Pan Cold Well

The fully insulated well accommodates three 12 x 20 inch pans up to 6-1/4 inches deep, with additional space below for cold air circulation.

Enclosed Base

The front and sides are enclosed, with rear open storage.

Digital Programmable Thermostat

The self-contained refrigeration system includes a digital programmable thermostat for temperature control.

R290 Refrigeration

The refrigeration system uses R290 refrigerant and an expansion valve.

Stainless Steel Construction

The cabinet base and liner are constructed from 304 stainless steel, with stainless steel legs.

Cutting Board

An 8-inch-deep, 3/8-inch-thick white thermoplastic cutting board is provided.

Drain and Feet

The table includes a 1-inch drain and adjustable plastic bullet feet.

Electrical Connection

The unit is specified for 115-volt, 8-amp, 60 Hz, single-phase operation with an 8-foot cord and NEMA 5-15P plug.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It accommodates three 12 x 20 inch pans up to 6-1/4 inches deep.
The overall dimensions are 47.13 inches wide by 30.75 inches deep by 34.13 inches high.
The unit uses R290 refrigerant.
The manufacturer specifies 115-volt, 8-amp, 60 Hz, single-phase operation with an 8-foot cord and NEMA 5-15P plug.
Yes. The front and sides are enclosed, with rear open storage.
No. The manufacturer notes that the unit is not designed to cool foods that were originally warm; food should already be chilled to maintain proper temperatures.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
